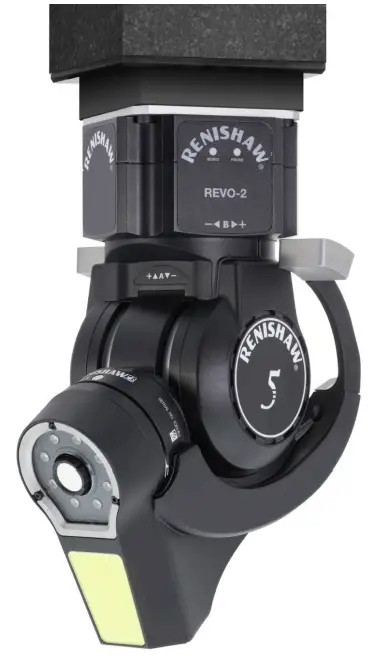

RFP1 Fringe Probe
Highly accurate structured light measurement probe for REVO-2
The REVO® fringe probe (RFP1) is a non-contact structured light sensor for the REVO system offering highly accurate measurement of surface topology on an infinite positioning, 5-axis CMM platform.
RFP1 increases the multi-sensor capability of the REVO system, which now offers interchangeable tactile scanning, touch-trigger, surface finish, non-contact structured light and vision probes.
The RFP1 probe is designed for inspection of free-form surfaces and complex geometry, rapidly delivering patches of surface data with a high point density. The probe projects a fringe pattern onto the part surface, capturing variations in the fringe pattern with the camera to build a point cloud of 3D surface data.
Automatic exposure controls compensate for different surface materials, colours and textures, ensuring optimal data results without the need for matt coatings.
Unlike other non-contact structured light systems, the RFP1 fringe probe does not require reference markers to stitch together data from different patches – this is done automatically by the REVO system. Two new software tools provide easy-to-use inspection planning and digitising. The RFP inspection planner is a tool for path planning and generating DMIS part programs from CAD, whilst the RFP digitiser collects data from parts without CAD models as part of a reverse engineering process.
Key benefits
Multi-sensor system with unrivalled feature access
RFP1 data is automatically stitched together in one co-ordinate frame with no need for reference markers, and combined with data from all other REVO-2 sensors maximises part inspection capability on one CMM.
Automatic exposure compensation
Ensures optimal data results with automatic compensation for different materials, surface colours and textures without the need for matt coatings.
Easy-to-use inspection planning and digitising software
RFP inspection planner generates DMIS part programs from CAD quickly and easily, whilst the RFP digitiser collects data from parts without CAD models as part of a reverse engineering process.
Specification
| Field of view | 50 mm x 50 mm | |
| Depth of field | 20 mm | |
| Stand-off | 160 mm | |
| Rotational capability | A-axis (from REVO-2) | +120° / -5° |
| B-axis (from REVO-2) | Infinite positioning | |
| XY point density (resolution) | 65 pm | |
| Probe repeatability (plane) | 4 pm (2a) | |
| Probe accuracy (position error of a plane) | 9 pm | |
| Measurement form error (plane) | 15 pm RMS | |
| Equivalent scanning speed | 50,000 pts/s | |
| Mounting | Magnetised coupling | |
| Sensor type | 1/1.8″ CMOS sensor | |
| Projector type | Fixed sinusoidal filtering grating | |
| Illumination | A wavelength of 450 nm blue LED | |
| Operating modes | 3D surface point capture 2D vision measurement | |
| Probe head | REVO-2 only | |
| Rack port compatibility | VPCP | |
| Change rack | MRS2 recommended | |
| Software compatibility | UCCsuite 5.6 onwards MODUS 1.11 onwards | |
| Integration | I++ DME protocol | |
| Weight | 530 g | |
| Operating temperature range | +10 °C to +40 °C | |
| Metrology specification range | 20 °C ± 2 °C | |
| Storage temperature range | -25 °C to +70 °C | |
| Operating humidity | 0% to 80% (non-condensing) | |
| Calibration artefact | FA10 | |
| Output | Point cloud data file (.xyz) | |
