21029 Turn-N-Tube Toolless Storage Shelf
Instruction Manual
21029 Turn-N-Tube Toolless Storage Shelf
Assembly Instruction

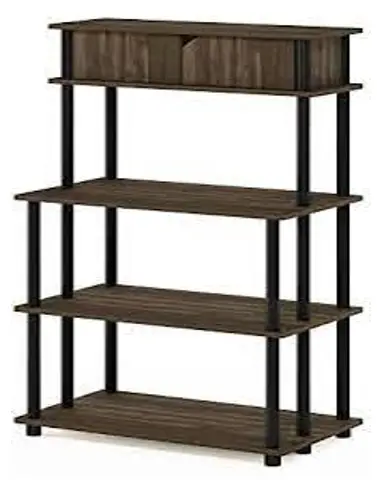

Furinno Turn – N – Tube Toolless Storage
Shelf with Top Cabinet
MODEL: 21029
Customer Support
NEED HELP? For replacement requests or product inquiries, please contact our Customer Service Team by emailing us at [email protected].
Thank you for selecting Furinno!www.furinno.com
HARDWARE AND PART LIST
| NO | HARDWARE LIST | QTY |
| 1 | LONG ROUND POLE | 16 PCS |
| 2 | SHORT ROUND POLE with GROOVE | 4 PCS |
| 3 | PVC ROUND RING  | 4 PCS |
| 4 | ROUND LEG | 6 PCS |
| 5 | DOOR SPRING  | 4 PCS |
| 6 | MAGNET  | 2 PCS |
| 7 | FLAT HEAD SCREW  | 2 PCS |
| 8 | MDF SUPPORT | 2 PCS |

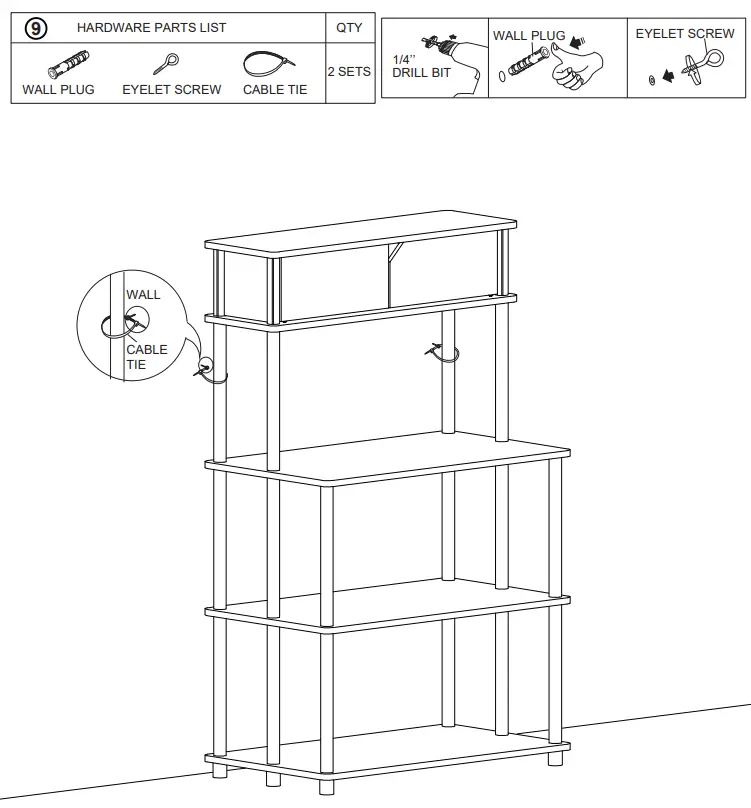

| 9 | WALL MOUNTING SET  | 2 SETS |
| NO | PART LIST | QTY |
| A | TOP PANEL | 1 PC |
| B | UPPER SHELF PANEL | 1 PC |
| C | TOP SHELF PANEL | 1 PC |
| D | CENTER/BOTTOM SHELF PANEL | 2 PCS |
| E | UPPER SIDE PANEL | 2 PCS |
| F | UPPER BACK PANEL | 1 PC |
| G | UPPER RIGHT DOOR PANEL | 1 PC |
| H | UPPER LEFT DOOR PANEL | 1 PC |

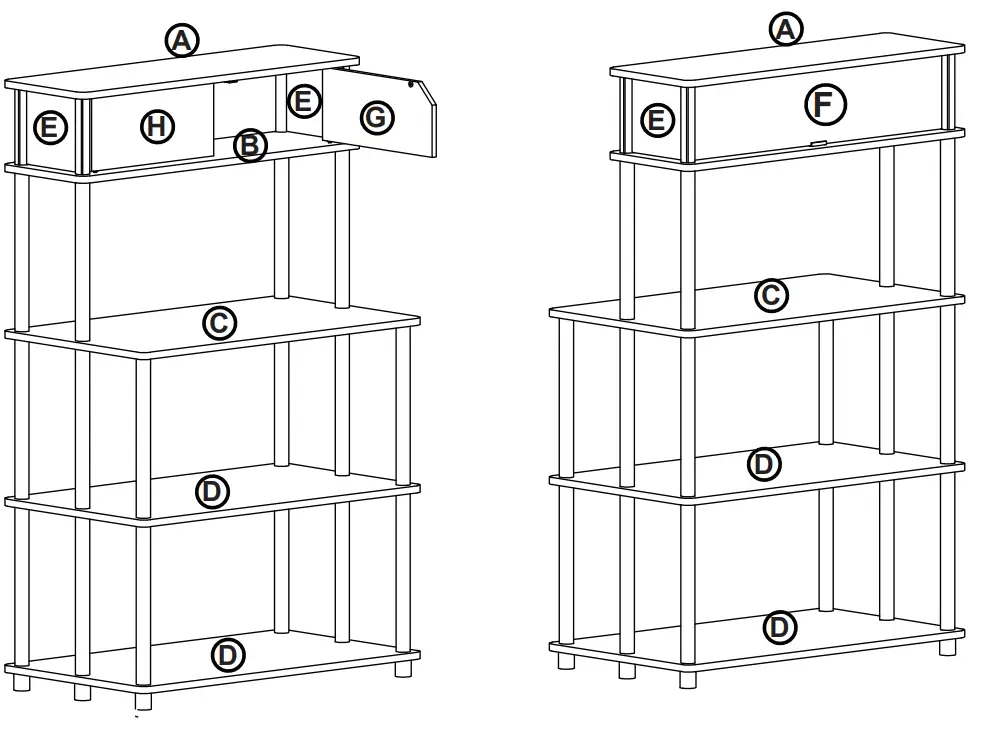

FRONT VIEW
USEFUL HINTS BEFORE YOU START:
- Read each step carefully before starting.
- It is important that each step is performed in the correct order to avoid difficulties.
- Identify, sort, and count the parts before assembly.
- Assemble your furniture on packaging cardboard to prevent scratches or damage.
- Clean the product with a mild cleanser using a soft damped cloth. Do not use harsh or abrasive cleansers.
- Using incompatible hardware might cause damage to the product.
Recommended Maximum Weight
WARNING:
>This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
>DO NOT allow children to climb on the unit.
>Put heavier items on lower shelves.
