Furinno 21177 3-Tier Corner Open Shelf
Customer Support
NEED HELP? For replacement requests or product inquiries, please contact our Customer Service Team by emailing us at [email protected]. Thank you for selecting Furinno!
www.furinno.com
ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY, FOLLOW THEM STEP BY STEP.

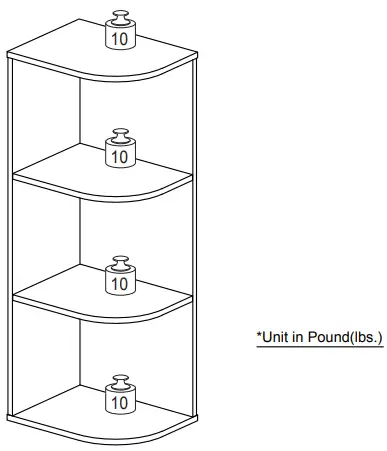

Recommended Maximum Weight
WARNING:
- This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
- DO NOT allow children to climb on unit.
- Put heavier items on lower shelves.

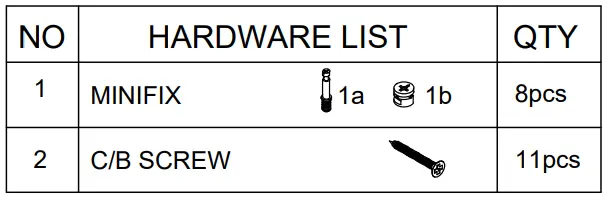

HARDWARE LIST

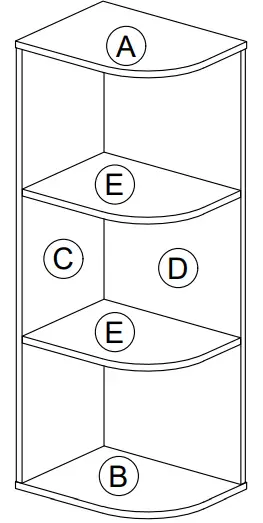

PARTS LIST
| NO | PARTS LIST | QTY |
| A | TOP PANEL | 1pc |
| B | BOTTOM PANEL | 1pc |
| C | LEFT SIDE PANEL | 1pc |
| D | BACK PANEL | 1pc |
| E | SHELF PANEL | 2pcs |
USEFUL HINTS BEFORE YOU START
- Read each step carefully before starting.
- It is important that each step is performed in the correct order to avoid difficulties.
- Identify, sort and count the parts before assembly.
- Assemble your furniture on packaging cardboard to prevent scratches or damage.
- Clean the product with a mild cleanser using soft damped cloth. Do not use harsh or abrasive cleansers.
- Using incompatible hardware might cause damage to the product.
