22061WH White 3-Shelf Standard Bookcase
Instruction Manual

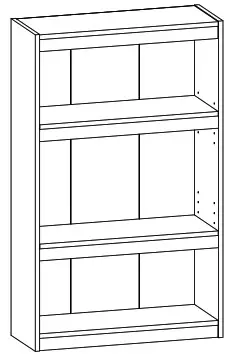

22061WH White 3-Shelf Standard Bookcase
 |  |  |
Assembly Instruction
Furinno JAYA Enhanced Home 3-Tier
Adjustable Shelf Bookcase
MODEL : 22061
HARDWARE & PARTS LIST
| NO | HARDWARE LIST | QTY |
| 1 | MINIFIX  | 8pcs |
| 2 | L BRACKET  | 8pcs |
| 3 | PWA C/B SCREW  | 16pcs |
| 4 | SHELF SUPPORT  | 8pcs |
| 5 | POWER PIN  | 28pcs |

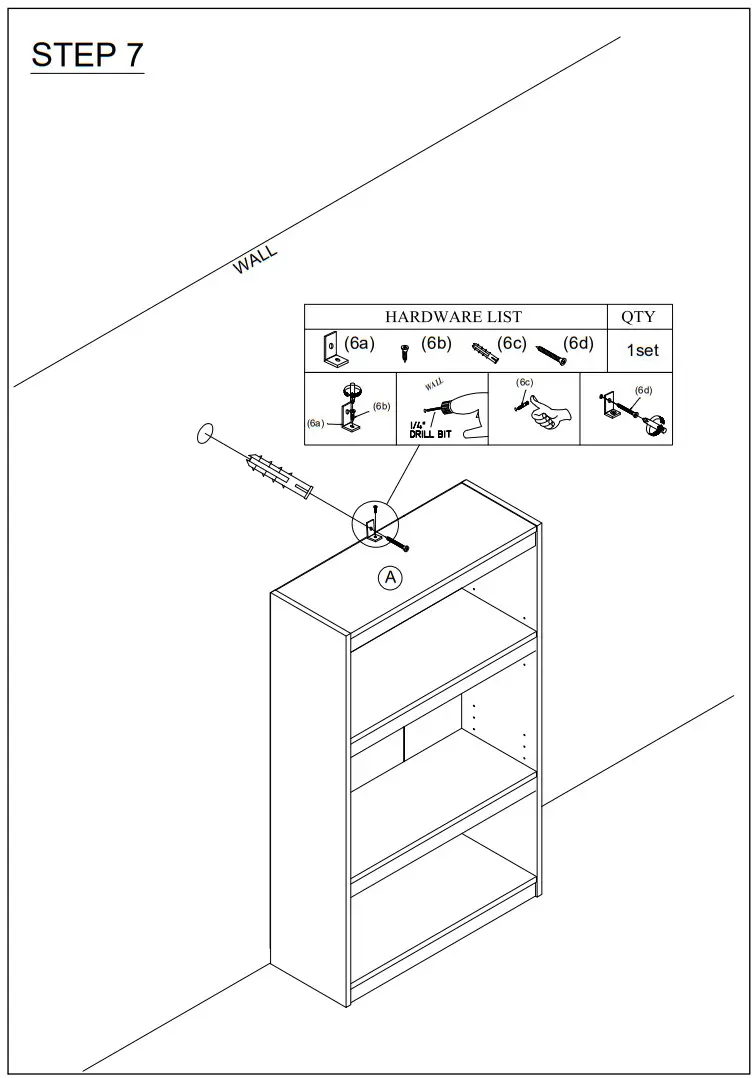

| 6 | WALL MOUNTAIN SET | 1set |

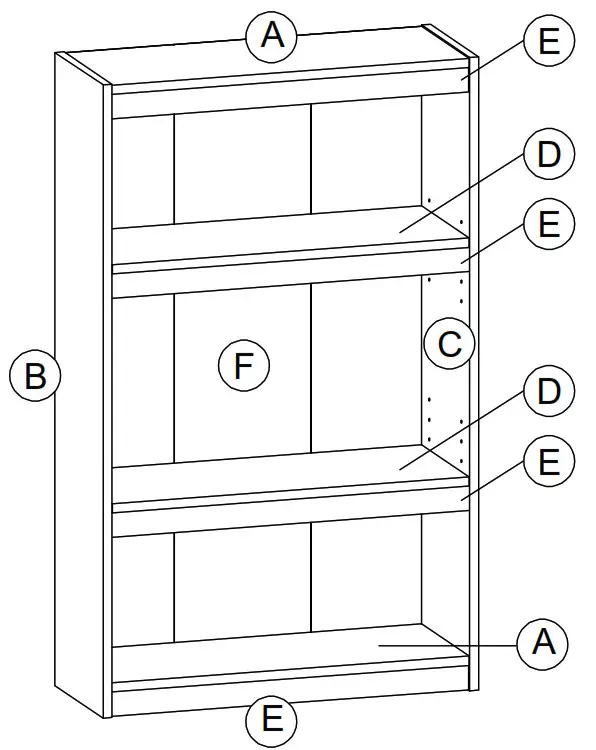

| NO | PARTS LIST | QTY |
| A | TOP / BOTTOM PANEL | 2pcs |
| B | LEFT SIDE PANEL | 1pc |
| C | RIGHT SIDE PANEL | 1pc |
| D | LENAP FLEHS | 2 cp2 |
| E | RAB TROPPUS | 4cp4 |
| F | LENAP KCAB | 1p1 |
USEFUL HINTS BEFORE YOU START:
- Read each step carefully before starting.
- It is important that each step is performed in correct order to avoid difficulties.
- Identify, sort and count the parts before assembly.
- Assemble your furniture on packaging cardboard to prevent scratch or damage.
- Clean the product with mild cleanser using soft damped cloth. Do not use harsh or abrasive cleanser.
- Using uncompatible hardware might cause damage to product.

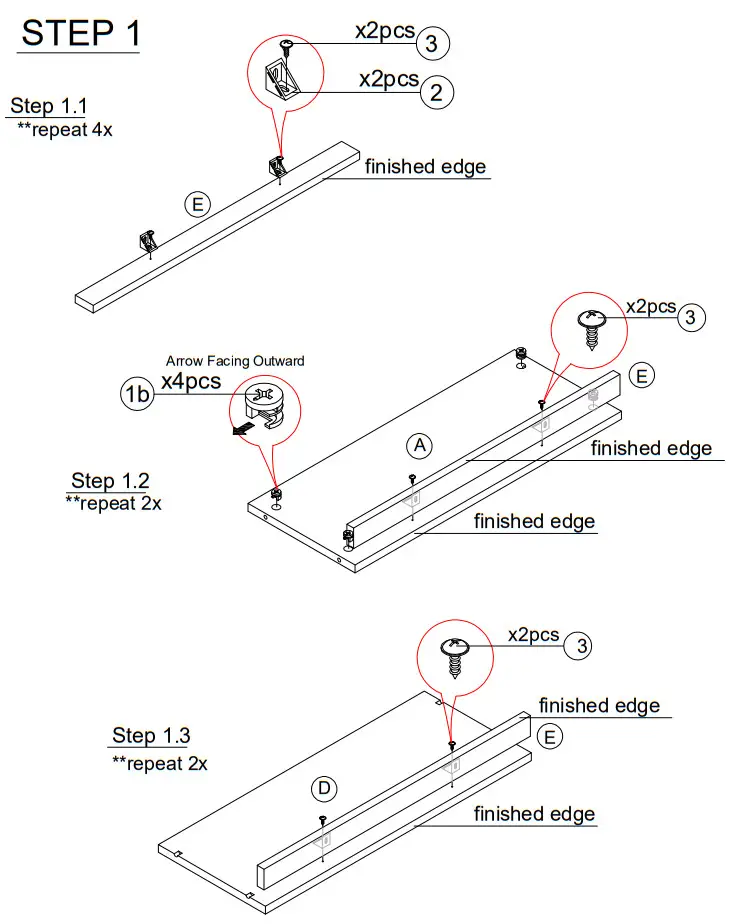

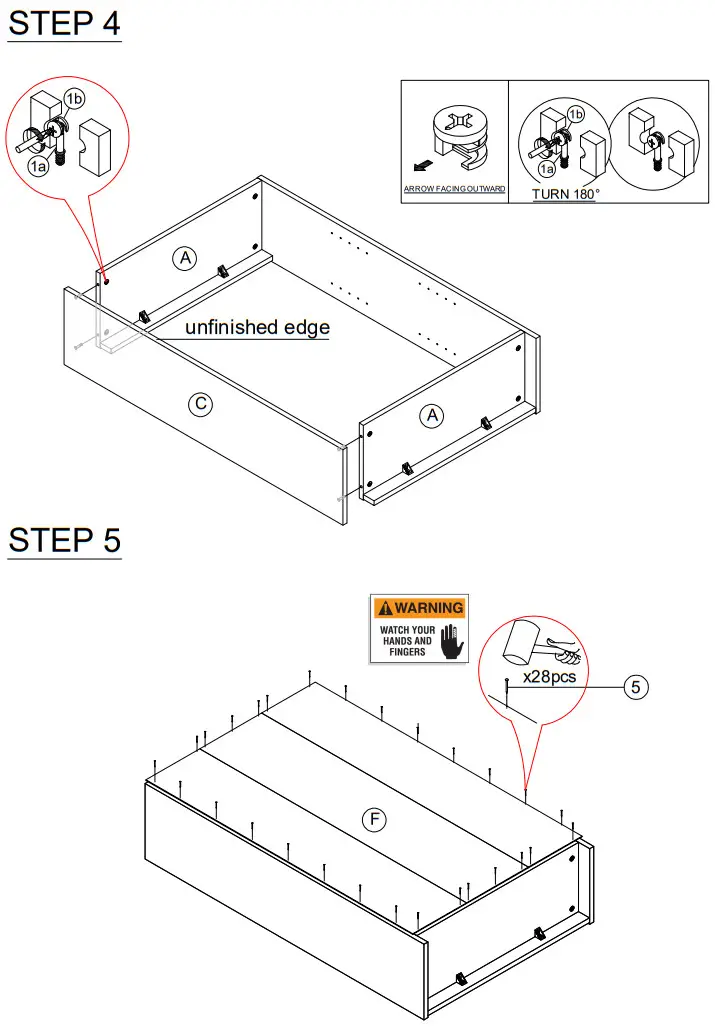

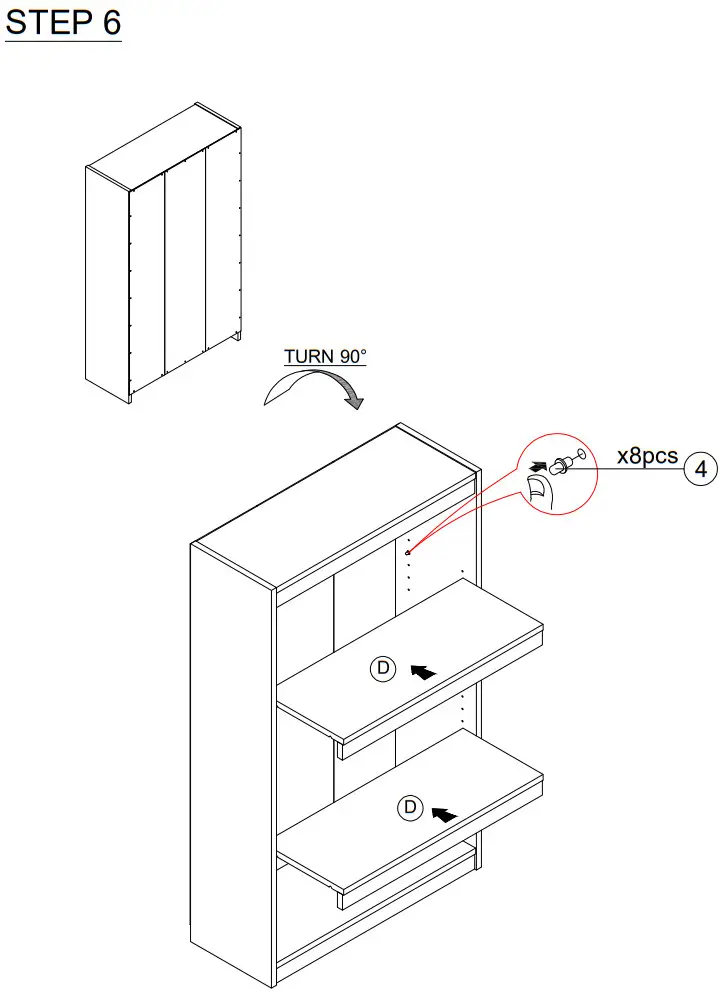

ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY, FOLLOW THEM STEP BY STEP.

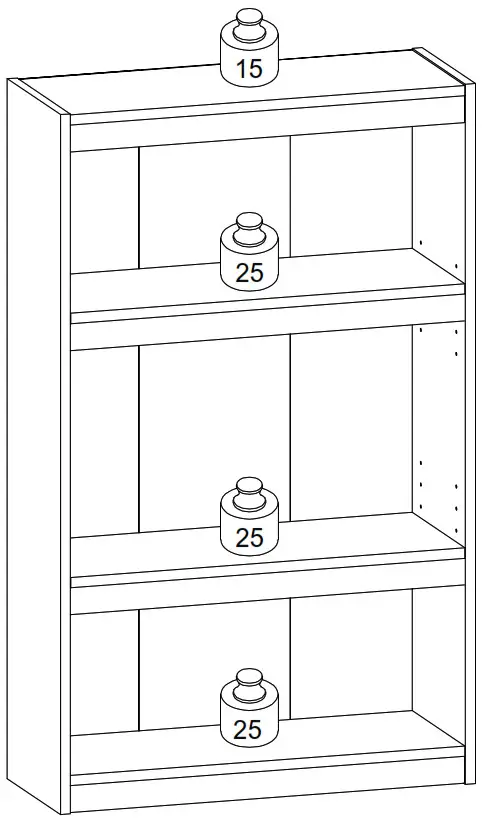

Recommended Maximum Weight
*Unit in Pound(lbs.)
WARNING:
>This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
> Put heavier items on lower shelves.
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
[email protected]. Thank you for selecting Furinno!
