Autonics Bjx Series Rectangular Photoelectric Sensors Instruction Manual

Autonics BJX Series Rectangular Photoelectric Sensors

Product Information

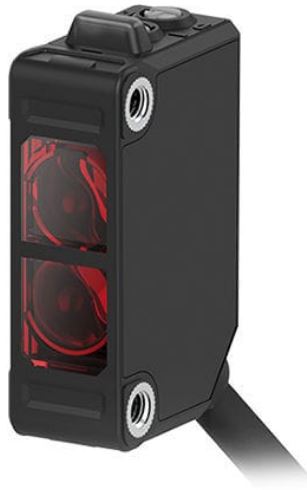

The Transparent Guide Rectangular Photoelectric Sensors BJX Series is a product used for sensing applications. The product is available in three sensing types: Through-beam, Polarized retroreflective, and Diffuse reflective. The product has a stable and an unstable light on/off area, and it operates on a 10-30 VDC power supply. The product comes with a reflector, MS-2A, and Bracket A or B (depending on the cable or connector type). The product is sold separately, and the ordering information is provided in the manual.

Product Usage Instructions:

Before using the product, read the safety considerations and cautions mentioned in the instruction manual carefully. Failure to follow the instructions may result in serious injury, death, or product damage.

Safety Considerations

• Install a fail-safe device when using the unit with machinery that may cause serious injury or substantial economic loss.
• Do not use the unit in places where flammable/explosive/corrosive gas, high humidity, direct sunlight, radiant heat, vibration, impact, or salinity may be present.
• Do not disassemble or modify the unit.
• Do not connect, repair, or inspect the unit while connected to a power source.
• Check connections before wiring.

Cautions

• Use the unit within the rated specifications.
• Use a dry cloth to clean the unit and do not use water or organic solvent.

Cautions during Use:

• Follow the installation instructions for Through-beam,Retroreflective, and Reflective types.

Setting Operation Mode:

• Set the operation mode to L (Light ON) or D (Dark ON) mode.
  For detailed information on product components, ordering information, and connections, refer to the instruction manual.

Thank you for choosing our Autonics product.
Read and understand the instruction manual and manual thoroughly before using the product.
For your safety, read and follow the below safety considerations before using.
For your safety, read and follow the considerations written in the instruction manual, other manuals and Autonics website.
Keep this instruction manual in a place where you can find easily.
The specifications, dimensions, etc. are subject to change without notice for product improvement. Some models may be discontinued without notice.
Follow Autonics website for the latest information.

Safety Considerations

Observe all ‘Safety Considerations’ for safe and proper operation to avoid hazards.
symbol indicates caution due to special circumstances in which hazards may occur.

Warning Failure to follow instructions may result in serious injury or death.

1. Fail-safe device must be installed when using the unit with machinery that may cause serious injury or substantial economic loss. (e.g., nuclear power control, medical equipment, ships, vehicles, railways, aircraft, combustion apparatus, safety equipment, crime/disaster prevention devices, etc.) Failure to follow this instruction may result in personal injury, economic loss or fire.
2. Do not use the unit in the place where flammable/explosive/corrosive gas, high humidity, direct sunlight, radiant heat, vibration, impact or salinity may be present.
   Failure to follow this instruction may result in explosion or fire.
3. Do not disassemble or modify the unit.
   Failure to follow this instruction may result in fire.
4. Do not connect, repair, or inspect the unit while connected to a power source.
   Failure to follow this instruction may result in fire.
5. Check ‘Connections’ before wiring.
   Failure to follow this instruction may result in fire.

Caution Failure to follow instructions may result in injury or product damage.

1. Use the unit within the rated specifications.
   Failure to follow this instruction may result in fire or product damage.
2. Use a dry cloth to clean the unit, and do not use water or organic solvent.
   Failure to follow this instruction may result in fire.

Cautions during Use

• Follow instructions in ‘Cautions during Use’. Otherwise, It may cause unexpected accidents.
• When connecting an inductive load such as DC relay or solenoid valve to the output,remove surge by using diodes or varistors.
• Use the product after 0.5 sec of the power input.
• When using a separate power supply for the sensor and load, supply power to the sensor first.
• 10-30 VDC power supply should be insulated and limited voltage/current or Class 2,SELV power supply device.
• Wire as short as possible and keep it away from high voltage lines or power lines to prevent surge and inductive noise.
• When using switching mode power supply (SMPS), ground F.G. terminal and connect a condenser between 0V and F.G. terminal to remove noise.
• When using a sensor with a noise-generating equipment (e.g., switching regulator, inverter, and servo motor), ground F.G. terminal of the equipment.
• This unit may be used in the following environments.
  • Indoors (in the environment condition rated in ‘Specifications’)
  • Altitude max. 2,000 m
  • Pollution degree 3
  • Installation category II

Product Components

Cable type, cable connector type: Bracket A, connector type: Bracket B

Ordering Information

This is only for reference, the actual product does not support all combinations.
For selecting the specified model, follow the Autonics website

1. Sensing distance
   Number: Sensing distance (unit: mm)
   Number+M: Sensing distance (unit: m)
2. Sensing type
   T: Through-beam
   P: Polarized retroreflective
   D: Diffuse reflective
3. Connection
   No mark: Cable type
   C: Connector type
4. Control output
   No mark: NPN open collector output
   P: PNP open collector output

Sold Separately

• Reflector: MS Series
• Retroreflective tape: MST Series
• Bracket A, B
• Connector cable, connector connection cable

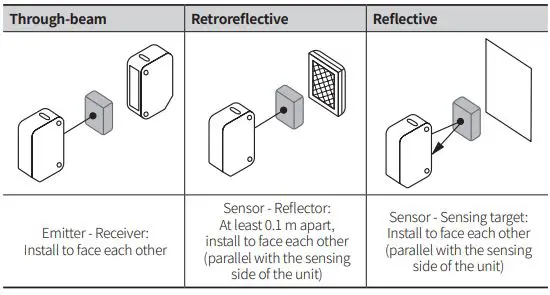

Cautions during Installation

• Be sure to install this product by following the usage environment, location, and specified ratings. Consider the listed conditions below.
  • Installation environment and background (reflected light)
  • Sensing distance and sensing target
  • Direction of target’s movement
  • Feature data
• When installing multiple sensors closely, it may result in malfunction due to mutual interference.
• For installation, tighten the screw with a torque of 0.5 N m. Mount the brackets correctly to prevent the twisting of the sensor’s optical axis.
• Do not impact with a hard object or bend the cable excessively. That could decrease the product’s water resistance.
• Use this product after the test. Check whether the indicator works appropriately for the positions of the detectable object

Setting Operation Mode

• Be sure to set the mode before power-on.
• Use the offered adjustment screwdriver. Do NOT turn with excessive force to prevent product damage.

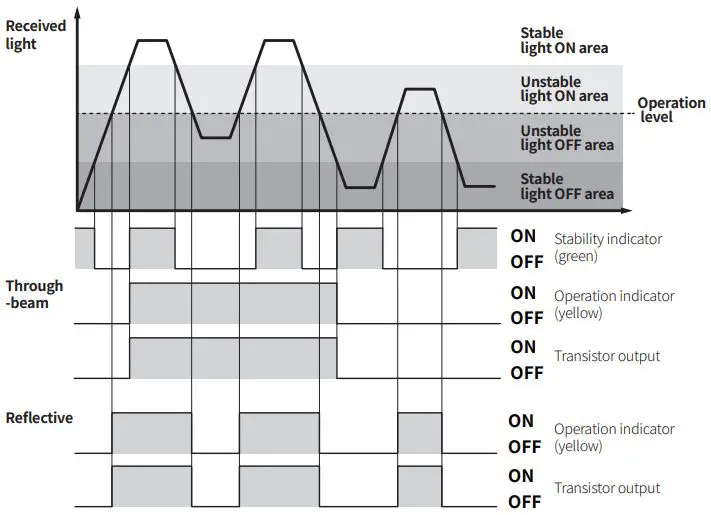

Operation Timing Chart

Light ON mode

In Dark ON mode, the waveforms are reversed.
Operation indicator and transistor output differ from the sensing method.

Connections

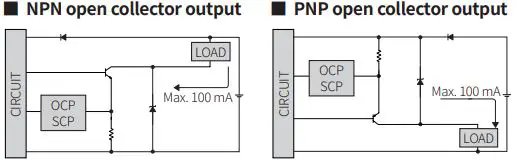

Circuit

OCP (over current protection), SCP (short circuit protection)
If short-circuit the control output terminal or supply current over the rated specification, normal control signal is not output due to the protection circuit

Sensitivity Adjustment

• Set the adjuster for stable Light ON area, minimizing the effect of the installation environment.
• Use the offered adjustment screwdriver. Do NOT turn with excessive force to prevent product damage.
• The steps below are based on Light ON mode.

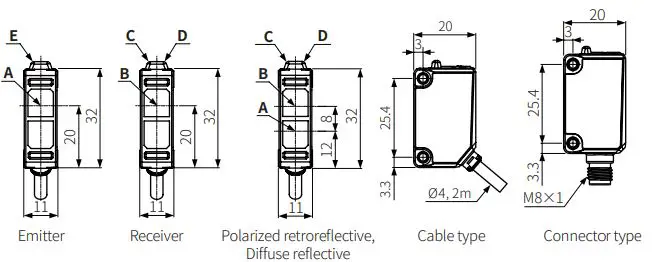

Dimensions

• Unit: mm, For the detailed drawings, follow the Autonics website.
• This dimensions shows the cable type and connector type.
  Refer to the ‘Specifications’ for the core, wiring, and connector spec.
  • A Optical axis of emitter
  • B Optical axis of receiver
  • C Operation indicator (yellow)
  • D Stability indicator (green)
  • E Power indicator (red)

Specifications

Model	BJX□-TDT-□-□			BJX3M-PDT-□-□	BJX□-DDT-□-□
Sensing type	Through-beam			Polarized retroreflective	Diffuse reflective
Sensing distance	10 m	15 m	30 m	3 m 01)	100 mm 02)	300 mm 02)	1 m 03)
Sensing target	Opaque materials			Opaque materials	Opaque materials, translucent materials
Min. sensing target	≥ Ø 15 mm			≥ Ø 75 mm	–
Hysteresis	–			–	≤ 20 % of sensing distance
Response time	≤ 1 ms
Light source	Red LED	Infrared	Red LED	Red LED	Infrared	Red LED	Red LED
Peak emission wavelength	660 nm	850 nm	660 nm	660 nm	850 nm	660 nm	660 nm
Sensitivity adjustment	YES (Adjuster)			YES (Adjuster)	YES (Adjuster)
Mutual interference prevention	–			YES	YES
Operation mode	Light ON mode – Dark ON mode selectable (Adjuster)
Indicator	Operation indicator (yellow), stability indicator (green), power indicator (red) 04)
Approval

1. Reflector (MS-2A)
2. Non-glossy white paper 100 × 100 mm
3. Non-glossy white paper 300 × 300 mm
4. Only for the emitter

Power supply	10-30 VDCᜡ ±10 % (ripple P-P: ≤ 10 %)
Current consumption	It depends on the sensing type
Through-beam	Emitter: ≤ 20 mA, receiver: ≤ 20 mA
Reflective	≤ 30 mA
Control output	NPN open collector output / PNP open collector output model
Load voltage	≤ 30 VDC
Load current	≤ 100 mA
Residual voltage	NPN: ≤ 1 VDC, PNP: ≤ 2 VDC
Protection circuit	Reverse power protection circuit, output short overcurrent protection circuit
Insulation resistance	≥ 20 MΩ (500 VDC megger)
Noise immunity	±240 VDC the square wave noise (pulse width: 1 ㎲) by the noise simulator
Dielectric strength	1,000 VAC 50/60 Hz for 1 min
Vibration	1.5 mm double amplitude at frequency of 10 to 55 Hz (for 1 min) in each X, Y, Z direction for 2 hours
Shock	500 m/s² (≈ 50 G) in each X, Y, Z direction for 3 times
Ambient illuminance (receiver)	Sunlight: ≤ 11,000 lx, incandescent lamp: ≤ 3,000 lx
Ambient temperature	-25 to 60 ℃, storage: -40 to 70 ℃ (no freezing or condensation) 01)
Ambient humidity	35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation)
Protection rating	IP65 (IEC standard)
Connection	Cable type / Connector type model
Cable spec.	Ø 4 mm, 3-wire (Emitter: 2-wire), 2 m
Wire spec.	AWG26 (0.52 mm, 20-core), insulator outer diameter: Ø 1 mm
Connector	M8 4-pin plug type
Material	Case: PC, CAP: PC, sensing part: PMMA

UL approved ambient temperature: 40 ℃
