iNGCO ACN50401 2 In 1 Combo Brad Nailer User Manual
Important Safety Rules
- KEEP CHILDREN AWAY. All children should be kept away from the work area. Don’t let them handle the tool.

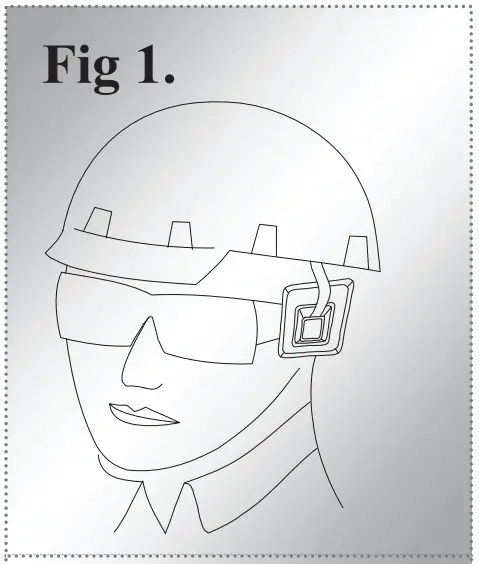

- USE SAFETY GLASS AND EAR PROTECTION: Air tool operators and others in work area should always wear safety glass to prevent the injury from fasteners and flying debris when loading and unloading this too I. Maybe the noise would hann hearing, wear the ear protection to safeguard. (See fig 1.)

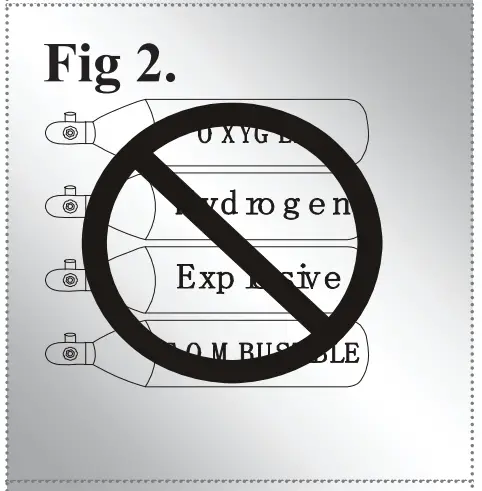

- NEVER USE OXYGEN, COMBUSTIBLE OR ANY OTHER BOTTLE GAS as a power source or would cause explosion and serious personal injury. (See fig 2.)
- DO NOT CONNECT TOOL TO COMPRESSED AIR which pressure exceeds 120psi.
- DO NOT PLACE OVER-LONG AIR HOSE in working area in case of the operator’s unexpected tripping .Make sure all connections are tight
- CARRING TOOL ONLY BY THE HANDLE do not keep the trigger pull on safety yoke mechanism to avoid unitentional firing of fastener.
- KEEP THE TOOL POINTED AWAY FROM YOURSELF and others at all time and keep hands, any body pans away rear area to Safety guard against possible injury.
- DISCONNECT TOOL FROM AIR SUPPLY BEFORE LOADING fasteners to prevent a fastener from being fired during connection.

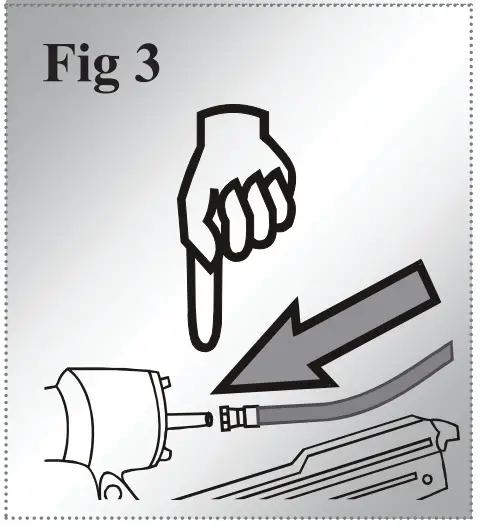

(See 1%3.)
- DO NOT KEEP THE TIRGGER OR SAFETY DEPRESSED during loading fasteners or the unintentional firing of a fastener would cause personal injury.
- DISCONNECT TOOL FROM AIR SUPPLY HOSE and close the compressor before performing maintenance. alter the accessories or during non-operation.
- DO NOT DRIVE FASTENER ON SCAFFOLDINGS,LADDERS and on such similarly construction, not working on airtight case, and vehicles.
- DO NOT DRIVE FASTENERS CLOSE TO THE EDGE OF THE WORK PIECE. The work piece would split allowing fastener to fly free or ricochet causing personal injury.
- DO NOT DRIVE FASTENER ON TOP OF NAILED FASTENER, or the fastener can ricochet causing personal injury.
- NEVER USE A TOOL that is leaking air, had missing or damaged pans or requires repair and make sure all the screws and securely tightened.
- MAKE DAILY INSPECTION FOR FREE MOVEMENT of trigger, safety mechanism and spring to insure the tool can operate well.
- ONLY USE PARTS AND ACCESSORIES recommend by manufacturer. 2
Specification
- Capacity 100pcs
- Nail length 15-50mm (5/8″ – 2″ )
- Staple length 16-40mm (5/8″- 1-5/8″ )
- Fastener size 18Gauge (1.25 X 1.001nm) nails
18Gauge(1.25 X 1.00mm) staples - Operation pressure 60-100PSI (4-7bar)
- Air inlet 1/4″ N.P.T.
- Dimension 55 X 245 X 250mm
- Weight 1 5kgs
Accessories included:
- 1000pcs brads (501nm)
- 200pcs staples (40mm)
- 1pcs safety goggles
- 1pcs oil bottle
- 2pcs hex keys
Operating instruction

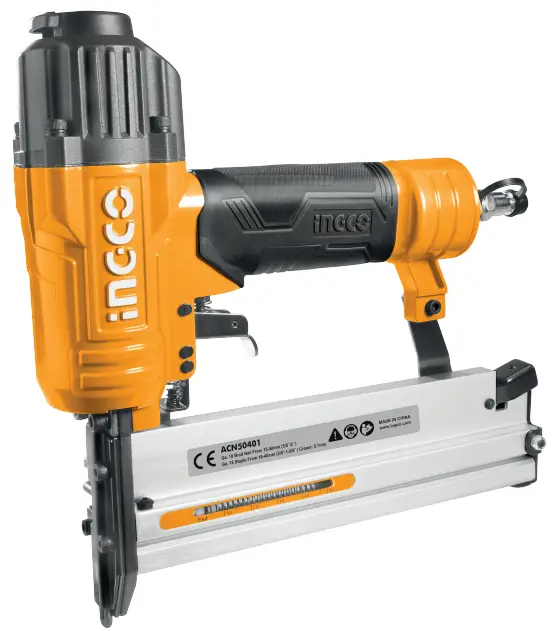

Model ACN50401 drives Ga.18 finish nails from 15mm to 50mm length and Ga.I8 staples from 16mm to 40mm length. 2 in 1 magazine, shoot staples and finis h nails without adjustment. Large cast alum inum body provides more power to easily drive nails in to hard wood. Comfort grip rubber handle for improved control and comfort even during extended use. Features 360-degree exhaust port can be adjusted to any direction. Continue firing for high efficient working. Narrow nose is idea for door and window trims, exterior trims, and cabinet work, finish paneling, decorative trims, furniture making and etc.
Air supply
- Use clean, Dry and Regulated compressed air at 4-7 bar (60-100psi)
- Never exceed maximum and minimum pressure. Too low or too high pressure would cause noise, fast-worn or misfiring.
- When connecting air supply always keep hands and body from discharge area of tool.
- A filter-regulator-lubrication is required and should be located as close to tool as possible.
- Keep air filter clean. A dirty filter will reduce the air pressure to the tool causing a reduction in power and efficiency.

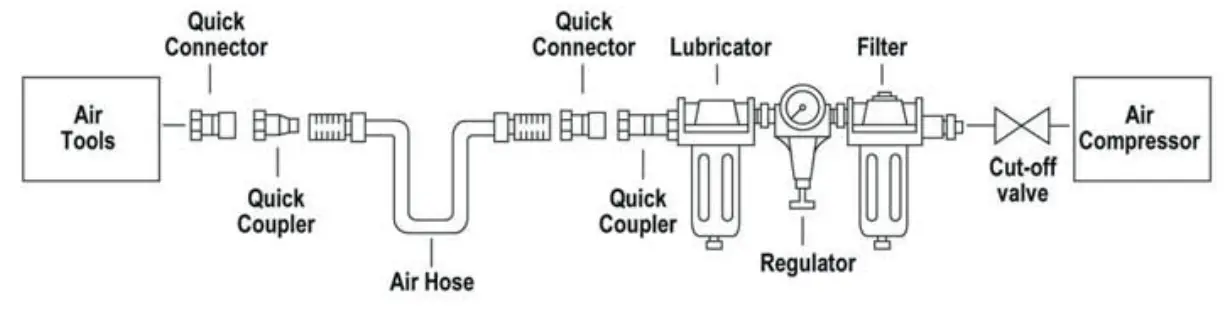

- For better performance, install a quick connector in your tool and quick coupler on the host if possible.
- BE sure all connections in air supply system are scaled to prevent air loss.
Loading fastener and operation
WARNING:
Always disconnect the tool from the compressed air before loading. W hen loading the tool always point the tool away from yourself and others. Make sure that you are not holding the tool with trigger depressed while loading the tool.
- Insert a strip of fasteners into magazine keeping it point down.
- Release the latch and pusher, slid the pusher against the nails.
- Connect the tool to the air supply. Make sure the air pressure is in the correct range denoted in the Technical Data.
- Then test the driving depth in a sample piece of wood before using. If the fasteners are being driven too far or not far enough. adjust the regulator to provide less air pressure or more air pressure.
- Never operate tool unless safety nose is contact with work piece. Do not operate tool without fasteners or damage to tool may result.
- Never fire fasteners into air because fasteners may injury operator or others and damage to tool may result.
- The air tool is equipped with safety st and mechanism that disable tool unless safety stand is pushed against work. hold gun body firmly and press safety stand on work piece where fastener is to be applied. Pull the trigger to drive fastener into work piece.
- This operating procedure provides rapid-fire fastener driving. Never operate tool unless safety stand is in contact with work piece.
Maintenance
WARNING:
Disconncct the tool from the air compressor before adjusting, clearing jam s, servicing,
relocating and during non operation.
- Regular lubrication, if your tool without using the in-liner automatic oilier, place 2 or 6 drops of pneumatic tool oil into the air inlet before each work day or after 2 hours of continuous use depending on the ch aracteristic of workplace or type of fasteners.
- Check and change all worn or damaged o-rings, seals. etc. Tight all the screws and caps in case personal injury.
- Inspect trigger and safety mechanism to assure safe system is complete and functional: no loose and missing parts, no building or sticking parts.
- Keep magazine and nose of tool clean and free of any dirt lint or abrasive particles. 4
Troubleshooting
The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it.
WARNING:
f any of the following symptoms appears during your operating, stop using the tool immediately, or serious
personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool. Disconnect tool from air supply before attempting repair or adjustment. When replacing 0-rings or Cylinder lubricate with air tool oil before assembly.
| SYMPTOM | PROBLEM | SOLUTIONS |
| Air leak near top of tool or in trigger area |
|
|
| Air leak near bottom of tool. |
|
|
| Air leak between body and cylinder cap. |
|
|
deep. |
|
|
| Tool does not operate well: can not drive fastener or operate sluggishly. |
|
|
| Tool skips fasteners. |
|
|
| Tool jams. |
|
|

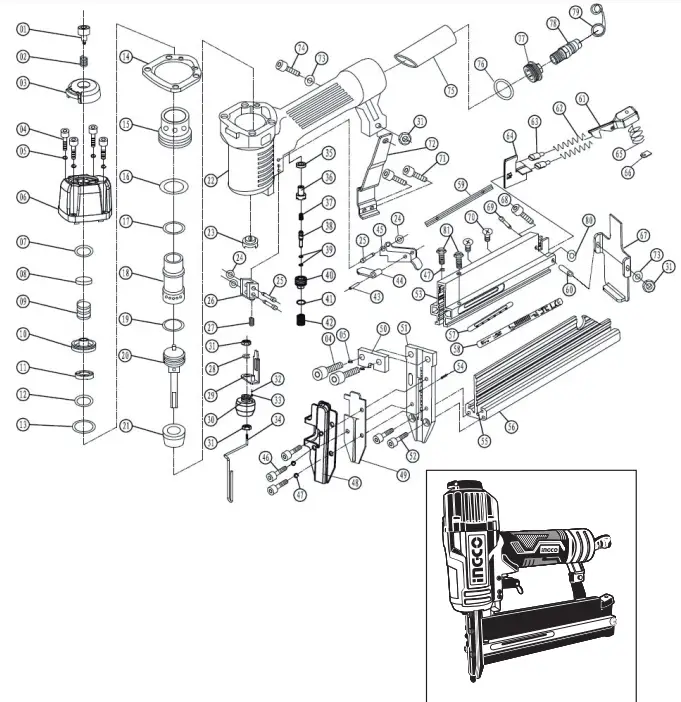

EXPLODED VIEW
| ACN50401 | |||||
| NO. | Part Description | Qtv | NO. | Part Description | Qtv |
| 1 | Bolt | 1 | 42 | trigger handle Spring | 1 |
| 2 | Deflector Spring | 1 | 43 | Pin 2.5×16 | 1 |
| 3 | Air Deflector | 1 | 44 | Safety Spacer | 1 |
| 4 | Bolt M5x20 | 6 | 45 | Trigger | 1 |
| 5 | Spring Washer 5 | 6 | 46 | Bolt M4x10 | 3 |
| 6 | Cylinder Cover | 1 | 47 | spring washer 4 | 5 |
| 7 | 0-ring 13.7×2.4 | 1 | 48 | TUV Safety Cover | 1 |
| 8 | sealing Washer | 1 | 49 | Cover plate | 1 |
| 9 | Compressed Spring | 1 | 50 | Sticker Plate | 1 |
| 10 | Switch Valve | 1 | 51 | Driver Guide | 1 |
| 11 | bumper Washer | 1 | 52 | Bolt M4x14 | 2 |
| 12 | 0-ring 31.2×2.5 | 1 | 53 | Movable Magazine | 1 |
| 13 | 0-ring 24.8×3.5 | 1 | 54 | Pin 1.5×10 | 1 |
| 14 | sealing spacer | 1 | 55 | Inlay Slice | 1 |
| 15 | Collar | 1 | 56 | Fixed Magazine | 1 |
| 16 | 0-ring 41.7×3 | 1 | 57 | Indicate Label | 1 |
| 17 | 0-ring 26.2×2.4 | 1 | 58 | Magazine Label | 1 |
| 18 | Cylinder | 1 | 59 | Slice | 1 |
| 19 | 0-ring 21×3 | 1 | 60 | Pipe | 1 |
| 20 | Main piston | 1 | 61 | Fixed Seat | 1 |
| 21 | Bumper | 1 | 62 | Compressed Spring | 2 |
| 22 | Gun Body | 1 | 63 | Pusher Pipe | 2 |
| 23 | Rubber Washer | 1 | 64 | Tip Stand | 1 |
| 24 | 0-ring 1.7×2 | 3 | 65 | Compressed Spring | 1 |
| 25 | Step Pin | 3 | 66 | Spacer | 1 |
| 26 | Slide Stand | 1 | 67 | Support Seat | 1 |
| 27 | Compressed Spring | 1 | 68 | Bolt M4x38 | 1 |
| 28 | E-ring 6 | 1 | 69 | Step Pin | 1 |
| 29 | TUV guide stand | 1 | 70 | Screw M4x6 | 2 |
| 30 | TUV Adj. Nut | 1 | 71 | Bolt M4x6 | 2 |
| 31 | Nut M4 | 4 | 72 | fixed seat | 1 |
| 32 | Pusher Spring | 1 | 73 | Bolt washer 4 | 2 |
| 33 | Steel ball Dw=2 | 1 | 74 | Bolt M4x20 | 1 |
| 34 | TUV safety nose | 1 | 75 | Rubber Handle Case | 1 |
| 35 | Rectangle Washer | 1 | 76 | 0-ring 36.3 x 3.55 | 1 |
| 36 | Trigger Valve Guide | 1 | 77 | End Cap | 1 |
| 37 | trigger stem Spring | 1 | 78 | Air Inlet Plug | 1 |
| 38 | Trigger Valve Stem | 1 | 79 | Air Inlet Plug case | 1 |
| 39 | 0-ring 2.5×1.5 | 2 | 80 | 0-ring 2.4×1.6 | 1 |
| 40 | Trigger Valve Seat | 1 | 81 | Bolt M4x14 | 2 |
| 41 | 0-ring 11.2×2 | 1 | 82 | PLUG | 1 |
