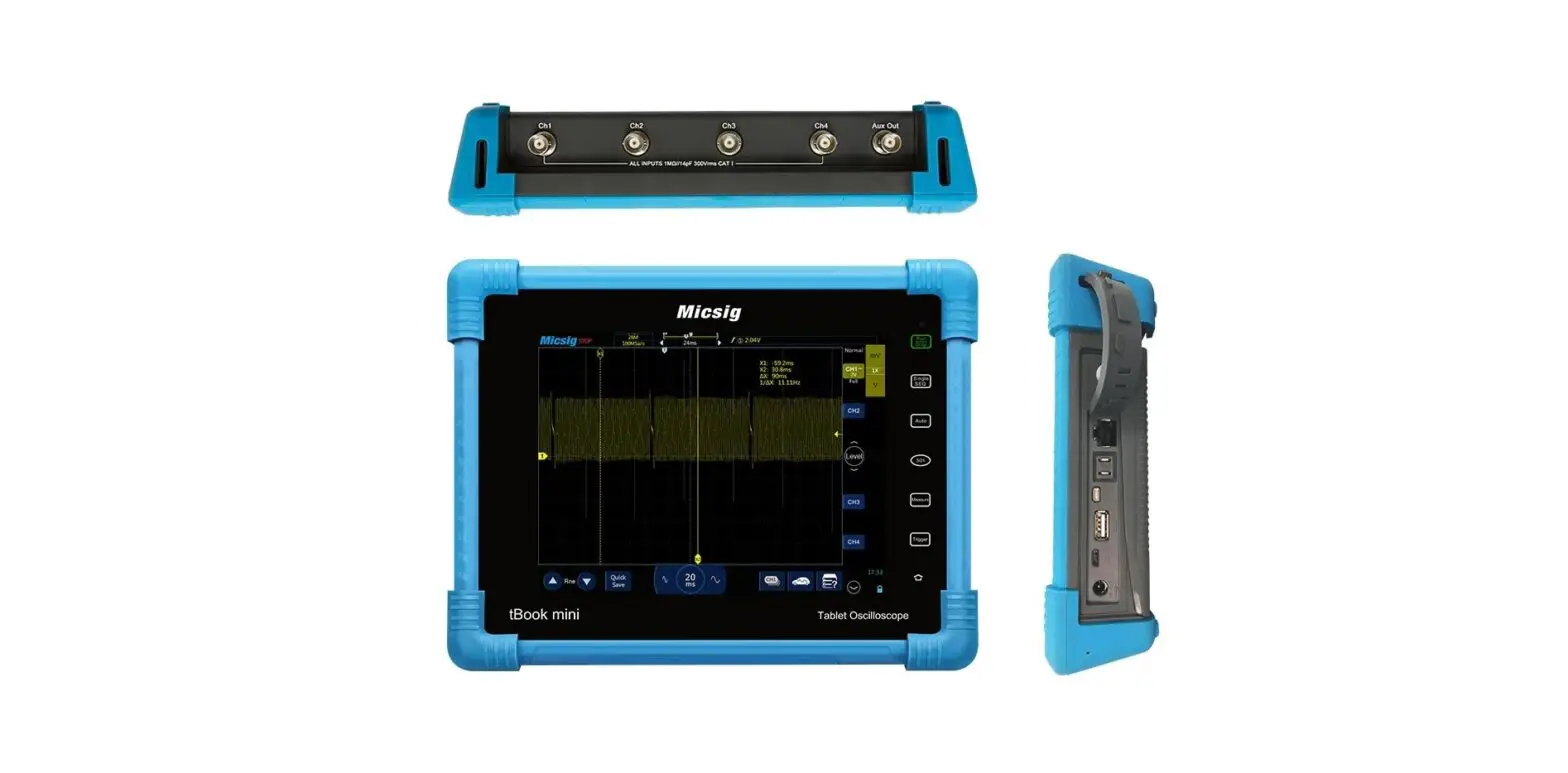

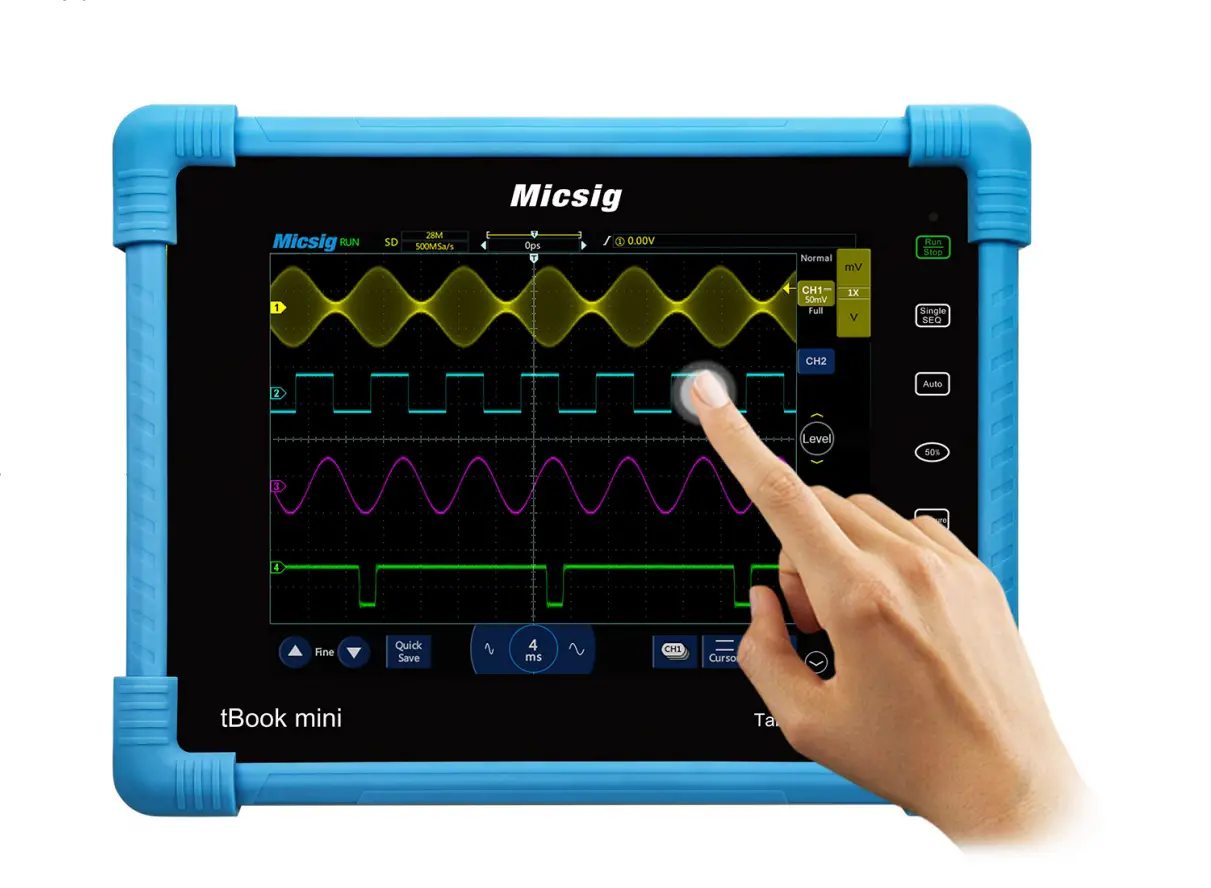

Micsig Tablet Oscilloscope tBook Mini TO1000 Series

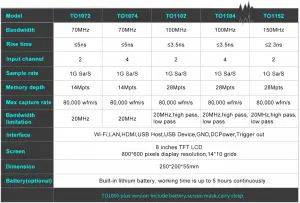

70MHz, 100MHz and 150MHz bandwidth, 2 or 4 analog channels
1 GSa/s real-time sample rate

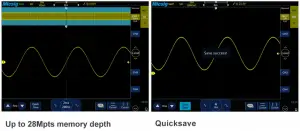

14Mpts or 28Mpts memory depth

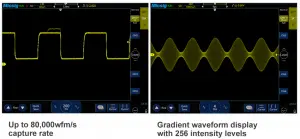

Up to 80,000wfm/s waveform capture rate
Up to 5 hours optional Li-ion battery (Options)

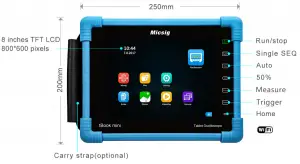

8″TFT LCD & 800*600 pixels high resolution Multi-touch capacity screen
Support serial bus trigger and decoding UART, I2C, SPI, CAN and LIN(Options)
Gradient waveform display with 256 intensity levels
7 types of trigger function: Edge, Pulse, Logic, Time Out, Runt, Slope, N Edge, and Video
Built-in 8G storage capacity, waveforms and screenshots can be viewed and edited in scope
Various 1/0 port, LAN, Wi-Fi, USB2.0, USB Device, HDMI, Trigger out

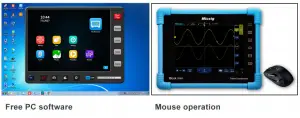

Support Android and iOS Application and PC software ware remote control
Innovation, makes test simpler.
Compared with traditional oscilloscope, Micsig tablet oscilloscope will bring you new operation experience and it will make your test and measurement work simpler & easier.
Micsig tBook mini TO1000 series is an entry level digital oscilloscope that will meet your requirements for excellent performance at an ultra-low price point. A portable and sleek design saves previous space on your workbench. Using high resolution multi-touch capacitive screen with intuitive menus, the TO1000 series is engineered to deliver a truly state-of-the-art experience.
Specification
Features and benefits
Optional software accessories
Specifications
Horizontal system
Time base range: 2ns/div to 1 ks/div
Time base delay range: -14 divisions to 14ks
Clock skew: <±2ppm/Year
Time based accuracy: ±20ppm
Vertical system
Bandwidth limitation: 20MHz(TO1072/TO1074) 20MHz high pass, low pass(TO1102/TO1104/TO11 52)
Input coupling: DC, AC, GND
Input impedances: 1 M
±1 %!114.5pF±3pF
Vertical resolution: 8bits
DC gain accuracy: < ±2% ( 1 M)
Vertical scale:1 mV/div to 1 0V/div ( 1 M )
Channel to channel: 2’40dB ( 100:1 )
Offset range: ±6div
Maximum input voltage: CAT I 300V ( 1MO)
Sampling system
| Sampling mode | Real time sample rate |
| Peak sampling Sample rate 1 G Sais | All the sampling glitches in scanning rate are narrow to single channel 1 ns, dual channel 2 ns. four channel 4ns |
| Max duration in the max sampling rate Sample rate 1 G Sais Sample rate 500MSa/s Sample rate 250MSa/s Average | 28/14ms 56/28ms 56/28ms Average of sampling for N times N is chosen from 2, 4, 8, 16, 32, 64, 128, 256 |
| Envelope | Envelope of sampling for N times N is chosen from 2, 4, 8, 16, 32, 64, 128, 256, 00 |
Trigger system
Trigger mode: Normal, Auto, Single
Trigger coupling: DC, AC, HF reject( >50KHz ), LF reject( <50KHz }, noise reject
hold off range: 200ns to 10s
Trigger type
Edge: Positive, negative, or either slope on any channel input. Coupling includes DC, AC, HF reject, LF reject, and noise reject
Pulse Width: Trigger on width of positive or negative pulses that are > . < . =. “# , or inside/ outside a specified period of time (8ns~10s).
Logic: Trigger when any logical pattern of channels goes false or stays true for specified period of time (8ns~10s). Any input can be used as a clock to look for the pattern on a clock edge. Pattern (AND, OR, NANO, NOR) specified for all input channels defined as High, Low, or Don’t Care
Video trigger: Trigger on all lines or individual lines, odd/ even or all fields on PAL/625 SECAM, NTSC/525, 720P, 10801, 1080P video signals.
Time out: Trigger on an event which remains high, low, oreither, for a specified time period. Selectable from
Slope: Positive slope (Great than, lower than, within specific interval)
Negative slope (Great than, lower than , within specific interval)
Runt: Trigger on a pulse that crosses one threshold but fai ls to cross a second threshold before crossing the first again. Event can be time- or logic qualified.
Nth edge: Edge type: Risingm Falling Idle time: 16ns to 4s Number of edges 1 to 65535
Waveform measurement
Cursor: Horizontal Cursor, Vertical Cursor, Cross Cursor

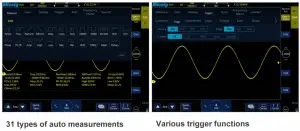

Auto measurements: 23, of which up to five can be displayed on-screen at any one time. Measurements include: Period, Frequency, Rise Time, Fall Time, Delay, Positive duty Cycle, Negative Duty Cycle, Positive Pulse Width , Negative Pulse Width, Burst Width, Positive Overshoot, Negative Overshoot, Phase, Peak to Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, Cycle RMS.
Waveform math
Dual Waveform FFT: Add, subtract, multiply, and divide waveforms
FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman Harris.
Display system
| Display type | 8” TFT LCD Multi point capacitive screen |
| Display resolution | 800*600 |
| Max touch point on touch screen | 5 points |
| Operation way | Full touch. Mouse |
| Afterglow time | Auto, 10ms to 10s, ∞ |
| Time Base format | YT, XY, Roll, Zoom |
| Expansion bench mark | Center, Trigger Position |
| Waveform display | Brightness is adjustable, point, Line |
| Grid | 14*1 0 div, Brightness of the grid is adjustable |
| Grey level | 256 level |
| Language | English. Simplified Chinese. For more languages please contact Micsig |
Storage
| Storage media | Native, U Dis |
| Built-in memory | 8G |
| Storage format | csv,wav,bin |
| Waveform quantity | Unlimited |
| waveform storage name | Support |
| display the reference waveform quantity | 4 piece |
| screenshot | Support |
| User setting number storage | Unlimited |
| User name setting | Support |
| Flash format | Comply with industry standards |
Power source
| Power source voltage | 100 to 240V AC, 50/60Hz |
| Power consumption | < 60W |
| Fuse | 12V DC, 5A |
| Battery (Optional) | 7.4V 8000mAH Lithium battery |

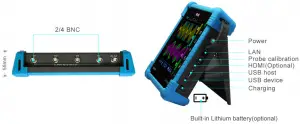

Interface
| USB Host | Support USB mass storage devices, support read and write |
| USB Device | Support read and write |
| DC interface | For charging |
| Probe calibration Port | 1KHz, 2Vpp |
| LAN | Support |
| HDMI | Optional |
| Wi-Fi | Support |
Environment
| Temperature Operating Non-operating | 0°c to 45°c -40°c to 60°c |
| Humidity Operating Non-operating | 5% to 85%, 2s0 c 5% to 90%, 2s0 c |
| Altitude Operating Non-operating | < 3000m < 12000m |
Physical characteristics
| Dimensions Height Width Depth | 200mm 250mm 55mm |
| Weight Net 2CH Bare 4CH Bare Shipping 4CH Bare 2CH Bare | 040g 1125g
2445g 2630g |
| Battery | 263g |
Ordering information
| Description | Order Number | |
| Model | TO1152 (150 MHz, 2 CH) TO1104 (100 MHz, 4 CH) T01102 (100 MHz, 2 CH) TO1074 (70 MHz, 4 CH) T01072 (70 MHz, 2 CH | TO1152 TO1104 TO11 02 TO1074 TO1072 |
| Standard Accessories | Tablet Oscilloscope! Book Mini Localized power cord Power adapter Probes (quantity depends on the oscilloscope channel) BNC cap | See model MS-Cable MS-PA-1205 MS-PR-P1 30A MS-Cap |
| Hardware Optional Accessories | ! Book mini battery Carry strap Screen Protector Film Oscilloscope Handbag | MS-BA MS-Belt MS-Mask MS-Handbag |
| Software Optional Accessories | HDMI+ HDMI cable Serial bus decode: UART, CAN, LIN, SPI, I2C | MS-HOM! MS-decode |
| Warranty | Repair Service 3 Years (including warranty) Probes and accessories are not covered by the oscilloscope warranty and service offerings. Refer to the datasheet of each probe and accessory model for its unique warranty and calibration terms. |
Contact us
Shenzhen Micsig Instruments Co., Ltd.
Micsig® Tel: +86-755-86-88600880 Fax : +86-755-26078507-818
Web: www.micsig .com E-mail: [email protected]
Add: 305 Block A , CLOU Building, Baoshen RD, North Area,
Nanshan Science& Technology Park .Shenzhen , Guangdong, China. 518000
