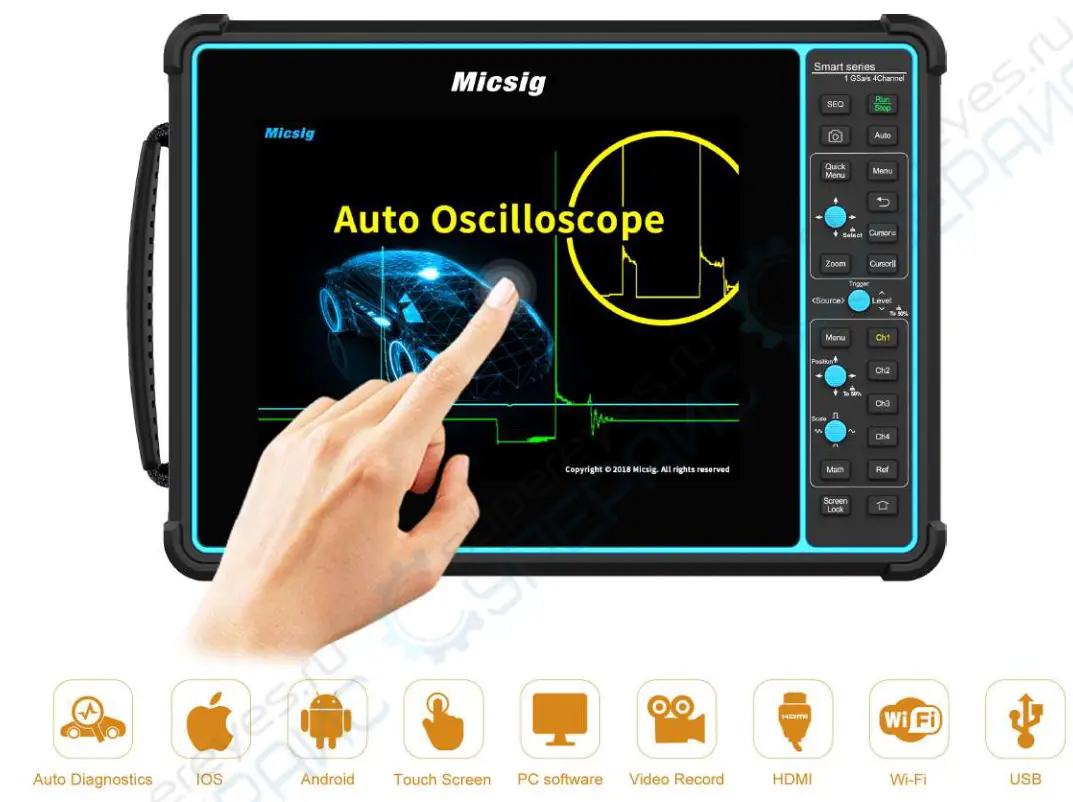

Automotive Tablet Oscilloscope
SATO1000 Series
| Model | SATO1004 |
| Analog Channels | 4 |
| Bandwidth | 100MHz |
| Sampling Rate (Max.) | 1GSa/S (single channel) |
| Memory Depth | 70Mpts (single channel) |
| Waveform Capture Rate (Max.) | 130,000 wfms/s |

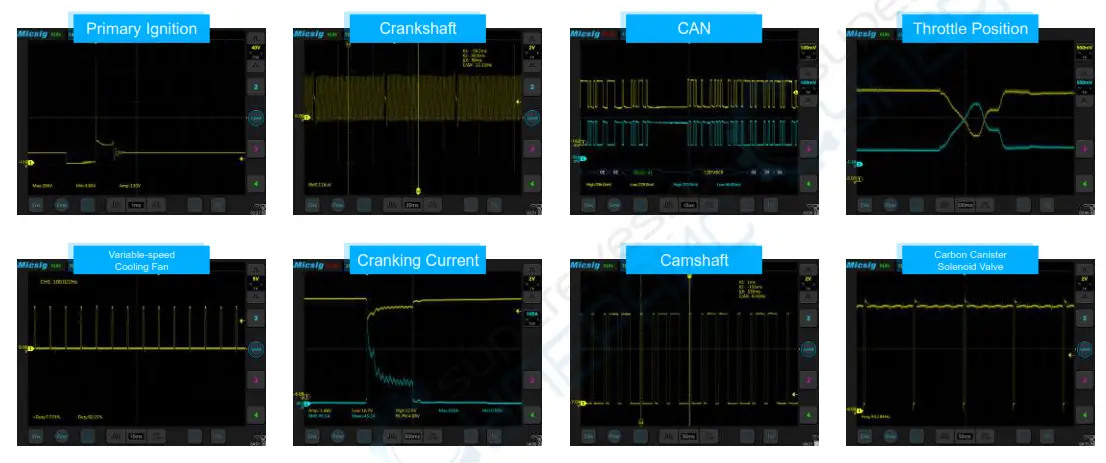

| Support Tests | Charging Circuits, Starter Circuits, Sensors, Actuators, Ignition, Networks (including CAN, LIN, Flexray, Kline, etc.), Combination Tests |
| Bandwidth Filter | Full bandwidth, Low pass |
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out |
| Display | Industrial 8″ TFT-LCD (800*600), 14*10 grids |
| Dimension / Net Weight | 265*192*50mm / 1.9kg (with battery) |
| Battery | 7.4V, 7500mAh, Li-ion battery |
Features
- Portable tablet design with all-in-one functions
- Comprehensive auto diagnostic presets package
- Powerful signal capture and analysis capabilities
- Support PC & Smartphone App remote control
- HDMI function for training & demonstration
- Life-long free firmware online upgrade
References

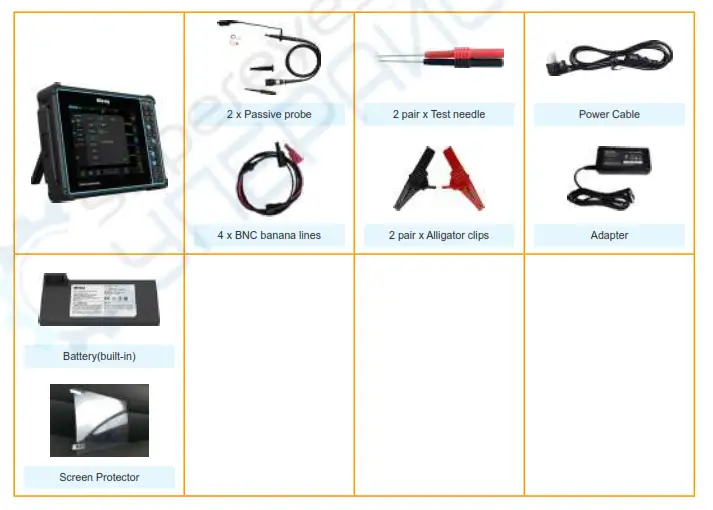

SATO1004 Standard Kit
Packing Dimension: 35*23*32 cm
Gross Weight: 3 KG

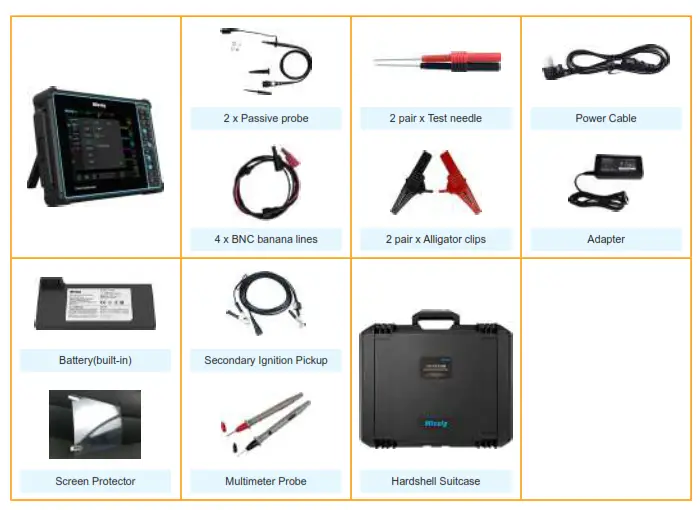

SATO1004 Master Kit
Packing Dimension: 35*16*40 cm
Gross Weight: 5 KG
