PWT75 Installation Tool For Pan Wrap
Instructions
PHYSICAL INFRASTRUCTURE SYSTEMS

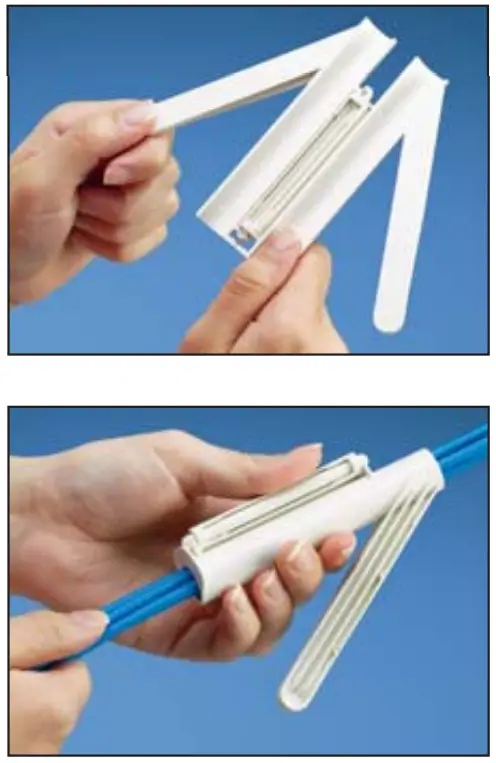

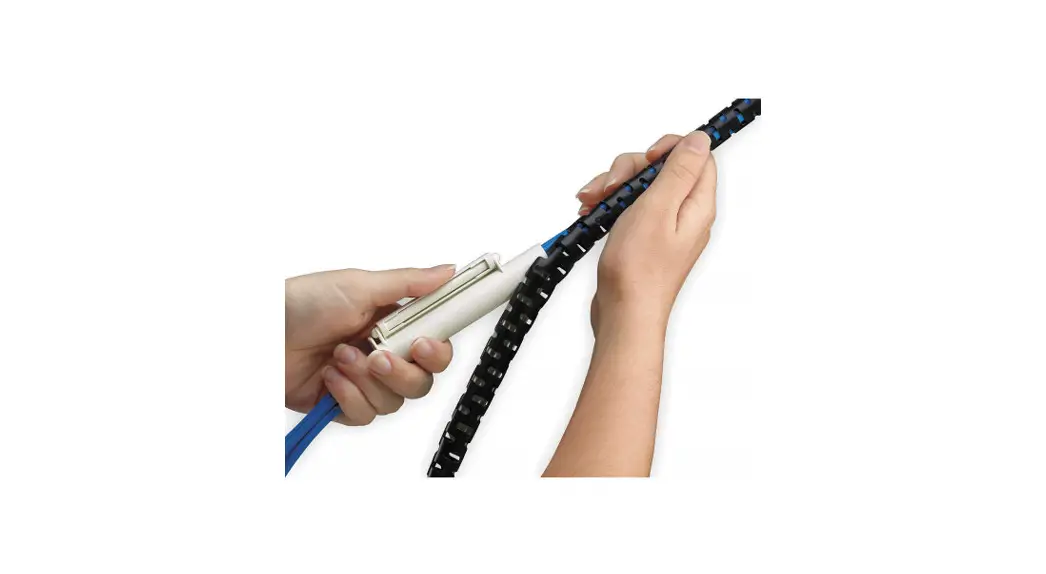

Pan-Wrap™ Installation Tools
- A patented installation tool with a 180° opening allows easy loading of maximum bundle diameters to speed installation, providing the lowest installed cost
Part Number Color For Use With Std.
Pkg.
Qty.*PWT38 White PW38F- Series 1 PWT50 White PW50F- Series 1 PWT75 White PW75F- Series 1 PWT100 White PW100F- Series 1 PWT150 White PW150F- Series 1 * Order number of tools required.

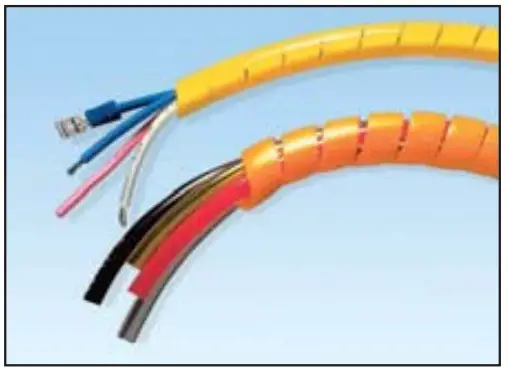

Spiral Wrap
- Harness multiple cables into a single manageable bundle
- Allows breakouts of single/multiple cables
- Provides protection for cables
- Multiple colors allow easy identification of cable bundles
- Reusable
- General purpose material for use up to 122°F (50°C); Flame retardant material for use up to 167°F (75°C)
- Installation tool supplied in each package
- Outside diameter: 0.50″ (12.7mm)
- Wall Thickness: 0.06″ (1.52mm)
- Bundle range: 0.38″ – 4.00″ (9.5mm – 101.6mm)
- Packaged on a 100′ (30.5M) reel for easy handling and dispensing of product
| Part Number | Material | Color | Length of Reel‡ | Std. Pkg. Qty.* | |
| Ft. | m | ||||
| T50F-C | Polyethylene | Natural | 100 | 30.5 | 1 |
| T50F-C0 | Weather Resistant Polyethylene | Black | 100 | 30.5 | 1 |
| T50F-C1 | Polyethylene | Brown | 100 | 30.5 | 1 |
| T50F-C2 | Polyethylene | Red | 100 | 30.5 | 1 |
| T50F-C3Y | Polyethylene | Orange | 100 | 30.5 | 1 |
| T50F-C4Y | Polyethylene | Yellow | 100 | 30.5 | 1 |
| T50F-C5 | Polyethylene | Green | 100 | 30.5 | 1 |
| T50F-C6 | Polyethylene | Blue | 100 | 30.5 | 1 |
| T50F-C7 | Polyethylene | Purple | 100 | 30.5 | 1 |
| T50F-C8 | Polyethylene | Gray | 100 | 30.5 | 1 |
| T50F-C10 | Polyethylene | White | 100 | 30.5 | 1 |
| T50F-C16 | Polyethylene | Pink | 100 | 30.5 | 1 |
| T50FR-CY** | Flame Retardant Polyethylene | White | 100 | 30.5 | 1 |
| T50FR-C20Y** | Flame Retardant Polyethylene | Black | 100 | 30.5 | 1 |
‡Reel packaging may contain splices.
*Order number of reels required.
**Flame retardant products are manufactured from a material that is rated UL 94V-0 and RoHS compliant.
Contact Panduit Customer Service for additional sizes and materials available.
www.panduit.com
For service and technical support, call 866-405-6654
(outside the U.S. and Canada, see catalog back cover).
