XU20ASCL Hamster Pro Trio Fingerprint Sensor
User Manual

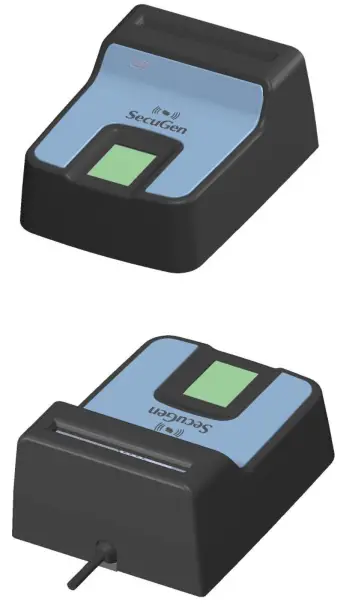

XU20ASCL Hamster Pro Trio Fingerprint Sensor
Thank you for your interest in SecuGen fingerprint technology. We focus all our efforts on creating the highest possible quality in fingerprint sensor technology at an affordable price. We hope that this product meets your requirements, and we welcome your feedback.
Copyright © SecuGen Corporation. All rights reserved. SecuGen and Smart Capture are trademarks or registered trademarks of SecuGen Corporation in the United States and other countries. All other marks may be the property of their respective owners. Information in the document is subject to change at any time without prior notice.
General Description
Hamster Pro Trio is a combination fingerprint reader and smart card reader that supports the USB (Universal Serial Bus) 2.0 interface, utilizes the Plug & Play architecture, and is hot swappable. The Hamster Pro Trio is RoHS compliant and is compatible with the Hamster Pro 20™ fingerprint reader (model HU20-A) with regard to fingerprint functionality. The smart card reader in the device is 100% compatible with the Identiv CLOUD 2100R smart card reader.
Key Features
- Auto-On™ Automatic Finger Detection
- Smart Capture™
- USB 2.0 compliant
- FBI FIPS 201, PIV and FAP 20 Mobile compliant fingerprint sensor
- USB bus-powered device
- Device drivers and fingerprint SDKs available for most popular operating systems (Windows, Linux, Android)
- ISO 7816 & EMV Level 1 compliant smart card reader
- ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa compliant contactless card reader
- PC/SC and CCID compliant card reader
Possible Applications
- PIV (Personal Identity Verification) and CAC (Common Access Card) Applications
- Physical and Logical Access Control
- Time and Attendance
Technical Specifications
| General | |
| Dimensions | 80 mm (W) x 100 mm (L) x 45.5 (H) mm |
| Operating Temp. / Humidity | 0°C — 55°C / 90% RH (max., non-condensing) |
| Weight | 185 g |
| Supply Voltage | 5.0V DC + 5% via USB connection |
| Current Consumption | 300mA (max.) |
| USB Interface | 12.0 Full-Speed, 2.0 Hi-Speed (fingerprint reader only) |
| Certifications/Environmental | FCC, CE, RoHS, Microsoft WHQL, FIPS 201 |
| Operating Systems Supported | Windows 11 / 10 / 8.1 / 8 / 7, Windows Server 2016 / 2012 / 2008 R2, Android 3.1+, Linux |
| Fingerprint Reader | |
| Model | SecuGen® U20-ATM Optical Fingerprint Reader |
| Image Resolution | 500 PPI |
| Image Size | 300 x 400 pixels |
| Effective Sensing Area | 15.24 mm x 20.32 mm |
| Image Grayscale | 256 levels (8-bit) |
| Light Source / Typical Lifetime | LED / 60,000 hours |
| Fingerprint Capture Time | 0.2 — 0.5 second with Smart CaptureTM |
| Contactless Smart Card Reader | |
| Model | Compact Contactless Smart Card Reader |
| Standards | ISO/IEC 18092, ISO/IEC 14443 Type A & B, ISO/IEC 15693 |
| Protocols | T=CL (translated to T=1 for PC/SC compliance) |
| Operating Frequency | 13.56 MHz |
| Reading Distance | Up to 50 mm (depending on tag type) |
| Smart Card ReadNVrite Speed | Up to 848 kbps |
| Supported Card Types | ISO/IEC 14443-4 Type A & B Cards, ISO/IEC 15693-3 Cards, MIFARE series, FeliCa, Calypso, NFC Tags |
| SAM Card Interface | ISO/IEC 7816, T=0, T=1 protocols |
| Supported APIs | PC/SC |
| Compliance | ISO/IEC 18092, ISO/IEC 14443, ISO/IEC 15693, ISO/IEC 7816, USB 2.0 Full Speed, CCID |
| Contact Smart Card Reader | |
| Model | Contact Smart Card Reader |
| General | Self-clocking internal oscillator, no external oscillator required 5.0 V supply input with built-in voltage regulator Internal voltage supervisor for 4.8V Low power consumption Small size QFN-16 package Status LED |
| Processor | 9X 80051 processor @ 16MHz. OTP (One time programmable) ROM |
| USB | 12 Mbps USB Operation Compliant to the USB 2.0 Specification Integrated USB 1.5K pull-up resistor USB TID number: TID 40001362 Number of pipes used: 4 (control, Bulk-in, Bulk-out and Interrupt) CCID compliant firmware Supports Remote Wake-up Capability for card insertion/removal |
| Smart Card | Fully Compliant with ISO/IEC 7816, EMV, and PC/SC Standards Full Support of both T=0 and T=1 protocols Supports Class A, Class B, Class C Short circuit protection on smart card section Maximum smart card clock frequency: 4.8Mhz Maximum baud rate: 600Kbps @FI/DI-97 |
| Certifications | EMV 2008 Level 1, UL 60950, USB IF, UL92, GSA, ANZ, ICES-003 Issue 4, VCCI |

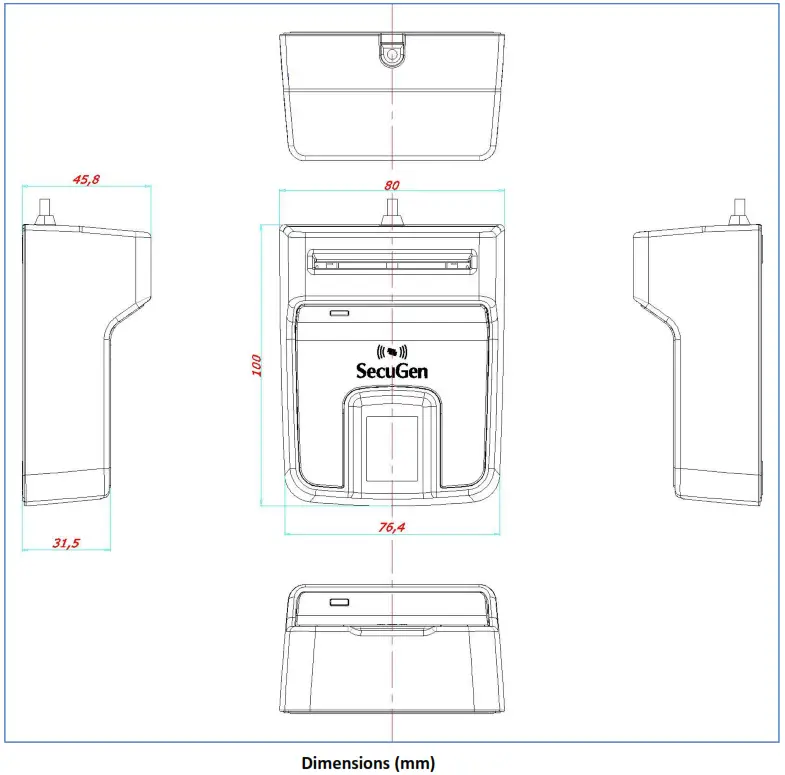

Dimensions
Ordering Information
| Product | Part Number | Description |
| Hamster Pro TrioSCL) (XU2OA | EA4-0522ASCL | Integral USB fingerprint reader and smart card device assembly, including U20-A optical fingerprint module and USB cable |
| Cable options | Suffix: | |
| NC | Unit without USB cable | |
| S | Unit with short USB cable | |
| M | Unit with micro USB cable | |
| MS | Unit with short micro USB cable | |
| C | Unit with type C USB cable | |
| SC | Unit with short type C USB cable |
