Series B MSO Mixed Signal Oscilloscope
SAVE WITH APPLICATION BUNDLES
Eight Application Bundles deliver outstanding value. Available with 1-year (1Y) or (PER) perpetual licenses.
Starter Bundle (6-STARTER-1Y or -PER) – Capabilities that most engineers will find valuable
- Serial trigger, decode, search and event table analysis on IC, SPI, RS-232/422/485/UART buses
- Integrated Arbitrary/Function Generator with 13 predefined waveform types as well as arbitrary waveforms
Six Pro Bundles – Designed for specific applications and industries
- Choose one of the six bundles below to fit your application.
- Each includes the Starter Bundle (above).
- Each extends the record length to 250 M/ch.
| Serial Protocol Decoding and Analysis (6-PRO-SERIAL-1Y or -PER) | |
| • 1-Wire • 8b10b • Audio • CAN, CAN FD • CXPI • eSPI • EtherCAT • Ethernet • USB • FlexRay • I3C | • LIN • Manchester • MEDIO • MIPI C-PHY • MIPI D-PHY • NRZ • SDLC • SMBus • SEMI • AVID • USB 2.0 |
Power
(6-PRO-POWER1Y or -PER)
- Advanced power analysis
- Digital power management analysis
- Inverter & motor drive analysis with DQ0 and mechanical measurements
- Double pulse testing for wide bandgap semiconductors
- SPMI decoding
- SVID decoding
Signal Integrity
(6-PRO-SIGNAL-1Y or -PER)
- Advanced jitter analysis
- DDR3 debug
- LVDS debug*
- Mask/limit testing
- PAM3 analysis*
- User-defined filters
Standards Compliance
(6-PRO-COMPL-1Y or -PER)
- 10/100/100BASE-T Ethernet with Multi-lane*
- 10BASE-T1L Industrial Ethernet*
- DDR3*
- MIPI D-PHY 1.2*
- MIPI D-PHY 2.1*
- USB 2.0*
Automotive
(6-PRO-AUTO-1Y or -PER)
- Advanced jitter analysis
- Automotive Ethernet PAM3 analysis*
- Automotive Ethernet signal separation*
- Automotive Ethernet compliance*
- MIPI D-PHY 1.2 Compliance*
- Inverter and motor drive analysis with DQ0 and mechanical measurements
- Double pulse testing for wide bandgap semiconductors
- 100BASE-T1 decoding
- CAN, CAN FD decoding
- CXPI decoding
- FlexRay decoding
- I3C decoding
- LIN decoding
- PSI5 decoding
- SENT decoding
Aerospace
(6-PRO-MILGOV-1Y or -PER)
- Advanced jitter analysis
- Mask/limit testing
- ARINC 429 decoding
- Manchester decoding
- MIL-STD-1553 decoding
- NRZ decoding
- SpaceWire decoding
Ultimate Bundle (6-ULTIMATE-1Y or -PER) – The most capability and greatest savings
- Includes Starter bundle and all Pro bundles
- PLUS: Record length extended to 1 Gpts/channel on 4 channels (500 Mpts > 4 channels), Spectrum View RF vs. time waveforms, extended Spectrum View capture bandwidth, and video triggers
* Requires solid state drive with Windows operating system (Option 6-WIN)

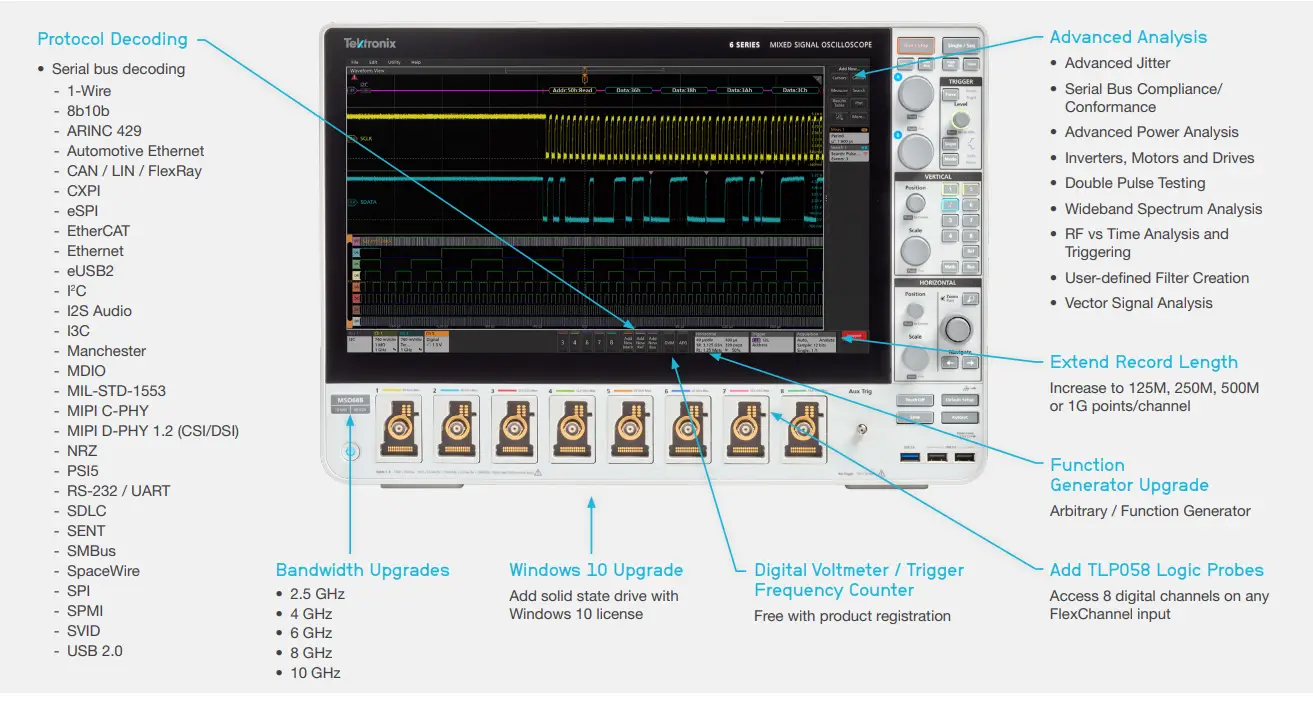

AVAILABLE UPGRADES – 6 SERIES B MSO
Individual Options
| Feature | Upgrade | Description | Upgrade Option Details |
| Upgrade Bandwidth | SUP6B-BWn | Bandwidth upgrade for n-channel 6 Series B MSO. See the datasheet for details on all upgrade options. | All bandwidth upgrades can be performed in the field by installing a software license. |
| Feature | Node-Locked License Upgrade | Description |
| Instrument Functions | SUP6-AFG | Add arbitrary function generator |
| SUP6-RL-1 | Extend record length from 62.5 Mpts / channel to 125 Mpts / channel | |
| SUP6-RL-2 | Extend record length from 62.5 Mpts / channel to 250 Mpts / channel | |
| SUP6-RL-3 | Extend record length from 62.5 Mpts / channel to 500 Mpts / channel | |
| SUP6-RL-4 | Extend record length from 62.5 Mpts / channel to 1 Gpts / channel on 4 channels (500 Mpts / channel on > 4 channels) | |
| SUP6B-LNX | Add removable SSD with closed-embedded OS | |
| SUP6B-WIN | Add removable SSD with Windows 10 license installed | |
| Protocol Analysis Decode and search serial content. Some packages include hardware triggering as noted. | SUP6-SR8B10B | 8b10b serial analysis |
| SUP6-SRAERO | Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429) | |
| SUP6-SRAUDIO | Audio serial triggering and analysis (IS, LJ, RJ, TDM) | |
| SUP6-SRAUTO | Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay) | |
| SUP6-SRAUTOEN1 | 100BASE-T1 Automotive Ethernet protocol decode software | |
| SUP6-SRAUTOSEN | Automotive sensor serial triggering and analysis (SENT) | |
| SUP6-SRCOMP | Computer serial triggering and analysis (RS-232/422/485/UART) | |
| SUP6-SRCXPI | CXPI serial decoding and analysis | |
| SUP6-SREMBD | Embedded serial triggering and analysis (IC, SPI) | |
| SUP6-SRCPHY | MIPI C-PHY serial decoding and analysis | |
| SUP6-SRDPHY | MIPI D-PHY CSI/DSI serial decoding and analysis | |
| SUP6-SRENET | Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX) | |
| SUP6-SRESPI | eSPI serial decoding and analysis | |
| SUP6-SRETHERCAT | EtherCAT serial decoding and analysis | |
| SUP6-SRI3C | MIPI I3C serial decoding and analysis | |
| SUP6-SRMANCH | Manchester serial analysis | |
| SUP6-SRMDIO | Management Data Input/Output (MDIO) serial decode and analysis | |
| SUP6-SRNRZ | NRZ serial analysis | |
| SUP6-SRONEWIRE | 1-Wire serial decoding and analysis | |
| SUP6-SRPM | Power management serial triggering and analysis (SPMI) | |
| SUP6-SRPSI5 | PSI5 serial decoding and analysis | |
| SUP6-SRSDLC | Synchronous Data Link Control (SDLC) serial decoding and analysis | |
| SUP6-SRSMBUS | SMBus serial decoding and analysis | |
| SUP6-SRSPACEWIRE | SpaceWire serial analysis | |
| SUP6-SRSVID | Serial Voltage Identification (SVID) serial decode and analysis | |
| SUP6-SRUSB2 | USB 2.0 serial bus triggering and analysis (LS, FS, HS) | |
| SUP6-SREUSB2 | Embedded USB2 (eUSB2) serial decode and analysis |
| Feature | Node-Locked License Upgrade | Description |
| Serial Compliance/Conformance¹ Perform automated pass/fail to test or margin testing per common standards, with numerical results and full reports. | SUP6-AUTO EN-SS | Automotive Ethernet signal separation |
| SUP6-CAUTION | Automotive Ethernet compliance test (100BASE-T1, 1000BASE-T1) | |
| SUP6-CMAUTOEN10 | Automotive Ethernet compliance test (10BASE-T1S Short Reach) | |
| SUP6-CMAUTOEN10G | Automotive Ethernet compliance test (2.5G/5GBASE-T1) | |
| SUP6-CMDPHY | MIPI D-PHY 1.2 compliance test | |
| SUP6-CMDPHY21 | MIPI C-PHY conformance testing | |
| SUP6-CMENET | Ethernet compliance test (10BASE-T, 100BASE-T, 1000BASE-T) | |
| SUP6-CMENETML | Multilane Ethernet (10BASE-T, 100BASE-T, 1000BASE-T) | |
| SUP6-CMINDUEN10 | Industrial Ethernet (10BASE-T1L Long Reach) automated compliance test solution | |
| SUP6-CMNBASET | Ethernet (2.5G and 5G BASE-T) compliance test | |
| SUP6-CMUSB2 | USB 2.0 compliance test | |
| SUP6-CMXGBT | Ethernet (10G BASE-T) compliance test | |
| Advanced Analysis | SUP6-AUTOEN-BND | Automotive Ethernet compliance, signal separation, PAM3 analysis (requires option 5-DJA), 100BASE-T1 serial decode |
| SUP6-DBLVDS | Automated LVDS test solution | |
| SUP6-DJA | Advanced jitter and eye analysis | |
| SUP6-DPM | Digital Power Management | |
| SUP6B-IMDA | Inverters, motors, and drives analysis | |
| SUP6B-IMDA-DQ0 | Add DQ0 measurements to IMDA | |
| SUP6B-IMDA-MECH | Add mechanical measurements to IMDA | |
| SUP6-MTM | Mask and limit testing | |
| SUP6-PAM3 | PAM3 analysis | |
| SUP6-PS2 | Power solution bundle (SUP6-PWR, THDP0200, TCP0030A, 067-1686-xx (deskew fixture)) | |
| SUP6-PWR | Advanced power measurements and analysis | |
| SUP6-SV-BW-1 | Increase Spectrum View Capture Bandwidth to 2 GHz | |
| SUP6-SV-RFVT | Spectrum View RF versus Time Analysis and Trigger | |
| SUP6-UDFLT | User-defined filter creation tool | |
| SUP6-VID | NTSC, PAL, and SECAM video triggering | |
| SUP6-WBG-DPT | Wide bandgap SiC/GaN double pulse test measurements | |
| Memory Analysis | SUP6-CMDDR3 | DDR3 and LPDDR3 memory compliance test |
| SUP6-DBDDR3 | DDR3 and LPDDR3 memory debug and analysis | |
| Digital Voltmeter | SUP6-DVM | Add digital voltmeter/trigger frequency counter (Free with product registration at www.tek.com/register6mso ) |
- Option 6-WIN or upgrade SUP6B-WIN is required.
- Additional upgrades are available from any record length to any greater record length. See datasheet for details.
- This option requires a 6- or 8-channel instrument.
- Option 6-DJA or upgrade SUP6-DJA required.
- Option 6-CMENET required.
Copyright © 2022, Tektronix. All rights reserved. Tektronix and Keithley products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material. Specification and price change privileges are reserved. TEKTRONIX, TEK, and Keithley are registered trademarks of Tektronix, Inc. All other trade names referenced are service marks, trademarks, or registered trademarks of their respective companies.
10/22 SBG 48W-67745-5
