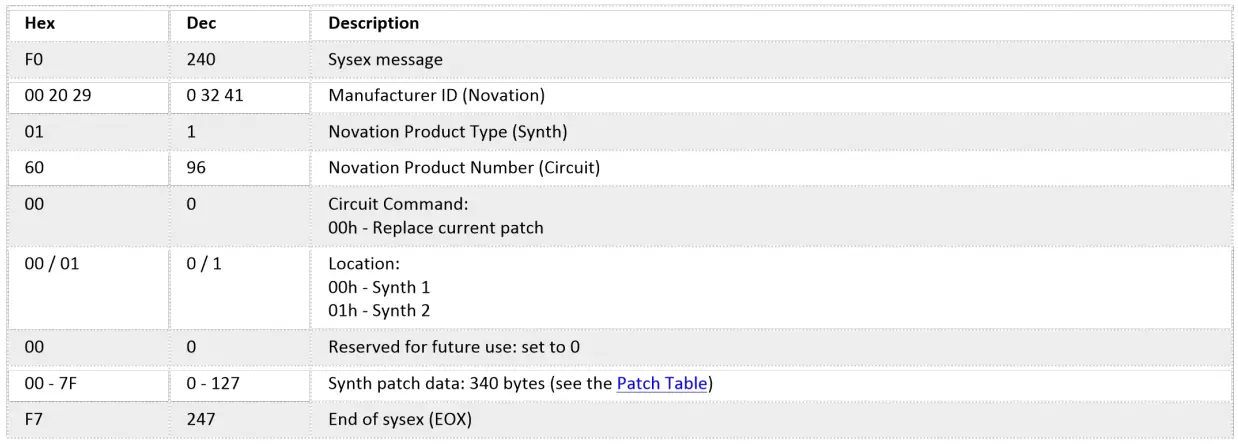

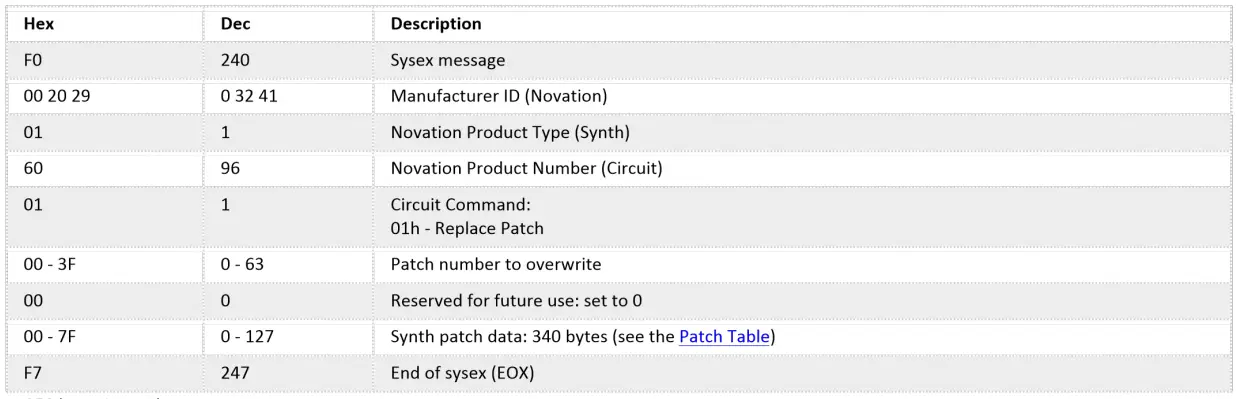

2.2 Synth Patch Sysex Message Formats

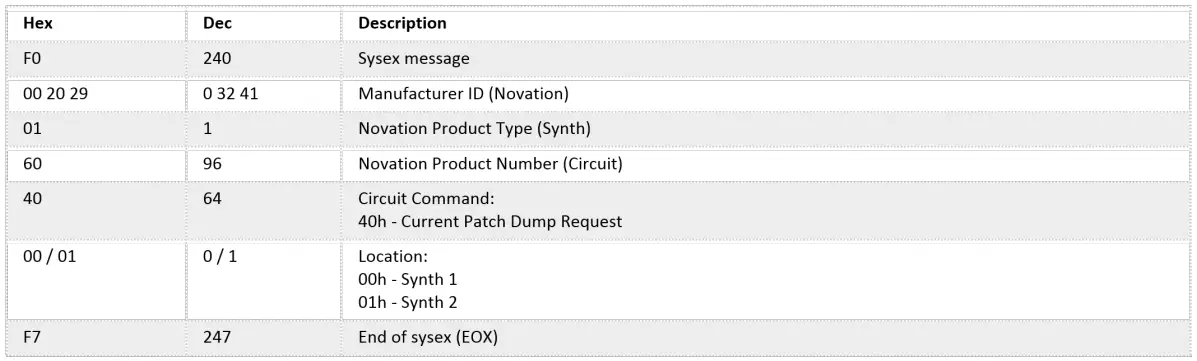

2.3 Current Patch Dump Request

2.4 Patch Dump Request

3 Synth Patch Format

4 Documents / Resources

5 Related Posts

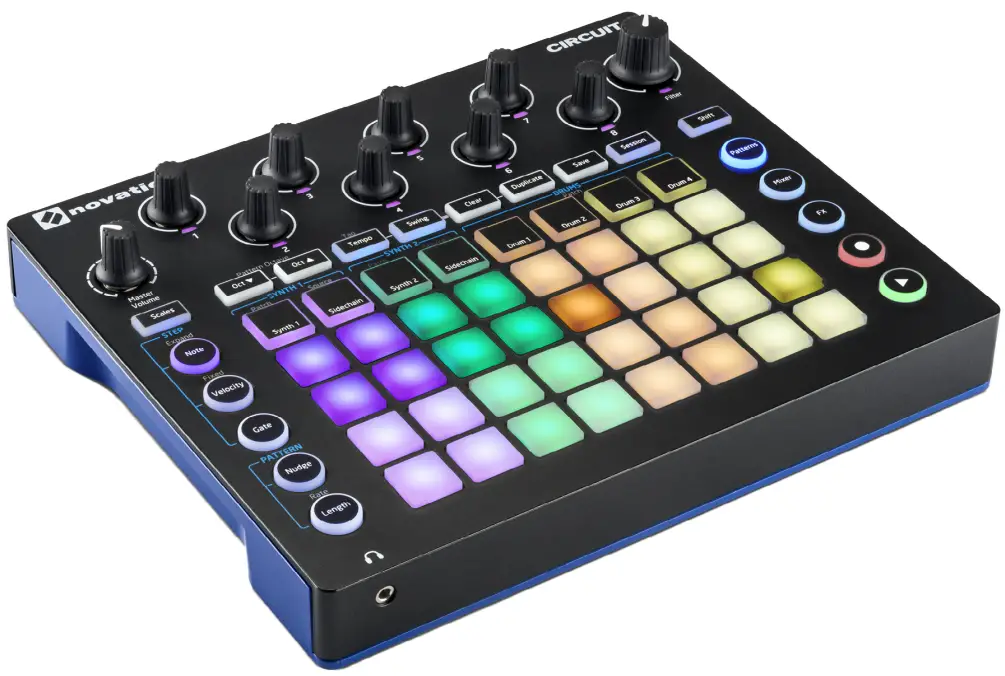

Circuit MIDI Parameters

Synths 1 & 2

Send messages on MIDI Channel 1 for Synth 1 and Channel 2 for Synth.

Section	Parameter	CC / NRPN	Control No.	Range	Default Value	Notes
Voice
	Polyphony Mode	CC	3	0 – 2	2	0=Mono, 1=Mono AG, 2=Poly
	Portamento Rate	CC	5	0 – 127	0
	Pre-Glide	CC	9	52 – 76 (-12 – 12)	64 (0)
	Keyboard Octave	CC	13	58 – 69 (-6 – 5)	64 (0)	60=-4 Octaves, 64=0 Octaves, 68=+4 Octaves
Oscillator
	osc 1 wave	CC	19	0 – 29	2	See Osc Waveform Table
	osc 1 wave interpolate	CC	20	0 – 127	0
	osc 1 pulse width index	CC	21	0 – 127 (-64 – 63)	127 (63)
	osc 1 virtual sync depth	CC	22	0 – 127	0
	osc 1 density	CC	24	0 – 127	0
	osc 1 density detune	CC	25	0 – 127	0
	osc 1 semitones	CC	26	0 – 127 (-64 – 63)	64 (0)
	osc 1 cents	CC	27	0 – 127 (-64 – 63)	64 (0)
	osc 1 pitchbend	CC	28	52 – 76 (-12 – 12)	76 (12)
	osc 2 wave	CC	29	0 – 29	2	See Osc Waveform Table
	osc 2 wave interpolate	CC	30	0 – 127	0
	osc 2 pulse width index	CC	31	0 – 127 (-64 – 63)	127 (63)
	osc 2 virtual sync depth	CC	33	0 – 127	0
	osc 2 density	CC	35	0 – 127	0
	osc 2 density detune	CC	36	0 – 127	0
	osc 2 semitones	CC	37	0 – 127 (-64 – 63)	64 (0)
	osc 2 cents	CC	39	0 – 127 (-64 – 63)	64 (0)
	osc 2 pitchbend	CC	40	52 – 76 (-12 – 12)	76 (12)
Mixer
	osc 1 level	CC	51	0 – 127	127
	osc 2 level	CC	52	0 – 127	0
	ring mod level	CC	54	0 – 127	0
	noise level	CC	56	0 – 127	0
	pre FX level	CC	58	52 – 82 (-12 – 18)	64 (0)	-12 to +18 dB
	post FX level	CC	59	52 – 82 (-12 – 18)	64 (0)	-12 to +18 dB
Filter
	routing	CC	60	0 – 2	0	0=Normal 1=Osc 1 bypasses the filter 2=Osc 1 + Osc 2 bypasses the
	drive	CC	63	0 – 127	0	filter
	drive type	CC	65	0 – 6	0	See Filter Table
	type	CC	68	0 – 5	1
	frequency	CC	74	0 – 127	127
	tracking	CC	69	0 – 127	127
	resonance	CC	71	0 – 127	0
	Q normalize	CC	78	0 – 127	64
	env 2 to frequency	CC	79	0 – 127 (-64 – 63)	64 (0)

Envelope
	env 1 velocity	CC	108	0 – 127 (-64 – 63)	64 (0)
	env 1 attack	CC	73	0 – 127	2
	env 1 decay	CC	75	0 – 127	90
	env 1 sustain	CC	70	0 – 127	127
	env 1 release	CC	72	0 – 127	40
	env 2 velocity	NRPN	0:0	0 – 127 (-64 – 63)	64 (0)
	env 2 attack	NRPN	0:1	0 – 127	2
	env 2 decay	NRPN	0:2	0 – 127	75
	env 2 sustain	NRPN	0:3	0 – 127	35
	env 2 release	NRPN	0:4	0 – 127	45
	env 3 delay	NRPN	0:14	0 – 127	0
	env 3 attack	NRPN	0:15	0 – 127	10
	env 3 decay	NRPN	0:16	0 – 127	70
	env 3 sustain	NRPN	0:17	0 – 127	64
	env 3 release	NRPN	0:18	0 – 127	40
LFO
	lfo 1 waveform	NRPN	0:70	0 – 37	0	See LFO waveform table
	lfo 1 phase offset	NRPN	0:71	0 – 119	0	(0° – 357°) in steps of 3°
	lfo 1 slew rate	NRPN	0:72	0 – 127	0
	lfo 1 delay	NRPN	0:74	0 – 127	0
	lfo 1 delay sync	NRPN	0:75	0 – 35	0
	lfo 1 rate	NRPN	0:76	0 – 127	68
	lfo 1 rate sync	NRPN	0:77	0 – 35	0
	lfo 1 one shot	NRPN	0:122	12 – 13	12 (OFF)	12=OFF, 13=ON
	lfo 1 key sync	NRPN	0:122	14 – 15	14 (OFF)	14=OFF, 15=ON

	Lfo 1 common sync	NRPN	0:122	16 – 17	16 (OFF)	16=OFF, 17=ON
	Lfo 1 delay trigger	NRPN	0:122	18 – 19	18 (OFF)	18=OFF, 19=ON
	Lfo 1 fade mode	NRPN	0:123	0 – 3	0	0=Fade In, 1=Fade Out, 2=Gate In, 3=Gate Out
	Lfo 2 waveform	NRPN	0:79	0 – 37	0	See LFO Waveform Table
	Lfo 2 phase offset	NRPN	0:80	0 – 119	0	(0° – 357°) in steps of 3°
	Lfo 2 slew rate	NRPN	0:81	0 – 127	0
	Lfo 2 delay	NRPN	0:83	0 – 127	0
	Lfo 2 delay sync	NRPN	0:84	0 – 35	0
	Lfo 2 rate	NRPN	0:85	0– 127	68
	Lfo 2 rate sync	NRPN	0:86	0– 35	0
	lfo 2 one shot	NRPN	0:122	22– 23	22 (OFF)	22=OFF, 23=ON
	lfo 2 key sync	NRPN	0:122	24– 25	24 (OFF)	24=OFF, 25=ON
	lfo 2 common sync	NRPN	0:122	26– 27	26 (OFF)	26=OFF, 27=ON
	lfo 2 delay trigger	NRPN	0:122	28– 29	28 (OFF)	28=OFF, 29=ON
	lfo 2 fade mode	NRPN	0:123	4– 7	4	4=Fade In, 5=Fade Out, 6=Gate In, 7=Gate Out
Effects and EQ
	distortion level	CC	91	0– 127	0
	chorus level	CC	93	0–127	0
	EQ bass frequency	NRPN	0:104	0– 127	64
	EQ bass level	NRPN	0:105	0– 127 (-64 – 63)	64 (0)
	EQ mid frequency	NRPN	0:106	0– 127	64
	EQ mid level	NRPN	0:107	0– 127 (-64 – 63)	64 (0)
	EQ treble frequency	NRPN	0:108	0– 127	125
	EQ treble level	NRPN	0:109	0– 127 (-64 – 63)	64 (0)
	distortion type	NRPN	1:0	0– 6	0	See Distortion Table
	distortion compensation	NRPN	1:1	0– 127	100
	chorus type	NRPN	1:24	0– 1	1	0=Phaser, 1=Chorus
	chorus rate	NRPN	1:25	0– 127	84 (20)
	chorus rate sync	NRPN	1:26	0– 35	0
	chorus feedback	NRPN	1:27	0– 127 (-64 – 63)	74 (10)
	chorus mod depth	NRPN	1:28	0– 127	64
	chorus delay	NRPN	1:29	0– 127	64
Mod Matrix
	Mod matrix 1 source 1	NRPN	1:83	0 – 12	0	See Mod Matrix Table
	Mod matrix 1 source 2	NRPN	1:84	0 – 12	0	See Mod Matrix Table
	mod matrix 1 depth	NRPN	1:86	0 – 127 (-64 – 63)	64 (0)
	mod matrix 1 destination	NRPN	1:87	0 – 17	0	See Mod Matrix Table
	mod matrix 2 source 1	NRPN	1:88	0– 12	0	See Mod Matrix Table
	mod matrix 2 source 2	NRPN	1:89	0 – 12	0	See Mod Matrix Table
	mod matrix 2 depth	NRPN	1:91	0 – 127 (-64 – 63)	64 (0)
	mod matrix 2 destination	NRPN	1:92	0 – 17	0	See Mod Matrix Table
	mod matrix 3 source 1	NRPN	1:93	0 – 12	0	See Mod Matrix Table

mod matrix 3 source 2	NRPN	1:94	0 – 12	0	See Mod Matrix Table
mod matrix 3 depth	NRPN	1:96	0 – 127 (-64 – 63)	64 (0)
mod matrix 3 destination	NRPN	1:97	0 – 17	0	See Mod Matrix Table
mod matrix 4 source 1	NRPN	1:98	0 – 12	0	See Mod Matrix Table
mod matrix 4 source 2	NRPN	1:99	0 – 12	0	See Mod Matrix Table
mod matrix 4 depth	NRPN	1:101	0 – 127 (-64 – 63)	64 (0)
mod matrix 4 destination	NRPN	1:102	0 – 17	0	See Mod Matrix Table
mod matrix 5 source 1	NRPN	1:103	0 – 12	0	See Mod Matrix Table
mod matrix 5 source 2	NRPN	1:104	0 – 12	0	See Mod Matrix Table
mod matrix 5 depth	NRPN	1:106	0 – 127 (-64 – 63)	64 (0)
mod matrix 5 destination	NRPN	1:107	0 – 17	0	See Mod Matrix Table
mod matrix 6 source 1	NRPN	1:108	0 – 12	0	See Mod Matrix Table
mod matrix 6 source 2	NRPN	1:109	0 – 12	0	See Mod Matrix Table
mod matrix 6 depth	NRPN	1:111	0 – 127 (-64 – 63)	64 (0)
mod matrix 6 destination	NRPN	1:112	0 – 17	0	See Mod Matrix Table
mod matrix 7 source 1	NRPN	1:113	0 – 12	0	See Mod Matrix Table
mod matrix 7 source 2	NRPN	1:114	0 – 12	0	See Mod Matrix Table
mod matrix 7 depth	NRPN	1:116	0 – 127 (-64 – 63)	64 (0)
mod matrix 7 destination	NRPN	1:117	0 – 17	0	See Mod Matrix Table
mod matrix 8 source 1	NRPN	1:118	0 – 12	0	See Mod Matrix Table
mod matrix 8 source 2	NRPN	1:119	0 – 12	0	See Mod Matrix Table
mod matrix 8 depth	NRPN	1:121	0 – 127 (-64 – 63)	64 (0)
mod matrix 8 destination	NRPN	1:122	0 – 17	0	See Mod Matrix Table
mod matrix 9 source 1	NRPN	1:123	0 – 12	0	See Mod Matrix Table
mod matrix 9 source 2	NRPN	1:124	0 – 12	0	See Mod Matrix Table
mod matrix 9 depth	NRPN	1:126	0 – 127 (-64 – 63)	64 (0)
mod matrix 9 destination	NRPN	1:127	0 – 17	0	See Mod Matrix Table
mod matrix 10 source 1	NRPN	2:0	0 – 12	0	See Mod Matrix Table
mod matrix 10 source 2	NRPN	2:1	0 – 12	0	See Mod Matrix Table
mod matrix 10 depth	NRPN	2:3	0 – 127 (-64 – 63)	64 (0)
mod matrix 10 destination	NRPN	2:4	0 – 17	0	See Mod Matrix Table
mod matrix 11 source 1	NRPN	2:5	0 – 12	0	See Mod Matrix Table
mod matrix 11 source 2	NRPN	2:6	0 – 12	0	See Mod Matrix Table
mod matrix 11 depth	NRPN	2:8	0 – 127 (-64 – 63)	64 (0)

	Lfo 1 common sync	NRPN	0:122	16 – 17	16 (OFF)	16=OFF, 17=ON
	Lfo 1 delay trigger	NRPN	0:122	18 – 19	18 (OFF)	18=OFF, 19=ON
	Lfo 1 fade mode	NRPN	0:123	0 – 3	0	0=Fade In, 1=Fade Out, 2=Gate In, 3=Gate Out
	Lfo 2 waveform	NRPN	0:79	0 – 37	0	See LFO Waveform Table
	Lfo 2 phase offset	NRPN	0:80	0 – 119	0	(0° – 357°) in steps of 3°
	Lfo 2 slew rate	NRPN	0:81	0 – 127	0
	Lfo 2 delay	NRPN	0:83	0 – 127	0
	Lfo 2 delay sync	NRPN	0:84	0 – 35	0
	Lfo 2 rate	NRPN	0:85	0– 127	68
	Lfo 2 rate sync	NRPN	0:86	0– 35	0
	lfo 2 one shot	NRPN	0:122	22– 23	22 (OFF)	22=OFF, 23=ON
	lfo 2 key sync	NRPN	0:122	24– 25	24 (OFF)	24=OFF, 25=ON
	lfo 2 common sync	NRPN	0:122	26– 27	26 (OFF)	26=OFF, 27=ON
	lfo 2 delay trigger	NRPN	0:122	28– 29	28 (OFF)	28=OFF, 29=ON
	lfo 2 fade mode	NRPN	0:123	4– 7	4	4=Fade In, 5=Fade Out, 6=Gate In, 7=Gate Out
Effects and EQ
	distortion level	CC	91	0– 127	0
	chorus level	CC	93	0–127	0
	EQ bass frequency	NRPN	0:104	0– 127	64
	EQ bass level	NRPN	0:105	0– 127 (-64 – 63)	64 (0)
	EQ mid frequency	NRPN	0:106	0– 127	64
	EQ mid level	NRPN	0:107	0– 127 (-64 – 63)	64 (0)
	EQ treble frequency	NRPN	0:108	0– 127	125
	EQ treble level	NRPN	0:109	0– 127 (-64 – 63)	64 (0)
	distortion type	NRPN	1:0	0– 6	0	See Distortion Table
	distortion compensation	NRPN	1:1	0– 127	100
	chorus type	NRPN	1:24	0– 1	1	0=Phaser, 1=Chorus
	chorus rate	NRPN	1:25	0– 127	84 (20)
	chorus rate sync	NRPN	1:26	0– 35	0
	chorus feedback	NRPN	1:27	0– 127 (-64 – 63)	74 (10)
	chorus mod depth	NRPN	1:28	0– 127	64
	chorus delay	NRPN	1:29	0– 127	64

Mod Matrix
	Mod matrix 1 source 1	NRPN	1:83	0 – 12	0	See Mod Matrix Table
	Mod matrix 1 source 2	NRPN	1:84	0 – 12	0	See Mod Matrix Table
	mod matrix 1 depth	NRPN	1:86	0 – 127 (-64 – 63)	64 (0)
	mod matrix 1 destination	NRPN	1:87	0 – 17	0	See Mod Matrix Table
	mod matrix 2 source 1	NRPN	1:88	0– 12	0	See Mod Matrix Table
	mod matrix 2 source 2	NRPN	1:89	0 – 12	0	See Mod Matrix Table
	mod matrix 2 depth	NRPN	1:91	0 – 127 (-64 – 63)	64 (0)
	mod matrix 2 destination	NRPN	1:92	0 – 17	0	See Mod Matrix Table
	mod matrix 3 source 1	NRPN	1:93	0 – 12	0	See Mod Matrix Table
	mod matrix 3 source 2	NRPN	1:94	0 – 12	0	See Mod Matrix Table
	mod matrix 3 depth	NRPN	1:96	0 – 127 (-64 – 63)	64 (0)
	mod matrix 3 destination	NRPN	1:97	0 – 17	0	See Mod Matrix Table
	mod matrix 4 source 1	NRPN	1:98	0 – 12	0	See Mod Matrix Table
	mod matrix 4 source 2	NRPN	1:99	0 – 12	0	See Mod Matrix Table
	mod matrix 4 depth	NRPN	1:101	0 – 127 (-64 – 63)	64 (0)
	mod matrix 4 destination	NRPN	1:102	0 – 17	0	See Mod Matrix Table
	mod matrix 5 source 1	NRPN	1:103	0 – 12	0	See Mod Matrix Table
	mod matrix 5 source 2	NRPN	1:104	0 – 12	0	See Mod Matrix Table
	mod matrix 5 depth	NRPN	1:106	0 – 127 (-64 – 63)	64 (0)
	mod matrix 5 destination	NRPN	1:107	0 – 17	0	See Mod Matrix Table
	mod matrix 6 source 1	NRPN	1:108	0 – 12	0	See Mod Matrix Table
	mod matrix 6 source 2	NRPN	1:109	0 – 12	0	See Mod Matrix Table
	mod matrix 6 depth	NRPN	1:111	0 – 127 (-64 – 63)	64 (0)
	mod matrix 6 destination	NRPN	1:112	0 – 17	0	See Mod Matrix Table
	mod matrix 7 source 1	NRPN	1:113	0 – 12	0	See Mod Matrix Table
	mod matrix 7 source 2	NRPN	1:114	0 – 12	0	See Mod Matrix Table
	mod matrix 7 depth	NRPN	1:116	0 – 127 (-64 – 63)	64 (0)
	mod matrix 7 destination	NRPN	1:117	0 – 17	0	See Mod Matrix Table
	mod matrix 8 source 1	NRPN	1:118	0 – 12	0	See Mod Matrix Table
	mod matrix 8 source 2	NRPN	1:119	0 – 12	0	See Mod Matrix Table
	mod matrix 8 depth	NRPN	1:121	0 – 127 (-64 – 63)	64 (0)
	mod matrix 8 destination	NRPN	1:122	0 – 17	0	See Mod Matrix Table
	mod matrix 9 source 1	NRPN	1:123	0 – 12	0	See Mod Matrix Table
	mod matrix 9 source 2	NRPN	1:124	0 – 12	0	See Mod Matrix Table
	mod matrix 9 depth	NRPN	1:126	0 – 127 (-64 – 63)	64 (0)
	mod matrix 9 destination	NRPN	1:127	0 – 17	0	See Mod Matrix Table
	mod matrix 10 source 1	NRPN	2:0	0 – 12	0	See Mod Matrix Table
	mod matrix 10 source 2	NRPN	2:1	0 – 12	0	See Mod Matrix Table
	mod matrix 10 depth	NRPN	2:3	0 – 127 (-64 – 63)	64 (0)
	mod matrix 10 destination	NRPN	2:4	0 – 17	0	See Mod Matrix Table
	mod matrix 11 source 1	NRPN	2:5	0 – 12	0	See Mod Matrix Table
	mod matrix 11 source 2	NRPN	2:6	0 – 12	0	See Mod Matrix Table
	mod matrix 11 depth	NRPN	2:8	0 – 127 (-64 – 63)	64 (0)

macro knob 3 depth A	NRPN	3:35	0 – 127 (-64 – 63)	64 (0)
macro knob 3 destination B	NRPN	3:36	0 – 70	0
macro knob 3 start position B	NRPN	3:37	0 – 127	0
macro knob 3 end position B	NRPN	3:38	0 – 127	127
macro knob 3 depth B	NRPN	3:39	0 – 127 (-64 – 63)	64 (0)
macro knob 3 destination C	NRPN	3:40	0 – 70	0
macro knob 3 start position C	NRPN	3:41	0 – 127	0
macro knob 3 end position C	NRPN	3:42	0 – 127	127
macro knob 3 depth C	NRPN	3:43	0 – 127 (-64 – 63)	64 (0)
macro knob 3 destination D	NRPN	3:44	0 – 70	0
macro knob 3 start position D	NRPN	3:45	0 – 127	0
macro knob 3 end position D	NRPN	3:46	0 – 127	127
macro knob 3 depth D	NRPN	3:47	0 – 127 (-64 – 63)	64 (0)
macro knob 4 position	CC	83	0 – 127	0
macro knob 4 destination A	NRPN	3:48	0 – 70	0
macro knob 4 start position A	NRPN	3:49	0 – 127	0
macro knob 4 end position A	NRPN	3:50	0 – 127	127
macro knob 4 depth A	NRPN	3:51	0 – 127 (-64 – 63)	64 (0)
macro knob 4 destination B	NRPN	3:52	0 – 70	0
macro knob 4 start position B	NRPN	3:53	0 – 127	0
macro knob 4 end position B	NRPN	3:54	0 – 127	127
macro knob 4 depth B	NRPN	3:55	0 – 127 (-64 – 63)	64 (0)
macro knob 4 destination C	NRPN	3:56	0 – 70	0
macro knob 4 start position C	NRPN	3:57	0 – 127	0
macro knob 4 end position C	NRPN	3:58	0 – 127	127
macro knob 4 depth C	NRPN	3:59	0 – 127 (-64 – 63)	64 (0)
macro knob 4 destination D	NRPN	3:60	0 – 70	0
macro knob 4 start position D	NRPN	3:61	0 – 127	0
macro knob 4 end position D	NRPN	3:62	0 – 127	127
macro knob 4 depth D	NRPN	3:63	0 – 127 (-64 – 63)	64 (0)

macro knob 5 position	CC	84	0 – 127	0
macro knob 5 destination A	NRPN	3:64	0 – 70	0
macro knob 5 start position A	NRPN	3:65	0 – 127	0
macro knob 5 end position A	NRPN	3:66	0 – 127	127
macro knob 5 depth A	NRPN	3:67	0 – 127 (-64 – 63)	64 (0)
macro knob 5 destination B	NRPN	3:68	0 – 70	0
macro knob 5 start position B	NRPN	3:69	0 – 127	0
macro knob 5 end position B	NRPN	3:70	0 – 127	127
macro knob 5 depth B	NRPN	3:71	0 – 127 (-64 – 63)	64 (0)
macro knob 5 destination C	NRPN	3:72	0 – 70	0
macro knob 5 start position C	NRPN	3:73	0 – 127	0
macro knob 5 end position C	NRPN	3:74	0 – 127	127
macro knob 5 depth C	NRPN	3:75	0 – 127 (-64 – 63)	64 (0)
macro knob 5 destination D	NRPN	3:76	0 – 70	0
macro knob 5 start position D	NRPN	3:77	0 – 127	0
macro knob 5 end position D	NRPN	3:78	0 – 127	127
macro knob 5 depth D	NRPN	3:79	0 – 127 (-64 – 63)	64 (0)
macro knob 6 position	CC	85	0 – 127	0
macro knob 6 destination A	NRPN	3:80	0 – 70	0
macro knob 6 start position A	NRPN	3:81	0 – 127	0
macro knob 6 end position A	NRPN	3:82	0 – 127	127
macro knob 6 depth A	NRPN	3:83	0 – 127 (-64 – 63)	64 (0)
macro knob 6 destination B	NRPN	3:84	0 – 70	0
macro knob 6 start position B	NRPN	3:85	0 – 127	0
macro knob 6 end position B	NRPN	3:86	0 – 127	127
macro knob 6 depth B	NRPN	3:87	0 – 127 (-64 – 63)	64 (0)
macro knob 6 destination C	NRPN	3:88	0 – 70	0
macro knob 6 start position C	NRPN	3:89	0 – 127	0
macro knob 6 end position C	NRPN	3:90	0 – 127	127
macro knob 6 depth C	NRPN	3:91	0 – 127 (-64 – 63)	64 (0)
macro knob 6 destination D	NRPN	3:92	0 – 70	0
macro knob 6 start position D	NRPN	3:93	0 – 127	0
macro knob 6 end position D	NRPN	3:94	0 – 127	127
macro knob 6 depth D	NRPN	3:95	0 – 127 (-64 – 63)	64 (0)
macro knob 7 position	CC	86	0 – 127	0
macro knob 7 destination A	NRPN	3:96	0 – 70	0
macro knob 7 start position A	NRPN	3:97	0 – 127	0
macro knob 7 end position A	NRPN	3:98	0 – 127	127
macro knob 7 depth A	NRPN	3:99	0 – 127 (-64 – 63)	64 (0)
macro knob 7 destination B	NRPN	3:100	0 – 70	0
macro knob 7 start position B	NRPN	3:101	0 – 127	0
macro knob 7 end position B	NRPN	3:102	0 – 127	127
macro knob 7 depth B	NRPN	3:103	0 – 127 (-64 – 63)	64 (0)
macro knob 7 destination C	NRPN	3:104	0 – 70	0
macro knob 7 start position C	NRPN	3:105	0 – 127	0
macro knob 7 end position C	NRPN	3:106	0 – 127	127
macro knob 7 depth C	NRPN	3:107	0 – 127 (-64 – 63)	64 (0)
macro knob 7 destination D	NRPN	3:108	0 – 70	0
macro knob 7 start position D	NRPN	3:109	0 – 127	0
macro knob 7 end position D	NRPN	3:110	0 – 127	127

macro knob 7 depth D	NRPN	3:111	0 – 127 (-64 – 63)	64 (0)
macro knob 8 position	CC	87	0 – 127	0
macro knob 8 destination A	NRPN	3:112	0 – 70	0
macro knob 8 start position A	NRPN	3:113	0 – 127	0
macro knob 8 end position A	NRPN	3:114	0 – 127	127
macro knob 8 depth A	NRPN	3:115	0 – 127 (-64 – 63)	64 (0)
macro knob 8 destination B	NRPN	3:116	0 – 70	0
macro knob 8 start position B	NRPN	3:117	0 – 127	0
macro knob 8 end position B	NRPN	3:118	0 – 127	127
macro knob 8 depth B	NRPN	3:119	0 – 127 (-64 – 63)	64 (0)
macro knob 8 destination C	NRPN	3:120	0 – 70	0
macro knob 8 start position C	NRPN	3:121	0 – 127	0
macro knob 8 end position C	NRPN	3:122	0 – 127	127
macro knob 8 depth C	NRPN	3:123	0 – 127 (-64 – 63)	64 (0)
macro knob 8 destination D	NRPN	3:124	0 – 70	0
macro knob 8 start position D	NRPN	3:125	0 – 127	0
macro knob 8 end position D	NRPN	3:126	0 – 127	127
macro knob 8 depth D	NRPN	3:127	0 – 127 (-64 – 63)	64 (0)

Filter Table

	Value	Type
Drive Type
	0	diode
	1	valve
	2	clipper
	3	cross-over
	4	rectifier
	5	bit reducer
	6	rate reducer
Type
	0	low pass 12dB
	1	low pass 24dB
	2	band pass 6/\6 dB
	3	band pass 12/\12 dB
	4	high pass 12dB
	5	high pass 24dB

Distortion Table

Value	Type
0	diode
1	valve
2	clipper
3	cross-over
4	rectify
5	bit reducer
6	rate reducer

Mod Matrix Table

	Value	Type
Source
	0	direct



	4	velocity
	5	keyboard
	6	LFO 1 +
	7	LFO 1 +/-
	8	LFO 2 +
	9	LFO 2 +/-
	10	env amp
	11	env filter
	12	env 3
Destination
	0	osc 1 & 2 pitch
	1	osc 1 pitch
	2	osc 2 pitch
	3	osc 1 v-sync
	4	osc 2 v-sync
	5	osc 1 pulse width / index
	6	osc 2 pulse width / index
	7	osc 1 level
	8	osc 2 level
	9	noise level
	10	ring modulation 1*2 level
	11	filter drive amount
	12	filter frequency
	13	filter resonance
	14	LFO 1 rate
	15	LFO 2 rate
	16	amp envelope decay
	17	filter envelope decay

Osc Waveform Table

	Value	Type
Waveforms
	0	sine
	1	triangle
	2	sawtooth
	3	saw 9:1 PW
	4	saw 8:2 PW
	5	saw 7:3 PW
	6	saw 6:4 PW
	7	saw 5:5 PW
	8	saw 4:6 PW
	9	saw 3:7 PW
	10	saw 2:8 PW
	11	saw 1:9 PW
	12	pulse width
	13	square
Wavetables
	14	sine table
	15	analogue pulse
	16	analogue sync
	17	triangle-saw blend
	18	digital nasty 1
	19	digital nasty 2
	20	digital saw-square
	21	digital vocal 1
	22	digital vocal 2
	23	digital vocal 3
	24	digital vocal 4
	25	digital vocal 5
	26	digital vocal 6
	27	random collection 1
	28	random collection 2
	29	random collection 3

LFO Waveform Table

Value	Type
0	sine
1	triangle
2	sawtooth
3	square
4	random S/H
5	time S/H
6	piano envelope
7	sequence 1
8	sequence 2
9	sequence 3
10	sequence 4
11	sequence 5
12	sequence 6
13	sequence 7
14	alternative 1
15	alternative 2
16	alternative 3
17	alternative 4
18	alternative 5
19	alternative 6
20	alternative 7
21	alternative 8
22	chromatic
23	chromatic 16
24	major
25	major 7
26	minor 7
27	min arp 1
28	min arp 2
29	diminished
30	dec minor
31	minor 3rd
32	pedal
33	4ths
34	4ths x12
35	1625 maj
36	1625 Min
37	2511

Patch and Session Select

MIDI Channel	Parameter	Value	Notes

1	PGM*	0 – 63	select synth 1 patch
2	PGM	0 – 63	select synth 2 patch
16	PGM	0 – 31	select session (instant)
16	PGM	64 – 95	select session (queued)

*PGM = Program Change
Note, for drum patch selection see Drum Control table

Supported Realtime Messages

Message

start

stop

continue

timing clock

Supported System Common Messages

Message

song position pointer

song select

Drum Control

Messages on MIDI Channel 10

Parameter	CC / NRPN	Control No.	Range	Default Value
drum 1 patch select	CC	8	0 – 63	0
drum 1 level	CC	12	0 – 127	0
drum 1 pitch	CC	14	0 – 127 (-64 – 63)	64 (0)
drum 1 decay	CC	15	0 – 127	0
drum 1 distortion	CC	16	0 – 127	0
drum 1 EQ	CC	17	0 – 127 (-64 – 63)	64 (0)
drum 1 pan	CC	77	0 – 127 (-64 – 63)	64 (0)
drum 2 patch select	CC	18	0 – 63	0
drum 2 level	CC	23	0 – 127	0
drum 2 pitch	CC	34	0 – 127 (-64 – 63)	64 (0)
drum 2 decay	CC	40	0 – 127	0
drum 2 distortion	CC	42	0 – 127	0
drum 2 EQ	CC	43	0 – 127 (-64 – 63)	64 (0)
drum 2 pan	CC	78	0 – 127 (-64 – 63)	64 (0)
drum 3 patch select	CC	44	0 – 63	0
drum 3 level	CC	45	0 – 127	0
drum 3 pitch	CC	46	0 – 127 (-64 – 63)	64 (0)
drum 3 decay	CC	47	0 – 127	0
drum 3 distortion	CC	48	0 – 127	0
drum 3 EQ	CC	49	0 – 127 (-64 – 63)	64 (0)
drum 3 pan	CC	79	0 – 127 (-64 – 63)	64 (0)
drum 4 patch select	CC	50	0 – 63	0
drum 4 level	CC	53	0 – 127	0
drum 4 pitch	CC	55	0 – 127 (-64 – 63)	64 (0)
drum 4 decay	CC	57	0 – 127	0
drum 4 distortion	CC	61	0 – 127	0
drum 4 EQ	CC	76	0 – 127 (-64 – 63)	64 (0)
drum 4 pan	CC	80	0 – 127 (-64 – 63)	64 (0)

Drum Notes Table

MIDI Note	Drum Number
60	Drum 1
62	Drum 2
64	Drum 3
65	Drum 4

Session Control

Send messages on MIDI Channel 16

Section	Parameter	CC / NRPN	Control No.	Range	Default Value	Notes
Reverb
	synth 1 send level	CC	88	0 – 127	0
	synth 2 send level	CC	89	0 – 127	0
	drum 1 send level	CC	90	0 – 127	0
	drum 2 send level	CC	106	0 – 127	0
	drum 3 send level	CC	109	0 – 127	0
	drum 4 send level	CC	110	0 – 127	0
	type	NRPN	1:18	0 – 5	2	0=Chamber, 1=Small Room, 2=Large Room 3=Small Hall, 4=Large Hall, 5=Great Hall
	decay	NRPN	1:19	0 – 127	64
	damping	NRPN	1:20	0 – 127	64
Delay
	synth 1 send level	CC	111	0 – 127	0
	synth 2 send level	CC	112	0 – 127	0
	drum 1 send level	CC	113	0 – 127	0
	drum 2 send level	CC	114	0 – 127	0
	drum 3 send level	CC	115	0 – 127	0
	drum 4 send level	CC	116	0 – 127	0
	time	NRPN	1:6	0 – 127	64
	time sync	NRPN	1:7	0 – 35	20
	feedback	NRPN	1:8	0 – 127	64
	width	NRPN	1:9	0 – 127	127
	left-right ratio	NRPN	1:10	0 – 12	4	0=1:1, 1=4:3, 2=3:4, 3=3:2, 4=2:3, 5=2:1, 6=1:2 7=3:1, 8=1:3, 9=4:1, 10=1:4, 11=1:OFF, 12=OFF:1
	slew rate	NRPN	1:11	0 – 127	5
Master Filter
	frequency	CC	74	0 – 127 (-64 – 63)	64 (0)	0-63=Low Pass, 64=OFF, 65-127=High Pass
	resonance	CC	71	0 – 127	30
Sidechain
	synth 1 source	NRPN	2:55	0 – 4	0	0=Drum 1, 1=Drum 2, 2=Drum 3, 3=Drum 4, 4=OFF
	synth 1 attack	NRPN	2:56	0 – 127	0
	synth 1 hold	NRPN	2:57	0 – 127	50
	synth 1 decay	NRPN	2:58	0 – 127	70
	synth 1 depth	NRPN	2:59	0 – 127	0
	synth 2 source	NRPN	2:65	0 – 4	0	0=Drum 1, 1=Drum 2, 2=Drum 3, 3=Drum 4, 4=OFF
	synth 2 attack	NRPN	2:66	0 – 127	0
	synth 2 hold	NRPN	2:67	0 – 127	50
	synth 2 decay	NRPN	2:68	0 – 127	70
	synth 2 depth	NRPN	1:69	0 – 127	0
Mixer
	synth 1 level	CC	12	0 – 127	100
	synth 2 level	CC	14	0 – 127	100
	synth 1 pan	CC	117	0 – 127 (-64 – 63)	64 (0)
	synth 2 pan	CC	118	0 – 127 (-64 – 63)	64 (0)
Additional Controls
	FX Bypass	NRPN	1:21	0 – 1	0	0=Off (FX enabled), 1=On (FX disabled)

Synth Patch Sysex Message Formats

For best results, we recommend using Circuit’s USB connection for SysEx communication, as it is faster and more reliable. Although Circuit will receive SysEx messages via MIDI DIN, any response will be sent via USB only.

Replace Current Patch

This table describes the format of the “Replace current patch” message.

When this is received by Circuit it replaces the contents of the current sound (in RAM) for the specified Synth part.

There are states in which the device is not capable of receiving this message. For example, it may be busy processing another sysex message. In these situations the message will be ignored. The message may be sent without delays between the bytes. However, consecutive messages should have at least 20 ms between them to allow time for processing.

350 bytes in total

Replace Patch

This table describes the format of the “Replace Patch” message.

When this is received by Circuit it replaces the contents of the specified patch in Flash memory.

Current Patch Dump Request

This table describes the format of the “Current Patch Dump Request” message. There are states in which the device is not capable of receiving this message. For example, it may be busy processing another sysex message. In these situations the message will be ignored. The message may be sent without delays between the bytes. However, consecutive messages should have at least 20 ms between them to allow time for processing.

When this message is received on either MIDI DIN or MIDI USB, Circuit will respond by sending a Replace Current Patch message to its USB port. The location in the response will match the location in the request, and the patch data will correspond accordingly.

9 bytes in total

Patch Dump Request

To obtain a patch from Flash memory, follow these steps:

First send a Program Change message with the desired patch number (0 – 63) to a synth MIDI channel.
Wait enough time for the patch to load from Flash memory (10 ms should be plenty)
Send a Current Patch Dump Request message with the Location set to the corresponding Synth part.

Consecutive sequences should have at least 20 ms between them to allow time for processing.

Format of a Synth Patch (Single) SysEx File

To create a single patch in a portable format that can be shared with others, use a sysex file containing a single “Replace Current Patch” sysex message with the Location set to Synth 1.

Format of a Synth Patch (Bank) Sysex File

To create an entire bank of 64 synth patches, use a sysex file containing a concatenation of 64 separate “Replace Patch” sysex messages. Each message should overwrite consecutive patch numbers, starting from 0 and counting up to 63.

Synth Patch Format

Address	Default			Min	Max			Parameter(s)
0	73							Patch_Name
1	110			–	–			Patch_Name
2	105			–	–			Patch_Name
3	116			–	–			Patch_Name
4	105			–	–			Patch_Name
5	97			–	–			Patch_Name
6	108			–	–			Patch_Name
7	32			–	–			Patch_Name
8	80			–	–			Patch_Name
9	97			–	–			Patch_Name
10	116			–	–			Patch_Name
11	99			–	–			Patch_Name
12	104			–	–			Patch_Name
13	32			–	–			Patch_Name
14	32			–	–			Patch_Name
15	32			–	–			Patch_Name
16	0			0	14			Patch_Category
17	0			0	9			Patch_Genre
18	0			–	–			Patch_Reserved1
19	0			–	–			Patch_Reserved2
20	0			–	–			Patch_Reserved3
21	0			–	–			Patch_Reserved4
22	0			–	–			Patch_Reserved5
23	0			–	–			Patch_Reserved6
24	0			–	–			Patch_Reserved7
25	0			–	–			Patch_Reserved8
26	0			–	–			Patch_Reserved9
27	0			–	–			Patch_Reserved10
28	0			–	–			Patch_Reserved11
29	0			–	–			Patch_Reserved12
30	0			–	–			Patch_Reserved13
31	0			–	–			Patch_Reserved14
32	2			0	2			Voice_PolyphonyMode
33	0			0	127			Voice_PortamentoRate
34	64			52	76			Voice_PreGlide
35	64			58	69			Voice_KeyboardOctave
36	2			0	29			Osc1_Wave
37	127			0	127			Osc1_WaveInterpolate
38	64			0	127			Osc1_PulseWidthIndex
39	0			0	127			Osc1_VirtualSyncDepth
40	0			0	127			Osc1_Density
41	0			0	127			Osc1_DensityDetune
42	64			0	127			Osc1_Semitones
43	64			0	127			Osc1_Cents
44	76			52	76			Osc1_PitchBend
45	2			0	29			Osc2_Wave
46	127			0	127			Osc2_WaveInterpolate
47 64				0	127			Osc2_PulseWidthIndex
48 0		0				127		Osc2_VirtualSyncDepth

49 0		0				127		Osc2_Density
50 0		0				127		Osc2_DensityDetune
51 64		0				127		Osc2_Semitones
52 64		0				127		Osc2_Cents
53 76		52				76		Osc2_PitchBend
54 127		0				127		Mixer_Osc1Level
55 0		0				127		Mixer_Osc2Level
56 0		0				127		Mixer_RingModLevel12
57 0		0				127		Mixer_NoiseLevel
58 64		52				82		Mixer_PreFXLevel
59 64		52				82		Mixer_PostFXLevel
60 0		0				2		Filter_Routing
61 0		0				127		Filter_Drive
62 0		0				6		Filter_DriveType
63 1		0				5		Filter_Type
64 127		0				127		Filter_Frequency
65 127		0				127		Filter_Track
66 0		0				127		Filter_Resonance
67 64		0				127		Filter_QNormalise
68 64		0				127		Filter_Env2ToFreq
69 64		0				127		Envelope1_Velocity
70 2		0				127		Envelope1_Attack
71 90		0				127		Envelope1_Decay
72 127		0				127		Envelope1_Sustain
73 40		0				127		Envelope1_Release
74 64		0				127		Envelope2_Velocity
75 2		0				127		Envelope2_Attack
76 75		0				127		Envelope2_Decay
77 35		0				127		Envelope2_Sustain
78 45		0				127		Envelope2_Release
79 0		0				127		Envelope3_Delay
80 10		0				127		Envelope3_Attack
81 70		0				127		Envelope3_Decay
82 64		0				127		Envelope3_Sustain
83 40		0				127		Envelope3_Release
84 0		0				37		LFO1_Waveform
85 0		0				119		LFO1_PhaseOffset
86 0		0				127		LFO1_SlewRate
87 0		0				127		LFO1_Delay
88 0		0				35		LFO1_DelaySync
89 68		0				127		LFO1_Rate
90 0		0				35		LFO1_RateSync
91 0		–				–		LFO1_OneShot (bit 0), LFO1_KeySync (bit 1), LFO1_CommonSync (bit 2), LFO1_ DelayTrigger (bit 3), LFO1_FadeMode (bits 4-5)
92 0		0				37		LFO2_Waveform
93 0		0				119		LFO2_PhaseOffset
94 0		0				127		LFO2_SlewRate
95 0		0				127		LFO2_Delay
96 0			0		35		LFO2_DelaySync
97 68			0		127		LFO2_Rate

98 0			0		35		LFO2_RateSync
99 0			–		–		LFO2_OneShot (bit 0), LFO2_KeySync (bit 1), LFO2_CommonSync (bit 2), LFO2_ DelayTrigger (bit 3), LFO2_FadeMode (bits 4-5)
100 0			0		127		Distortion_Level
101 0			0		127		FX_Reserved1
102 0			0		127		Chorus_Level
103 0			–		–		FX_Reserved2
104 0			–		–		FX_Reserved3
105 64			0		127		Equaliser_BassFrequency
106 64			0		127		Equaliser_BassLevel
107 64			0		127		Equaliser_MidFrequency
108 64			0		127		Equaliser_MidLevel
109 125			0		127		Equaliser_TrebleFrequency
110 64			0		127		Equaliser_TrebleLevel
111 0			–		–		FX_Reserved4
112 0			–		–		FX_Reserved5
113 0			–		–		FX_Reserved6
114 0			–		–		FX_Reserved7
115 0			–		–		FX_Reserved8
116 0			0		6		Distortion_Type
117 100			0		127		Distortion_Compensation
118 1			0		1		Chorus_Type
119 20			0		127		Chorus_Rate
120 0			0		35		Chorus_RateSync
121 74			0		127		Chorus_Feedback
122 64			0		127		Chorus_ModDepth
123 64			0		127		Chorus_Delay
124 0			0		12		ModMatrix1_Source1
125 0			0		12		ModMatrix1_Source2
126 64			0		127		ModMatrix1_Depth
127 0			0		17		ModMatrix1_Destination
128 0			0		12		ModMatrix2_Source1
129 0			0		12		ModMatrix2_Source2
130 64			0		127		ModMatrix2_Depth
131 0			0		17		ModMatrix2_Destination
132 0			0		12		ModMatrix3_Source1
133 0			0		12		ModMatrix3_Source2
134 64			0		127		ModMatrix3_Depth
135 0			0		17		ModMatrix3_Destination
136 0			0		12		ModMatrix4_Source1
137 0			0		12		ModMatrix4_Source2
138 64			0		127		ModMatrix4_Depth
139 0			0		17		ModMatrix4_Destination
140 0			0		12		ModMatrix5_Source1
141 0			0		12		ModMatrix5_Source2
142 64			0		127		ModMatrix5_Depth
143 0			0		17		ModMatrix5_Destination
144 0			0		12		ModMatrix6_Source1

245 127	0	127	MacroKnob3_EndPosB
246 64	0	127	MacroKnob3_DepthB
247 0	0	70	MacroKnob3_DestinationC
248 0	0	127	MacroKnob3_StartPosC
249 127	0	127	MacroKnob3_EndPosC
250 64	0	127	MacroKnob3_DepthC
251 0	0	70	MacroKnob3_DestinationD
252 0	0	127	MacroKnob3_StartPosD
253 127	0	127	MacroKnob3_EndPosD
254 64	0	127	MacroKnob3_DepthD
255 0	0	127	MacroKnob4_Position
256 0	0	70	MacroKnob4_DestinationA
257 0	0	127	MacroKnob4_StartPosA
258 127	0	127	MacroKnob4_EndPosA
259 64	0	127	MacroKnob4_DepthA
260 0	0	70	MacroKnob4_DestinationB
261 0	0	127	MacroKnob4_StartPosB
262 127	0	127	MacroKnob4_EndPosB
263 64	0	127	MacroKnob4_DepthB
264 0	0	70	MacroKnob4_DestinationC
265 0	0	127	MacroKnob4_StartPosC
266 127	0	127	MacroKnob4_EndPosC
267 64	0	127	MacroKnob4_DepthC
268 0	0	70	MacroKnob4_DestinationD
269 0	0	127	MacroKnob4_StartPosD
270 127	0	127	MacroKnob4_EndPosD
271 64	0	127	MacroKnob4_DepthD
272 0	0	127	MacroKnob5_Position
273 0	0	70	MacroKnob5_DestinationA
274 0	0	127	MacroKnob5_StartPosA
275 127	0	127	MacroKnob5_EndPosA
276 64	0	127	MacroKnob5_DepthA
277 0	0	70	MacroKnob5_DestinationB
278 0	0	127	MacroKnob5_StartPosB
279 127	0	127	MacroKnob5_EndPosB
280 64	0	127	MacroKnob5_DepthB
281 0	0	70	MacroKnob5_DestinationC
282 0	0	127	MacroKnob5_StartPosC
283 127	0	127	MacroKnob5_EndPosC
284 64	0	127	MacroKnob5_DepthC
285 0	0	70	MacroKnob5_DestinationD
286 0	0	127	MacroKnob5_StartPosD
287 127	0	127	MacroKnob5_EndPosD
288 64	0	127	MacroKnob5_DepthD
289 0	0	127	MacroKnob6_Position
290 0	0	70	MacroKnob6_DestinationA
291 0	0	127	MacroKnob6_StartPosA
292 127	0	127	MacroKnob6_EndPosA
293 64	0	127	MacroKnob6_DepthA
294 0	0	70	MacroKnob6_DestinationB

295 0	0	127	MacroKnob6_StartPosB

296 127	127	MacroKnob6_EndPosB
297 64	127	MacroKnob6_DepthB
298 0	70	MacroKnob6_DestinationC
299 0	127	MacroKnob6_StartPosC
300 127	127	MacroKnob6_EndPosC
301 64	127	MacroKnob6_DepthC
302 0	70	MacroKnob6_DestinationD
303 0	127	MacroKnob6_StartPosD
304 127	127	MacroKnob6_EndPosD
305 64	127	MacroKnob6_DepthD
306 0	127	MacroKnob7_Position
307 0	70	MacroKnob7_DestinationA
308 0	127	MacroKnob7_StartPosA
309 127	127	MacroKnob7_EndPosA
310 64	127	MacroKnob7_DepthA
311 0	70	MacroKnob7_DestinationB
312 0	127	MacroKnob7_StartPosB
313 127	127	MacroKnob7_EndPosB
314 64	127	MacroKnob7_DepthB
315 0	70	MacroKnob7_DestinationC
316 0	127	MacroKnob7_StartPosC
317 127	127	MacroKnob7_EndPosC
318 64	127	MacroKnob7_DepthC
319 0	70	MacroKnob7_DestinationD
320 0	127	MacroKnob7_StartPosD
321 127	127	MacroKnob7_EndPosD
322 64	127	MacroKnob7_DepthD
323 0	127	MacroKnob8_Position
324 0	70	MacroKnob8_DestinationA
325 0	127	MacroKnob8_StartPosA
326 127	127	MacroKnob8_EndPosA
327 64	127	MacroKnob8_DepthA
328 0	70	MacroKnob8_DestinationB
329 0	127	MacroKnob8_StartPosB
330 127	127	MacroKnob8_EndPosB
331 64	127	MacroKnob8_DepthB
332 0	70	MacroKnob8_DestinationC
333 0	127	MacroKnob8_StartPosC
334 127	127	MacroKnob8_EndPosC
335 64	127	MacroKnob8_DepthC
336 0	70	MacroKnob8_DestinationD
337 0	127	MacroKnob8_StartPosD
338 127	127	MacroKnob8_EndPosD
339 64	127	MacroKnob8_DepthD
