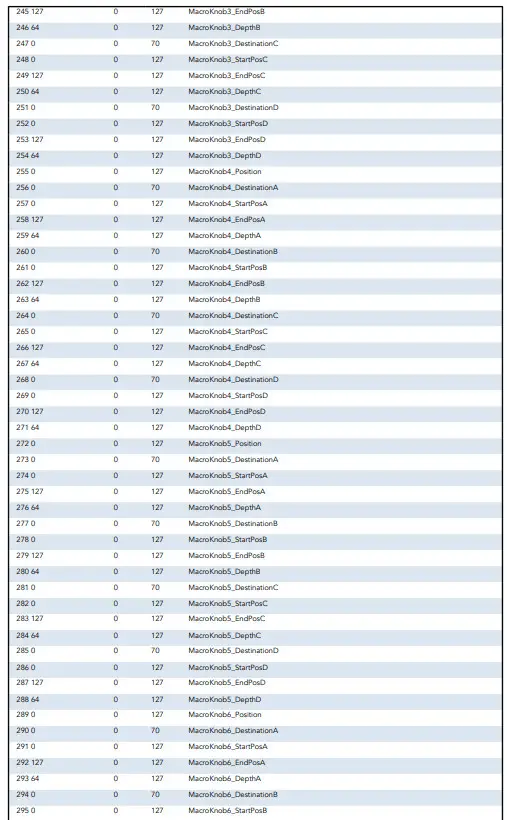

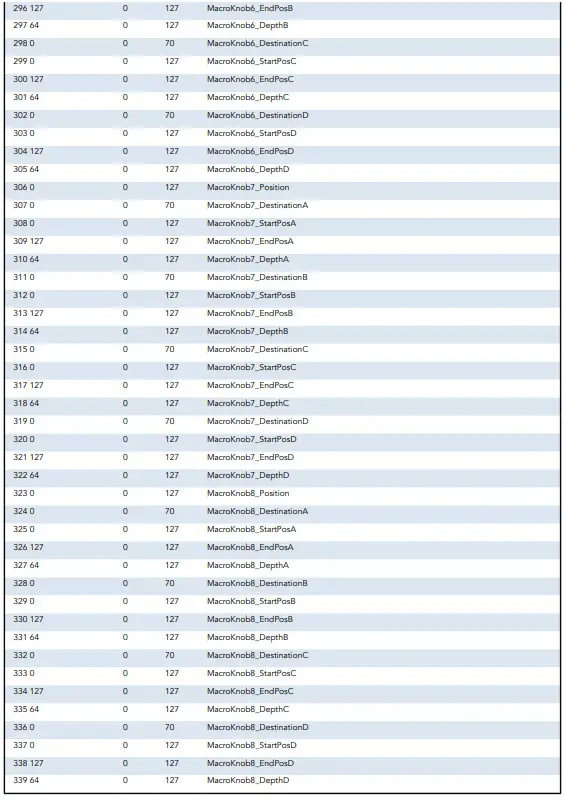

2 Macro Knobs

3 Filter Table

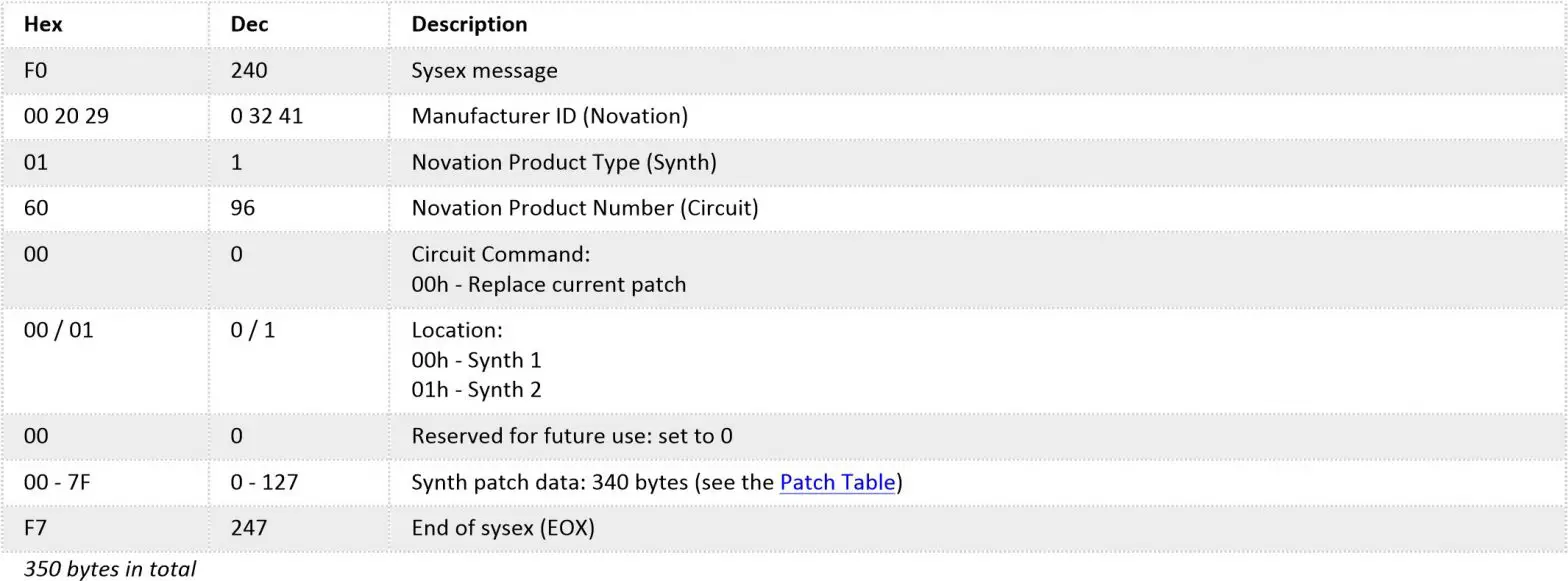

3.1 Replace Current Patch

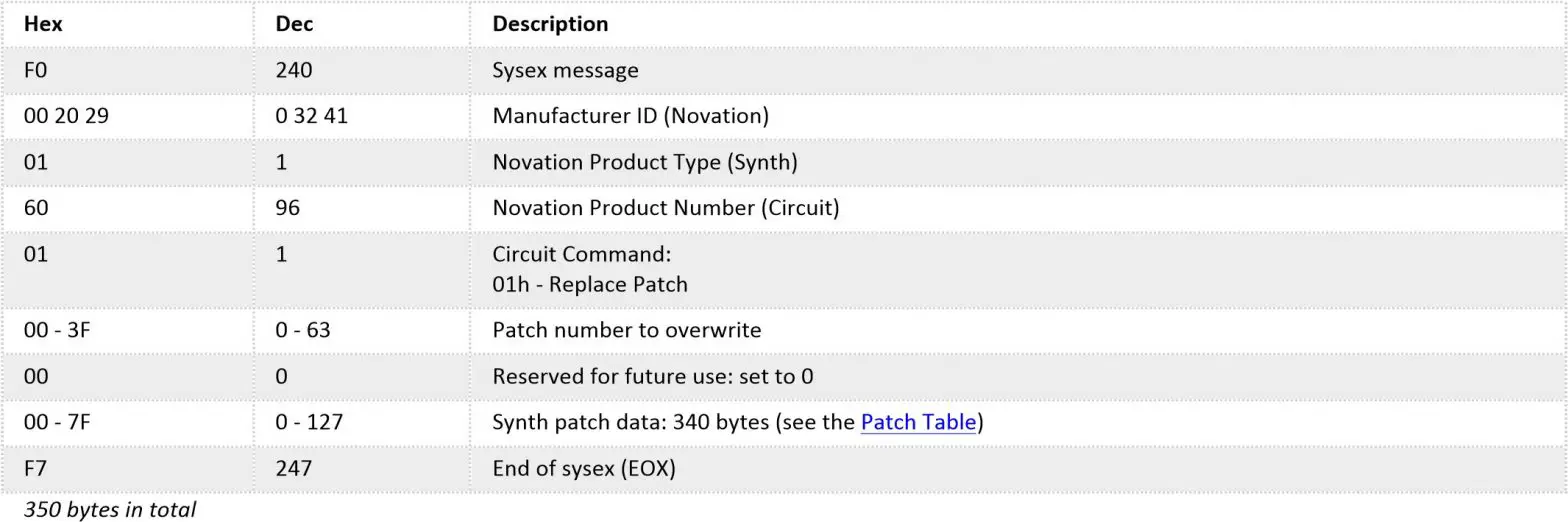

3.2 Replace Patch

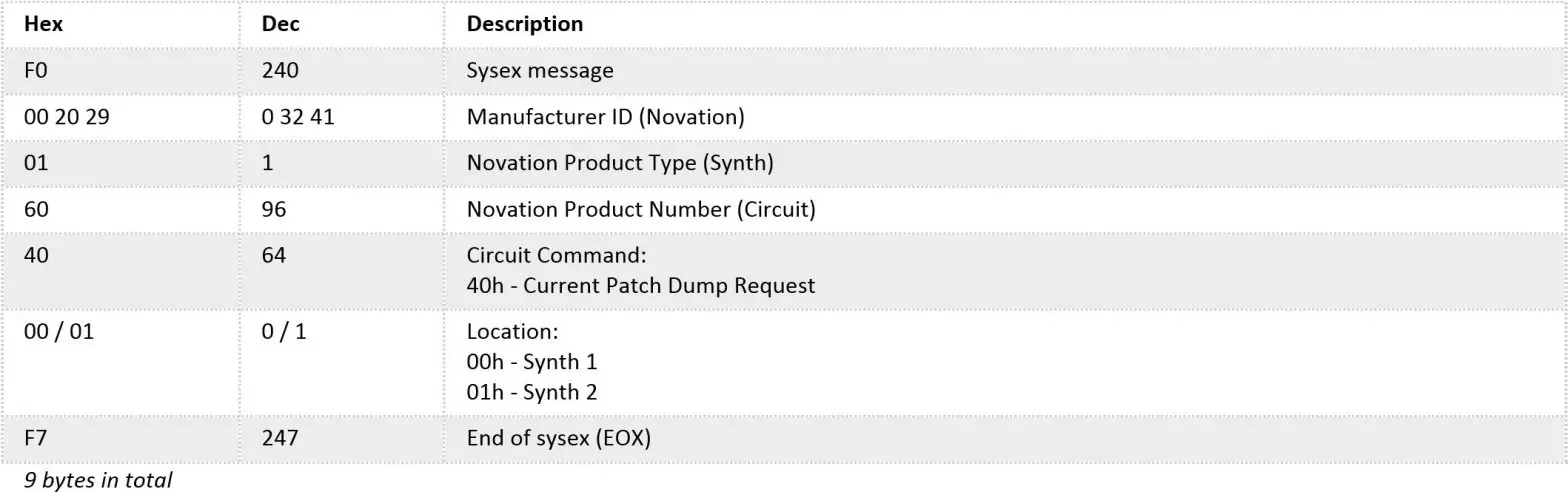

3.3 Current Patch Dump Request

3.4 Patch Dump Request

3.5 Format of a Synth Patch (Single) SysEx File

3.6 Format of a Synth Patch (Bank) Sysex File

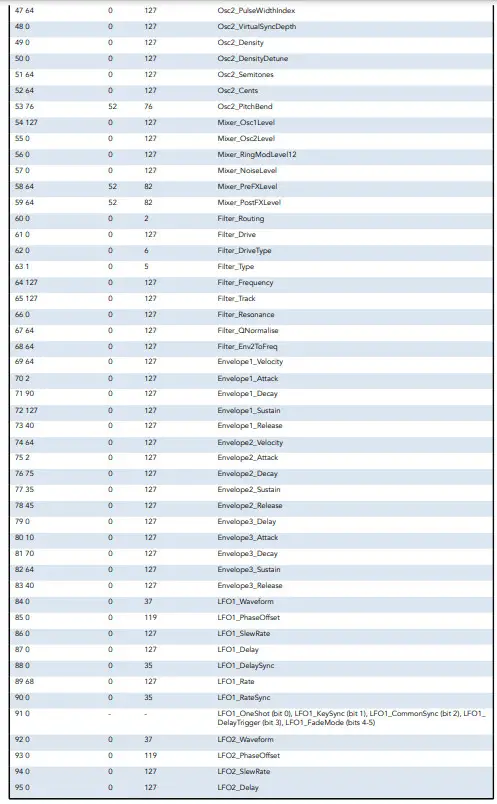

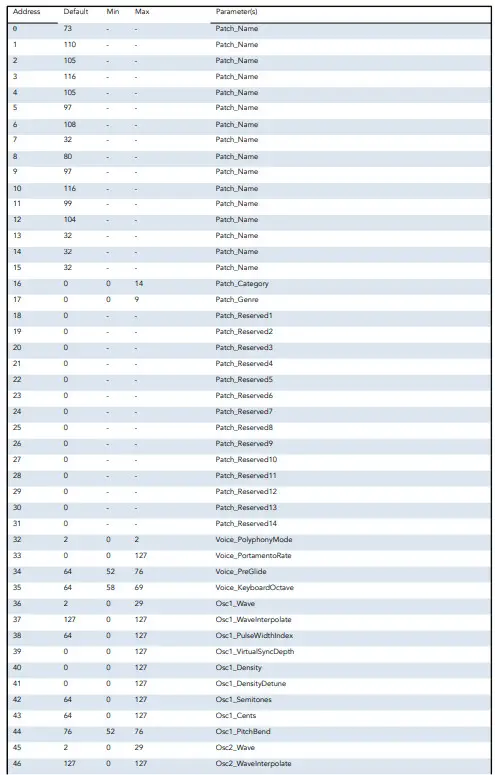

4 Synth Patch Format

5 Documents / Resources

6 Related Posts

Circuit Tracks MIDI Parameters

Synths 1 & 2
Send messages on MIDI Channel 1 for Synth 1 and Channel 2 for Synth.

Section	Parameter	CC / NRPN	Control No.	I Range	Default Value	Notes
Voice
	Polyphony Mode	CC	3	0— 2	2	0=Mono, 1=Mono AG, 2=Poly
	Portamento Rate	CC	5	0 — 127	0
	Pre-Glide	CC	9	52 — 76 (-12 — 12)	64 (0)
	Keyboard Octave	CC	13	58 — 69 (-6 — 5)	64 (0)	60=-4 Octaves, 64=0 Octaves, 68=+4 Octaves
Oscillator
	OSC 1 wave	CC	19	0 — 29	2	See Osc Waveform Table
	OSC 1 wave interpolate	CC	20	0 — 127	0
	OSC 1 pulse width index	CC	21	0 — 127 (-64 — 63)	127 (63)
	OSC 1 virtual sync depth	CC	22	0 — 127	0
	OSC 1 density	CC	24	0 — 127	0
	OSC 1 density detune	CC	25	0 — 127	0
	OSC 1 semitones	CC	26	0 — 127 (-64 — 63)	64 (0)
	OSC 1 cents	CC	27	0 — 127 (-64 — 63)	64 (0)
	OSC 1 pitch bend	CC	28	52 — 76 (-12 — 12)	76 (12)
	OSC 2 wave	CC	29	0 — 29	2	See Osc Waveform Table
	OSC 2 wave interpolate	CC	30	0 — 127	0
	OSC 2 pulse width index	CC	31	0 — 127 (-64 — 63)	127 (63)
	OSC 2 virtual sync depth	CC	33	0 — 127	0
	OSC 2 density	CC	35	0 — 127	0
	OSC 2 density detune	CC	36	0 — 127	0
	OSC 2 semitones	CC	37	0 — 127 (-64 — 63)	64 (0)
	OSC 2 cents	CC	39	0 — 127 (-64 — 63)	64 (0)
	OSC 2 pitch bend	CC	40	52 — 76 (-12 — 12)	76 (12)

Mixer
	OSC 1 level	CC	51	0 — 127	127
	OSC 2 level	CC	52	0 — 127	0
	ring mod level	CC	54	0 — 127	0
	noise level	CC	56	0 — 127	0
	pre FX level	CC	58	52 — 82 (-12 — 18)	64 (0)	-12 to +18 dB
	post FX level	CC	59	52 — 82 (-12 — 18)	64 (0)	-12 to +18 dB
Filter
	routing	CC	60	0 — 2	0	0=Normal 1=Osc 1 bypasses the filter 2=Osc 1 + Osc 2 bypasses the
	drive	CC	63	0 — 127	0	filter
	drive type	CC	65	0 — 6	0	See Filter Table
	type	CC	68	0 — 5	1
	frequency	CC	74	0 — 127	127
	tracking	CC	69	0 — 127	127
	resonance	CC	71	0— 127	0
	Q normalize	CC	78	0— 127	64
	env 2 to the frequency	CC	79	0 — 127 (-64 — 63)	64 (0)

Envelope
	env 1 velocity	CC	108	0 — 127 (-64 — 63)	64 (0)
	env 1 attack	CC	73	0 — 127	2
	env 1 decay	CC	75	0 — 127	90
	env I sustain	CC	70	0 — 127	127
	env I release	CC	72	0 — 127	40
	env 2 velocity	NRPN	0:00	0 — 127 (-64 — 63)	64 (0)
	env 2 attack	NRPN	0:01	0 — 127	2
	env 2 decay	NRPN	0:02	0 — 127	75
	env 2 sustain	NRPN	0:03	0 — 127	35
	env 2 release	NRPN	0:04	0 — 127	45
	env 3 delay	NRPN	0:14	0 — 127	0
	env 3 attack	NRPN	0:15	0 — 127	10
	env 3 decay	NRPN	0:16	0 — 127	70
	env 3 sustain	NRPN	0:17	0 — 127	64
	env 3 release	NRPN	0:18	0 — 127	40
LFO
	Ifo 1 waveform	NRPN	0:70	0 — 37	0	See LFO waveform table
	Ifo 1 phase offset	NRPN	0:71	0 — 119	0	(0° – 357°) in steps of 3°
	Ifo 1 slew rate	NRPN	0:72	0 — 127	0
	Ifo 1 delay	NRPN	0:74	0 — 127	0
	Ifo 1 delay sync	NRPN	0:75	0 — 35	0
	Ifo 1 rate	NRPN	0:76	0— 127	68
	Ifo 1 rate sync	NRPN	0:77	0-35	0
	Ifo 1 one shot	NRPN	0:122	12 — 13	12 (OFF)	12=OFF, 13=ON
	Ifo 1 key sync	NRPN	0:122	14 — 15	14 (OFF)	14=OFF, 15=ON

	Lfo 1 common sync	NRPN	0:122	16- 17	16 (OFF)	16=OFF, 17=ON
	Lfo 1 delay trigger	NRPN	0:122	18 – 19	18 (OFF)	18=OFF, 19=ON
	Lfo 1 fade mode	NRPN	0:123	0- 3	0	0=Fade In, 1=Fade Out, 2=Gate In, 3=Gate Out
	Lfo 2 waveform	NRPN	0:79	0 – 37	0	See LFO Waveform Table
	Lfo 2 phase offset	NRPN	0:80	0 – 119	0	(0° – 357°) in steps of 3°
	Lfo 2 slew rate	NRPN	0:81	0 – 127	0
	Lfo 2 delay	NRPN	0:83	0 – 127	0
	Lfo 2 delay sync	NRPN	0:84	0 – 35	0
	Lfo 2 rate	NRPN	0:85	0- 127	68
	Lfo 2 rate sync	NRPN	0:86	0- 35	0
	Ifo 2 one shot	NRPN	0:122	22- 23	22 (OFF)	22=OFF, 23=ON
	Ifo 2 key sync	NRPN	0:122	24- 25	24 (OFF)	24=OFF, 25=ON
	Ifo 2 common sync	NRPN	0:122	26- 27	26 (OFF)	26=OFF, 27=ON
	Ifo 2 delay trigger	NRPN	0:122	28- 29	28 (OFF)	28=OFF, 29=ON
	Ifo 2 fade mode	NRPN	0:123	4- 7	4	4=Fade In, 5=Fade Out, 6=Gate In, 7=Gate Out
Effects and EQ
	distortion level	CC	91	0- 127	0
	chorus level	CC	93	0-127	0
	EQ bass frequency	NRPN	0:104	0- 127	64
	EQ bass level	NRPN	0:105	0- 127 (-64 – 63)	64 (0)
	EQ mid-frequency	NRPN	0:106	0- 127	64
	EQ mid level	NRPN	0:107	0- 127 (-64 – 63)	64 (0)
	EQ treble frequency	NRPN	0:108	0- 127	125
	EQ treble level	NRPN	0:109	0- 127 (-64 – 63)	64 (0)
	distortion type	NRPN	1:00	0- 6	0	See Distortion Table
	distortion compensation	NRPN	1:01	0- 127	100
	chorus type	NRPN	1:24	0- 1	1	0=Phaser, 1=Chorus
	chorus rate	NRPN	1:25	0- 127	84 (20)
	chorus rate sync	NRPN	1:26	0- 35	0
	chorus feedback	NRPN	1:27	0- 127 (-64 – 63)	74 (10)
	chorus mod depth	NRPN	1:28	0- 127	64
	chorus delay	NRPN	1:29	0- 127	64

Mai Matrix
	Mod matrix 1 source 1	NRPN	1:83	0 -12		0		See Mod Matrix Table
	Mod matrix 1 source 2	NRPN	1:84	0 -12		0		See Mod Matrix Table
	mod matrix 1 depth	NRPN	1:86	0 -127	(-64 – 63)	64	0
	mod matrix 1 destination	NRPN	1:87	0 -17		0		See Mod Matrix Table
	mod matrix 2 sources 1	NRPN	1:88	0- 12		0		See Mod Matrix Table
	mod matrix 2 sources 2	NRPN	1:89	0 -12		0		See Mod Matrix Table
	mod matrix 2 depth	NRPN	1:91	0 -127	(-64 -63)	64	0
	mod matrix 2 destination	NRPN	1:92	0 -17		0		See Mod Matrix Table
	mod matrix 3 sources 1	NRPN	1:93	0 -12		0		See Mod Matrix Table

mod matrix 3 sources 2	NRPN	1:94	0 -12		0		See Mod Matrix Table
mod matrix 3 depth	NRPN	1:96	0 – 127	(-64 – 63)	64	0
mod matrix 3 destination	NRPN	1:97	0 – 17		0		See Mod Matrix Table
mod matrix 4 sources 1	NRPN	1:98	0 – 12		0		See Mod Matrix Table
mod matrix 4 sources 2	NRPN	1:99	0 -12		0		See Mod Matrix Table
mod matrix 4 depth	NRPN	1:101	0 -127	(-64 – 63)	64	0
mod matrix 4 destination	NRPN	1:102	0-17		0		See Mod Matrix Table
mod matrix 5 sources 1	NRPN	1:103	0 -12		0		See Mod Matrix Table
mod matrix 5 sources 2	NRPN	1:104	0 -12		0		See Mod Matrix Table
mod matrix 5 depth	NRPN	1:106	0 -127	(-64 – 63)	64	0
mod matrix 5 destination	NRPN	1:107	0-17		0		See Mod Matrix Table
mod matrix 6 sources 1	NRPN	1:108	0 -12		0		See Mod Matrix Table
mod matrix 6 sources 2	NHPN	1:109	0- 12		0		See Mod Matrix fable
mod matrix 6 depth	NRPN	1:111	0 -127	(-64 – 63)	64	0
mod matrix 6 destination	NRPN	1:112	0-17		0		See Mod Matrix Table
mod matrix 7 sources 1	NRPN	1:113	0 -12		0		See Mod Matrix Table
mod matrix 7 sources 2	NRPN	1:114	0 -12		0		See Mod Matrix Table
mod matrix 7 depth	NRPN	1:116	0 -127	(-64 – 63)	64	0
mod matrix 7 destination	NRPN	1:117	0 -17		0		See Mod Matrix Table
mod matrix 8 sources 1	NRPN	1:118	0 -12		0		See Mod Matrix Table
mod matrix 8 sources 2	NRPN	1:119	0 -12		0		See Mod Matrix Table
mod matrix 8 depth	NRPN	1:121	0 -127	(-64 – 63)	64	0
mod matrix 8 destination	NRPN	1:122	0- 17		0		See Mod Matrix Table
mod matrix 9 sources 1	NRPN	1:123	0- 12		0		See Mod Matrix Table
mod matrix 9 sources 2	NRPN	1:124	0 – 12		0		See Mod Matrix Table
mod matrix 9 depth	NRPN	1:126	0 – 127	(-64 – 63)	64	0
mod matrix 9 destination	NRPN	1:127	0- 17		0		See Mod Matrix Table
mod matrix 10 sources 1	NRPN	2:00	0- 12		0		See Mod Matrix Table
mod matrix 10 sources 2	NRPN	2:01	0- 12		0		See Mod Matrix Table
mod matrix 10 depth	NRPN	2:03	0 -127	(-64 – 63)	64	0
mod matrix 10 destination	NRPN	2:04	0 – 17		0		See Mod Matrix Table
mod matrix 11 sources 1	NRPN	2:05	0 -12		0		See Mod Matrix Table
mod matrix 11 sources 2	NRPN	2:06	0 -12		0		See Mod Matrix Table
mod matrix 11 depth	NRPN	2:08	0 -127	(-64 – 63)	64	0

mod matrix 3 sources 2	NRPN	1:94	0 – 12		0		See Mod Matrix Table
mod matrix 3 depth	NRPN	1:96	0 – 127	(-64 – 63)	64	0
mod matrix 3 destination	NRPN	1:97	0 – 17		0		See Mod Matrix Table
mod matrix 4 sources 1	NRPN	1:98	0 – 12		0		See Mod Matrix Table
mod matrix 4 sources 2	NRPN	1:99	0 – 12		0		See Mod Matrix Table
mod matrix 4 depth	NRPN	1:101	0 – 127	(-64 – 63)	64	0
mod matrix 4 destination	NRPN	1:102	0 – 17		0		See Mod Matrix Table
mod matrix 5 sources 1	NRPN	1:103	0 – 12		0		See Mod Matrix Table
mod matrix 5 sources 2	NRPN	1:104	0 – 12		0		See Mod Matrix Table
mod matrix 5 depth	NRPN	1:106	0 – 127	(-64 – 63)	64	0
mod matrix 5 destination	NRPN	1:107	0 – 17		0		See Mod Matrix Table
mod matrix 6 sources 1	NRPN	1:108	0 – 12		0		See Mod Matrix Table
mod matrix 6 sources 2	NRPN	1:109	0 – 12		0		See Mod Matrix Table
mod matrix 6 depth	NRPN	1:111	0 – 127	(-64 – 63)	64	0
mod matrix 6 destination	NRPN	1:112	0 – 17		0		See Mod Matrix Table
mod matrix 7 sources 1	NRPN	1:113	0 – 12		0		See Mod Matrix Table
mod matrix 7 sources 2	NRPN	1:114	0 – 12		0		See Mod Matrix Table
mod matrix 7 depth	NRPN	1:116	0 – 127	(-64 – 63)	64	0
mod matrix 7 destination	NRPN	1:117	0 – 17		0		See Mod Matrix Table
mod matrix 8 sources 1	NRPN	1:118	0 – 12		0		See Mod Matrix Table
mod matrix 8 sources 2	NRPN	1:119	0 – 12		0		See Mod Matrix Table
mod matrix 8 depth	NRPN	1:121	0 – 127	(-64 – 63)	64	0
mod matrix 8 destination	NRPN	1:122	0 – 17		0		See Mod Matrix Table
mod matrix 9 sources 1	NRPN	1:123	0 – 12		0		See Mod Matrix Table
mod matrix 9 sources 2	NRPN	1:124	0 – 12		0		See Mod Matrix Table
mod matrix 9 depth	NRPN	1:126	0 – 127	(-64 – 63)	64	0
mod matrix 9 destination	NRPN	1:127	0 – 17		0		See Mod Matrix Table
mod matrix 10 sources 1	NRPN	2:00	0 – 12		0		See Mod Matrix Table
mod matrix 10 sources 2	NRPN	2:01	0 – 12		0		See Mod Matrix Table
mod matrix 10 depth	NRPN	2:03	0 – 127	(-64 – 63)	64	0
mod matrix 10 destination	NRPN	2:04	0 – 17		0		See Mod Matrix Table
mod matrix 11 sources 1	NRPN	2:05	0 – 12		0		See Mod Matrix Table
mod matrix 11 sources 2	NRPN	2:06	0 – 12		0		See Mod Matrix Table
mod matrix 11 depth	NRPN	2:08	0 – 127	(-64 – 63)	64	0

	Lfo 1 common sync	NRPN	0:122	16 – 17	16 (OFF)	16=OFF, 17=ON
	Lfo 1 delay trigger	NRPN	0:122	18 – 19	18 (OFF)	18=OFF, 19=ON
	Lfo 1 fade mode	NRPN	0:123	0 – 3	0	0=Fade In, 1=Fade Out, 2=Gate In, 3=Gate Out
	Lfo 2 waveform	NRPN	0:79	0 – 37	0	See LFO Waveform Table
	Lfo 2 phase offset	NRPN	0:80	0 – 119	0	(0° – 357°) in steps of 3°
	Lfo 2 slew rate	NRPN	0:81	0 – 127	0
	Lfo 2 delay	NRPN	0:83	0 – 127	0
	Lfo 2 delay sync	NRPN	0:84	0 – 35	0
	Lfo 2 rate	NRPN	0:85	0- 127	68
	Lfo 2 rate sync	NRPN	0:86	0- 35	0
	Ifo 2 one shot	NRPN	0:122	22- 23	22 (OFF)	22=OFF, 23=ON
	Ifo 2 key sync	NRPN	0:122	24- 25	24 (OFF)	24=OFF, 25=ON
	Ifo 2 common sync	NRPN	0:122	26-27	26 (OFF)	26=OFF, 27=ON
	Ifo 2 delay trigger	NRPN	0:122	28- 29	28 (OFF)	28=OFF, 29=ON
	Ifo 2 fade mode	NRPN	0:123	4- 7	4	4=Fade In, 5=Fade Out, 6=Gate In, 7=Gate Out
Effects and EQ
	distortion level	CC	91	0- 127	0
	chorus level	CC	93	0-127	0
	EQ bass frequency	NRPN	0:104	0- 127	64
	EQ bass level	NRPN	0:105	0- 127 (-64 – 63)	64 (0)
	EQ mid-frequency	NRPN	0:106	0- 127	64
	EQ mid level	NRPN	0:107	0- 127 (-64 – 63)	64 (0)
	EQ treble frequency	NRPN	0:108	0- 127	125
	EQ treble level	NRPN	0:109	0- 127 (-64 – 63)	64 (0)
	distortion type	NRPN	1:00	0- 6	0	See Distortion Table
	distortion compensation	NRPN	1:01	0- 127	100
	chorus type	NRPN	1:24	0- 1	1	0=Phaser, 1=Chorus
	chorus rate	NRPN	1:25	0- 127	84 (20)
	chorus rate sync	NRPN	1:26	0- 35	0
	chorus feedback	NRPN	1:27	0- 127 (-64 – 63)	74 (10)
	chorus mod depth	NRPN	1:28	0- 127	64
	chorus delay	NRPN	1:29	0- 127	64

Mod Matrix
	Mod matrix 1 source 1	NRPN	1:83	0- 12		0		See Mod Matrix Table
	Mod matrix 1 source 2	NRPN	1:84	0- 12		0		See Mod Matrix Table
	mod matrix 1 depth	NRPN	1:86	0 – 127	(-64 – 63)	64	0
	mod matrix 1 destination	NRPN	1:87	0 – 17		0		See Mod Matrix Table
	mod matrix 2 sources 1	NRPN	1:88	0- 12		0		See Mod Matrix Table
	mod matrix 2 sources 2	NRPN	1:89	0 – 12		0		See Mod Matrix Table
	mod matrix 2 depth	NRPN	1:91	0 – 127	(-64 – 63)	64	0
	mod matrix 2 destination	NRPN	1:92	0 – 17		0		See Mod Matrix Table
	mod matrix 3 sources 1	NRPN	1:93	0 – 12		0		See Mod Matrix Table
	mod matrix 3 sources 2	NRPN	1:94	0 – 12		0		See Mod Matrix Table
	mod matrix 3 depth	NRPN	1:96	0 – 127	(-64 – 63)	64	0
	mod matrix 3 destination	NRPN	1:97	0 – 17		0		See Mod Matrix Table
	mod matrix 4 sources 1	NRPN	1:98	0 – 12		0		See Mod Matrix Table
	mod matrix 4 sources 2	NRPN	1:99	0 – 12		0		See Mod Matrix Table
	mod matrix 4 depth	NRPN	1:101	0 – 127	(-64 – 63)	64	0
	mod matrix 4 destination	NRPN	1:102	0 – 17		0		See Mod Matrix Table
	mod matrix 5 sources 1	NRPN	1:103	0 – 12		0		See Mod Matrix Table
	mod matrix 5 sources 2	NRPN	1:104	0 – 12		0		See Mod Matrix Table
	mod matrix 5 depth	NRPN	1:106	0 – 127	(-64 – 63)	64	0
	mod matrix 5 destination	NRPN	1:107	0 – 17		0		See Mod Matrix Table
	mod matrix 6 sources 1	NRPN	1:108	0 – 12		0		See Mod Matrix Table
	mod matrix 6 sources 2	NRPN	1:109	0 – 12		0		See Mod Matrix Table
	mod matrix 6 depth	NRPN	1:111	0 – 127	(-64 – 63)	64	0
	mod matrix 6 destination	NRPN	1:112	0 – 17		0		See Mod Matrix Table
	mod matrix 7 sources 1	NRPN	1:113	0 – 12		0		See Mod Matrix Table
	mod matrix 7 sources 2	NRPN	1:114	0 – 12		0		See Mod Matrix Table
	mod matrix 7 depth	NRPN	1:116	0 – 127	(-64 – 63)	64	0
	mod matrix 7 destination	NRPN	1:117	0 – 17		0		See Mod Matrix Table
	mod matrix 8 sources 1	NRPN	1:118	0 – 12		0		See Mod Matrix Table
	mod matrix 8 sources 2	NRPN	1:119	0 – 12		0		See Mod Matrix Table
	mod matrix 8 depth	NRPN	1:121	0 – 127	(-64 – 63)	64	0
	mod matrix 8 destination	NRPN	1:122	0 – 17		0		See Mod Matrix Table
	mod matrix 9 sources 1	NRPN	1:123	0 – 12		0		See Mod Matrix Table
	mod matrix 9 sources 2	NRPN	1:124	0 – 12		0		See Mod Matrix Table
	mod matrix 9 depth	NRPN	1:126	0 – 127	(-64 – 63)	64	0
	mod matrix 9 destination	NRPN	1:127	0 – 17		0		See Mod Matrix Table

mod matrix 10 sources 1	NRPN	2:00	0 – 12		0		See Mod Matrix Table
mod matrix 10 sources 2	NRPN	2:01	0 – 12		0		See Mod Matrix Table
mod matrix 10 depth	NRPN	2:03	0 – 127	(-64 – 63)	64	0
mod matrix 10 destination	NRPN	2:04	0 – 17		0		See Mod Matrix Table
mod matrix 11 sources 1	NRPN	2:05	0 – 12		0		See Mod Matrix Table
mod matrix 11 sources 2	NRPN	2:06	0 – 12		0		See Mod Matrix Table
mod matrix 11 depth	NRPN	2:08	0 – 127	(-64 – 63)	64	0

Macro Knobs

Section	I Parameter	I CC/NRPN	I Control No.	I Range	I Default Value	I Notes
Macro Knobs
	macro knob 1 position	CC	80	0 – 127	0
	macro knob 1 destination A	NRPN	3:00	0 – 70	0
	macro knob 1 start position A	NRPN	3:01	0 – 127	0
	macro knob 1 end position A	NRPN	3:02	0 – 127	127
	macro knob 1 depth A	NRPN	3:03	0 – 127 (-64 – 63)	64 (0)
	macro knob 1 destination B	NRPN	3:04	0 – 70	0
	macro knob 1 start position B	NRPN	3:05	0 – 127	0
	macro knob 1 end position B	NRPN	3:06	0 – 127	127
	macro knob 1 depth B	NRPN	3:07	0 – 127 (-64 – 63)	64 (0)
	macro knob 1 destination C	NRPN	3:08	0 – 70	0
	macro knob 1 start position C	NRPN	3:09	0 – 127	0
	macro knob 1 end position C	NRPN	3:10	0 – 127	127
	macro knob 1 depth C	NRPN	3:11	0 – 127 (-64 – 63)	64 (0)
	macro knob 1 destination D	NRPN	3:12	0 – 70	0
	macro knob 1 start position D	NRPN	3:13	0 – 127	0
	macro knob 1 end position D	NRPN	3:14	0 – 127	127

macro knob 1 depth D	NRPN	3:15	0 – 127 (-64 – 63)	64 (0)
macro knob 2 position	CC	81	0 – 127	0
macro knob 2 destination A	NRPN	3:16	0 – 70	0
macro knob 2 start position A	NRPN	3:17	0 – 127	0
macro knob 2 end position A	NRPN	3:18	0 – 127	127
macro knob 2 depth A	NRPN	3:19	0 – 127 (-64 – 63)	64 (0)
macro knob 2 destination B	NRPN	3:20	0 – 70	0
macro knob 2 start position B	NRPN	3:21	0 – 127	0
macro knob 2 end position B	NRPN	3:22	0 – 127	127
macro knob 2 depth B	NRPN	3:23	0 – 127 (-64 – 63)	64 (0)
macro knob 2 destination C	NRPN	3:24	0 – 70	0
macro knob 2 start position C	NRPN	3:25	0 – 127	0
macro knob 2 end position C	NRPN	3:26	0 – 127	127
macro knob 2 depth C	NRPN	3:27	0 – 127 (-64 – 63)	64 (0)
macro knob 2 destination D	NRPN	3:28	0 – 70	0
macro knob 2 start position D	NRPN	3:29	0 – 127	0
macro knob 2 end position D	NRPN	3:30	0 – 127	127
macro knob 2 depth D	NRPN	3:31	0 – 127 (-64 – 63)	64 (0)
macro knob 3 position	CC	82	0 – 127	0
macro knob 3 destination A	NRPN	3:32	0 – 70	0
macro knob 3 start position A	NRPN	3:33	0 – 127	0
macro knob 3 end position A	NRPN	3:34	0 – 127	127
macro knob 3 depth A	NRPN	3:35	0 – 127 (-64 – 63)	64 (0)
macro knob 3 destination B	NRPN	3:36	0 – 70	0

macro knob 3 start position B	NRPN	3:37	0 – 127	0
macro knob 3 end position B	NRPN	3:38	0 – 127	127
macro knob 3 depth B	NRPN	3:39	0 – 127 (-64 – 63)	64 (0)
macro knob 3 destination C	NRPN	3:40	0 – 70	0
macro knob 3 start position C	NRPN	3:41	0 – 127	0
macro knob 3 end position C	NRPN	3:42	0 – 127	127
macro knob 3 depth C	NRPN	3:43	0 – 127 (-64 – 63)	64 (0)
macro knob 3 destination D	NRPN	3:44	0 – 70	0
macro knob 3 start position D	NRPN	3:45	0 – 127	0
macro knob 3 end position D	NRPN	3:46	0 – 127	127
macro knob 3 depth D	NRPN	3:47	0 – 127 (-64 – 63)	64 (0)
macro knob 4 position	CC	83	0 – 127	0
macro knob 4 destination A	NRPN	3:48	0 – 70	0
macro knob 4 start position A	NRPN	3:49	0 – 127	0
macro knob 4 end position A	NRPN	3:50	0 – 127	127
macro knob 4 depth A	NRPN	3:51	0 – 127 (-64 – 63)	64 (0)
macro knob 4 destination B	NRPN	3:52	0 – 70	0
macro knob 4 start position B	NRPN	3:53	0 – 127	0
macro knob 4 end position B	NRPN	3:54	0 – 127	127
macro knob 4 depth B	NRPN	3:55	0 – 127 (-64 – 63)	64 (0)
macro knob 4 destination C	NRPN	3:56	0 – 70	0
macro knob 4 start position C	NRPN	3:57	0 – 127	0
macro knob 4 end position C	NRPN	3:58	0 – 127	127
macro knob 4 depth C	NRPN	3:59	0 – 127 (-64 – 63)	64 (0)
macro knob 4 destination D	NRPN	4:00	0 – 70	0
macro knob 4 start position D	NRPN	3:61	0 – 127	0

macro knob 4 end position D	NRPN	3:62	0 – 127	127
macro knob 4 depth D	NRPN	3:63	0 – 127 (-64 – 63)	64 (0)
macro knob 5 position	CC	84	0 – 127	0
macro knob 5 destination A	NRPN	3:64	0 – 70	0
macro knob 5 start position A	NRPN	3:65	0 – 127	0
macro knob 5 end position A	NRPN	3:66	0 – 127	127
macro knob 5 depth A	NRPN	3:67	0 – 127 (-64 – 63)	64 (0)
macro knob 5 destination B	NRPN	3:68	0 – 70	0
macro knob 5 start position B	NRPN	3:69	0 – 127	0
macro knob 5 end position B	NRPN	3:70	0 – 127	127
macro knob 5 depth B	NRPN	3:71	0 – 127 (-64 – 63)	64 (0)
macro knob 5 destination C	NRPN	3:72	0 – 70	0
macro knob 5 start position C	NRPN	3:73	0 – 127	0
macro knob 5 end position C	NRPN	3:74	0 – 127	127
macro knob 5 depth C	NRPN	3:75	0 – 127 (-64 – 63)	64 (0)
macro knob 5 destination D	NRPN	3:76	0 – 70	0
macro knob 5 start position D	NRPN	3:77	0 – 127	0
macro knob 5 end position D	NRPN	3:78	0 – 127	127
macro knob 5 depth D	NRPN	3:79	0 – 127 (-64 – 63)	64 (0)
macro knob 6 position	CC	85	0 – 127	0
macro knob 6 destination A	NRPN	3:80	0 – 70	0
macro knob 6 start position A	NRPN	3:81	0 – 127	0
macro knob 6 end position A	NRPN	3:82	0 – 127	127
macro knob 6 depth A	NRPN	3:83	0 – 127 (-64 – 63)	64 (0)

macro knob 6 destination B	NRPN	3:84	0 – 70	0
macro knob 6 start position B	NRPN	3:85	0 – 127	0
macro knob 6 end position B	NRPN	3:86	0 – 127	127
macro knob 6 depth B	NRPN	3:87	0 – 127 (-64 – 63)	64 (0)
macro knob 6 destination C	NRPN	3:88	0 – 70	0
macro knob 6 start position C	NRPN	3:89	0 – 127	0
macro knob 6 end position C	NRPN	3:90	0 – 127	127
macro knob 6 depth C	NRPN	3:91	0 – 127 (-64 – 63)	64 (0)
macro knob 6 destination D	NRPN	3:92	0 – 70	0
macro knob 6 start position D	NRPN	3:93	0 – 127	0
macro knob 6 end position D	NRPN	3:94	0 – 127	127
macro knob 6 depth D	NRPN	3:95	0 – 127 (-64 – 63)	64 (0)
macro knob 7 position	CC	86	0 – 127	0
macro knob 7 destination A	NRPN	3:96	0 – 70	0
macro knob 7 start position A	NRPN	3:97	0 – 127	0
macro knob 7 end position A	NRPN	3:98	0 – 127	127
macro knob 7 depth A	NRPN	3:99	0 – 127 (-64 – 63)	64 (0)
macro knob 7 destination B	NRPN	3:100	0 – 70	0
macro knob 7 start position B	NRPN	3:101	0 – 127	0
macro knob 7 end position B	NRPN	3:102	0 – 127	127
macro knob 7 depth B	NRPN	3:103	0 – 127 (-64 – 63)	64 (0)
macro knob 7 destination C	NRPN	3:104	0 – 70	0
macro knob 7 start position C	NRPN	3:105	0 – 127	0
macro knob 7 end position C	NRPN	3:106	0 – 127	127
macro knob 7 depth C	NRPN	3:107	0 – 127 (-64 – 63)	64 (0)

macro knob 7 destination D	NRPN	3:108	0 – 70	0
macro knob 7 start position D	NRPN	3:109	0 – 127	0

macro knob 7 end position D	NRPN	3:110	0 – 127	127
macro knob 7 depth D	NRPN	3:111	0 – 127 (-64 – 63)	64 (0)
macro knob 8 position	CC	87	0 – 127	0
macro knob 8 destination A	NRPN	3:112	0 – 70	0
macro knob 8 start position A	NRPN	3:113	0 – 127	0
macro knob 8 end position A	NRPN	3:114	0 – 127	127
macro knob 8 depth A	NRPN	3:115	0 – 127 (-64 – 63)	64 (0)
macro knob 8 destination B	NRPN	3:116	0 – 70	0
macro knob 8 start position B	NRPN	3:117	0 – 127	0
macro knob 8 end position B	NRPN	3:118	0 – 127	127
macro knob 8 depth B	NRPN	3:119	0 – 127 (-64 – 63)	64 (0)
macro knob 8 destination C	NRPN	3:120	0 – 70	0
macro knob 8 start position C	NRPN	3:121	0 – 127	0
macro knob 8 end position C	NRPN	3:122	0 – 127	127
macro knob 8 depth C	NRPN	3:123	0 – 127 (-64 – 63)	64 (0)
macro knob 8 destination D	NRPN	3:124	0 – 70	0
macro knob 8 start position D	NRPN	3:125	0 – 127	0
macro knob 8 end position D	NRPN	3:126	0 – 127	127
	NRPN	3:127	0 – 127 (–64 – 63)	64 (0)

Filter Table

	Value	Type
Drive Type
	0	diode
	1	valve
	2	clipper
	3	cross-over
	4	rectifier
	5	bit reducer
	6	rate reducer
Type
	0	low pass 12dB
	1	low pass 24dB
	2	band pass 6A6 dB
	3	band pass 12/\12 dB
	4	high pass 12dB
	5	high pass 24dB

Distortion Table

Value	Type
0	diode
1	valve
2	clipper
3	cross-over
4	rectify
5	bit reducer
6	rate reducer

Mod Matrix Table

Value	I Type
Source
0	direct
1	modulation wheel
2	aftertouch
3	expression
4	velocity
5	keyboard
6	LFO 1 +
7	LFO 1 +/-
8	LFO 2 +
9	LFO 2 +/-
10	env amp
11	env filter
12	env 3
Destination
0	osc 1 & 2 pitch
1	osc 1 pitch
2	osc 2 pitch
3	osc 1 v-sync
4	osc 2 v-sync
5	osc 1 pulse width / index
6	osc 2 pulse width / index
7	osc 1 level
8	osc 2 level
9	noise level
10	ring modulation 1*2 level
11	filter drive amount
12	filter frequency
13	filter resonance
14	LFO 1 rate
15	LFO 2 rate
16	amp envelope decay
17	filter envelope decay

Osc Waveform Table

Value	Type
Waveforms
0	sine
1	triangle
2	sawtooth
3	saw 9:1 PW
4	saw 8:2 PW
5	saw 7:3 PW
6	saw 6:4 PW
7	saw 5:5 PW
8	saw 4:6 PW
9	saw 3:7 PW
10	saw 2:8 PW
11	saw 1:9 PW
12	pulse width
13	square
Wavetables
14	sine table
15	analog pulse
16	analog sync
17	triangle-saw blend
18	digital nasty 1
19	digital nasty 2
20	digital saw-square
21	digital vocal 1
22	digital vocal 2
23	digital vocal 3
24	digital vocal 4
25	digital vocal 5
26	digital vocal 6
27	random collection 1
28	random collection 2
29	random collection 3

Audio Table

Parameter	CC/NRPN	Control No.	Range	Default Value
Audio 1 level	CC	13	0 – 127	100
Audio 2 level	CC	15	0 – 127	100
Audio 1 reverb level	CC	31	0 – 127	0
Audio 2 reverb level	CC	32	0 – 127	0
Audio 1 delay level	CC	33	0 – 127	0
Audio 2 delay level	CC	34	0 – 127	0
Audio 1 Pan	CC	35	0 – 127	0
Audio 2 Pan	CC	36	0 – 127	0

LFO Waveform Table

Value	Type
1	sine
2	triangle
3	sawtooth
4	square
5	random S/H
6	time S/H
7	pianoenvelope
8	sequence 1
9	sequence 2
10	sequence 3
11	sequence 4
12	sequence 5
13	sequence 6
14	sequence 7
15	alternative 1
16	alternative 2
17	alternative 3
18	alternative 4
19	alternative 5
20	alternative 6
21	alternative 7
22	alternative 8
23	chromatic
24	chromatic 16
25	major
26	major 7
27	minor 7
28	min arp 1
29	min arp 2
30	diminished
31	dec minor
32	minor 3rd
33	pedal
34	4ths
35	4ths x12
36	1625 maj
37	1625 Min
38	2511

Patch and Session Select

MIDI Channel	Parameter	Value	Notes
1	PGM*	0 – 63	select synth 1 patch
2	PGM	0 – 63	select synth 2 patch
16	PGM	0 – 31	select session (instant)
16	PGM	64 –95	select session (queued)

*PGM = Program Change
Note, for drum patch selection see Drum Control table

Supported Realtime Messages

Message

start

stop

continue

timing clock

Supported System Common Messages

Message

song position pointer

song select

Drum Control
Messages on MIDI Channel 10

Parameter	CC / NRPN	Control No.	Range	Default Value
drum 1 patch select	CC	8	0 – 63	0
drum 1 level	CC	12	0 – 127	0
drum 1 pitch	CC	14	0 – 127 (-64 – 63)	64 (0)
drum 1 decay	CC	15	0 – 127	0
drum 1 distortion	CC	16	0 – 127	0
drum 1 EQ	CC	17	0 – 127 (-64 – 63)	64 (0)
drum 1 pan	CC	77	0 – 127 (-64 – 63)	64 (0)
drum 2 patch select	CC	18	0 – 63	0
drum 2 level	CC	23	0 – 127	0
drum 2 pitch	CC	34	0 – 127 (-64 – 63)	64 (0)
drum 2 decay	CC	40	0 – 127	0
drum 2 distortion	CC	42	0 – 127	0
drum 2 EQ	CC	43	0 – 127 (-64 – 63)	64 (0)
drum 2 pan	CC	78	0 – 127 (-64 – 63)	64 (0)
drum 3 patch select	CC	44	0 – 63	0
drum 3 level	CC	45	0 – 127	0
drum 3 pitch	CC	46	0 – 127 (-64 – 63)	64 (0)
drum 3 decay	CC	47	0 – 127	0
drum 3 distortion	CC	48	0 – 127	0
drum 3 EQ	CC	49	0 – 127 (-64 – 63)	64 (0)
drum 3 pan	CC	79	0 – 127 (-64 – 63)	64 (0)
drum 4 patch select	CC	50	0 – 63	0
drum 4 level	CC	53	0 – 127	0
drum 4 pitch	CC	55	0 – 127 (-64 – 63)	64 (0)
drum 4 decay	CC	57	0 – 127	0
drum 4 distortion	CC	61	0 – 127	0
drum 4 EQ	CC	76	0 – 127 (-64 – 63)	64 (0)
drum 4 pan	CC	80	0 – 127 (-64 – 63)	64 (0)

Drum Notes Table

MIDI Note	Drum Number
60	Drum 1
62	Drum 2
64	Drum 3
65	Drum 4

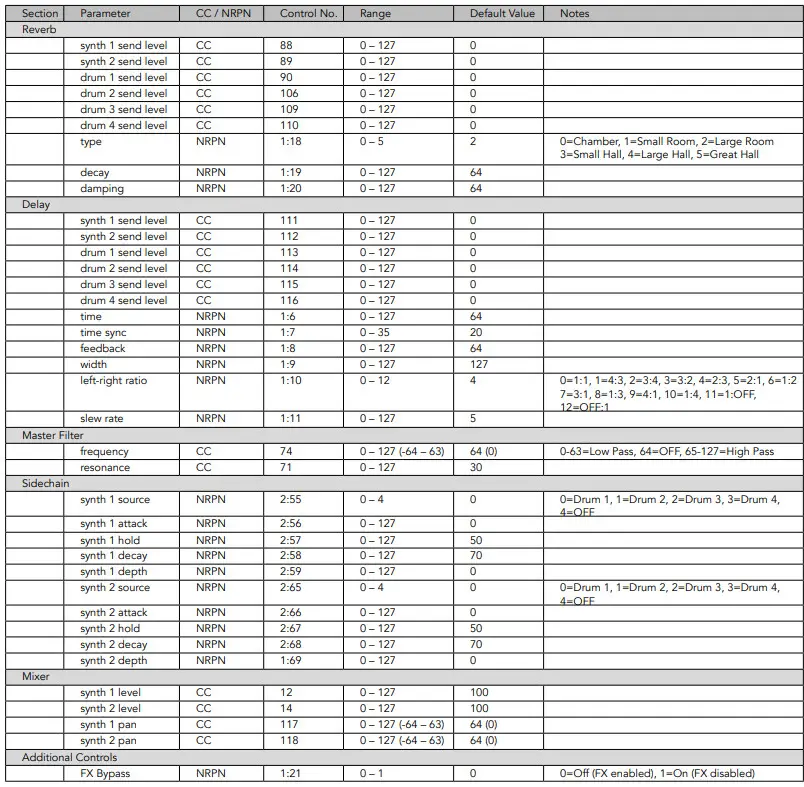

Session Control
Send messages on MIDI Channel 16.

Synth Patch Sysex Message Formats

For best results, we recommend using Circuit Tracks’s USB connection for SysEx communication, as it is faster and more reliable. Although Circuit Tracks will receive SysEx messages via MIDI DIN, any response will be sent via USB only.

Replace Current Patch

This table describes the format of the “Replace current patch” message.

When this is received by Circuit Tracks it replaces the contents of the current sound (in RAM) for the specified Synth part.
There are states in which the device is not capable of receiving this message. For example, it may be busy processing another SysEx message. In these situations, the message will be ignored. The message may be sent without delays between the bytes. However, consecutive messages should have at least 20 ms between them to allow time for processing.

Replace Patch

This table describes the format of the “Replace Patch” message.

When this is received by Circuit Tracks it replaces the contents of the specified patch in Flash memory.
There are states in which the device is not capable of receiving this message. For example, it may be busy processing another SysEx message. In these situations, the message will be ignored. The message may be sent without delays between the bytes. However, consecutive messages should have at least 20 ms between them to allow time for processing.

Current Patch Dump Request

This table describes the format of the “Current Patch Dump Request” message. There are states in which the device is not capable of receiving this message. For example, it may be busy processing another SysEx message. In these situations, the message will be ignored. The message may be sent without delays between the bytes. However, consecutive messages should have at least 20 ms between them to allow time for processing.

When this message is received on either MIDI DIN or MIDI USB, Circuit Tracks will respond by sending a Replace Current Patch message to its USB port. The location in the response will match the location in the request, and the patch data will correspond accordingly.

Patch Dump Request

To obtain a patch from Flash memory, follow these steps:
1. First send a Program Change message with the desired patch number (0 – 63) to a synth MIDI channel.
1. Wait enough time for the patch to load from Flash memory (10 ms should be plenty)
1. Send a Current Patch Dump Request message with the Location set to the corresponding Synth part.

Consecutive sequences should have at least 20 ms between them to allow time for processing.

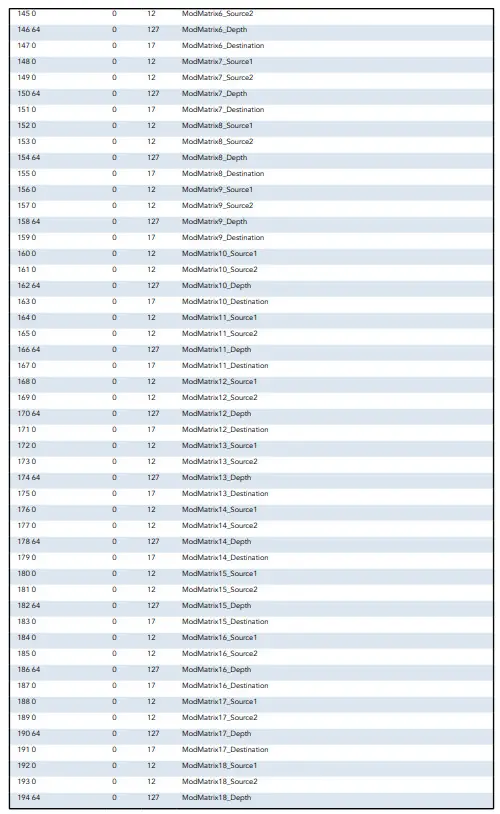

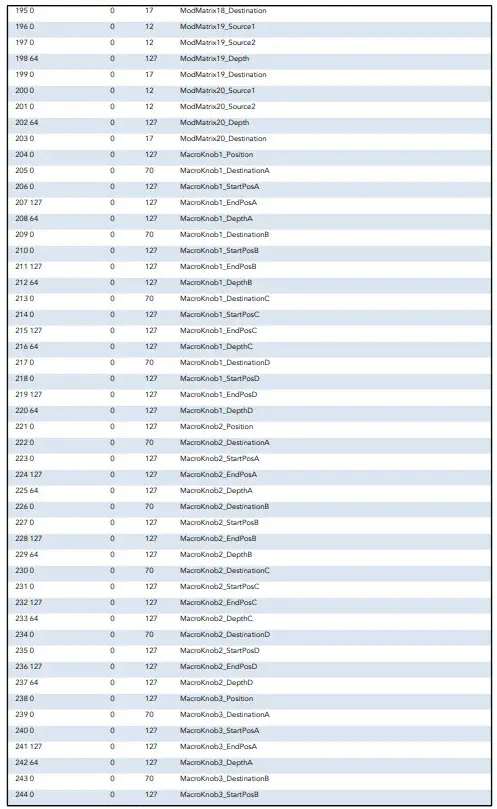

Format of a Synth Patch (Single) SysEx File

To create a single patch in a portable format that can be shared with others, use a SysEx file containing a single “Replace Current Patch” SysEx message with the Location set to Synth 1.

Format of a Synth Patch (Bank) Sysex File

To create an entire bank of 64 synth patches, use a SysEx file containing a concatenation of 64 separate “Replace Patch” SysEx messages. Each message should overwrite consecutive patch numbers, starting from 0 and counting up to 63.
