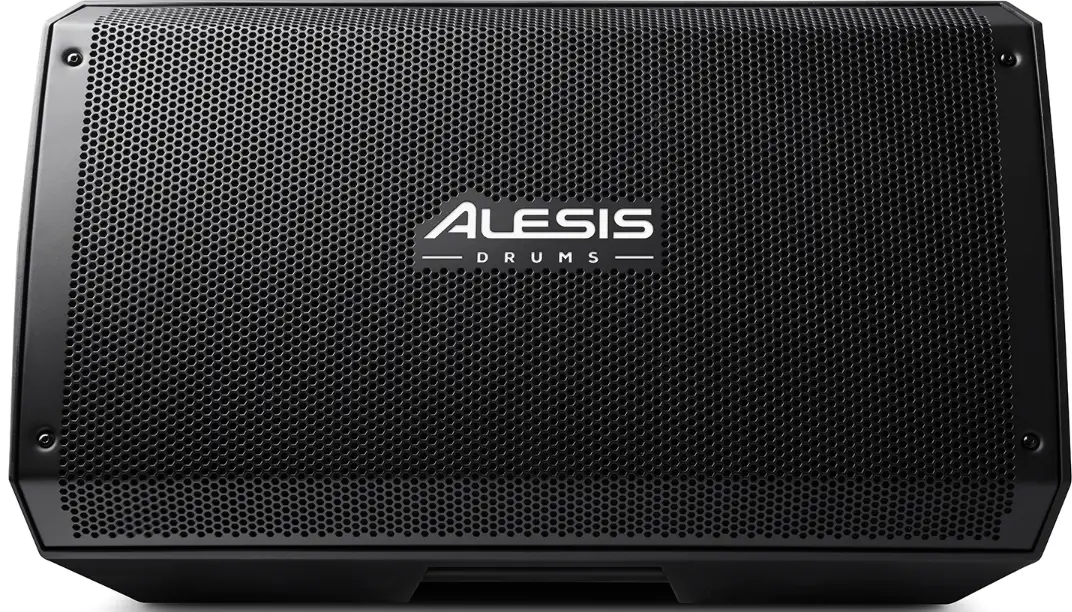

ALESIS DRUMS STRIKE AMP 12 Active E-Drum Monitor product

Introduction

Thank you for purchasing the Strike Amp 12 or Strike Amp 8. At Alesis Drums, we know how serious music is to you. That’s why we design our equipment with only one thing in mind—to make your performance the best it can be.

Box Contents

  • Strike Amp 12 or Strike Amp 8
  • Power Cable
  • User Guide
  • Safety & Warranty Manual

Support
For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit alesis.com. For additional product support, visit alesis.com/support.

Setup

Items not listed under Introduction > Box Contents are sold separately.
Example A: One Strike Amp (Mono)

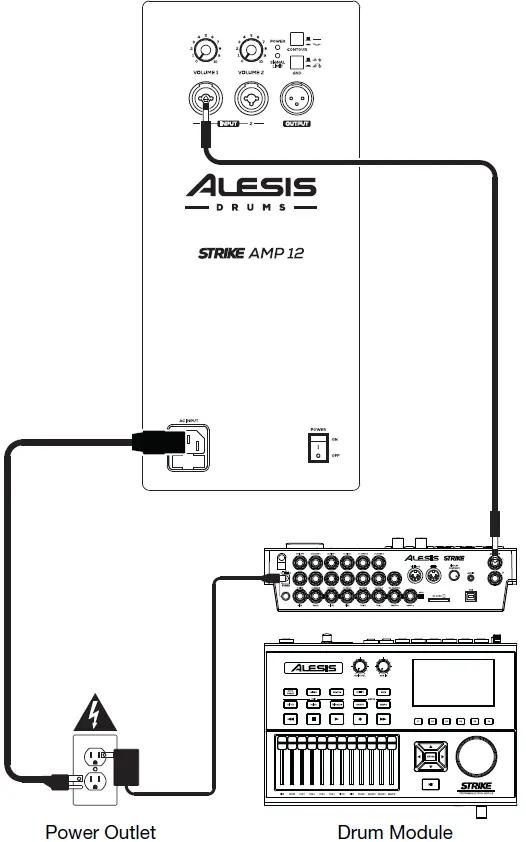

Connect the Left (Mono) output of your drum module to the input on a Strike Amp.ALESIS DRUMS STRIKE AMP 12 Active E-Drum Monitor 01Example B: Two Strike Amps (Stereo)

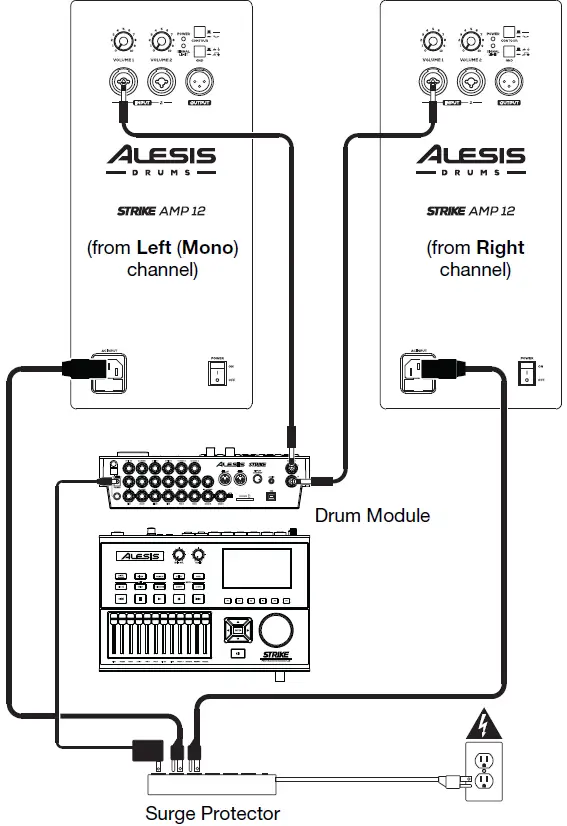

Connect the Right and Left (Mono) outputs of your drum module to the inputs of your Strike Amps.ALESIS DRUMS STRIKE AMP 12 Active E-Drum Monitor 02Example C: Two Strike Amps (Mono)

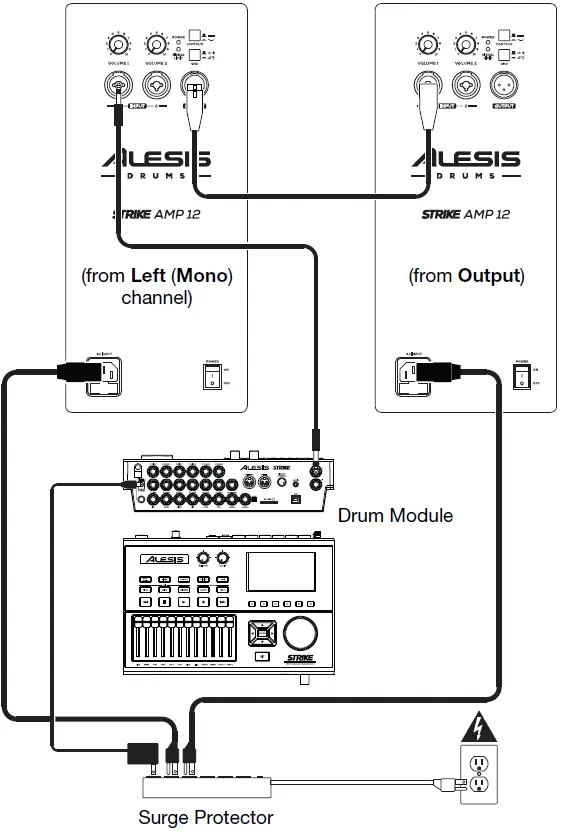

Connect the Left (Mono) output of your drum module to the input of one Strike Amp, and then connect the output of that Strike Amp to the input of another.
ALESIS DRUMS STRIKE AMP 12 Active E-Drum Monitor 03

Strike Amp 12 Features

Rear Panel

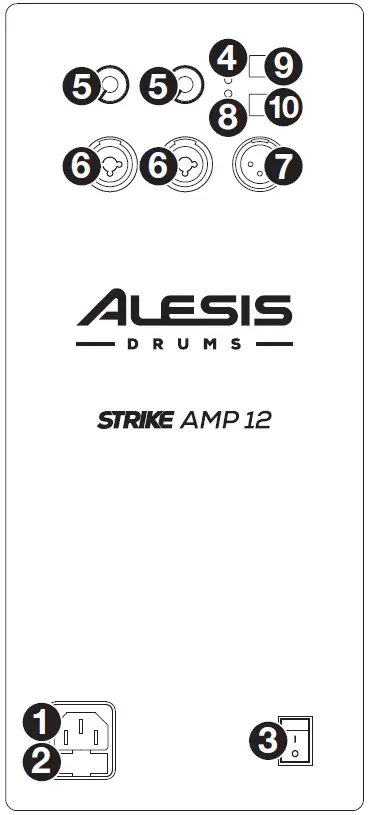

ALESIS DRUMS STRIKE AMP 12 Active E-Drum Monitor 04

  1. AC Input: Use the included power cable to connect this input to a power outlet. Make sure the Power Switch is set to off when connecting or disconnecting the cable.
  2. Fuse: If the unit’s fuse is broken, lift this tab to replace the fuse. Replace it with a fuse with an appropriate rating (printed under the unit’s power cable input). Using a fuse with an incorrect rating can damage the unit and/or fuse.
  3. Power Switch: Use this switch to power the loudspeaker on or off. Make sure the Volume knob is set to its minimum (counterclockwise) position before turning it on.
  4.  Power LED: This LED lights up when the loudspeaker is on.
  5.  Volume: Turn each knob to adjust the volume of each input.
  6.  Input: Use a standard XLR cable or 1/4” (6.35 mm) TRS cable (not included) to connect your audio source to this input.
  7.  Output: Use a standard XLR cable (not included) to connect this output to the input of another loudspeaker (i.e., another Strike Amp).
  8. Signal Limit LED: This LED lights up green when an audio signal is sent to the loudspeaker—it flashes at lower levels and lights solidly at higher levels. The LED lights up red when output limit/protection is active—if the LED is lit red continuously, reduce the volume of your audio source.
  9. Contour: Engage (depress) this button to emphasize low and high frequencies by + 3 dB. Disengage (raise) the switch for a flatter response for live performance or for maximum output.
  10.  Ground Switch: Engage (depress) this switch to reduce hum or noise.

Strike Amp 8 Features

Rear Panel

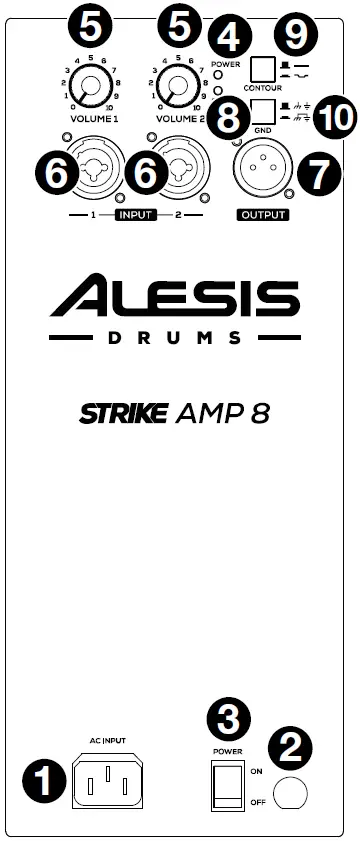

ALESIS DRUMS STRIKE AMP 12 Active E-Drum Monitor 05

  1. AC Input: Use the included power cable to connect this input to a power outlet. Make sure the Power Switch is set to off when connecting or discon necting the cable.
  2. Fuse: If the unit’s fuse is broken, lift this tab to replace the fuse. Replace it with a fuse with an appropriate rating (printed under the unit’s power cable input). Using a fuse with an incorrect rating can damage the unit and/or fuse.
  3. Power Switch: Use this switch to power the loudspeaker on or off. Make sure the Volume knob is set to its minimum (counterclockwise) position before turning it on.
  4. Power LED: This LED lights up when the loudspeaker is on.
  5. Volume: Turn each knob to adjust the volume of each input.
  6. Input: Use a standard XLR cable or 1/4” (6.35 mm) TRS cable (not included) to connect your audio source to this input.
  7. Output: Use a standard XLR cable (not included) to connect this output to the input of another loudspeaker (i.e., another Strike Amp).
  8. Signal Limit LED: This LED lights up green when an audio signal is sent to the loudspeaker—it flashes at lower levels and lights solidly at higher levels. The LED lights up red when output limit/protection is active—if the LED is lit red continuously, reduce the volume of your audio source.
  9.  Contour: Engage (depress) this button to emphasize low and high frequencies by + 3 dB. Disengage (raise) the switch for a flatter response for live performance or for maximum output.
  10.  Ground Switch: Engage (depress) this switch to reduce hum or noise.

Strike Amp 12 Technical Specifications

Output Power2000 W (peak, 1300 LF + 700 HF)
1000 W (continuous RMS, 650 LF + 350 HF)
DriversLow-Frequency 12.0” (305 mm) low-frequency driver, 3.0” (76 mm) high-temperature voice coil
High-Frequency 1.4” (35 mm) voice coil, neodymium-magnet
high-frequency driver with precision waveguide
Crossover Frequency2.0 KHz
Maximum SPL131 dB (peak), 128 dB (continuous) (dB-SPL @ 1 m)
Frequency Response53 Hz – 20 kHz (+3 dB)
Frequency Range46 Hz – 22 kHz (-10 dB)
Horn Coverage90º horizontal x 60º vertical (nominal)
EqualizationContour switch with low- and high-frequency +3 dB boost
Connectors(2) XLR/TRS 1/4” (6.35 mm) combo inputs
(1) XLR link output
(1) IEC power cable input
ControlsPower switch, (2) volume control knobs (1 per input), EQ contour switch, ground-lift switch
Indicators(2) power LEDs (1 front-panel, 1 rear-panel), clip limiter LED
ProtectionElectronic clip, thermal & transducer overdrive
PowerConnectionIEC
Input Voltage100 V~, 110–120 V~, 220–240 V~; 50/60 Hz (switchable)
Fuse100–120V T10AL AC250V
220–240V T5AL AC250V
Consumption800 W
EnclosureTrapezoidal, injection-molded polypropylene enclosure with perforated steel grille
Dimensions
(height x width x depth)
23.8” x 13.9” x 13.8”
605 x 354 x 350 mm
Weight35.9 lb.
16.3 kg

Strike Amp 8 Technical Specifications

Output Power2000 W (peak, 1300 LF + 700 HF)
1000 W (continuous RMS, 650 LF + 350 HF)
DriversLow-Frequency 8.0” (203 mm) driver, 2.5” (65 mm) high-temperature voice coil
High-Frequency 1.4” (35 mm) neodymium driver with precision waveguide
Crossover Frequency2.5 KHz
Maximum SPL129 dB (peak), 126 dB (continuous) (dB-SPL @ 1 m)
Frequency Response62 Hz – 20 kHz (+3 dB)
Frequency Range52 Hz – 22 kHz (-10 dB)
Horn Coverage90º horizontal x 60º vertical (nominal)
EqualizationContour switch with low- and high-frequency +3 dB boost
Connectors(2) XLR/TRS 1/4” (6.35 mm) combo inputs
(1) XLR link output
(1) IEC power cable input
ControlsPower switch, (2) volume control knobs (1 per input), EQ contour switch, ground-lift switch
IndicatorsPower LED (rear panel), clip limiter LED
ProtectionElectronic clip, thermal & transducer overdrive
PowerConnectionIEC
Input Voltage100 V~, 110–120 V~, 220–240 V~; 50/60 Hz (switchable)
Fuse100–120V T10AL AC250V
220–240V T5AL AC250V
Consumption800 W
EnclosureTrapezoidal, injection-molded polypropylene enclosure with perforated steel grille
MountingStandard 36 mm pole socket
Dimensions
(height x width x depth)
17.1” x 10.1” x 9.6”
434 x 256 x 245 mm
Weight20.2 lb.
9.2 kg
