QK-A015-RX Manual

QK-A015-RX Manual
Active AIS/VHF Antenna Splitter

Contents hide

7 Limited Warranty and Disclaimer

8 Document history

9 Documents / Resources

9.1 References

10 Related Posts

Features

12V-24V powered, low power consumption
Uses standard SO239 connector for VHF and antenna connections
Built-in preamplifier providing VHF/AIS signal gain maximizes receivers’ range
VHF failsafe function – VHF radio has full priority and will remain functional, even in the unlikely case that the Splitter would fail or lose power.
LED power and status indicator
Compact & easy to install

Introduction

The QK-A015-RX splitter allows one VHF antenna to be shared between,

VHF radio
AIS receiver and
AM/FM radio

The A015-RX allows the one VHF antenna to provide the following functions:

Reception of VHF radio, AIS messages, and AM/FM radio.
Transmission from VHF radio.
Straight forward connection to all relevant devices, with no configuration required.
VHF radio always has priority and can always transmit in the case that the power to the splitter fails
Low power consumption.

The A015-RX is an active splitter. This is important, as, unlike many splitters that cause signal loss, the active splitters actually provide a signal gain. The A015-RX’s built-in pre-amplifier amplifies the AIS, VHF, and AM/FM signals, thereby increasing the receivers’ range.

Please note: The A015-RX is compatible with AIS receivers only, it is not designed for AIS transponders/transceivers. For AIS transponders/Transceivers you would require the A015-TX

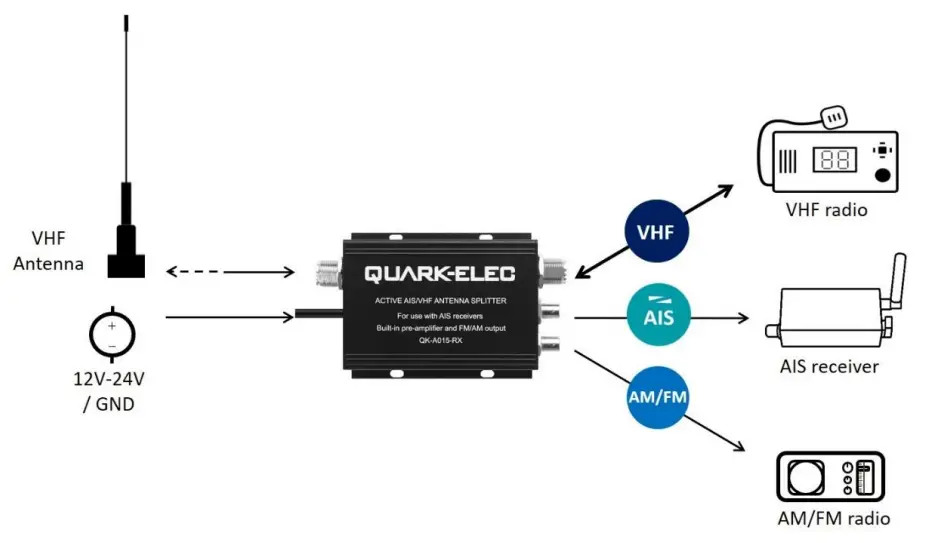

Connections

The A015-RX has five connections:

Power cable: connect to 12V-24V DC power
VHF Antenna: SO239 connector for VHF antenna
VHF radio: SO239 connector for VHF radio
AIS: BNC connector for the output of the AIS signal
FM/AM: BNC connector for the output of the FM/AM radio signal

Installation

The A015-RX is a plug-and-play device. No Configuration Required.

IMPORTANT: Connect the VHF antenna BEFORE connecting any other devices!
Connecting powered devices to a Splitter before connecting the VHF antenna will damage your devices.

Remove power source from all devices to be connected.
Connect the VHF antenna to the Splitter before adding any devices.
After the VHF antenna is connected, connect the VHF radio, AIS receiver, and FM/AM radio to the A015-RX Splitter.
Re-power all devices.
Test use checking status LEDs light up when expected.

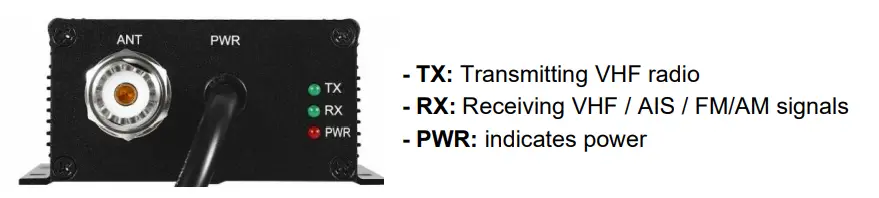

Status LEDs

The A015-RX has three LEDs that indicate power and working status.

The VHF fail-safe means that the VHF radio has full priority and will remain functional, even in the unlikely case that the Splitter would fail or lose power.

Specifications

Item	Specification
DC supply	9.0V to 35V
Average supply current	135mA
VHF and AIS frequency range	156MHz to 163MHz
AM/FM frequency range	0.5-1.6/88-108Mhz
VHF receive gain	Typical 12dB
AIS receive gain	Typical 12dB
FM/AM receive gain	Typical 10dB
Insertion loss VHF transmit paths	≤ 1.5dB
Max input Power from the VHF port	25W when the VHF antenna is connected. The antenna must be connected before the VHF radio.
FM port impendence	75 Ohms
AIS, VHF, and antenna port impedance	50 Ohms
Switching time, receiver to VHF transmit	<2ms
Operating temperature	-10°C to +55°C
Storage temperature	-25°C to +85°C

Limited Warranty and Disclaimer

Quark-elec warrants this product to be free from defects in materials and manufactured for two years from the date of purchase. Quark-elec will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacements will be made at no charge to the customer for parts and labor. The customer is, however, responsible for any transportation costs incurred in returning the unit to Quark-Elec. This warranty does not cover failures due to abuse, misuse, accident or unauthorized alteration or repairs. A return number must be given before any unit is sent back for repair.

The above does not affect the statutory rights of the consumer.

This product is designed to aid navigation and should be used to augment normal navigational procedures and practices. It is the user’s responsibility to use this product prudently. Neither Quark-, nor their distributors or dealers accept responsibility or liability either to the product user or their estate for any accident, loss, injury or damage whatsoever arising out of the use or of liability to use this product. Quark- products may be upgraded from time to time and future versions may therefore not correspond exactly with this manual. The manufacturer of this product disclaims any liability for consequences arising from omissions or inaccuracies in this manual and any other documentation provided with this product.
