433MHz Receiver Wiegand Output – PCR433
WGWiegand Output Penta Receiver
433MHz Penta Receiver with Wiegand Output
PCR433WG

Features

• Easy to add remote controls to any Wiegand input access control panel
• Remotes are added like cards or RFID tags with no software changes
• Wireless keyless entry offers convenience, security and safety for accessing gates, doors and boom gates
• Wide operating supply voltage and low current consumption
• Easy way to facilitate for handicapped access
• Compatible with PentaCODE ® remotes
•  Easy to use dipswitch coding

Applications

• Keyless access control for automatic gates, doors, and boom gates

Description

This receiver allows you to add wireless remote controls to your existing access control systems by connecting the PCR433WG receiver to the access system. The remote controls have a range of up to 200 meters (650 feet) and are available with 2 or 4 buttons. The extra buttons can be used as a panic button allowing a single remote to allow access control and a panic alert system.
The receiver Wiegand output interfaces to virtually any commercial access control panel. Remote controls are added as easily as Wiegand cards or RFID tags without any software changes. The ID and facility codes can be matched to the system requirements.
The receiver has a bi-color LED to act as a status display. Red LED indicates that AC or DC power is “On” and Green LED indicates remote control signal has been received.

Setup Instructions

The Penta receiver has a 12-way dipswitch, where switches 1-8 sets the site code. Dip Switch 10, 11 & 12 selects the button that the PCR433WG receives from the PentaCODE ® Remote.

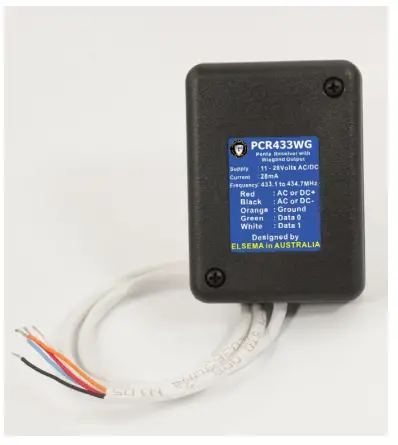

The user code is set by the 12-way dipswitch on the remote. Each remote should have a unique code to identify each user. Remotes are programmed into the access controller in the same way as RFID tags. When programming instead of swiping the RFID tags, the remote button is pressed. On the PentaCODE ® remotes you need to have at least 1 of the 12 switches “On” for the remote to work. The receiver comes pre-wired in a small 70 x 55 x 25 mm enclosure and a supply of 12 to 24 Volts AC or DC can be connected.

Products in the Range

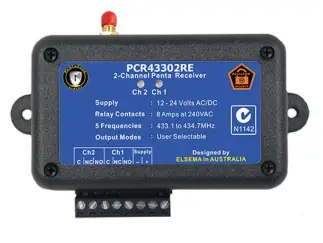

PCR43301RE 1-Channel Receiver with Relay Output. Enclosed in a case	PCR43302P 2-Channel Plug-in type Receiver with Open Collector Output	PCR43302R 2-Channel Receiver with Relay Outputs	PCR43302RE 2-Channel Receiver with Relay Outputs. Enclosed in a case

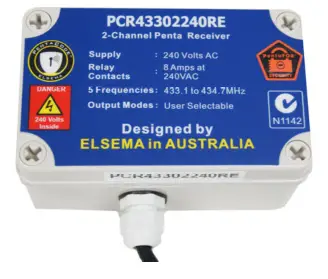

PCR43301240R 1-Channel Receiver with240VAC mains supply	PCR43301240RE 1-Channel Receiver enclosed in an IP66 case	PCR43302240R 2-Channel Receiver with 240VAC mains supply	PCR43302240RE 2-Channel Receiver enclosed in an IP66 case

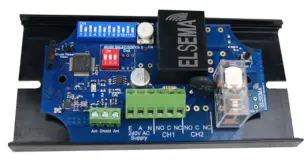

PCR43304R 4-Channel Receiver with Relay Outputs	PCR43304RE 4-Channel Receiver enclosed in an IP66 case	PCR43305R 5-Channel Receiver with Relay Outputs	PCR43305RE 5-Channel Receiver enclosed in an IP66 case

LED Indicator

Led color	Status
RED Flashing	Power up
RED On	Receiver is ready
Green ON	PentaCODE transmitter code received

Technical Data

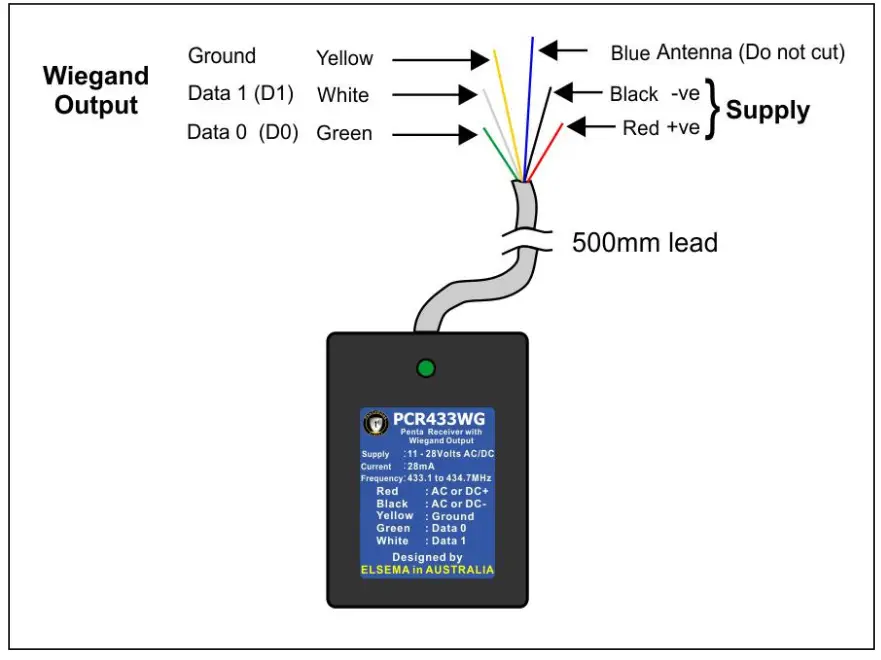

Block Diagram
