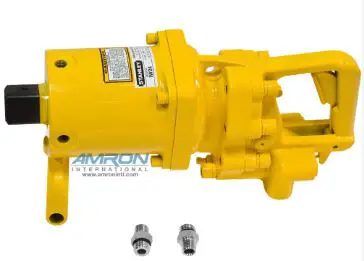

STANLEY IW24 Impact Wrench

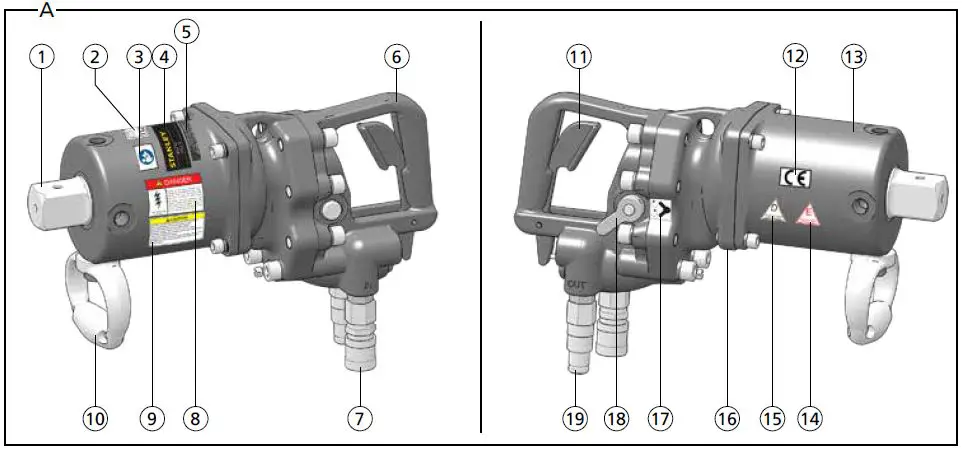

PRODUCT OVERVIEW

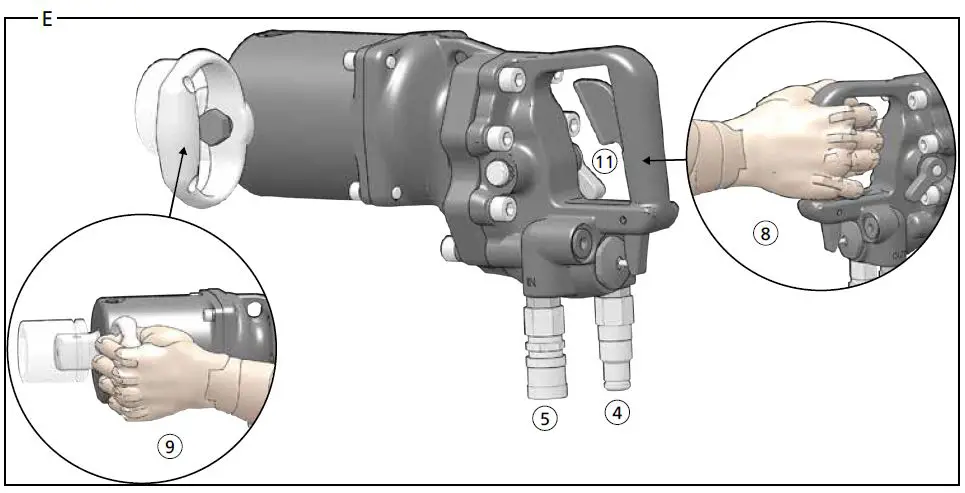

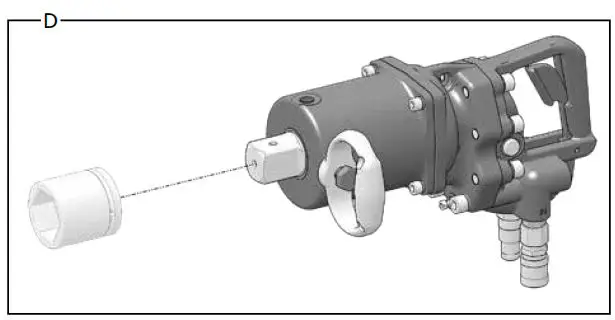

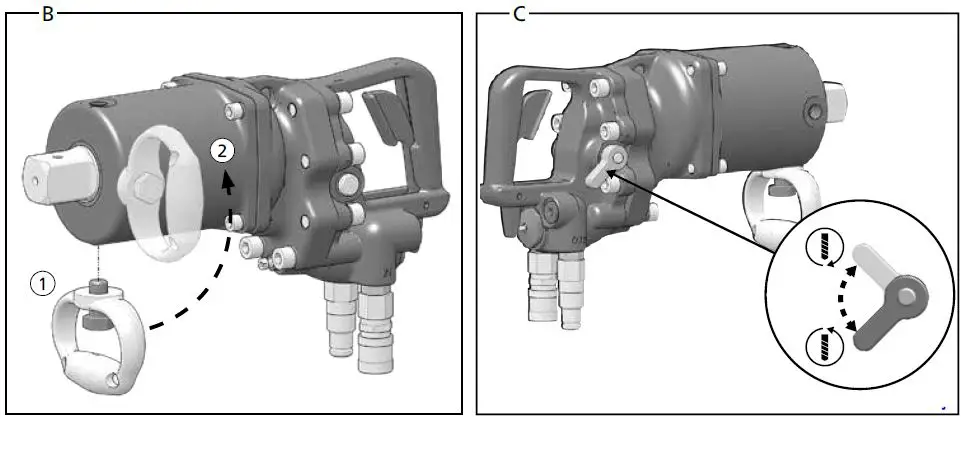

HOW TO USE

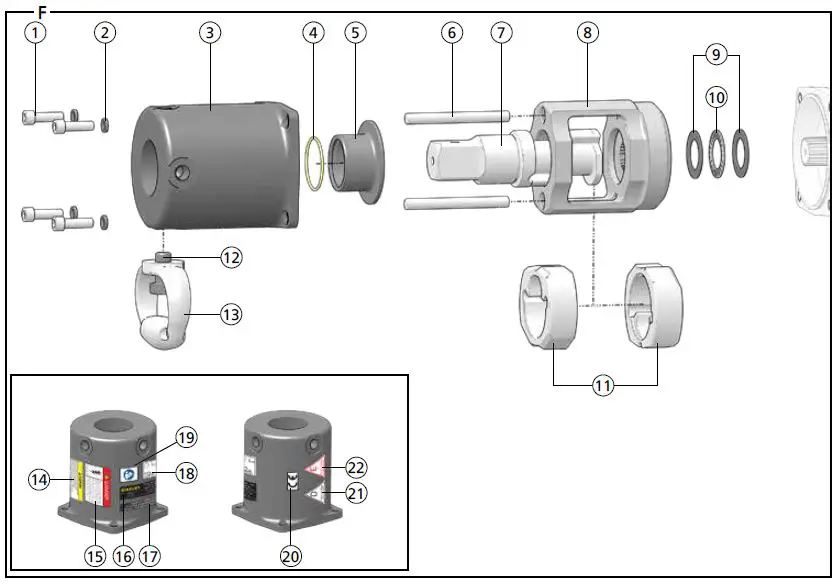

| IW24 Impact Mechanism Illustration – Detail F | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 10793 | Cap Screw |
| 2 | 00812 | Lock Washer |
| 3 | 10193 | Hammer Case Assembly (Includes 21012 & 01872) |
| 4 | 01872 | O-ring* – Model IW24360 |
| 5 | 10563 | Bushing |
| 21012 | Bushing – Model IW24360 | |
| 6 | 09695 | Hammer Pin |
| 7 | 03608 | Anvil |
| 8 | 19484 | Hammer Frame Assembly (Includes 2x 09695) |
| 9 | 08147 | Thrust Washer |
| 10 | 08148 | Thrust Bearing |
| 11 | 03607 | Hammer |
| 12 | 10792 | Cap Screw |
| 13 | 15407 | Assist Handle |
| 14 | 09612 | General Caution Decal – Model IW2416001 |
| 15 | 12412 | Electrical Danger Decal – Model IW2416001 |
| 16 | 74693 | Tool Name Tag |
| 17 | 88345 | Importer Tag – Model IW2416001 |
| 18 | 58604 | Sound Power Decal – Model IW2416001 |
| 19 | 88348 | “Read the Manual” Decal – Model IW2416001 |
| 03788 | GPM Decal – Models IW24160 & IW24360 | |
| 20 | 28323 | CE Decal – Model IW2416001 |
| 21 | 11207 | Circuit Type “D” Decal – Model IW2416001 |
| 22 | 12535 | Circuit Type “E” Decal – Model IW2416001 |
| 23 | 19486 | Impact Mechanism Assembly (not shown) – Models IW24160 & IW2416001 |
| 24 | 13076 | Underwater Impact Mechanism Assembly (not shown) – Model IW24360 |
| 25 | 10567 | Seal Kit (not shown) – * In seal kit |
| IW24 Hydraulic Motor Illustration – Detail G | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 00663 | Retaining Ring |
| 2 | 08125 | Seal Backup Washer |
| 3 | 08180 | Backup Ring* |
| 4 | 04888 | O-ring* |
| 5 | 01364 | O-ring |
| 6 | 30136 | Rotation Direction Decal |
| 7 | 09698 | Motor Housing (includes 08123, 07995 & 03252)) |
| 8 | 09702 | Main Shaft |
| 9 | 00255 | O-ring* |
| 10 | 07337 | Dowel Pin |
| 11 | 00697 | Lock Washer |
| 12 | 09284 | Cap Screw |
| 13 | 09693 | Idler Gear Assembly |
| 14 | 08123 | Idler Shaft |
| 15 | 00717 | O-ring* |
| 16 | 00016 | O-ring* |
| 17 | 07995 | Insert |
| IW24 Hydraulic Motor Illustration – Detail G | ||
| ITEM | P/N | DESCRIPTION |
| 18 | 03252 | O-ring* |
| 19 | 09277 | Nut |
| 20 | 07984 | Relief Adjustment Screw |
| 21 | 00697 | Lock Washer |
| 22 | 09284 | Cap Screw |
| 23 | 10567 | Seal Kit (not shown) – * In seal kit |

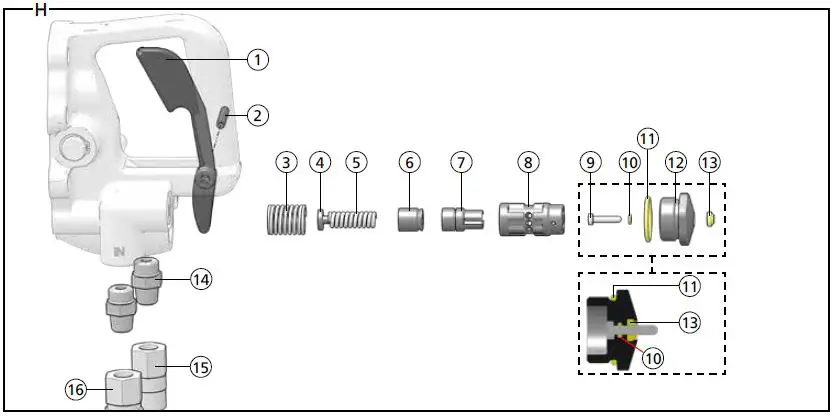

| IW24 Valve Spool & Trigger Illustration – Detail H | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 08133 | Trigger |
| 2 | 05965 | Roll Pin |
| 3 | 08131 | Spring |
| 4 | 07982 | Spring Rest |
| 5 | 08122 | Spring |
| 6 | 08135 | Relief Poppet |
| 7 | 07986 | Relief Seat |
| 8 | 73046 | On / Off Spool |
| 9 | 23678 | Headed Push Pin |
| 10 | 00026 | O-ring* |
| 11 | 06533 | O-ring* |
| 12 | 22063 | Spool Cap |
| 13 | 22064 | Rod Wiper |
| 14 | 00936 | Adapter |
| 15 | 03973 | Male Coupler |
| 16 | 03972 | Female Coupler |
| 17 | 10567 | Seal Kit (not shown) – * In seal kit |

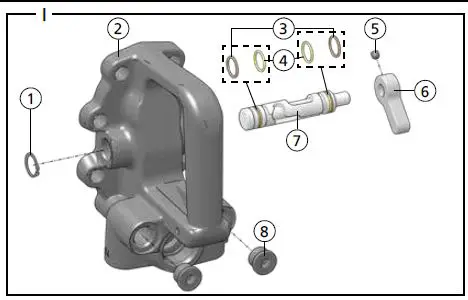

| IW24 Reversing Spool Illustration – Detail I | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 09275 | Retaining Ring |
| 2 | 73167 | Handle Assembly (Includes 07337 & 350237) |
| 3 | 08015 | Backup Ring* |
| 4 | 01211 | O-ring* |
| 5 | 00580 | Set Screw |
| 6 | 04939 | Reversing Lever |
| 7 | 08139 | Reversing Spool |
| 8 | 350237 | Plug |
| 9 | 10567 | Seal Kit (not shown) – * In seal kit |
