TP03 User Manual

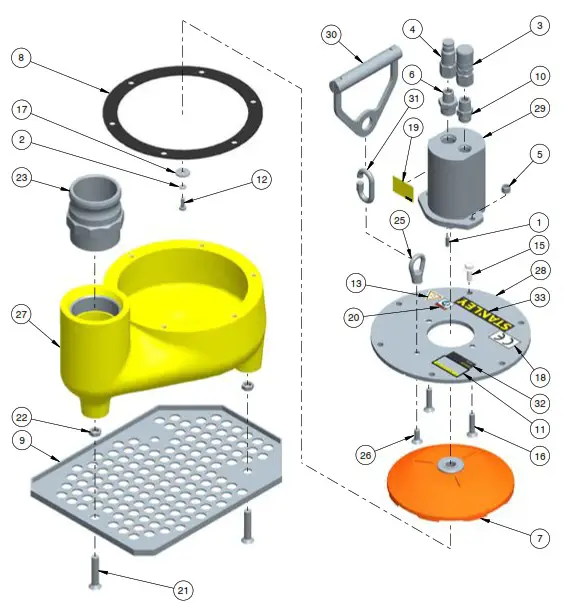

TP03 PARTS ILLUSTRATION
TP03 PARTS LIST
| ITEM NO. | PART NO. | QTY | DESCRIPTION |
| 1 | 635 | 1 | Key |
| 2 | 1324 | 1 | LOCKWASHER 1/4″ I.D. |
| 3 | 3975 | 1 | COUPLER.3/8 FEM 1/2NPT FL.FACE SET#03974 |
| 4 | 3976 | 1 | COUPLER.3/8MALE 1/2NPT FL. FACE SET#03974 |
| 5 | 4353 | 2 | NYLOCK NUT 3/8-16UNC |
| 6 | 6264 | 1 | ADAPTER -12 SAE X 1/2 NPT |
| 7 | 7200 | 1 | IMPELLER ASSY |
| 8 | 7201 | 1 | TP03 GASKET |
| 9 | 7206 | 1 | BASE PLATE |
| 10 | 7882 | 1 | ADAPTER 10-1/2 F5OF |
| 11 | 9612 | 1 | GENERAL CAUTION STICKER |
| 12 | 9661 | 1 | CAPSCREW 1/4-28UNF X .750 SST |
| 13 | 11207 | 1 | CIRCUIT TYPE “D” STICKER |
| 14 | 15875 | 1 | WARNING TAG (NOT SHOWN) |
| 14 | 88346 | 1 | WARNING TAG – FRENCH (NOT SHOWN) |
| 15 | 19534 | 6 | HEX FLANGE BOLT 3/8-16 X 1 |
| 16 | 21978 | 2 | CAPSCREW 3/8-16 X 1.75 FH SST |
| 17 | 22294 | 1 | WASHER 1″OD X 1/4 ID SST |
| 18 | 28323 | 1 | STICKER “CE” 25MM |
| 19 | 28786 | 1 | COUPLER STICKER |
| 20 | 28788 | 1 | STICKER – MANUAL |
| 21 | 38701 | 3 | CAPSCREW 1/2-13 X 2.5 FH ZINC |
| 22 | 38702 | 3 | HEX JAM NUT 1/2-13UNC |
| 23 | 52720 | 1 | CAMLOCK COUPLING 3″ |
| 24 | 58555 | 1 | USER MANUAL. TP03 (NOT SHOWN) |
| 25 | 73058 | 1 | LIFTING EYE NUT 3/8-16 |
| 26 | 73061 | 1 | CAPSCREW 3/8-16 X 1 HSFT SST |
| 27 | 73067 | 1 | URETHANE BOWL YELLOW |
| 28 | 73356 | 1 | MOTOR ADAPTOR PLATE |
| 29 | 73504 | 1 | HYDRAULIC MOTOR PLATED (IF RESEALING MOTOR. TORQUE MOTOR BOLTS TO 15-17 FT. LBS (20-23 Nm) |
| 30 | 73576 | 1 | CARRYING HANDLE |
| 31 | 73577 | 1 | QUICK LINK SST |
| 32 | 74701 | 1 | NAME TAG – TP03 |
| 33 | 74711 | 1 | DECAL – STANLEY LOGO 1″ X 5″ |
| 66401 | 1 | SEAL KIT (JIHOSTRO BRAND MOTOR ONLY) FOR P/N-24381 MOTOR | |
| 73431 | 1 | SEAL KIT (JIHOSTRO 2014 SERIES MOTOR ONLY) FOR P/N-73504 MOTOR. SERIAL # 031315004 AND UP. | |
| 26230 | 1 | SEAL KIT (CASAPPA BRAND MOTOR ONLY) | |
| 73434 | 1 | OUTPUT SHAFT FOR P/N-24381 MOTOR ONLY | |
| A01 | 3974 | 1 | COUPLER SET (INCLUDES ITEMS 3 & 4) |
