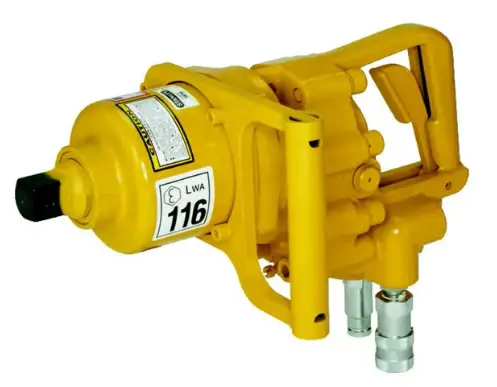

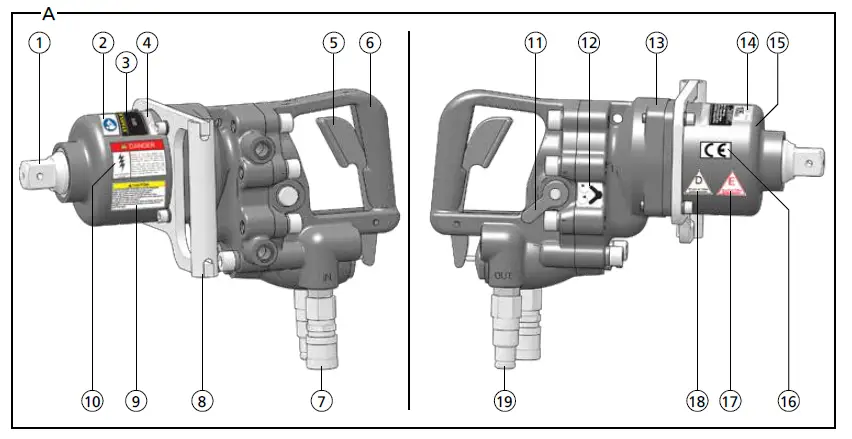

STANLEY IW16 Impact Wrench
STANLEY IW16 Impact Wrench

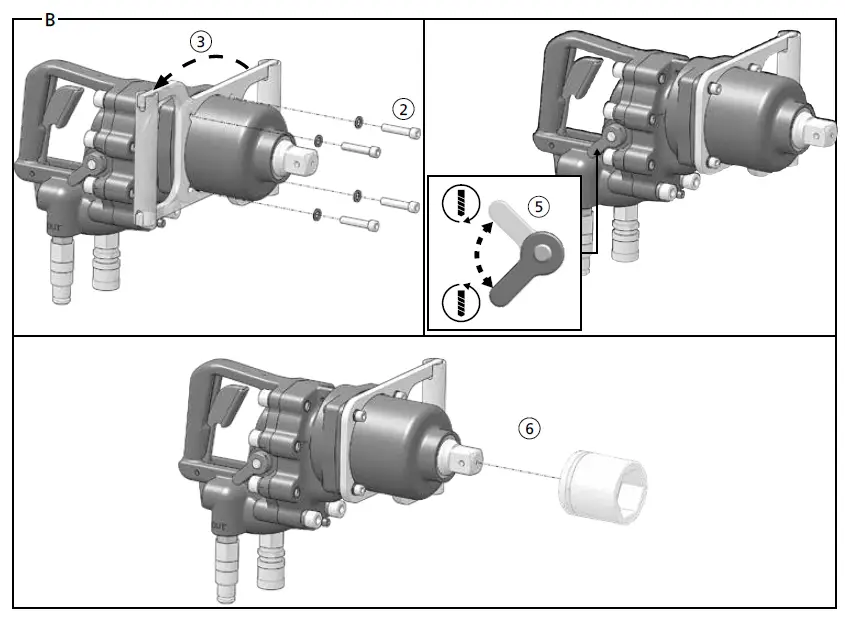

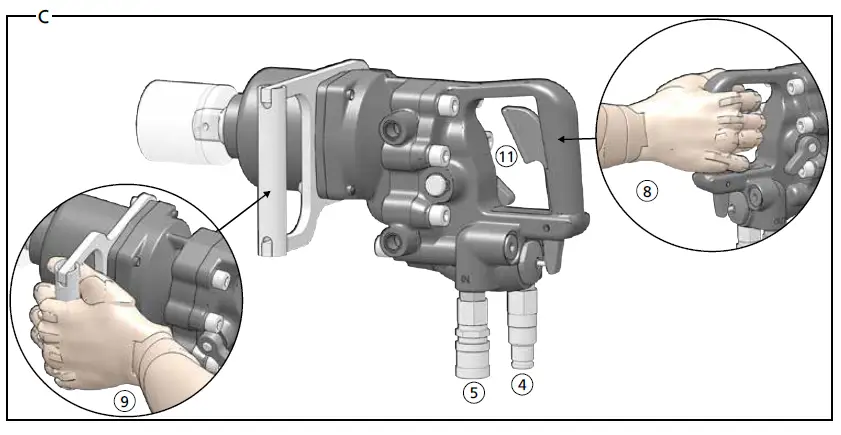

Parts Description

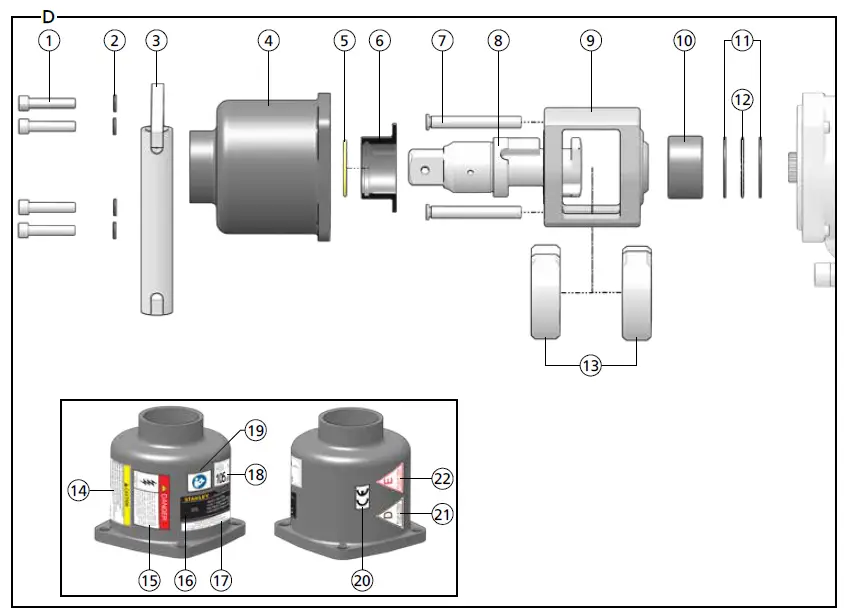

| IW16 Impact Mechanism Illustration – Detail D | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 09625 | Cap Screw |
| 2 | 73687 | Lock Washer |
| 3 | 32087 | Assist Handle |
| 4 | 24682 | Hammer Case Assembly (Includes 21010) |
| 72770 | Hammer Case – Model IW16350 | |
| 5 | 01276 | O-ring* – Model IW16350 |
| 6 | 21010 | Bushing |
| 21011 | Bushing – Model IW16350 | |
| 7 | 24680 | Hammer Pin |
| 8 | 24678 | Anvil |
| 9 | 24679 | Hammer Frame (Includes 24680) |
| 10 | 23817 | Thrust Spacer |
| 11 | 08147 | Thrust Washer |
| 12 | 08148 | Thrust Bearing |
| 13 | 24677 | Hammer |
| 14 | 09612 | General Caution Decal |
| 15 | 12412 | Electrical Danger Decal |
| 16 | 74692 | Tool Name Tag |
| 73680 | Railroad Help Desk Decal – Models IW16150BN & IW16150S | |
| 17 | 88344 | Importer Decal – Models IW16150, IW16150S & IW16350 |
| 18 | 81433 | Sound Power Decal – Models IW16150 & IW16150S |
| 19 | 88348 | “Read the Manual” Decal – Models IW16150, IW16150S & IW16350 |
| 20 | 28323 | CE Decal – Models IW16150, IW16150S & IW16350 |
| 21 | 11207 | Circuit Type “D” Decal – Models IW16150, IW16150S & IW16350 |
| 22 | 12535 | Circuit Type “E” Decal – Models IW16150, IW16150S & IW16350 |
| 23 | 23134 | Impact Mechanism Assembly (Not Shown) – Includes 24682, 21010, 24678, 24680, 24679 & 24677 |
| 24 | 24757 | Impact Mechanism Assembly (Not Shown) Model IW16350 – Includes 72770, 21011, 24678, 24680, 24679, 24677 & 01276* |
| 25 | 09602 | Seal Kit (Not shown) – * in seal kit |

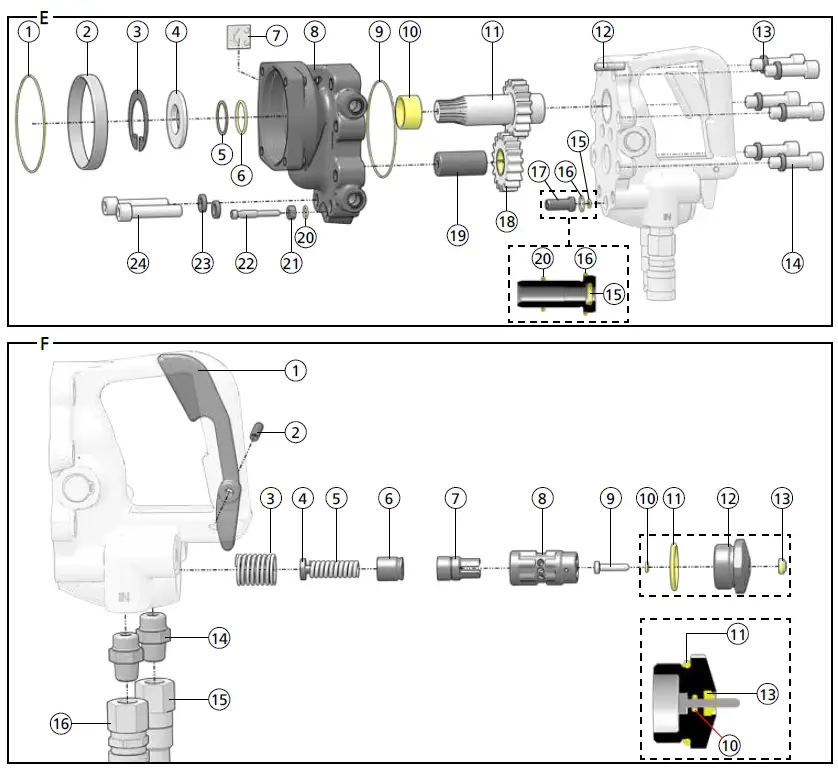

| IW16 Hydraulic Motor Illustration – Detail E | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 00255 | O-ring* |
| 2 | 08126 | Pilot Ring |
| 3 | 00663 | Retaining Ring |
| 4 | 08125 | Seal Backup Washer* |
| 5 | 08180 | Backup Ring* |
| 6 | 04888 | O-ring* |
| 7 | 30136 | Rotation Direction Decal |
| 8 | 08137 | Motor Housing Assembly (Includes 03252, 07995, 08123, 08126 & 08146) |
| 9 | 00255 | O-ring* |
| 10 | 08146 | Bushing |
| 11 | 08136 | Main Shaft |
| 12 | 07337 | Dowel Pin |
| IW16 Hydraulic Motor Illustration – Detail E | ||
| ITEM | P/N | DESCRIPTION |
| 13 | 00697 | Lock Washer |
| 14 | 09284 | Cap Screw |
| 15 | 00717 | O-ring* |
| 16 | 00016 | O-ring* |
| 17 | 07995 | Insert |
| 18 | 08128 | Idler Gear Assembly |
| 19 | 08123 | Idler Shaft |
| 20 | 03252 | O-ring |
| 21 | 09277 | Hex Nut |
| 22 | 07984 | Relief Adjustment |
| 23 | 00697 | Lock Washer |
| 24 | 21986 | Cap Screw |
| 25 | 09602 | Seal Kit (Not shown) – * in seal kit |
| IW16 Valve Spool & Trigger Illustration – Detail F | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 08133 | Trigger |
| 2 | 05965 | Roll Pin |
| 3 | 08131 | Compression Coil |
| 4 | 07982 | Spring Rest |
| 5 | 08122 | Compression Coil |
| 6 | 08135 | Relief Poppet |
| 7 | 07986 | Relief Seat |
| 8 | 73046 | On/Off Spool |
| 9 | 23678 | Headed Push Pin |
| 10 | 00026 | O-ring* |
| 11 | 06533 | O-ring* |
| 12 | 22063 | Spool Cap |
| 13 | 22064 | Rod Wiper* |
| 14 | 00936 | Adapter – Models IW16150, IW16150D & IW16350 |
| 15 | 03973 | Male Coupler |
| 16 | 03972 | Female Coupler |
| 17 | 03971 | Coupler Set (Not shown) – Includes 03973 & 03972 |
| 81160 | Coupler Set (Not shown) – Model IW16150BN | |
| 18 | 56725 | Hose Assembly (Not shown) – Model IW16150S |
| 19 | 66727 | Hose Assembly (Not shown) – Model IW16150BN |
| 20 | 09602 | Seal Kit (Not shown) – * in seal kit |

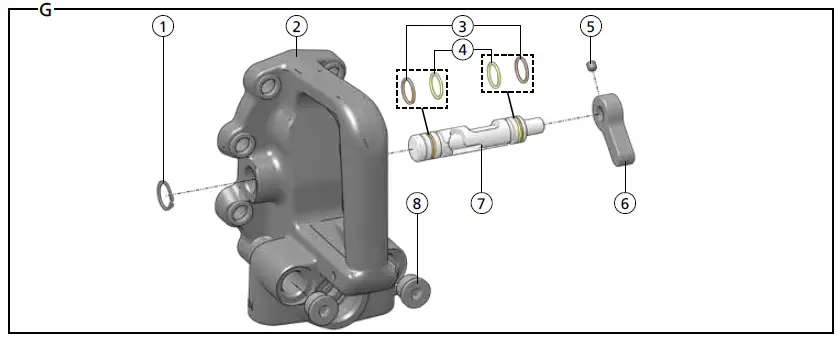

| IW16 Reversing Spool Illustration – Detail G | ||
| ITEM | P/N | DESCRIPTION |
| 1 | 09275 | Retaining Ring |
| 2 | 73167 | Valve Handle Assembly (Includes 350237, 07337 & 08146) |
| 3 | 08015 | Backup Ring* |
| 4 | 01211 | O-ring* |
| 5 | 00580 | Set Screw |
| 6 | 04939 | Lever |
| 7 | 08139 | Reversing Spool |
| 8 | 350237 | Hollow Hex Plug |
| 9 | 09602 | Seal Kit (Not shown) – * in seal kit |
