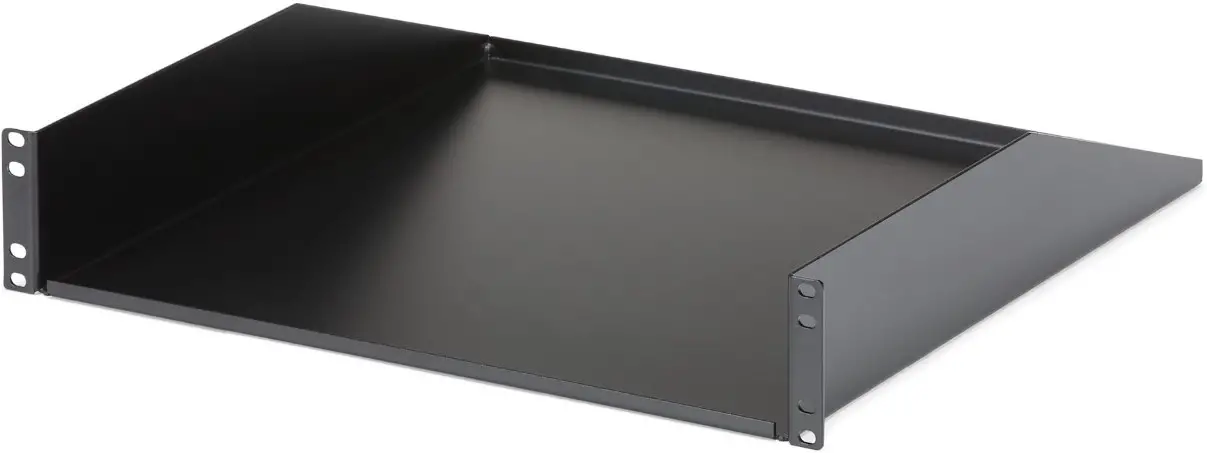

StarTech Com CABSHELFHD 2U 18 Inch Deep Rack Mount Shelf User Guide

Contents hide

5 Documents / Resources

5.1 References

6 Related Posts

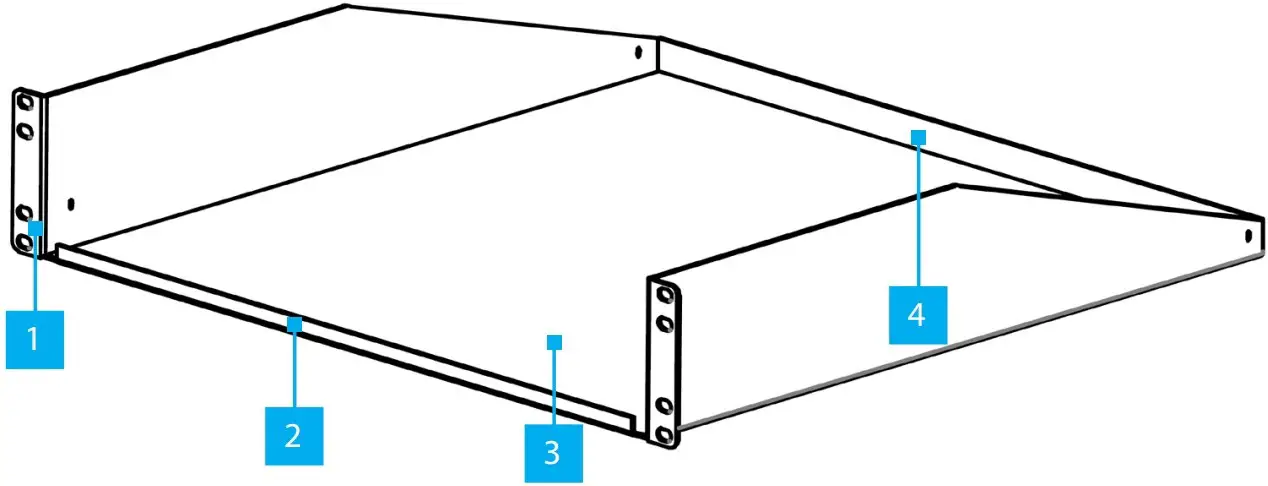

Product Diagram

CABSHELFHD and CABSHELFHD2

No	Component	Function
1	Front Mounting Brackets	Used to fasten the Shelf to the Mounting Posts of the rack
2	Front Lip	Helps prevent the Server Rack Equipmentfrom slidding off the Shelf
3	Shelf Surface	Place Server Rack Equipment
4	Rear Lip	Helps prevent the Server Rack Equipment from slidding off the Shelf

Package Contents

2U Rack Shelf x 1
M6 Screws x 8
M6 Cage Nuts x 8
M6 Plastic Washers x 8
Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specifications, and declarations of conformance, please visit:
www.StarTech.com/CABSHELFHD
www.StarTech.com/CABSHELFHD2

Refer to the manufacturer of the rack to determine the mounting hole type and size
Phillips head screwdriver
Cage nut tool (Optional)

Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood before using this product.

Before adding equipment to this product, ensure this product has been properly mounted.

Never operate this product if parts are missing or damaged.

Ensure the weight of the equipment does not exceed the weight capacity of this product. If the weight capacity is exceeded, personal injury or damage to the equipment is possible. This product can support the following weight: 125 lb (56 kg).

Installation

Find a suitable location on the rack to mount the Shelf. The Shelf requires 2U of Mounting Space.
Install the M6 Cage Nuts (x 8) into the Mounting Holes (x 8) on the Mounting Posts of the rack. If available, use a Cage Nut Tool or your preferred installation method to install the Cage Nuts.
If the rack has M6 threaded holes, skip this step, as you can use the M6 Screws without the M6 Cage Nuts.
Place the Shelf onto the rack and Align the Mounting Holes of the Front Posts with the Mounting Holes of the Front Mounting Brackets.
Install the M6 Screws (x 8) using a Phillips Head Screwdriver to fasten the Front Mounting Brackets to the Front Posts of the rack. Ensure the M6 Screws (x 8) are properly tightened and the Shelf is secure before attempting to place the Server Rack Equipment.

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Regulatory Compliance
Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of thirdparty companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.
PHILLIPS® is a registered trademark of Phillips Screw Company in the United States or other countries.

Warranty Information
This product is backed by a lifetime warranty.
For further information on product warranty terms and conditions, please refer to www.startech.com/warranty
