Service Best BD8C2EDF4467 Carpoint Light Buzzer Small at SBI Instruction Manual
15.234.54 light indicator

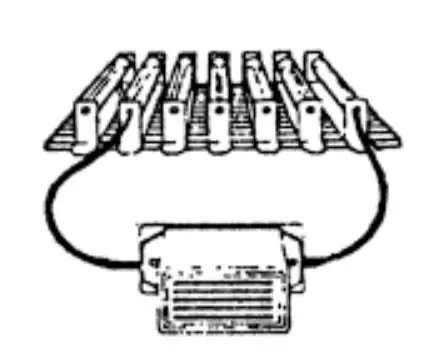

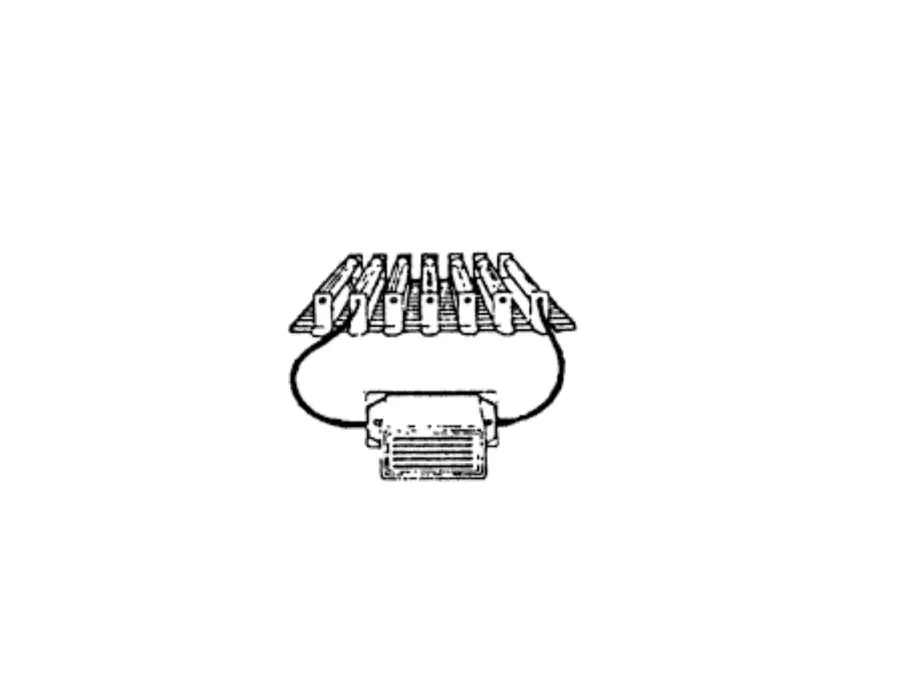

- Fitting Instruction 1) Buzzer signal when car lights are on after ignition has been turned off (illustration 1)
: Stick the light-reminder to the dashboard or mount it with two small screws - Bring both wires to the fuses board.
- Connect the red wire to the headlight fuse and the blue wire to the ignition fuse. 2)
Buzzer signal when carlights are on after the door has been opened (illustration 2):
Follow some procedure as above described, only connect the blue wire to the wire of the door contact instead of the ignition fuse (=switch with turns on the light when opening the door).
