GIANNI CP-43BZ-LB Series Buzzer and Backlight Resettable Call Point
SPECIFICATION
- Operating Voltage: 12/24VDC
- Dimensions: 87x91x53 mm (with clear cover)
- Contact Resistance: 100mΩ
- Switch Rating: 3A 125VAC / 1.5A 250VAC Three sets of signal output
- Backlight illumination: Green (normal state), Red (activated)
- Built-in buzzer: 80 dB (Volume adjustable, can be turned off or set to intermittent)
- Plastic Case Color: Green / Red / White / Yellow / Blue Reset key included

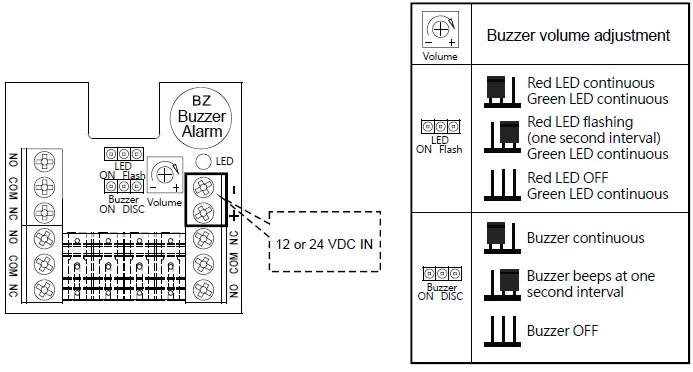

Settings

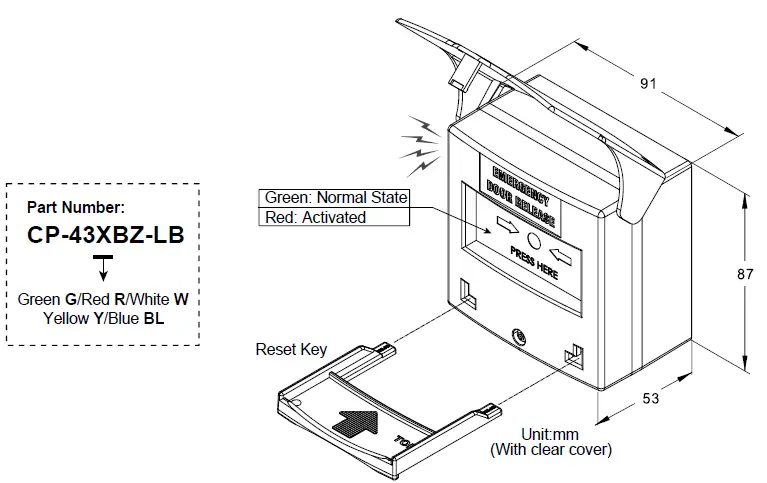

DIMENSION

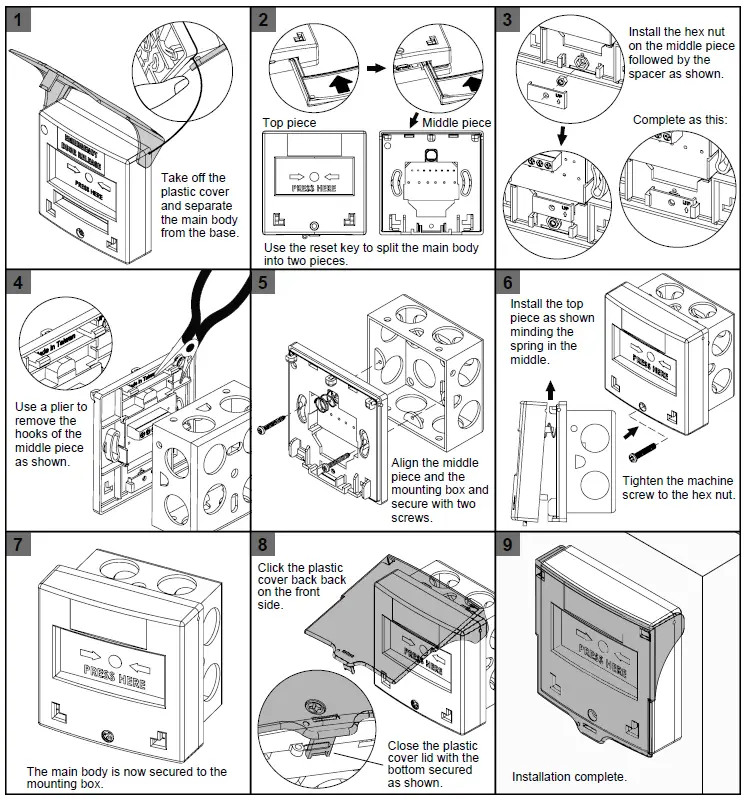

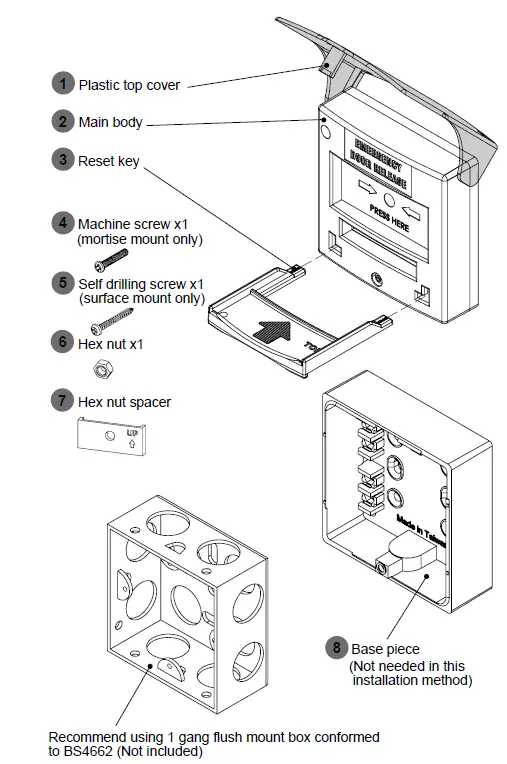

Installation Instructions
- Copyright All rights reserved. P-MU-CP-43BZ-LB Published on 2022.08.04
