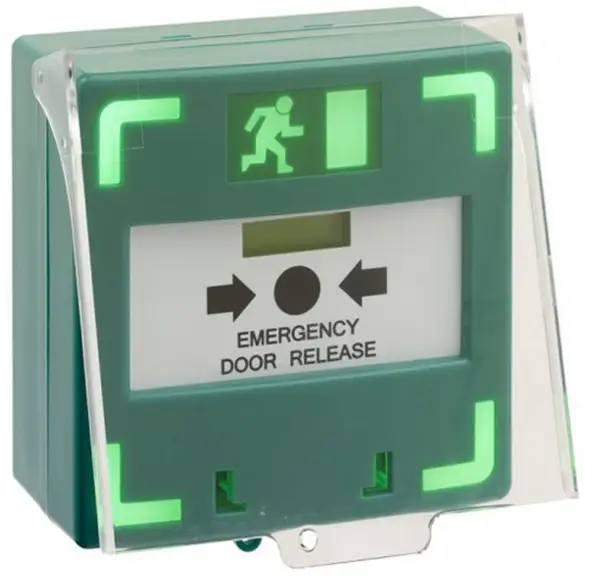

Neptune NECPLBGN Resettable Call Point with Buzzer and Light Installation Guide
Features
- Resettable design, LED indicators around the edge of the unit
- Press the outside plate to enable the output function
- The outside plate will show the status (Green or Red)
- Reset key with a non-slip design
- Input power range from DC12-24V to connect with all types of fire alarm system
- Bult-in buzzer status can be set as silent, intermittent or continuous. The volume is adjustable.
- Easy to assemble, the outer case has no screws, 3 sets of output points to connect other equipment, flush or surface mount installations.
Accessories

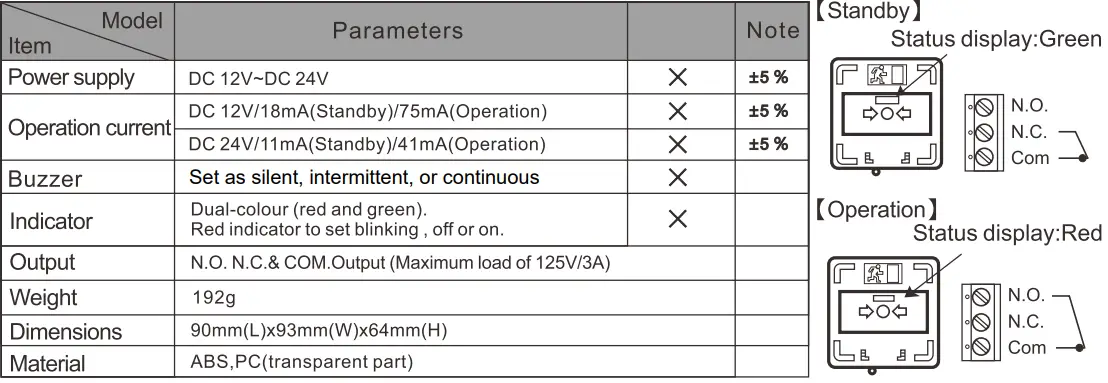

Specifications

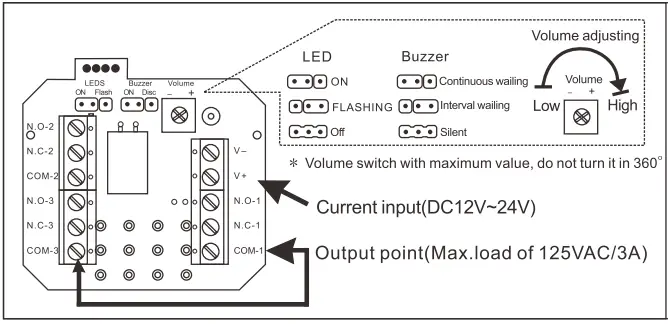

Connections

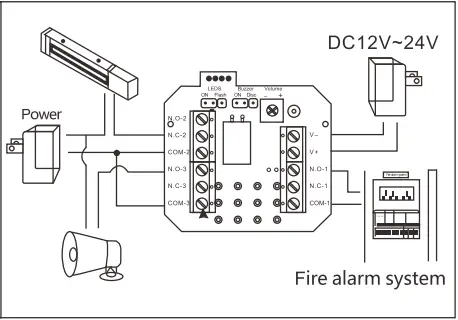

Wiring Diagram

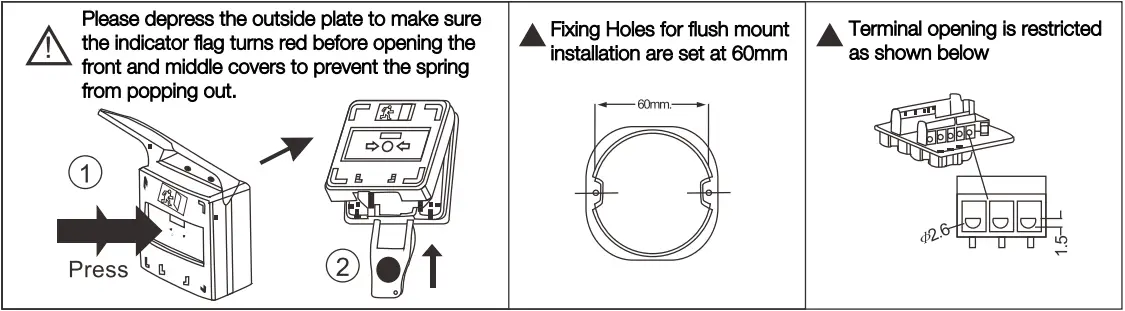

Attention before installation
Installation

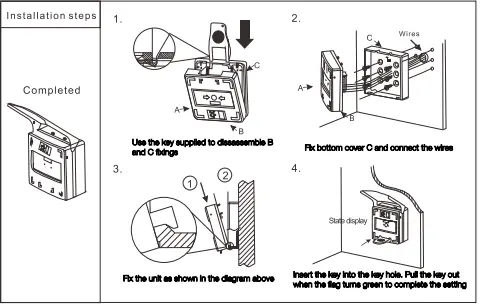

Surface Mount Installation

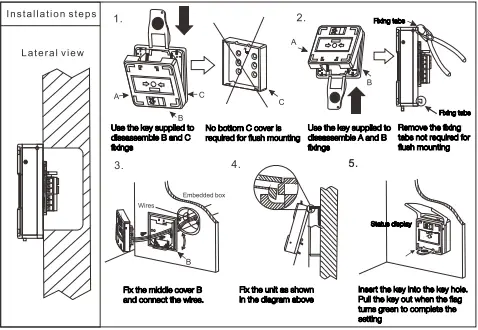

Flush Mount Installation
