Davis Lighting Cldr Ceiling Light Instruction Manual

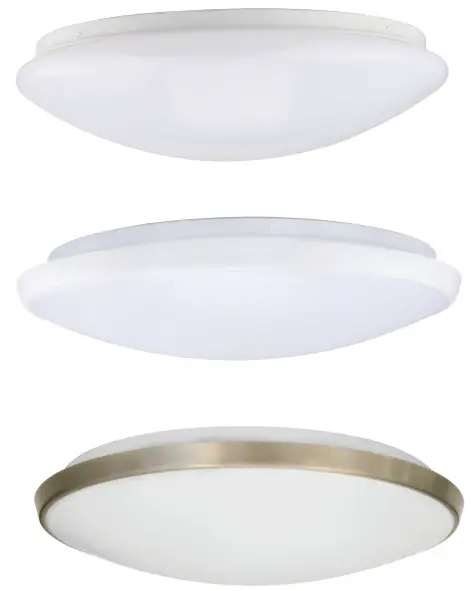

CLDR Ceiling Light
Instruction Manual

This installation guide is valid for the following models:

• Clio – CLDR

PRIOR TO INSTALLATION

• Read all instructions to prevent injury, electric shock or damage due to fire or mechanical hazards • See product label for supply specifications

MUST BE INSTALLED BYA LICENSED ELECTRICIAN

Inspect the luminaire and associated parts for any signs of defect, in particular fasteners, cables and the diffuser or glass lens
DO NOT INSTALL THE LUMINAIRE IF IT APPEARS IN ANY WAY FAULTY
Consult with the supplier / sales office for details regarding replacement
This installation guide is valid for the following models:

CAUTION

• Before commencing installation, turn off and isolate the electrical supply
• Electronic control equipment must not be subjected to high voltages. DO NOT MEGGER between Live and Neutral
• All cable / conduit terminations must be installed in accordance with the designated IP rating of this product
• Suitable installation fastening methods should be employed to ensure the mounting points are not damaged when subjected to vibration and / or movement
• This luminaire must be installed by qualified electrician in accordance with local rules and codes
• This luminaire cannot be disassembled by non-professional persons
• The light source of this luminaire is non-user replaceable. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person
• Prior to installation, products are to be stored in cool dry conditions

INSTALLATION

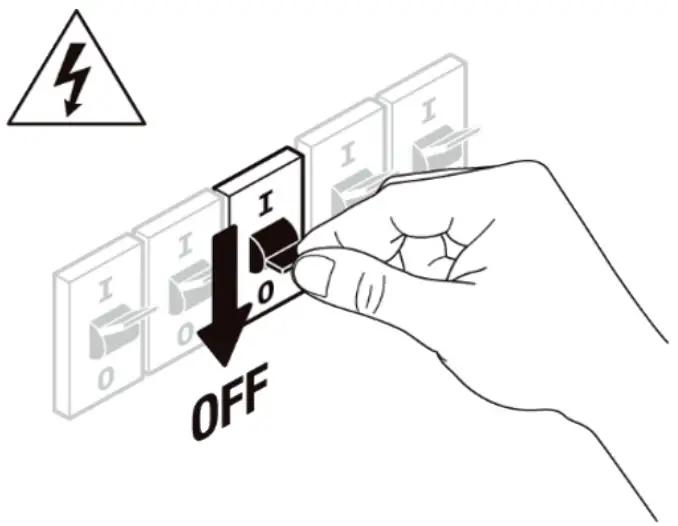

1. Turn OFF the main supply

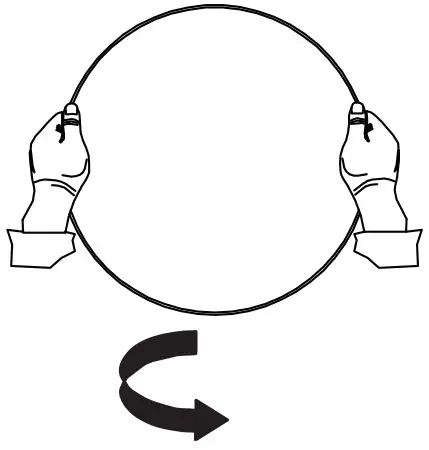

2. Unlock the cover in anti-clockwise direction and remove it completely

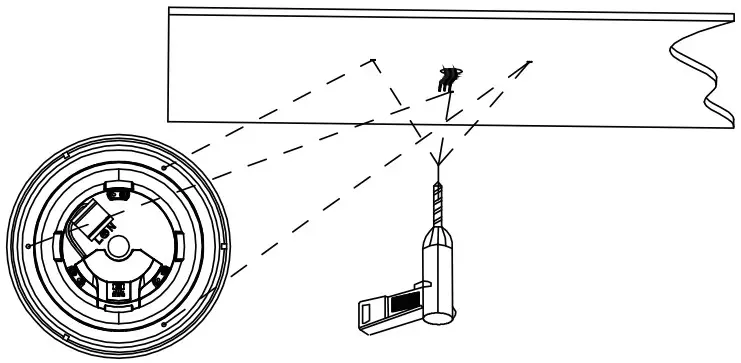

3. Drill holes on the wall

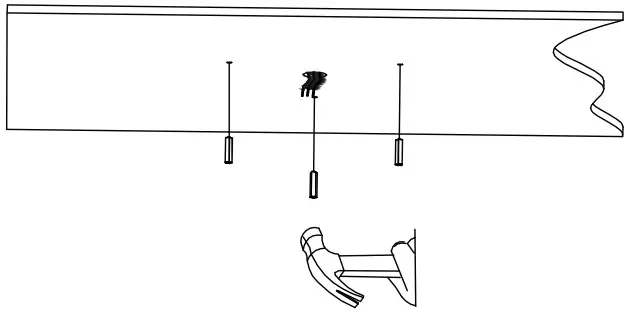

4. Insert plastic wall plugs

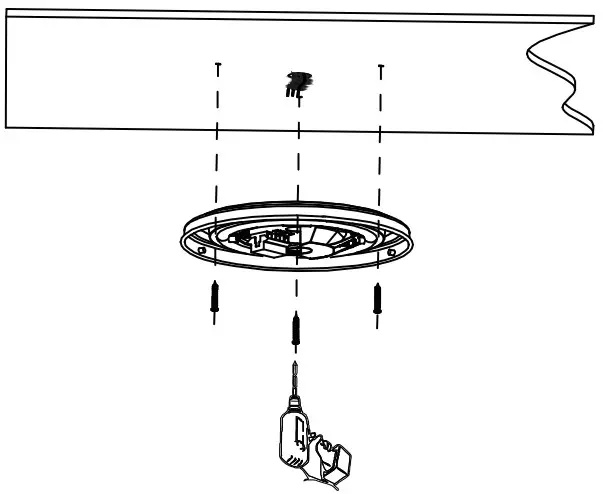

5. Fix the base on the ceiling with atleast 3 screws

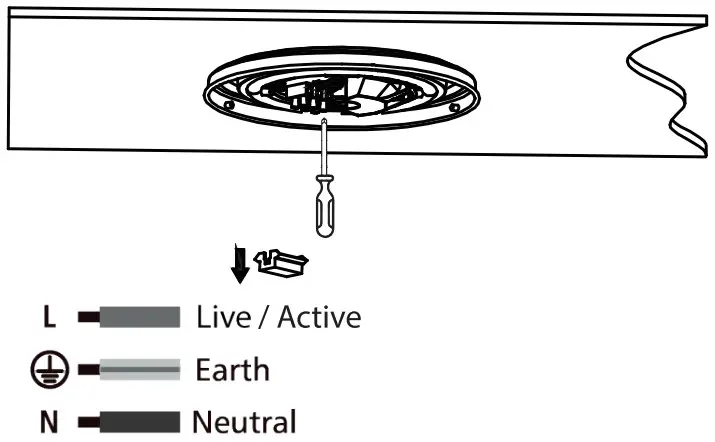

6. Connect mains to the terminal block

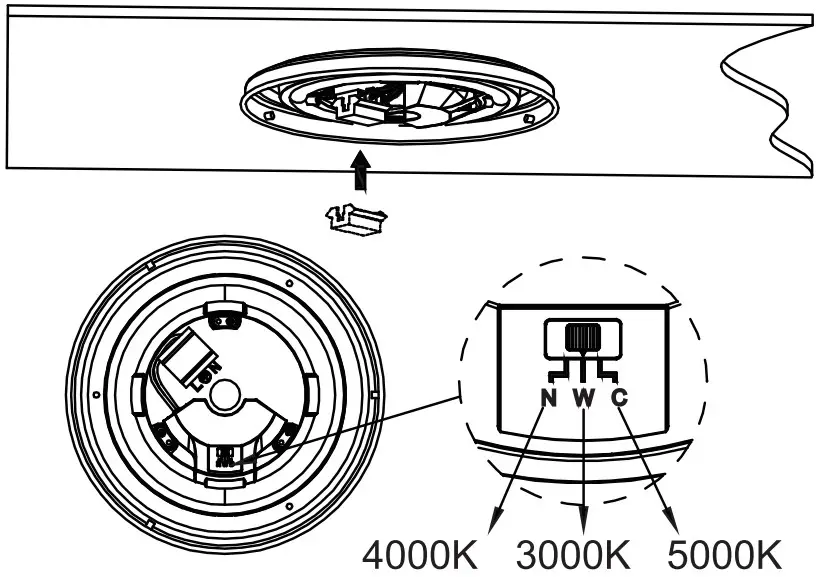

7. Install back the terminal block cap and select the needed CCT

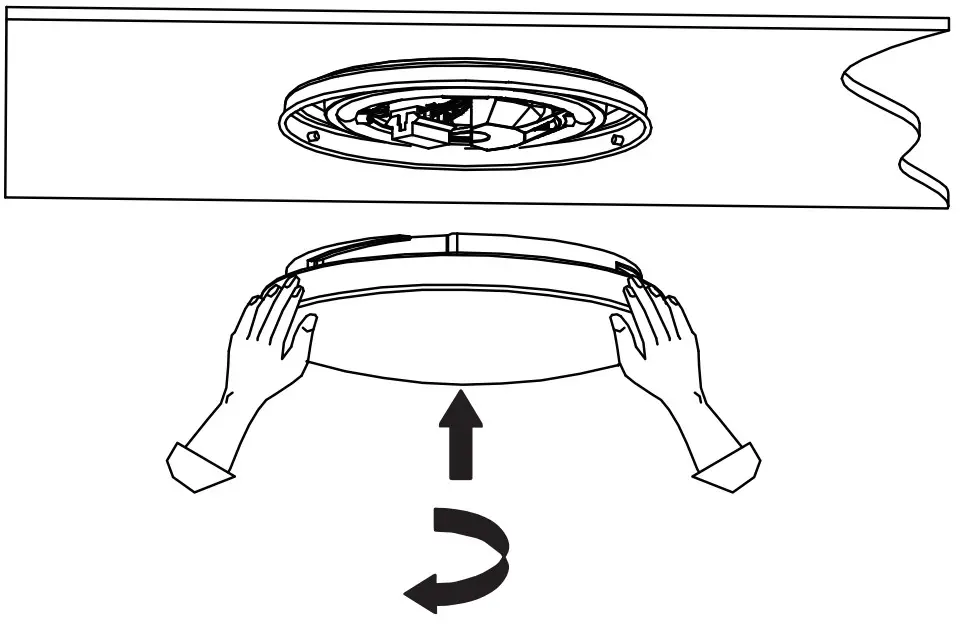

8. Install the lumiaire cover and tighten in clockwise direction

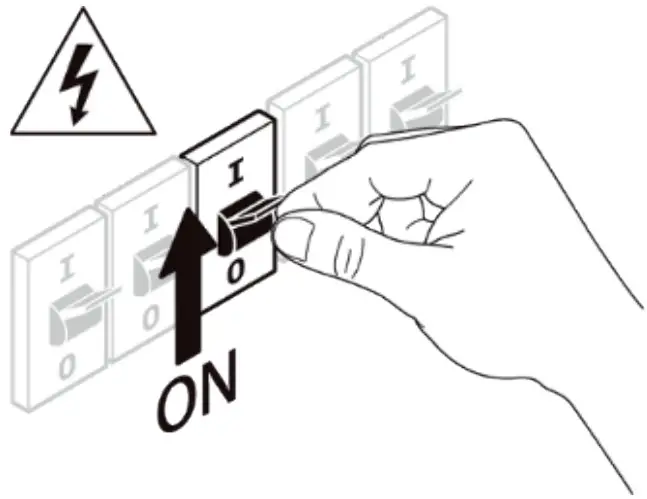

9. Turn ON the main supply

Unauthorized modification & improper installation void product warranty.

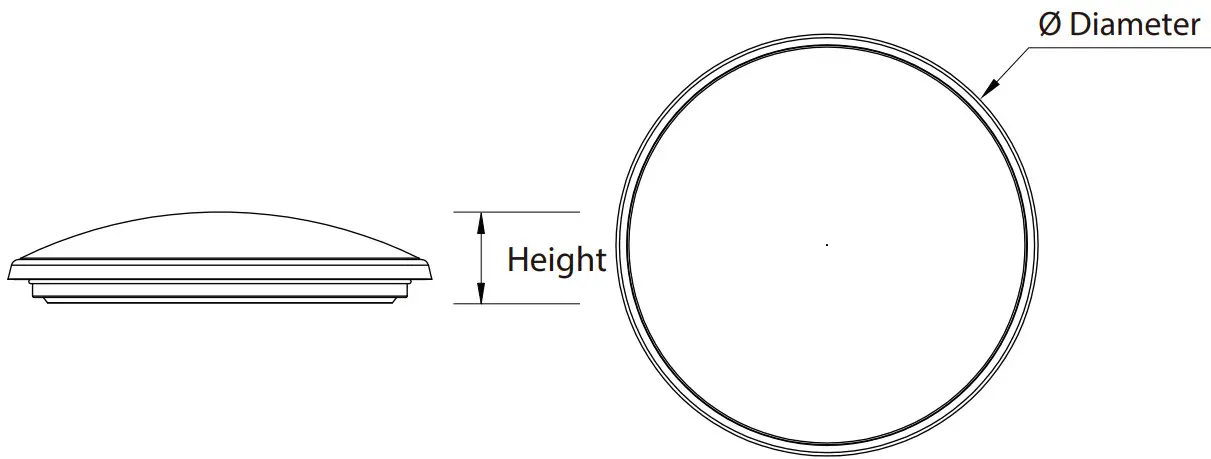

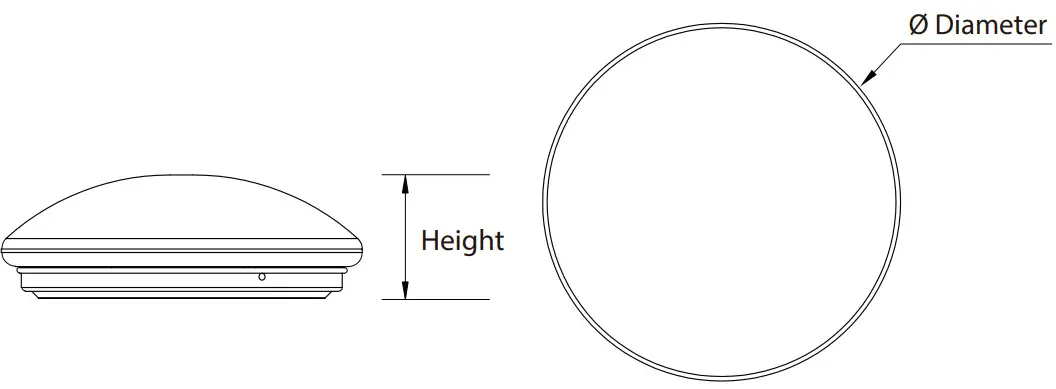

DIMENSIONS

MAINTENANCE

The supply must be isolated before opening or accessing the luminaire. Product maintenance is critical to the products designed performance. Davis Lighting is not responsible for any product not maintained in accordance with the recommended procedure or intervals. It is recommended that a bi-annual cleaning cycle is implemented. Inspect optical surfaces for damage or crack. Productssupplied with visors or covers must not be operate with a damaged visor or cover; it is recommended damaged visors or covers be replaced by a competent person immediately. Seals and electrical components such as wirings to be checked for deterioration.

All photometric and electrical data published are of ±10% tolerance. Characteristics and specifications may change without notice. All electrical installations/connections should be carried out by a suitably qualified person. Application images are indicative only and may not contain actual Davis product. The information contained in this publication is typical and must not be interpreted as a guarantee of individual product performance.
This product may contain substances that can be hazardous to the environment if not disposed of correctly. Electrical and electronic equipment should never be discarded along with general waste but should be separated for correct treatment and recovery. Packaging and waste materials should be recycled wherever possible
