Single Color LED Mini RF Controller
Model No.: V1-M, V1-M(D)
User Manual
V1-M, V1-M(D) Single Color LED Mini RF Controller
1 channel constant voltage/Max 5A output/Step-less dimming/Wireless remote control
 |  |

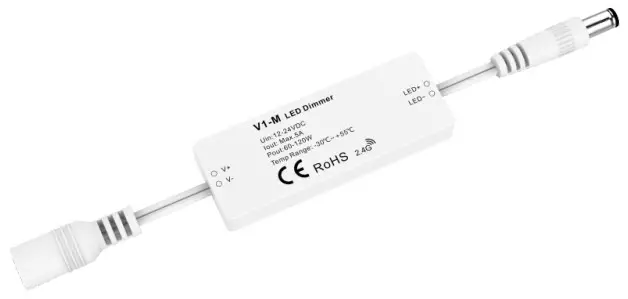

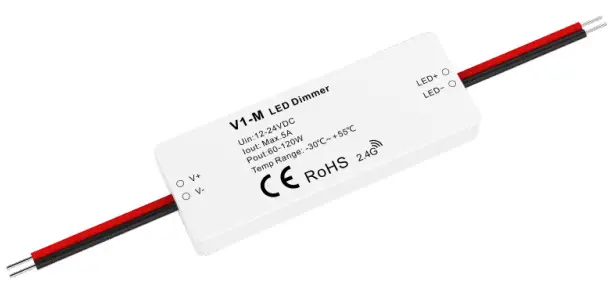

| V1-M Cable In /Cable Out Version | V1-M(D) DC Female Jack In /DC Male Jack Out Version |
Model List
| Model | Photo | Power Connector | LED Connector |

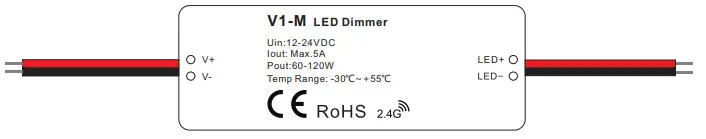

| V1-M |  | Red/Black Cable 10cm | Red/Black Cable 10cm |

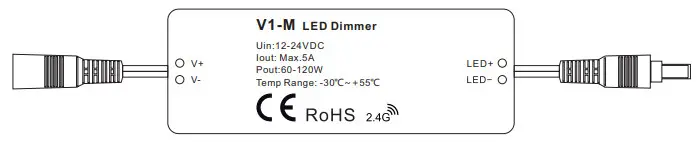

| V1-M(D) |  | 5.5mm DC Female Jack | 5.5mm DC Male Jack |
Features
- 1 channel constant voltage single color LED mini RF controller.
- 5A output, connect with 5 meters single color LED strip.
- Match with RF 2.4G single zone or multiple zone dimming remote control.
- One RF controller accept up to 10 remote control.
- 4096 levels 0-100% dimming smoothly without any
- Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
- Synchronize on multiple number of controllers.
Technical Parameters
| Input and Output | |
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output current | Max. 5A |
| Output type | Constant voltage |
| Environment | |
| Operation temperature | Ta: -30 ºC ~ +55 ºC |
| Case temperature (Max.) | Ta: +85 ºC |
| Dimming data | |
| Input signal | RF 2.4GHz |
| Control distance | 30m(Barrier-free space) |
| Dimming gray scale | 4096 (2^12) levels |
| Dimming range | 0 -100% |
| Dimming curve | Logarithmic |
| PWM Frequency | 500Hz (default) |
| Warranty | 5 years |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certi | CE,EMC,LVD,RED |
| Package | |
| Size | L90x H130mm |
| Gross weight | 0.021kg |

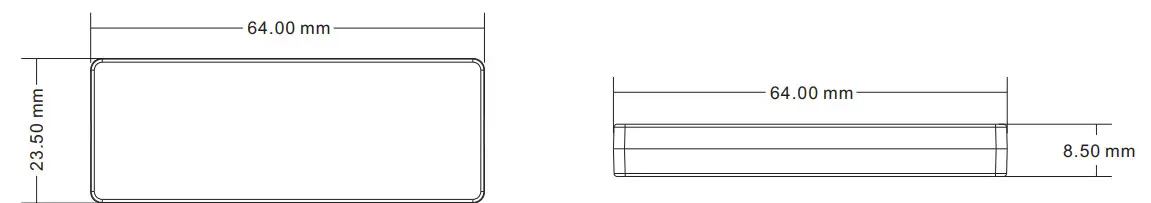

Dimension

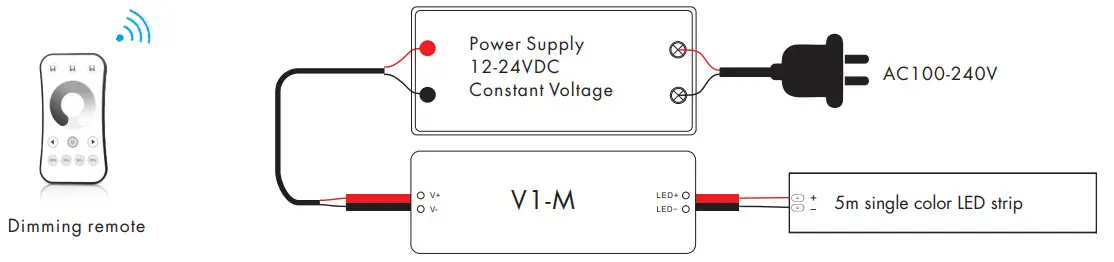

Wiring Diagram
Match Remote Control
Match:
Switch off the power of the receiver, then switch on power.
Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power of the receiver, then switch on power.
Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Another way to match:
The receiver is power on for five consecutive times, the LED strip light start blinking slowly for 10s, Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) on the remote.
The light blinks 3 times means match is successful.

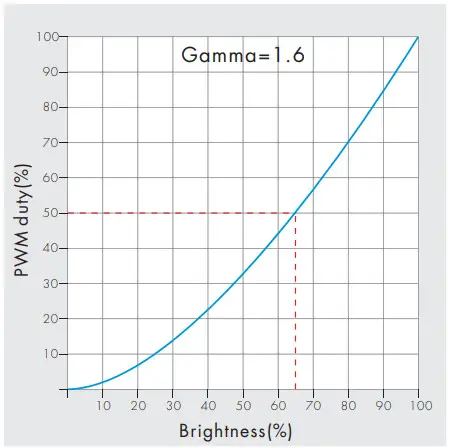

Dimming Curve
Malfunctions analysis & troubleshooting
| Malfunctions | Causes | Troubleshooting |
| No light | 1.No power. 2.Wrong connection or insecure. | 1.Check the power. 2.Check the connection. |
| No response from the remote | 1.The battery has no power. 2.Beyond controllable distance. 3.The controller did not match the remote. | 1.Replace battery. 2.Reduce remote distance. 3.Re-match the remote. |
Installation Precautions
- The products shall not be stacked, the distance should be ≥ 20cm, so as not to affect lifespan of the products due to poor heat dissipation.
- The product shall not be installed close to the switching power supply with an interval of ≥ 20cm to avoid the radiation interference of the switching power supply.
- The installation height shall be ≥ 1m from the tening the remote control distance due to too weak reception signal.
- The products are not allowed to be close to or covered by metal objects, with an interval of ≥ 20cm to avoid signal attenuation and shorten the remote control distance.
- Avoid installation at the corner of the wall or the corner of the beam, with an interval of ≥ 20cm to avoid signal interference.
