iskydance V1-W Single Color LED Mini RF Controller

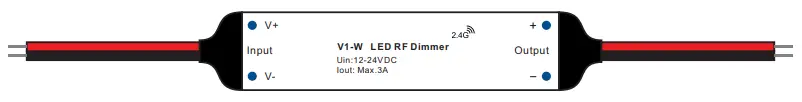

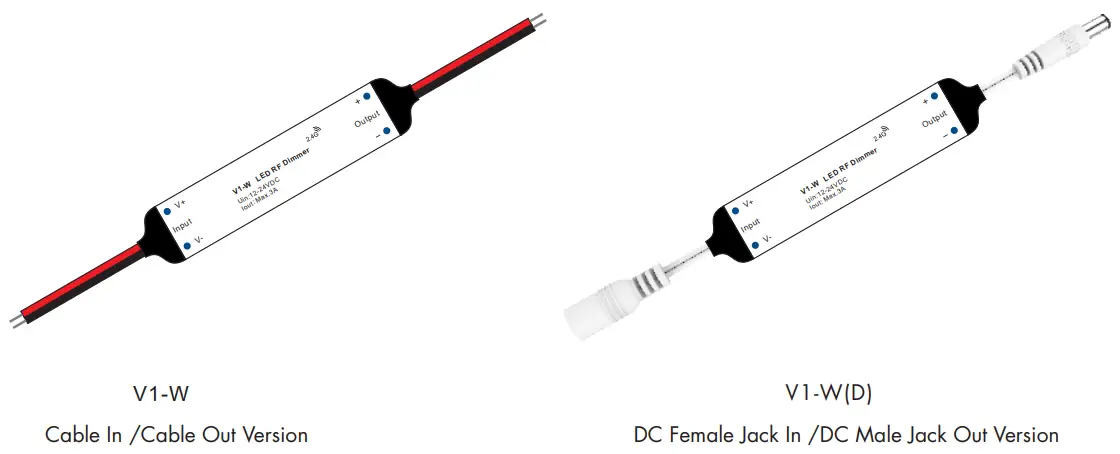

Model List
Model | Photo | Power Connector | LED Connector |
V1-W |  | Red/Black Cable 10cm | Red/Black Cable 10cm |
V1-W(D) |  | 5.5mm DC Female Jack | 5.5mm DC Male Jack |
Features
- 1 channel constant voltage single color LED mini RF controller.
- 3A per channel, output connect with 5 meters single color LED strip, max output power 75W.
- Match with RF 2.4G single zone or multiple zone dimming remote control.
- One RF controller accept up to 10 remote control.
- 4096 levels 0-100% dimming smoothly without any flash.
- Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
- Synchronize on multiple number of controllers.

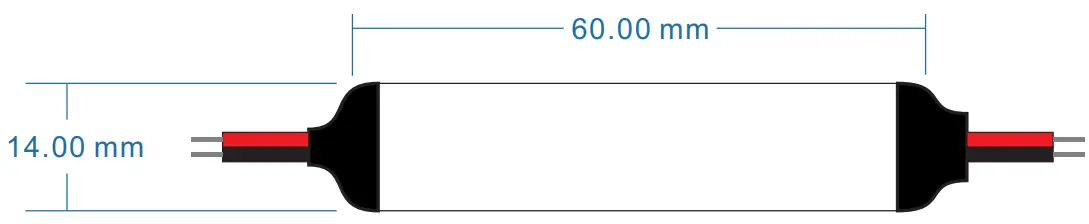

Dimension
Technical Parameters
| Input and Output | |
| Input voltage | 12-24VDC |
| Output voltage | 12-24VDC |
| Output power | Max. 75W |
| Output type | Constant voltage |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse Polarity |
| Dimming data | |
| Input signal | RF 2.4GHz |
| Control distance | 30m(Barrier-free space) |
| Dimming gray scale | 4096 (2^12) levels |
| Dimming range | 0 -100% |
| Dimming curve | Logarithmic |
| PWM Frequency | 500Hz (default) |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c: +85OC |
| IP rating | IP20 |
| Weight | |
| Net weight | 0.007kg |
| Gross weight n | 0.013kg |

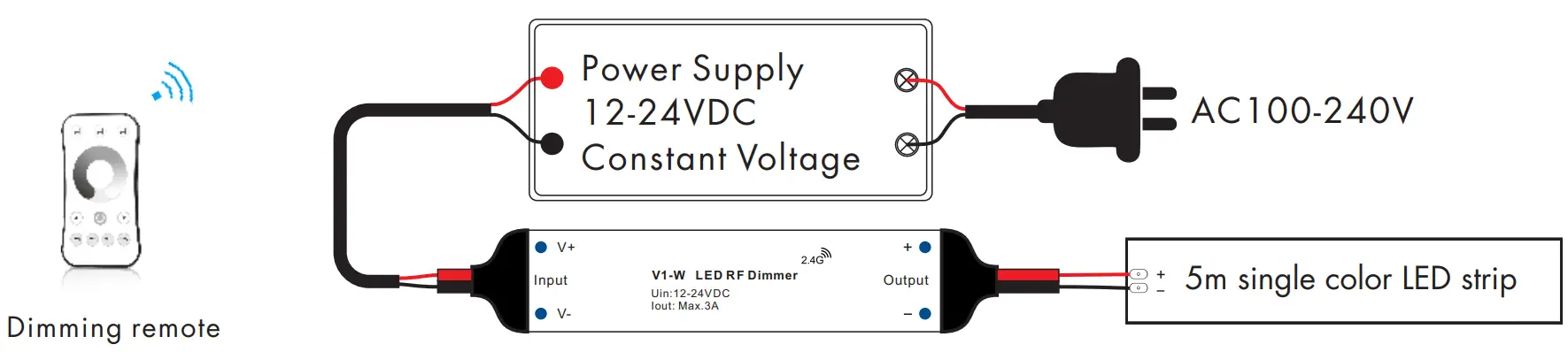

Wiring Diagram
Match Remote Control
Match:
Switch off the power of the receiver, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power of the receiver, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
Application notes
- All the receivers in the same zone.

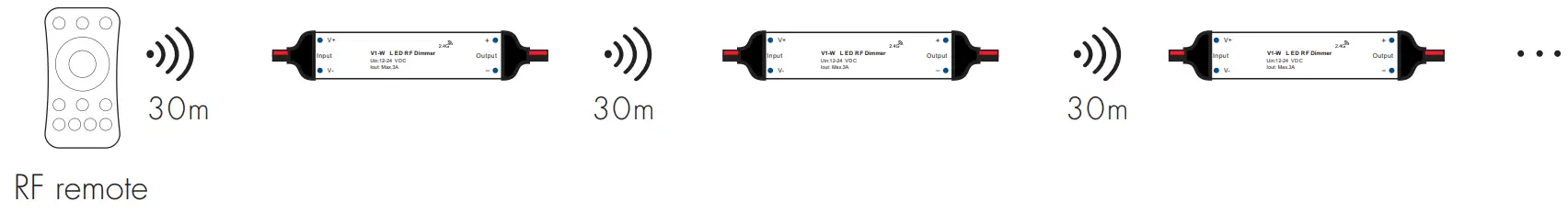

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be limitless.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote.
Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range.
Strong signal sources such as WiFi routers and microwave ovens will affect the range.

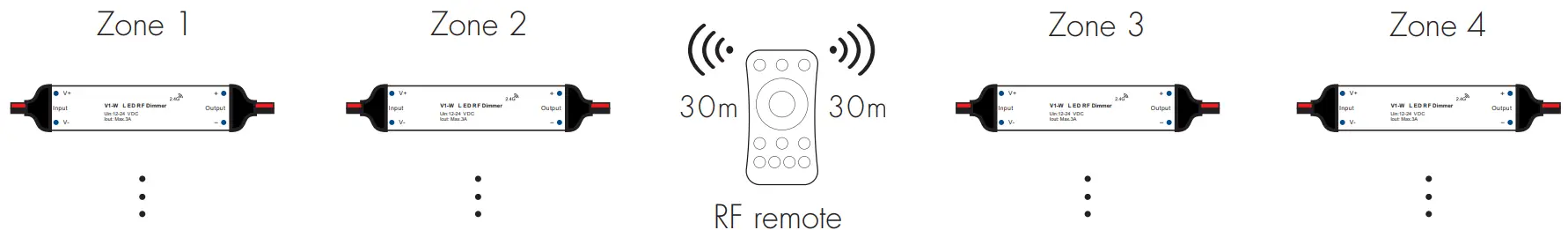

We recommend for indoor applications that receiver placements should be no further apart than15m. - Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.

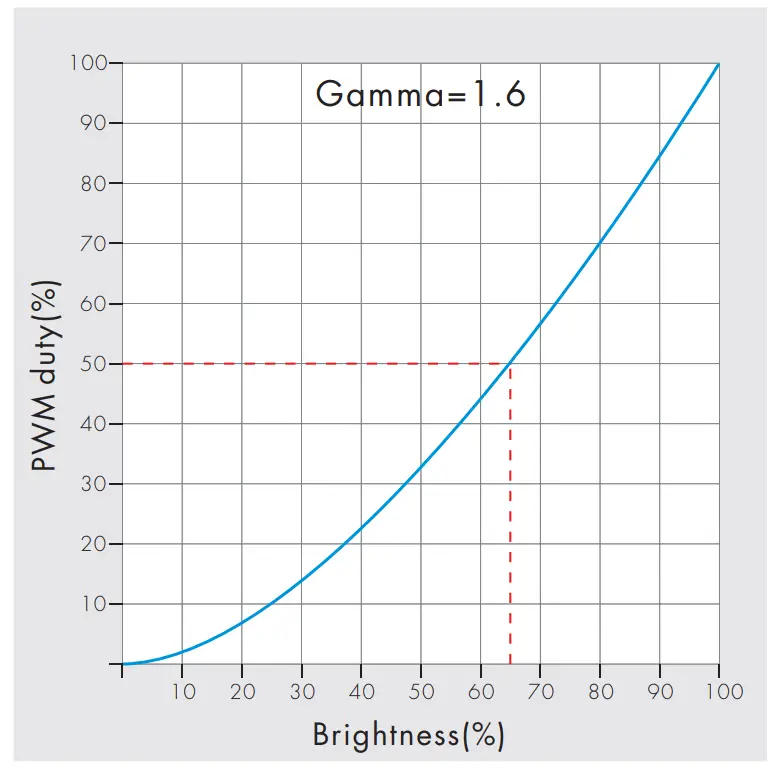

Dimming Curve
Malfunctions analysis & troubleshooting
| Malfunctions | Causes | Troubleshooting |
| No light |
|
|
| No response from the remote |
|
|
