Ujk 103570 Otoro Palm Router Table Instruction Manual

Basch Kit Code 103570
Makita/Dewalt Kits Code 103571
Original Instructions
AT: 22/02/2022
BOOK VERSION: 03

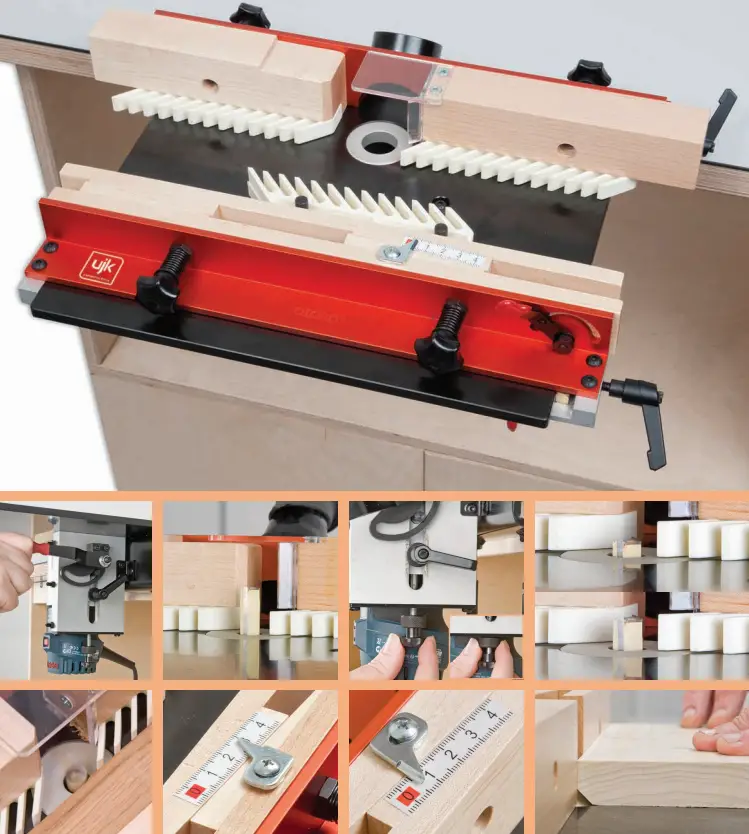

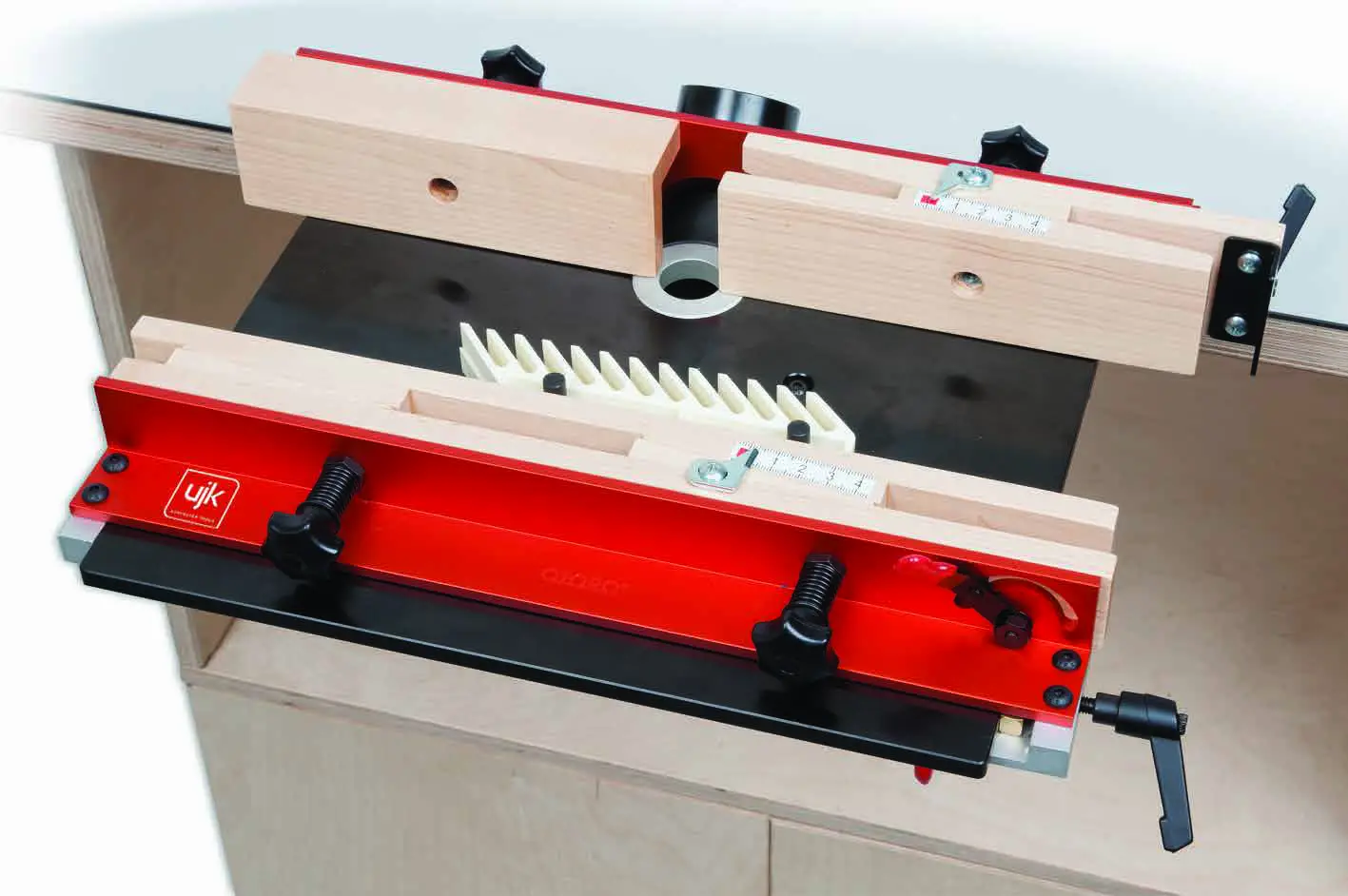

OTORO Palm Router Table

Planing Mode	Planing Width Mode

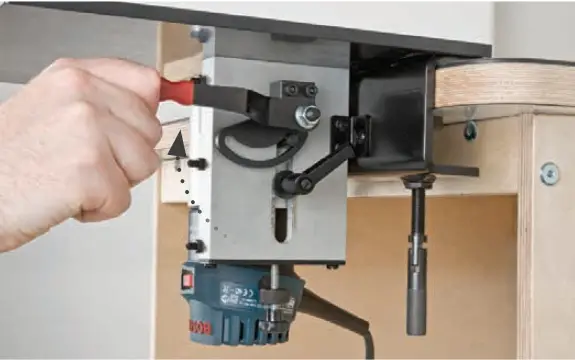

Moulding Mode	Router Lift Mechanism

UJK Technology OTORO Palm Router Table has been licensed by OTORO DESIGN INC., Japan, based on the patented design of OTORO Multipurpose Compact Router Table TTX2.

The symbols below advise the correct safety procedures when using this machine.

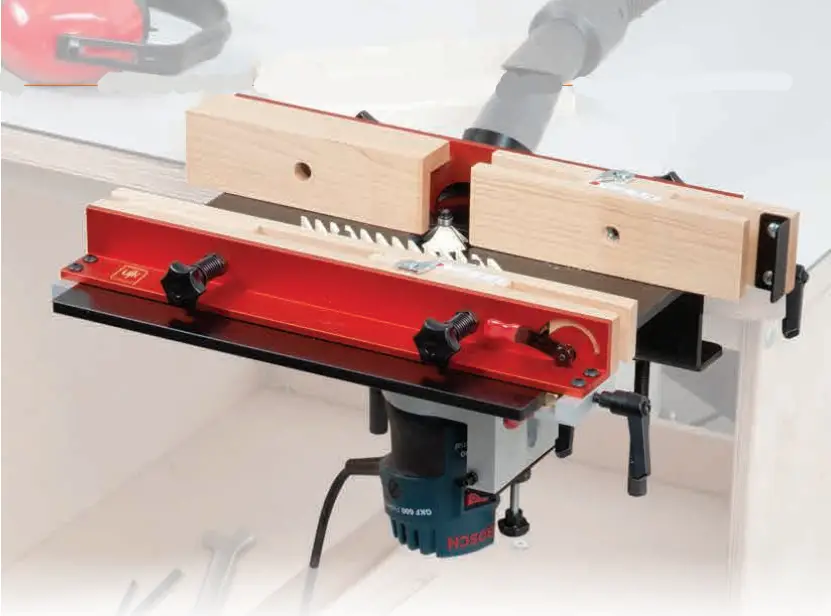

Introduction

The UJK Technology Otoro Palm Router Table is a unique and ingenious piece of equipment, well suited to the needs of any craftsperson wishing to make smaller-sized, precision components. This makes it ideal for model makers, dolls house constructors, or anyone who needs to accurately machine small sections of timber.
It’s designed to be used with a quarter-inch router/ trimmer, either the Bosch GKF 600 (702335), the Makita
RT0700CX2 (501867) or the DeWalt D26240K (952707).
The Makita router requires the use of a sleeve adaptor which is supplied with the router table. Coarse and Fine Feed adjustments are provided to set the height of the cutter above the table.
Once the table has been assembled, it can be conveniently stored in a small cupboard and can be quickly clamped to any surface in a matter of seconds, which means that it can be used almost anywhere in the house. Install the router, connect the dust extractor to the 48.5mm port, and you’re ready for business! Three modes of operation are possible with this router table; preparing an edge, planning the board to width, and molding.

Edge preparation – The Rear Planing Fence consists of two sections; a fixed outfeed and an adjustable infeed.
The adjustable part works by using a ‘folding wedge’ arrangement, where one slides against the other to create the depth of cut. Accuracy is assured by a 10:1 scale, thus moving and locking the leading wedge 10mm produces a cut of 1mm. A feather board is included to keep the timber securely against the fence.

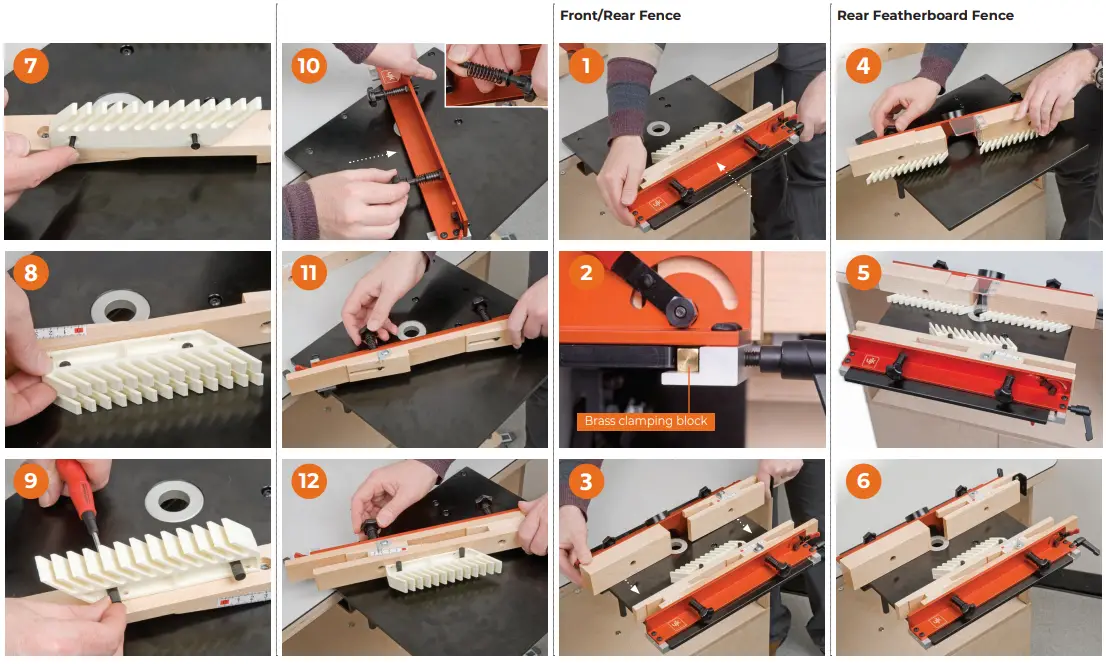

Width planing – The Rear Planing Fence is replaced by the Rear Featherboard Fence; The Front Fence, complete with a similar folding wedge adjustment is used to set the planing width of the board. It should be noted that in this unconventional, twin fence mode of routing, the Rear Featherboard Fence pushes the material away from the cutter so that it’s forced onto the adjustable Front Fence. In a normal router table, one fence is used and the material is forced towards it by the feather boards. Thin strips of material can also be prepared to thickness by sticking them to a wider carrier using double-sided tape.
Molding – Mouldings can be produced by using the Rear Planing Fence in the same mode of operation as edge preparation. Different sized cutters can be used by changing the table insert, a selection of which can be conveniently stored underneath the table.

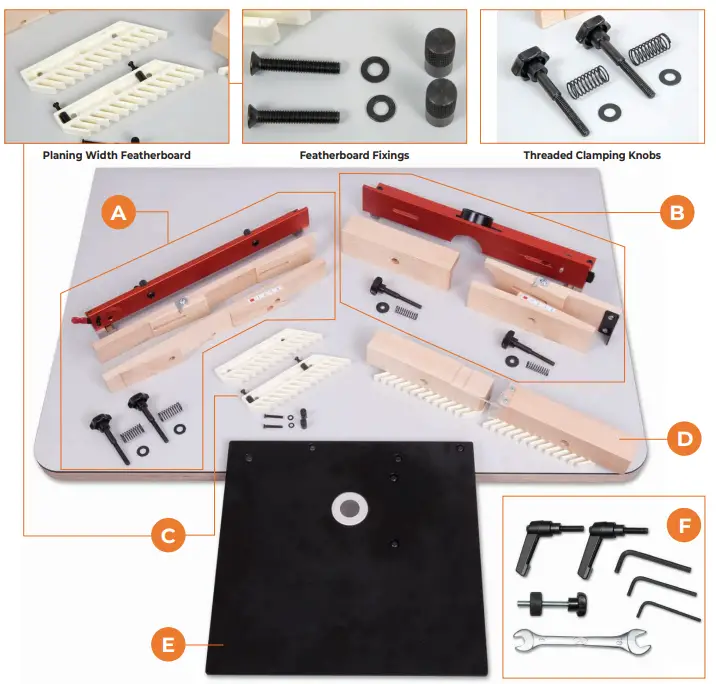

Model Number

OTORO TTX2

Front Planing Width Fence A

Rear Planing Fence B

Planing Width Featherboard C

Rear Planing Featherboard Fence D

UJK Palm Router Table Assembly E

Bag Containing F

UJK TECHNOLOGY OTORO PALM ROUTER TABLE KITS

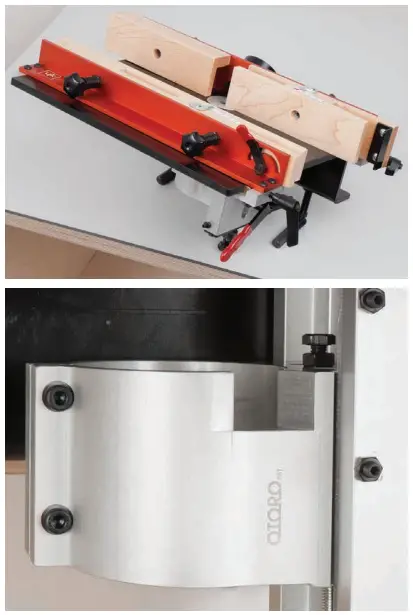

Bosch Kit
Code 103570

To fit the 1/4″ Bosch Router

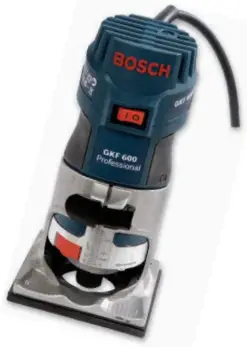

Bosch GKF 600
1/4” Router 230V
Code 702335
Bosch GKF 600
1/4” Router 110V
Code 950704

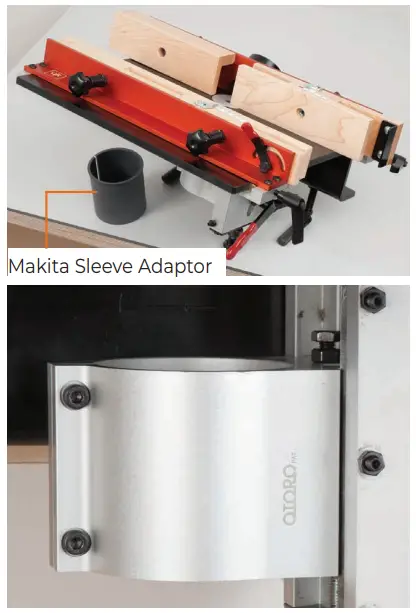

Makita/DeWALT Kit
Code 103571

To fit the 1/4″ Makita & DeWALT Router

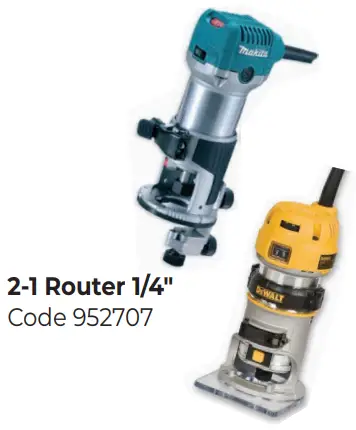

Makita RT0700CX2 1/4”
Router Trimmer Kit 230V
Code 501867
DeWALT D26204K

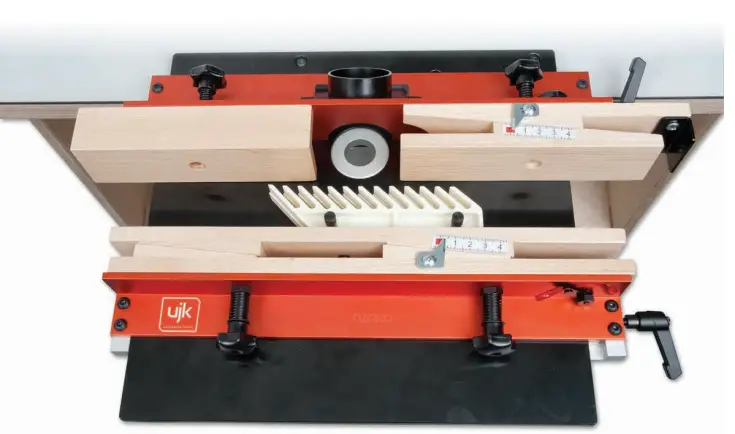

SPECIFICATION

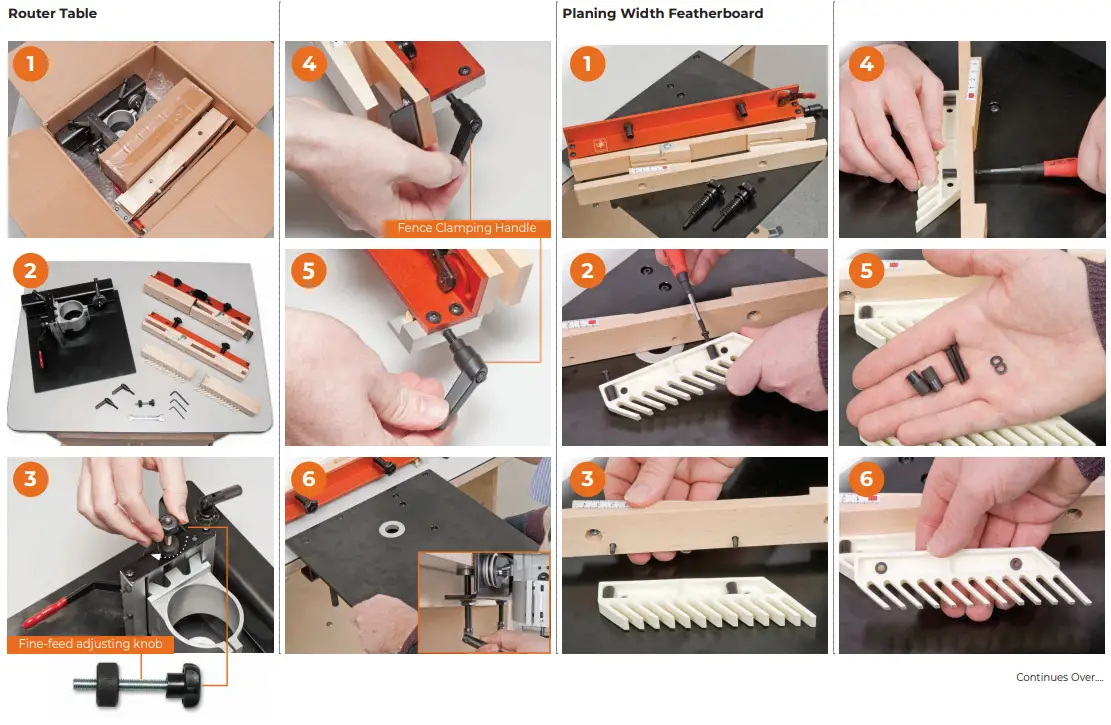

ASSEMBLY

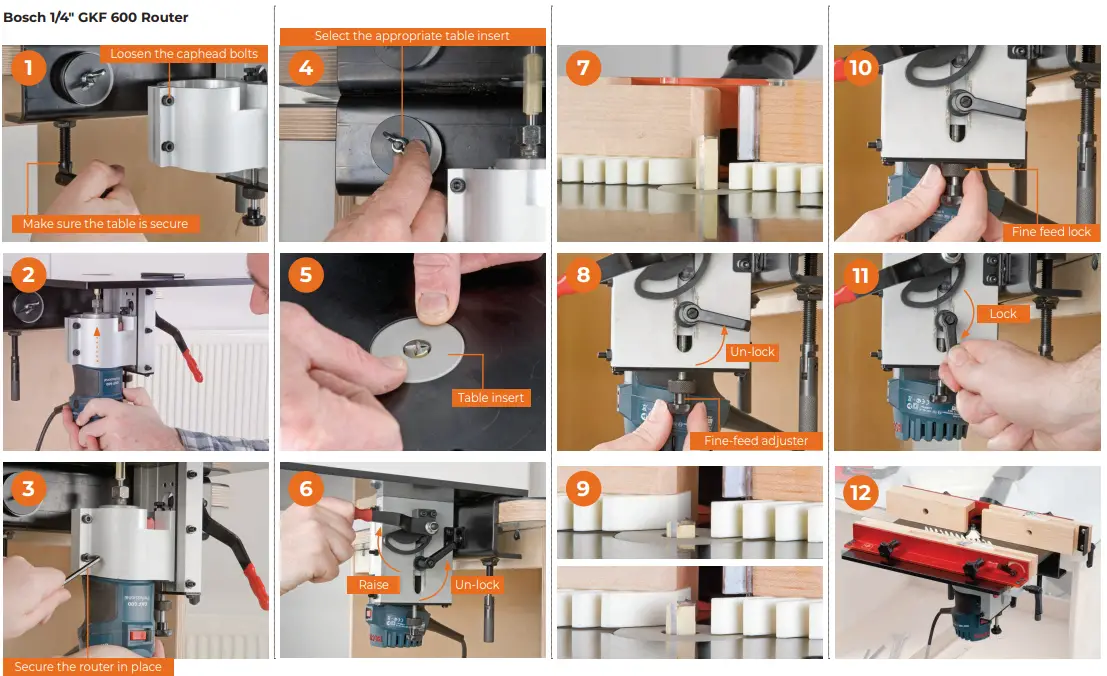

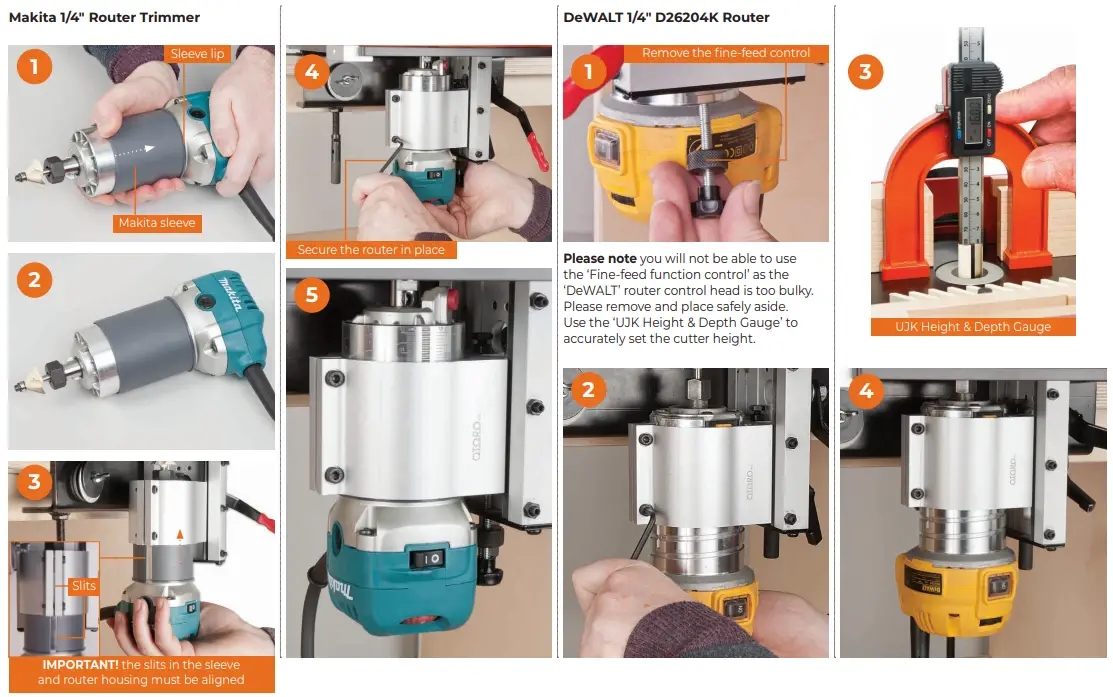

ROUTER ASSEMBLY/SETUP

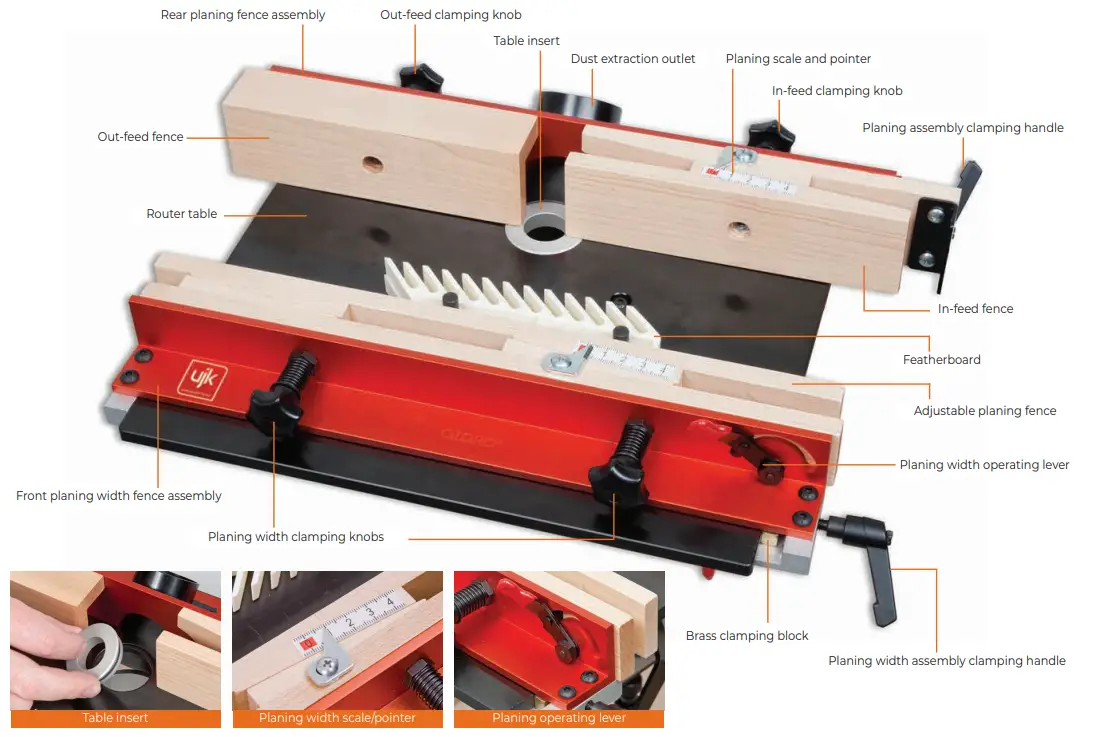

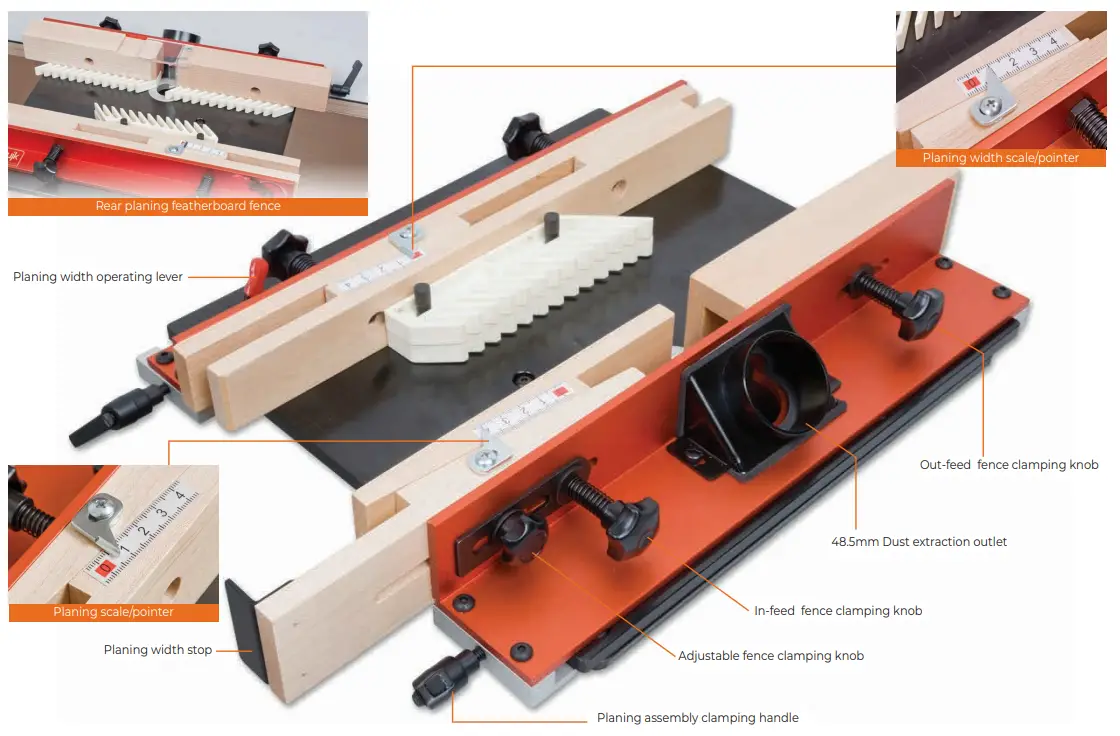

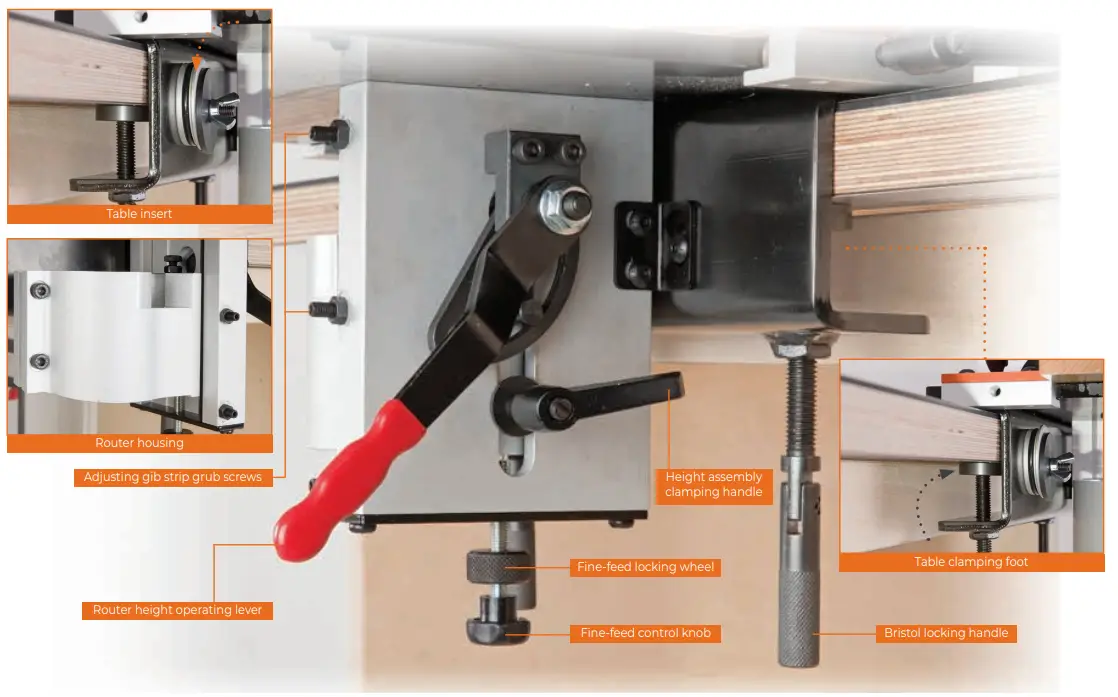

PARTS ILLUSTRATION & DESCRIPTION

ROUTER TABLE MODES

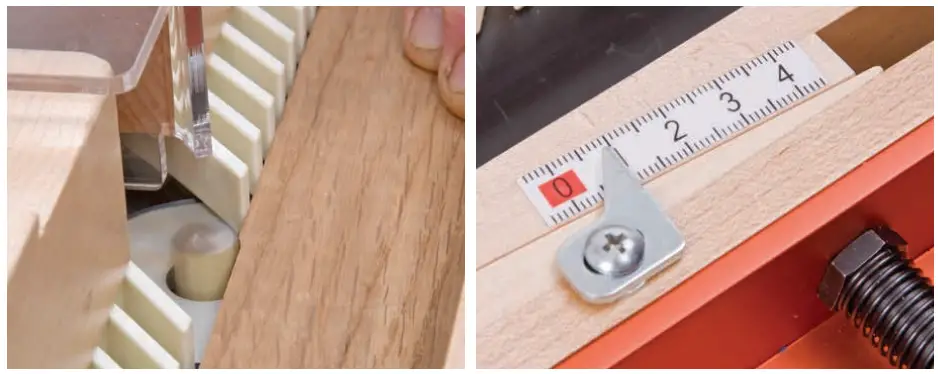

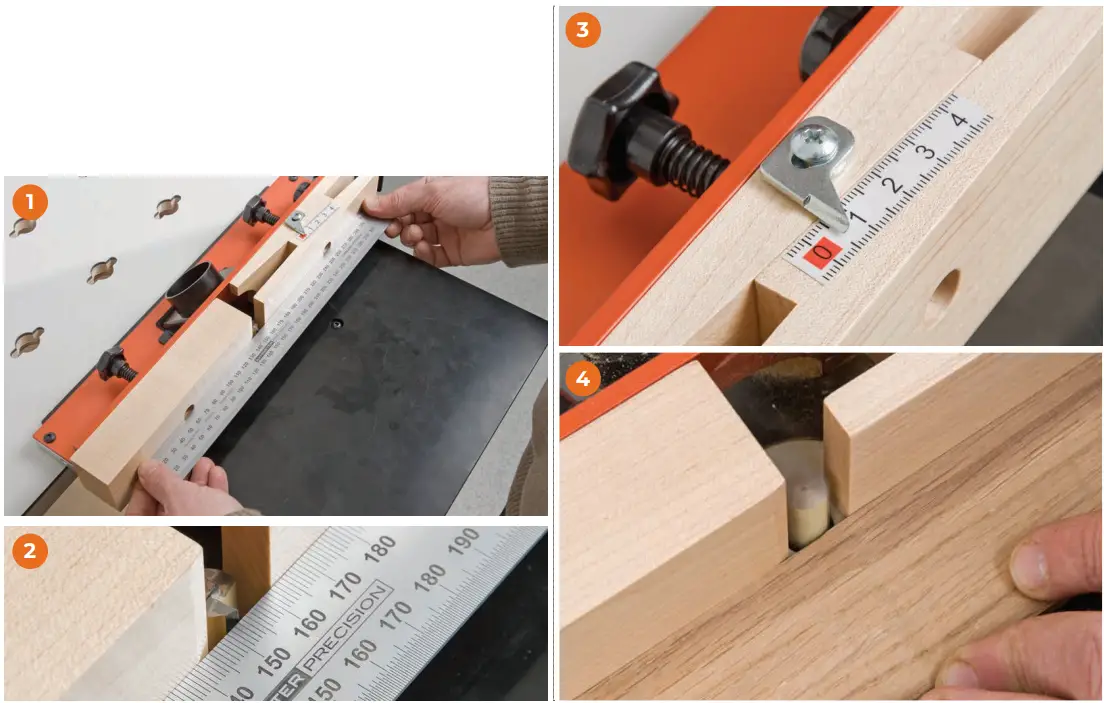

Planing Mode

1. Using a known straight edge set the fence flush with the cutter, see figs 1-2.
2. The in-feed fence works on a router of 10-1 so when the scale reads 5mm this will make a 0.5mm cut, see figs 3-4.

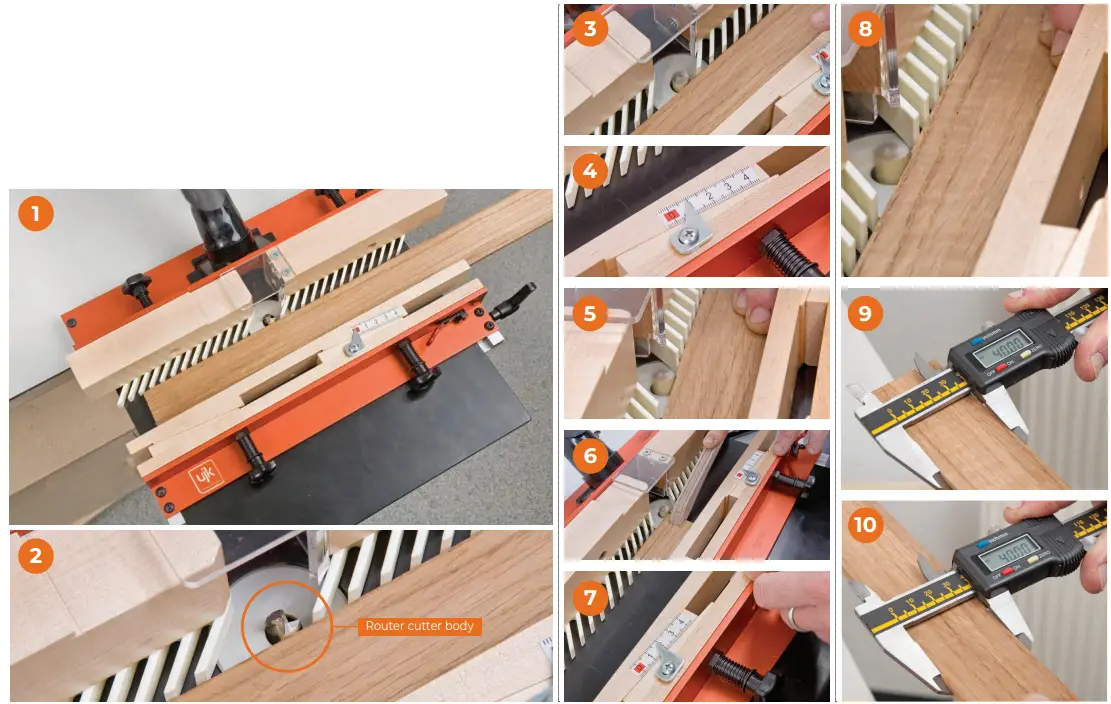

Planing Width Mode

1. Set up the router table as shown in figure 1.
2. With the timber in position, adjust the front planing fence so the timber is in contact with the router cutter’s body, see fig 2. (NOTE: Not the TCT blade) This will create a 1mm cut.
3.  Start your router and make the first cut, see fig 3. Measure the timber’s thickness using a ruler or vernier caliper. Using the 10-1 scale, (10mm on the scale creates a 1mm cut). Make further cuts to the required thickness, see figs 4-5-6-7-8-9-10.

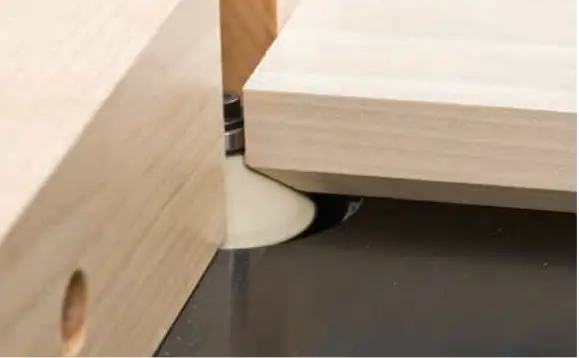

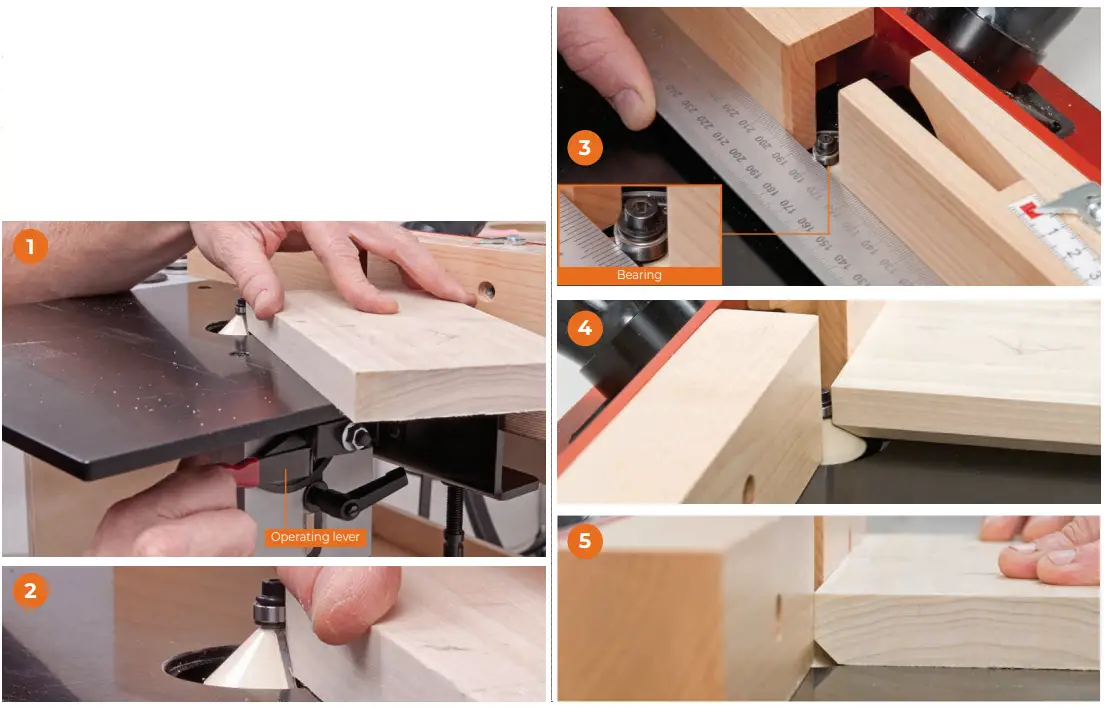

Moulding Mode

1. Set the cutter’s height using the operating lever, see fig 1-2.
2. Set both fences so they are in line with the bearing of the cutter, see fig 3.
3. Before making your first cut, make sure the material is firmly against the in-feed fence, (more right to left), see fig 4.
4. Apply even pressure when cutting until the material exits the out-feed fence, see fig 5.

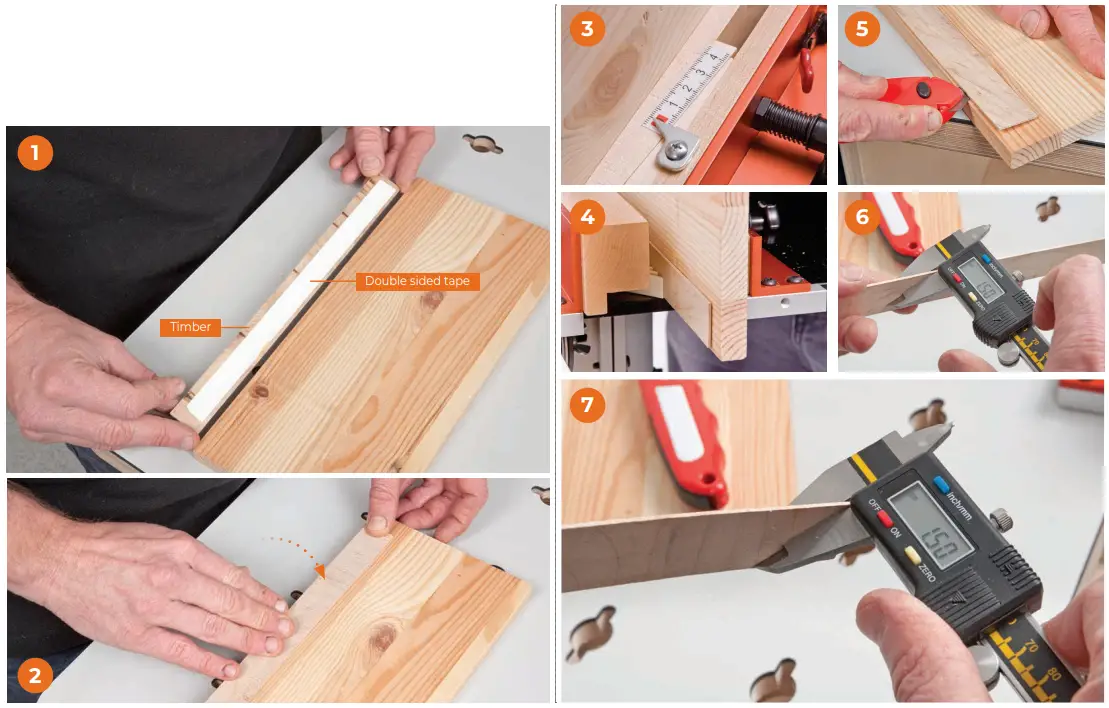

Planing Width Tips
If you want to Plane thin strips of timber, follow the steps as shown using double-sided tape, see figs 1 to 7.

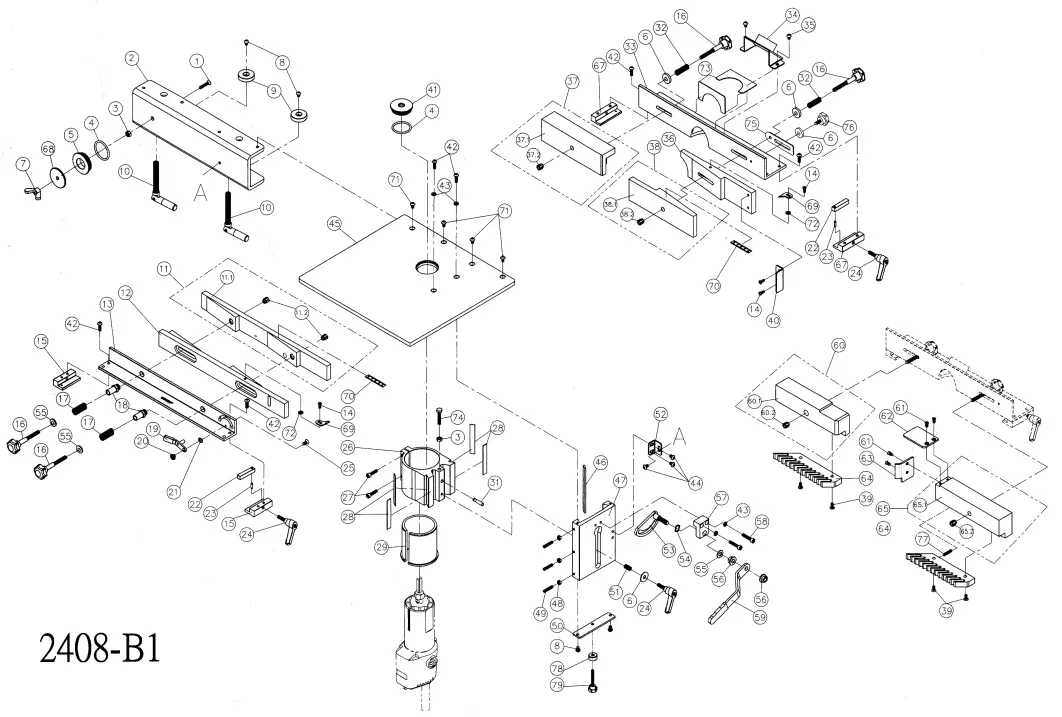

EXPLODED DIAGRAM/PARTS LIST

NOTES
