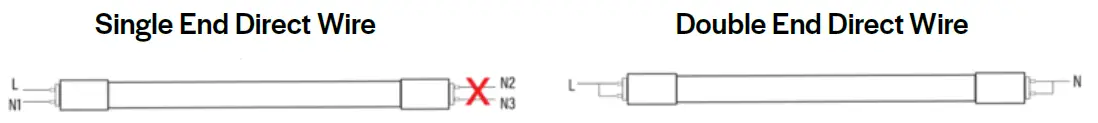

9 Wiring (For Direct Wire)

10 Documents / Resources

10.1 References

11 Related Posts

Halco T8 Linear Hybrid LED Lamps

ProLED® Select T8 Linear Hybrid

Maximum convenience for installation
Reduce stocking needs
UL listed & UL classified
116+ LPW efficacy
IS, PS, EM ballast compatible
120-277V ballast bypass (single or double end)
CCT selectable: 3500K/4000K/5000K
2FT, 3FT, and 4FT lengths available

Specifications

Product Description
The ProLED Select T8 Linear Hybrid (Type A+B) lamps offers the most versatile installation solution for your linear fluorescent T8 or T12 retrofit needs. Fully certified as a UL 1598C retrofit kit in single-end or double-end ballast bypass scenarios (UL Type B) and UL listed for use with electronic T8 fluorescent ballasts (UL Type A), these lamps provides the perfect, hassle-free solution for whatever the project requires. When being used with an instant start, programmed start, or emergency backup ballast, no fixture re-wiring is needed. If the ballast fails in the future, simply re-wire the fixture with 120-277V line voltage using either single-end or double-end wiring.
This CCT selectable hybrid comes in 2-foot, 3-foot, and 4-foot lengths, and offers users the ability to select between 3500K, 4000K, and 5000K kelvin temperatures by simply sliding the selector on the tube to the desired color.

Construction

High-quality frosted pet-coated glass construction
Plastic endcaps
320-degree beam angle
No mercury or UV emissions
Instant startup
Suitable for dry or damp locations
Current leakage protection (UL 1993)

Installation

Can be installed as either a Type B or Type A lamp
As Type A, operates on electronic fluorescent T8 instant start, programmed start, or emergency ballas
As Type B, replaces T8 or T12 fluorescent lamps when fixture is re-wired (single end or double end wiring)

Performance

Operates on electronic fluorescent T8 instant start, programmed start, or emergency ballasts
Operates on 120-277V
12.5W, 1,600 lumens
3500K/4000K/5000K
116+ LPW
L70 >50,000 hrs
83 CRI

Certifications

UL listed (for UL Type A installation)
UL classified 1598C retrofit kit (for UL Type B installation)
FCC compliant
NSF rated
DLC 5.1
Suitable for dry or damp locations

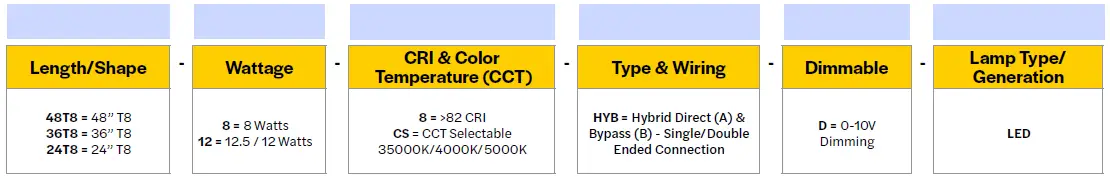

Ordering Logic

Product Description

Notes:

Must be purchased in packs of 25
Dimming is dependent on the ballast in Type A applications, and a separate (not included) dimming module in Type B applications.

Stock Guide

Product #	Product Code	Description	Color Temp.	Pkg. Qty	MOL	DLC® Qualified
87100	24T8-8-8CS-HYB-D-LED	24 inch LED T8 8W 35K-40K-50K CCT Selectable Hybrid Type A/B DuoConnect 4 ProLED Dimming	3500K/4000K/5000K	25*	24″	Yes
87101	36T8-12-8CS-HYB-D-LED	36 inch LED T8 12W 35K-40K-50K CCT Selectable Hybrid Type A/B DuoConnect 4 ProLED Dimming	3500K/4000K/5000K	25*	36″	Yes
87102	48T8-12-8CS-HYB-D-LED	48 inch LED T8 12.5W 35K-40K-50K CCT Selectable Hybrid Type A/B DuoConnect 4 ProLED Dimming	3500K/4000K/5000K	25*	48″	Yes
