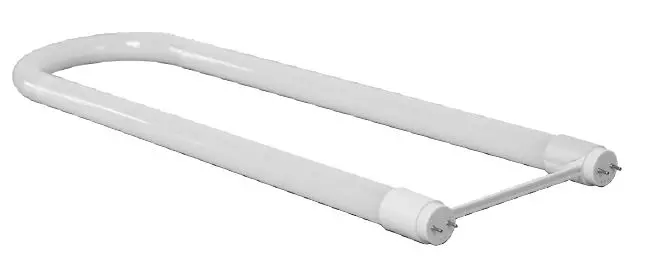

HALCO LIGHTING DuoConnect LED T8 U Bend Lamp
Specifications
- Wattage: 13W
- Unique two-piece design
- Multiple color temperatures
- Quick and easy installation
- Compatible with most electronic instant-start T8 ballas
- Suitable for use in enclosed recessed fixture
Product Description
The DuoConnect LED T8 U-Bend lamp provides premium performance solution designed to work straight out of the package. Delivering over 1,950 lumens, it is compatible for both direct ballast and bypass applications. With its unique design, these long-lasting LED lamps provide incredible light distribution along with energy-saving and a hassle-free, quick ,and easy installation. The DuoConnect LED T8 U-Bend ensures efficiency while decreasing inventory costs and minimizing maintenance.
Construction:
- Frosted plastic construction
- Transparent PC optics
- White finish
Controls:
- Dimming in type A mode
Applications:
- Office
- Education
- Food service
- Hospitality
- Medical
- RetailWARRANTYYR
Performance
- Color temperatures: 3500K, 4000K, 5000K
- Lifetime of 50,000 hours
- 122-125 LPW
- 1950-2000 lumens
- 83 CRI
- 120-277VAC
- Operating temperature: -20°C to 45°C
- Surge protection
Certifications:
- DLC 5.1
- cUL
- UL – Damp location
- Approved for open and enclosed fixtures

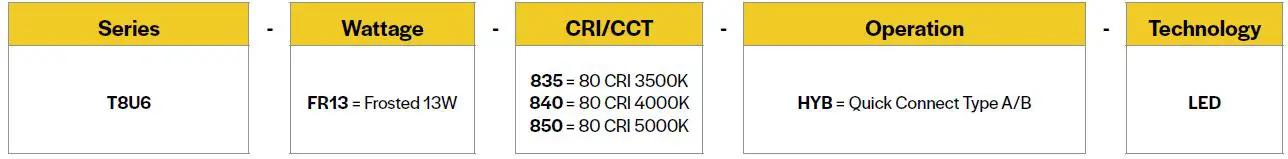

Ordering Logic
Product Description
Ordering Information
| Product SKU | Product Code | Product Description |
| 82375 | T8U6-FR13-835-HYB-LED | T86 U-Bend 13W 3500K QuickConnect Type A/B |
| 82376 | T8U6-FR13-840-HYB-LED | T86 U-Bend 13W 4000K QuickConnect Type A/B |
| 82377 | T8U6-FR13-850-HYB-LED | T86 U-Bend 13W 5000K QuickConnect Type A/B |
Specifications Table
| T8U6-FR13-835-HYB-LED | |
| Nominal Wattage | 13W |
| Lumens | 1950-2000 lm |
| Size | 2 Foot |
| CCT | 3500K, 4000K, 5000K |
| Efficacy | 122-125 LPW |
| Amperage | 120VAC(.1083A) 277VAC(.0469A) |
| Beam Angle | 160° |
| Field Angle | 300° |
| CRI | 83 CRI |
| L70 Lifetime (Hrs) | 50,000 |
| Voltage | 120-277VAC |
| Power Factor | 0.9 |
| Dimming | Yes (Type A) |
| Surge Protection | 0.7 kV |
| Construction | Poly Carbonate |
| Operating Temperature | -20°C to 45°C |
| Listings | DLC 5.1, cUL, UL |
| Environment | Damp Location |
| Weight | 0.43 lbs |
| Warranty | 5 Years |
Dimensions
2940 Pacific Drive | Norcross, GA 30071 | Toll Free 800.677.3334 | Phone 770.242.3612 | Fax 800.880.0822 | halcolighting.com | Atlanta | Chicago | Cleveland | Houston | Los Angeles | Phoenix © 2021 Halco Lighting Technologies, LLC. All rights reserved. Halco and ProLED are registered trademarks of Halco Lighting
Technologies. All sizes and specifications are subject to change
