nVent HOFFMAN CCS814RL Compact Rotation Limiter
Product Information

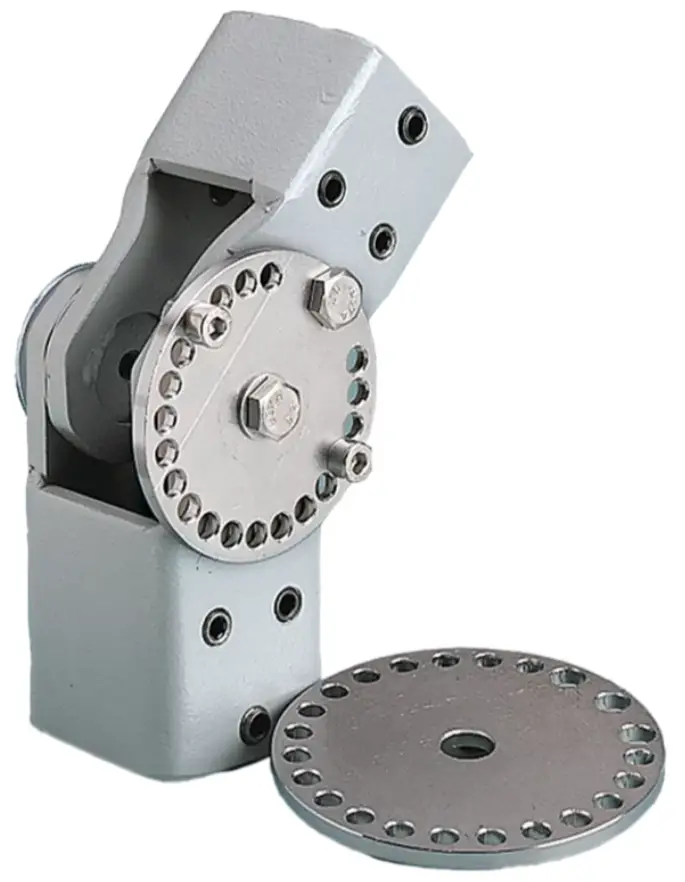

The product is a rotation limiter, designed to limit the rotation angle of wall joint fittings and intermediate joint fittings. It is also known as Schwenkwinkelbegrenzung in German and Limiteur de rotation in French. The product code is 87567791 and the current revision is B.
Product Usage Instructions
- Identify the appropriate location for installation, either on a wall joint fitting or an intermediate joint fitting.
- If installing on a wall joint fitting, use two M10 screws to secure the rotation limiter.
- If installing on an intermediate joint fitting, use three M10 screws to secure the rotation limiter.

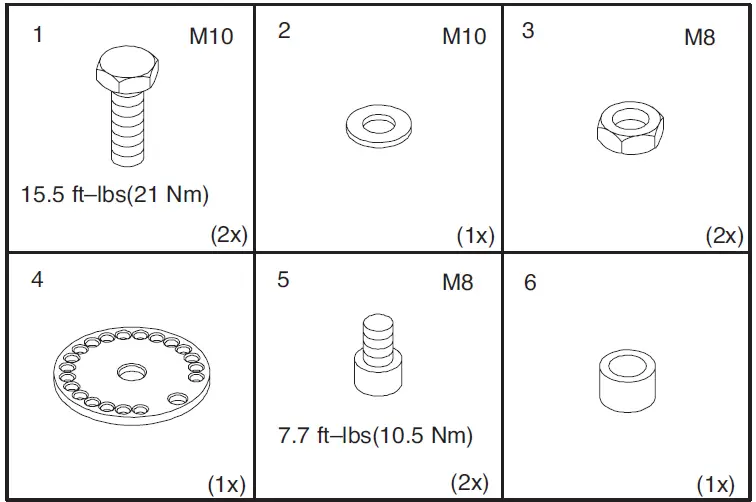

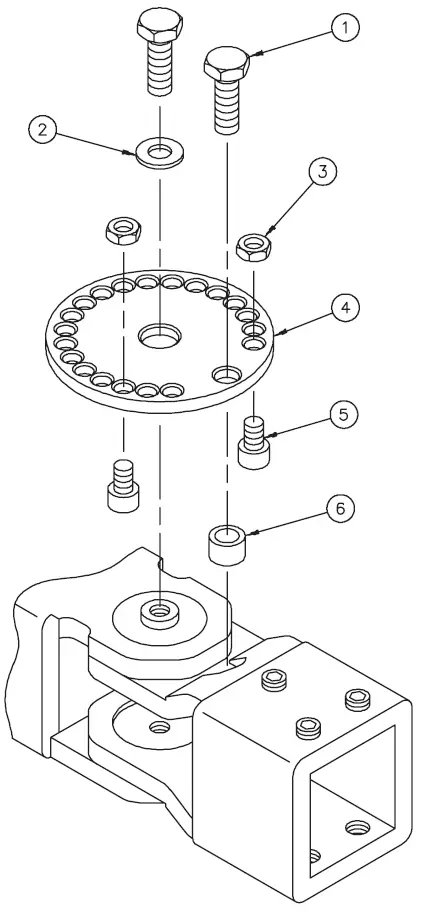

- For both types of fittings, use two M8 screws to secure the rotation limiter at position 4.
- Use one M8 screw to secure the rotation limiter at position 5.
- Use two M8 screws to secure the rotation limiter at position 6.
Note:
Ensure that the rotation limiter is installed correctly and securely to effectively limit the rotation angle of the fittings. Refer to the provided manual for further instructions if needed.
Parts
NOTE:
The rotation limiter can be installed on both wall joint fittings and intermediate joint fittings.
Installation
