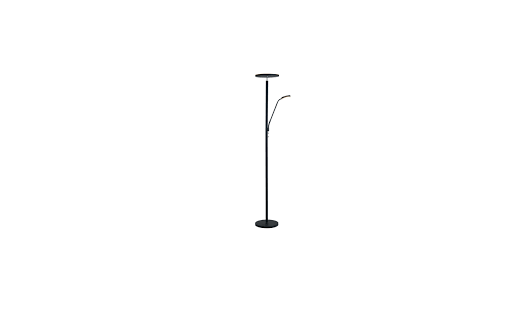

Inspire 3276007275049 Floor Lamp Eldrick Instruction Manual
Thank you for purchasing this product. We recommend that you read the installation, user and maintenance instructions carefully. We have designed this product to ensure your complete satisfaction.
If you require assistance, the team at your retailer is on hand to help you.

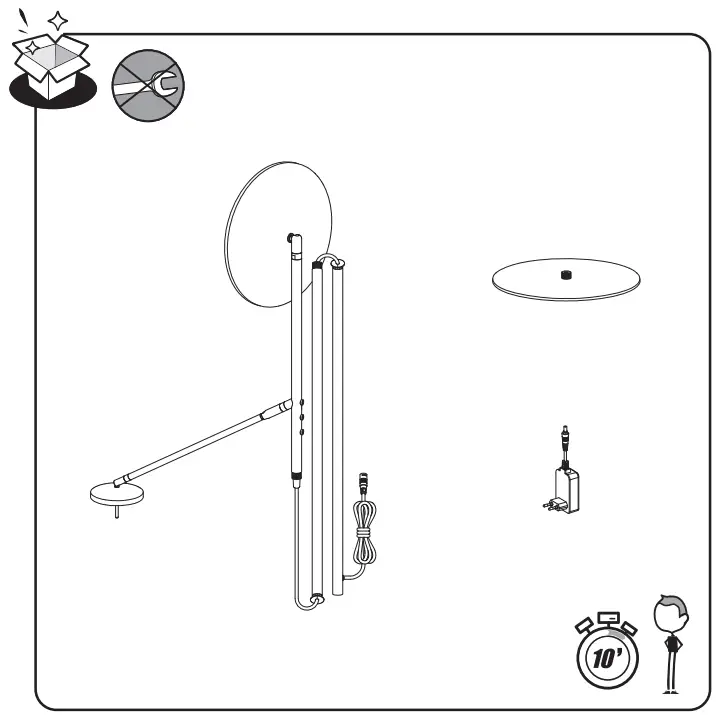

What’s In The Box
Caution danger
Power of
Power up
Warning symbols
 | Read the instructions carefully. |
 | Safety Class II. This lamp is doubly insulated and may not be wire to a protective conductor |
 | Class III light. The light uses a very low current |
 | The luminaire for indoor use only |
General Safety Instructions
Read this instruction manual thoroughly before using the appliance and save it for future reference and if necessary pass the instruction manual on to a third party.
WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of «re, electrical shock and personal injury.
General
Keep device out of reach of children and unauthorised persons. Check if the electrical specifications of this luminaire are compatible with your installation.
WARNING: The power supply must be deactivated prior to assembly, maintenance, exchanging the bulb or cleaning processes. Remove the fuse or switch the fuse to OFF and secure from reactivation.
For indoor use only.
Electrical safety
Warning: if the external Áexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar quali«ed person in order to avoid a hazard.
Specific Safety Rules
No specific Safety Rules apply.
Environmental protection
CAUTION
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockist for advice on recycling.
The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection service.
Appliance specifications
| TECHNICAL CHARACTERISTICS | |
| Rated voltage | DC 24V |
| Adaptor | CLASS II INPUT:220V-240V ~50/60Hz 0.4A |
| Rated wattage | Max.14+4W |
| Ambient Temperature | 25°C |
| Protection | class III |
| IP number | IP 20 |
| LED MODULE TECHNICAL CHARACTERISTICS | |
| LED Module Model | LMT-L278W7-4W-24V/LMT-L778W7-14W-24V |
| Rated voltage | DC 24V |
| Rated wattage | 14W+4W |
| Temperature | 95°C |
| Working voltage at insulation | 24V DC |
 | Built in LED Module |
This product contains [2] lights sources of energy efficiency class – (EU) 2019/2015
Maintenance / Cleaning
Disconnect from mains before maintenance or cleaning.
WARNING: The use of any accessory not speci«ed in this manual may present a risk of personal injury.
Others (Service, Repairing, Guarantee, etc.)
Have your product repaired by a qualified person.
This electric product is in accordance with the relevant safety requirements.
Repairs should only be carried out by qualified persons using original spare parts, otherwise This may result in considerable danger to the user.
Please contact the store which you bought the product for after sale services if any.
Warning: the product must be connected to power supply which is provided by manufacture.
After assembly step, rewind the wire 7 turns. Ensure that the internal cable does not exceed 360 degrees after installation.
The product is SELV class III lamp with approved class II LED driver.
Replaceable light source by an end user.
Replaceable control gear by an end user.
- WARRANTY DURATION:
The general legal warranty applies in accordance with the statutory provisions in force in your country from the delivery of the goods and upon providing the receipt as the proof of the purchase.
However, INSPIRE goes beyond that. We want you to have the best experience possible with our products, thus we have extended the warranty periods for all INSPIRE products to 5 years. - WARRANTY APPLICATION:
For the warranty to be applied, the product must have been installed, used and maintained according to the Instruction Manual guidelines. - QUESTIONS AND CLAIMS:
If you have any questions or encounter any problems regarding the use of the product, its performance or visual aspect, you are welcome to contact your vendor through the contact information you will find on the purchasing receipt.

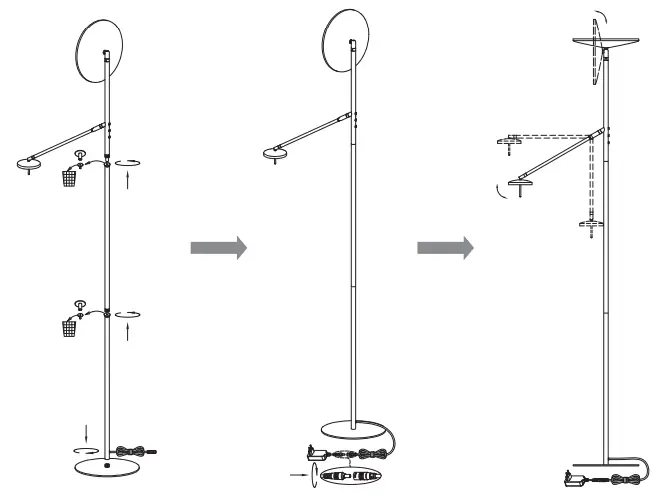

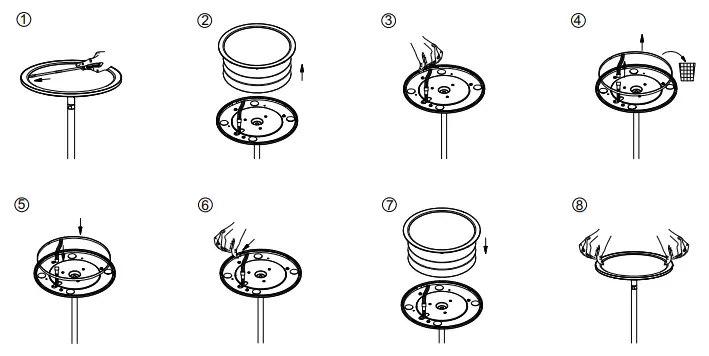

Assembly

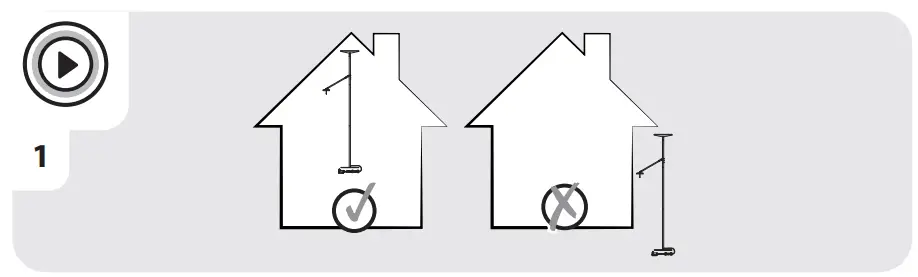

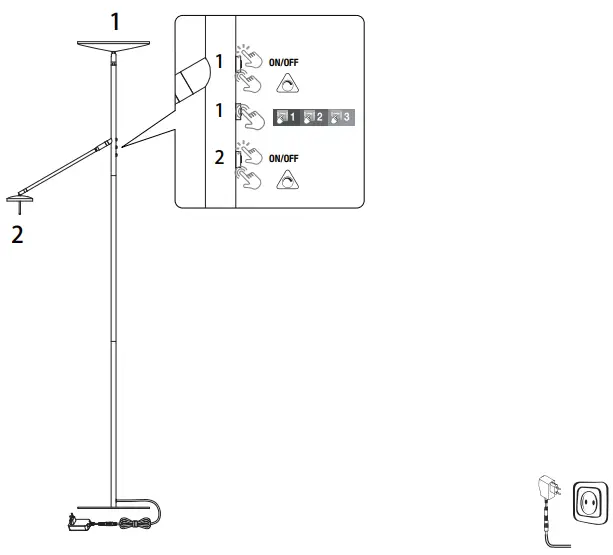

Use
Warranty
5-year guarantee
Imported by Adeo South Africa (PTY) LTD T/A Leroy Merlin
Hosted in Leroy Merlin Fourways Store
35 Roos Street
Witkoppen Ext 97, Sandton, 2191
Johannesburg, Gauteng, South Africa
Made in China 2021
