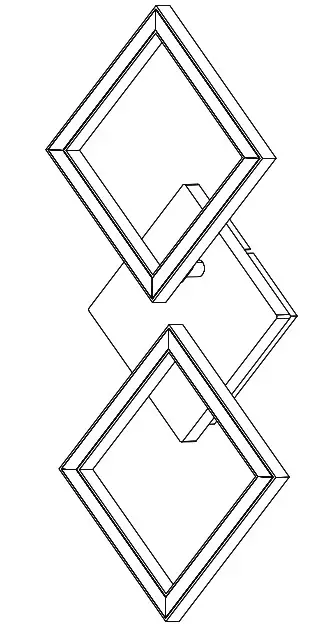

inspire 3276007382617 Wall Lamps - Cover

EAN CODE: 3276007382617
Instructions Manual
780249 Original Instructions

3276007382617 Wall Lamps

 Thank you for purchasing this product. We recommend that you read the installation, user and maintenance instructions carefully. We have designed this product to ensure your complete satisfaction. If you require assistance, the team at your retailer is on hand to help you.

Caution danger
Power off
Power up
 Legal & Safety Instructions
 Guarantee
Assembly

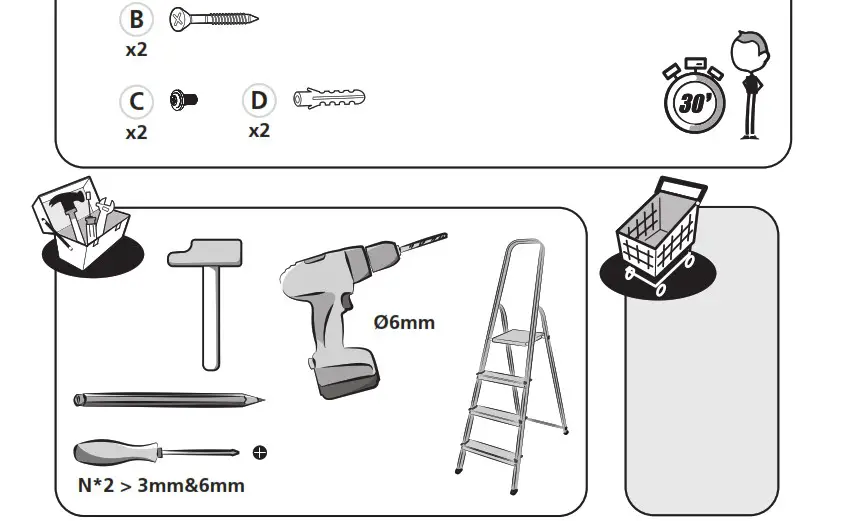

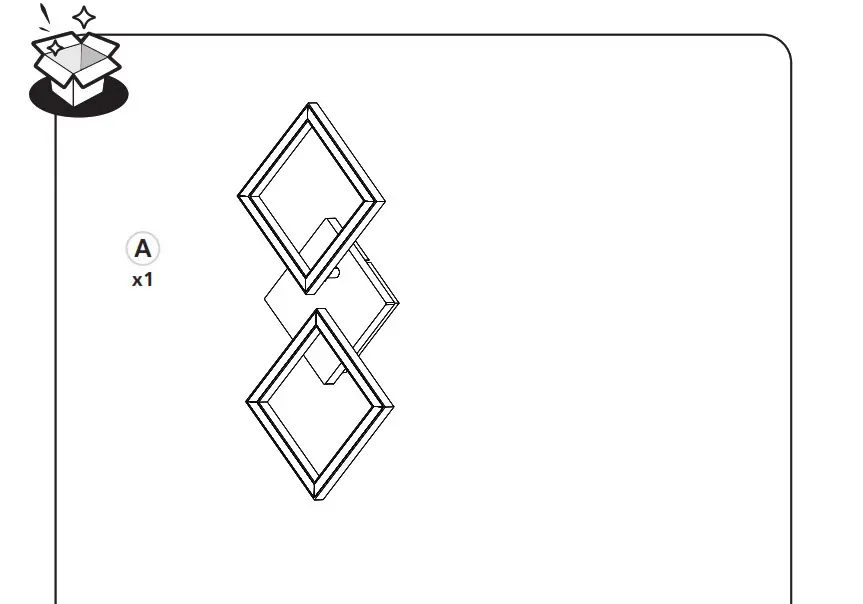

inspire 3276007382617 Wall Lamps - Product Overview 1inspire 3276007382617 Wall Lamps - Product Overview 2

WARNING SYMBOLS

Read the instructions
Safety Class II. This lamp is doubly insulated and may not be wire to a protective conductor.

GENERAL SAFETY INSTRUCTIONS

Read this instruction manual thoroughly before using the appliance and save it for future reference and if necessary pass the instruction manual on to a third  party.
WARNING: When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

  1. General
    Keep device out of reach of children and unauthorised persons.
    WARNING The power supply must be deactivated prior to assembly, maintenance, exchanging the bulb or cleaning processes. Remove the fuse or switch  the fuse to OFF and secure from reactivation.
    Care must be taken before drilling fixing holes to avoid any existing wiring or pipework that may be concealed.
  2. Electrical safety
    Luminaire should be installed by authorized electrician only acc. to national wiring rules.
    The earth wire should be longer than L,N wire.

SPECIFIC SAFETY RULES

No specific Safety Rules apply.

ENVIRONMENTAL PROTECTION

CAUTION!
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in  accordance with local regulations. Contact your local authorities or stockist for advice on recycling. The packaging material is recyclable. Dispose of the  packaging in an environmentally friendly manner and make it available for the recyclable material collection-service.

APPLIANCE SPECIFICATIONS

TECHNICAL CHARACTERISTICS
Rated voltage220-240V~
Rated frequency50/60Hz
Rated wattage16,5W
Bulb ratingLED
Ambient Temperature25° С
Protection classCLASS II
IP numberIP20

This product contains 2 lights sources of energy efficiency class <E> – (EU) 2019/2015

MAINTENANCE / CLEANING

Disconnect from mains before maintenance or cleaning. Repairs should only be carried out by qualified persons and using genuine spare parts. Inappropriate  repairing could cause significant danger. Always use bulbs according to specifications listed in this manual.

WARNING! The use of any accessory not specified in this manual may present a risk of personal injury.

OTHERS (SERVICE, REPAIRING, ETC …)

Have your product repaired by a qualified person. This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out  by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. Please contact the store which you bought the  product for after sale services if any.
The light source of this luminaire must be replaced by the manufacturer or service agent, or alternatively by a person with adequate qualifications.

  1. WARRANTY DURATION:
    The general legal warranty applies in accordance with the statutory provisions in force in your country from the delivery of the goods and upon providing the receipt as the proof of the purchase.
    However, INSPIRE goes beyond that. We want you to have the best experience possible with our products, thus we have extended the warranty periods for all INSPIRE products to 5 years.
  2. WARRANTY APPLICATION:
    For the warranty to be applied, the product must have been installed, used and maintained according to the Instruction Manual guidelines.
  3. QUESTIONS AND CLAIMS:
    If you have any questions or encounter any problems regarding the use of the product, its performance or visual aspect, you are welcome to contact your  vendor through the contact information you will find on the purchasing receipt.

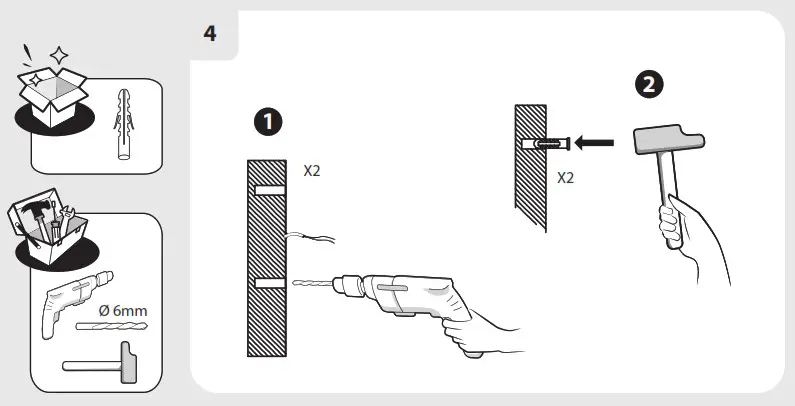

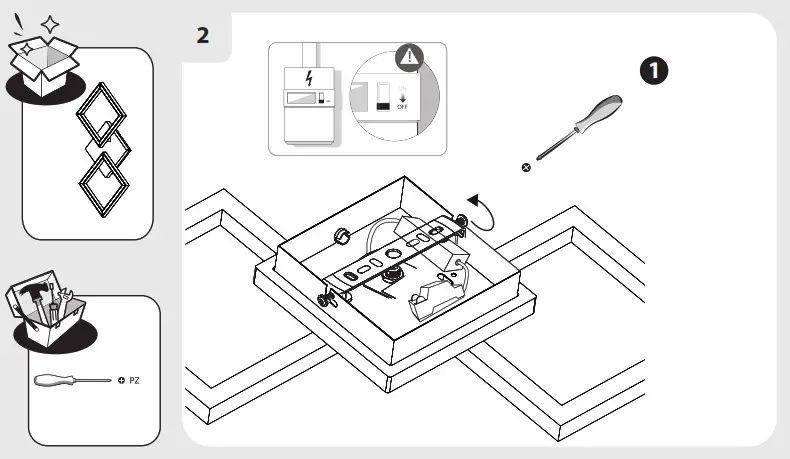

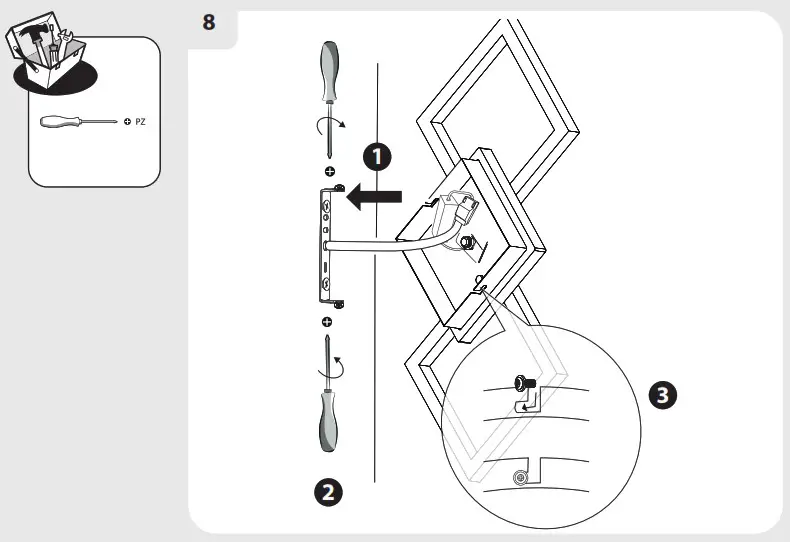

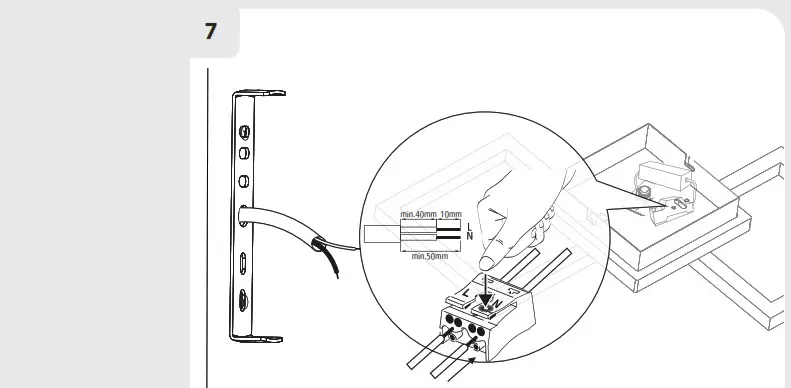

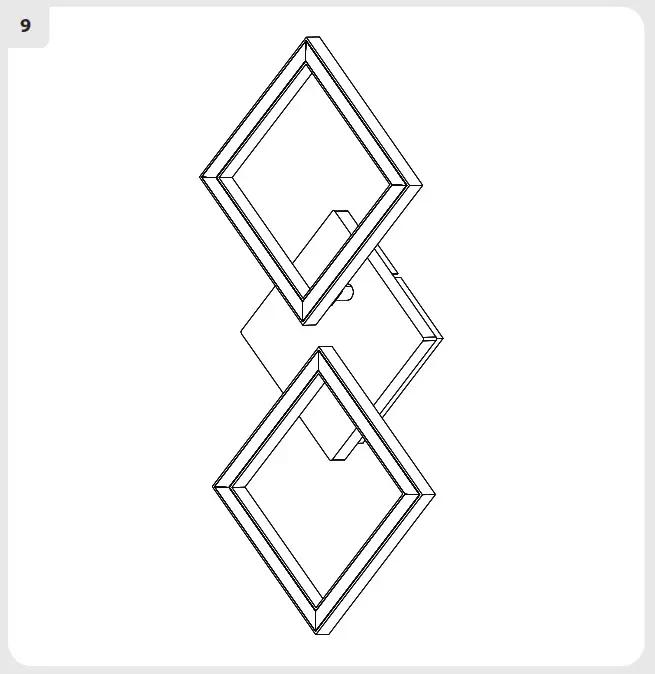

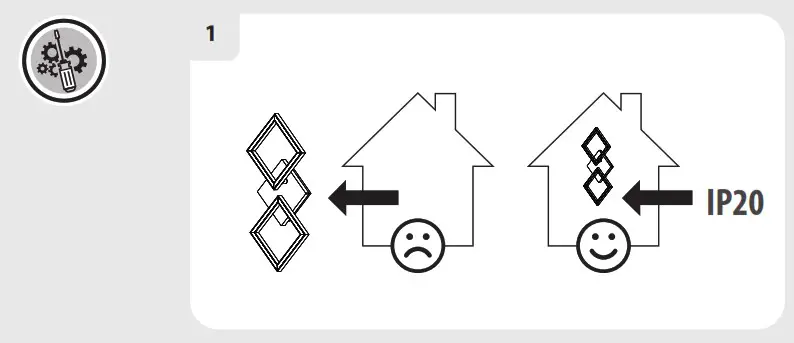

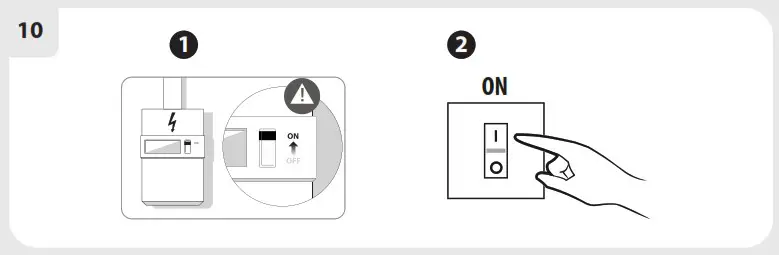

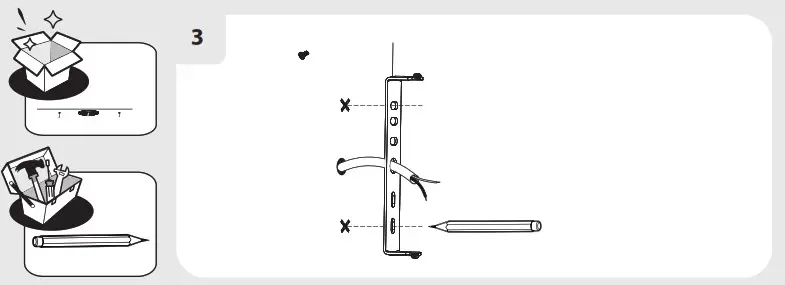

inspire 3276007382617 Wall Lamps - Product Overview 3inspire 3276007382617 Wall Lamps - Product Overview 4inspire 3276007382617 Wall Lamps - Product Overview 5inspire 3276007382617 Wall Lamps - Product Overview 6inspire 3276007382617 Wall Lamps - Product Overview 7inspire 3276007382617 Wall Lamps - Product Overview 8inspire 3276007382617 Wall Lamps - Product Overview 9inspire 3276007382617 Wall Lamps - Product Overview 10inspire 3276007382617 Wall Lamps - Product Overview 11

SPARE PARTS
Some parts of this product can be ordered from your store

5 years warranty
ADEO Services – 135 Rue Sadi Carnot – CS 00001 59790 RONCHIN – France
Made in China 2021
