Alex
Assembly – Use Maintenance
Manual
EAN CODE: 3276007355591,3276007355598

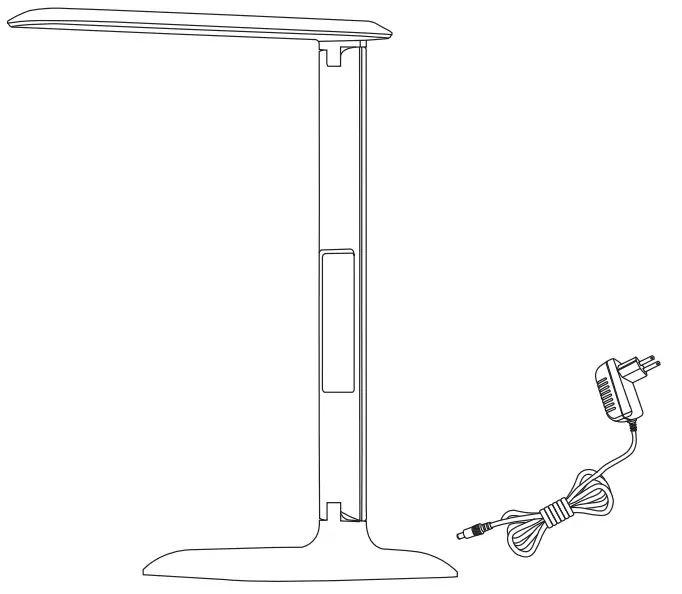

DE26711 Alex Desk Lamp
DE26711
DE26711-BLACK/DE26711-WHITE
Traducerea instrucfiiunilor originale

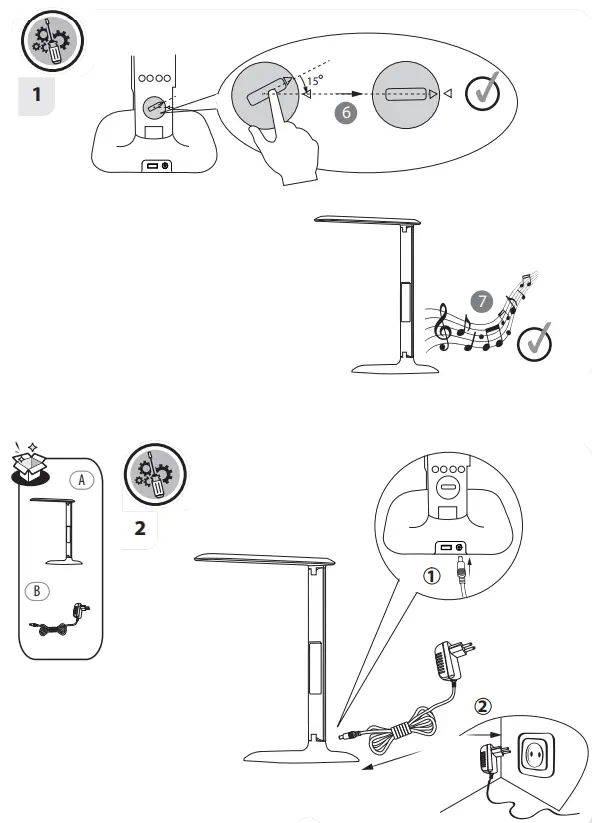

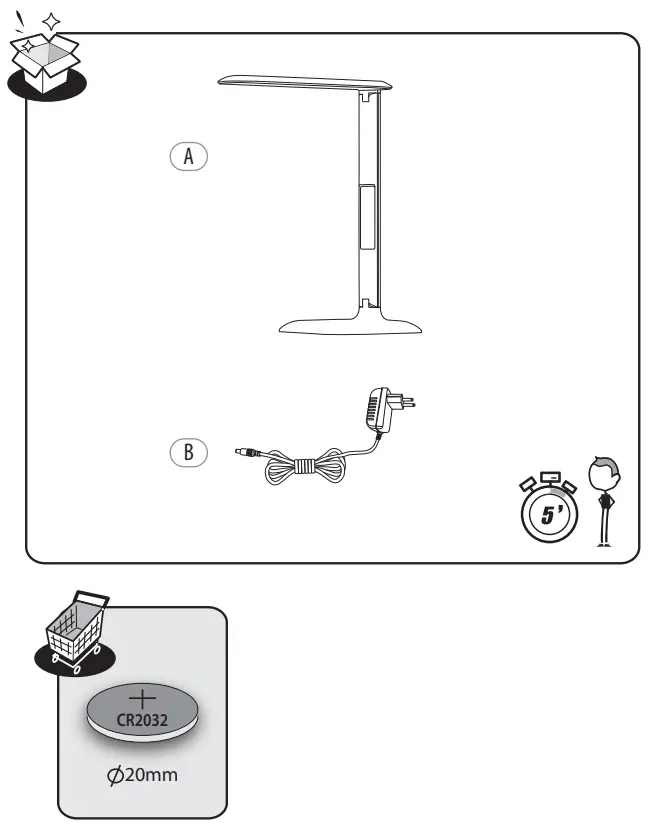

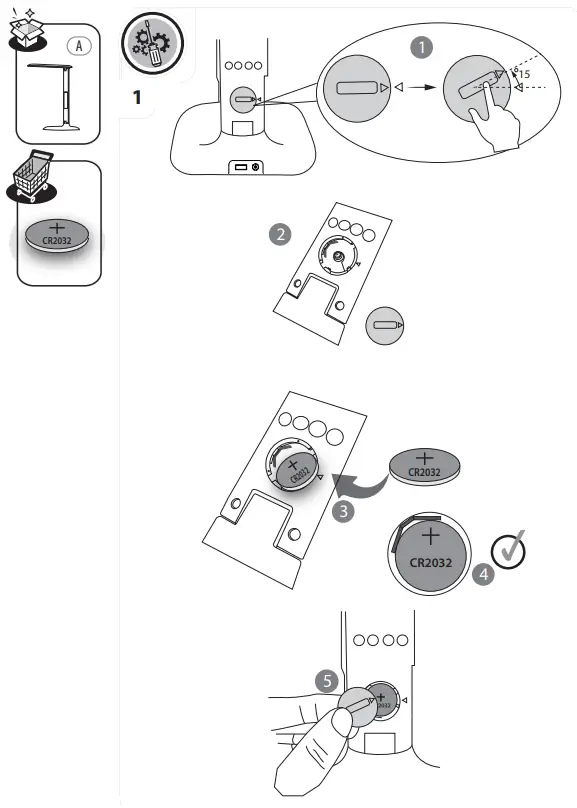

Assembly
Assembly

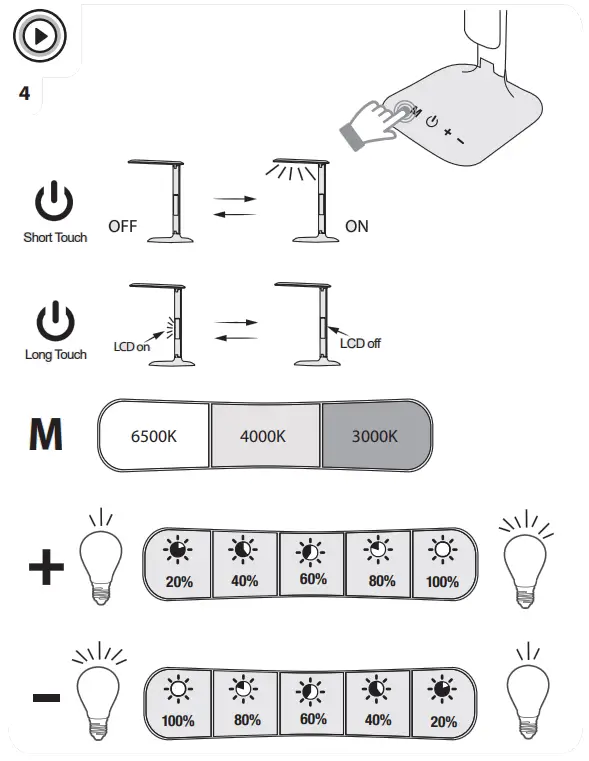

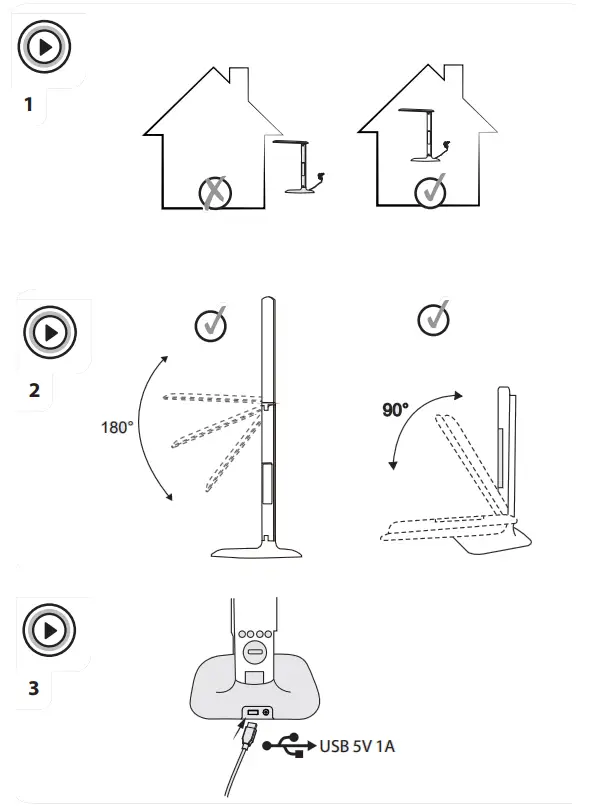

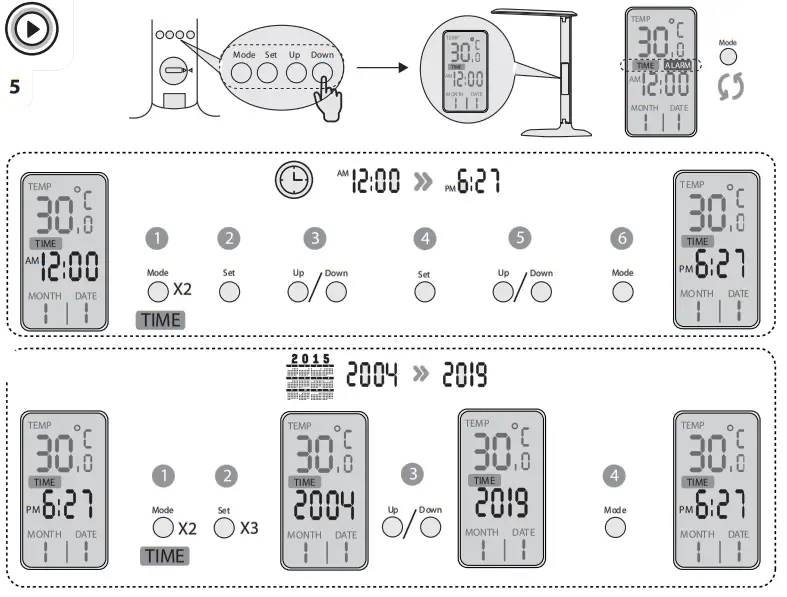

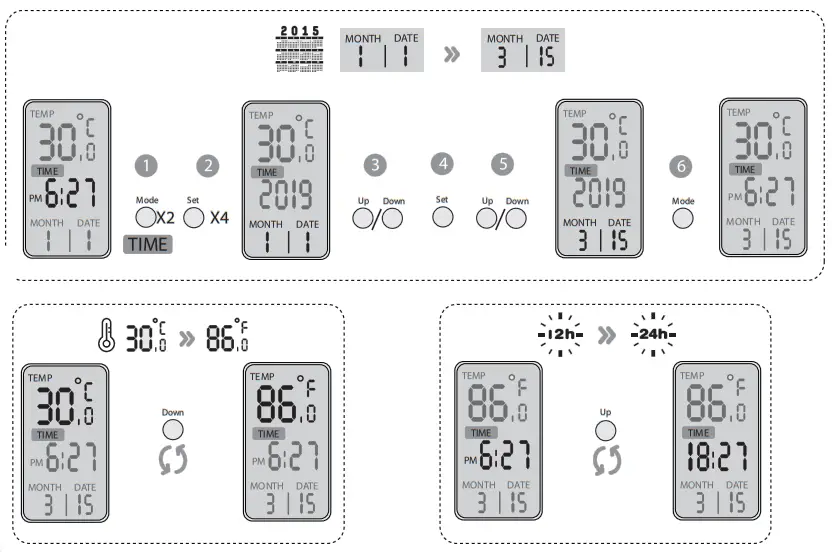

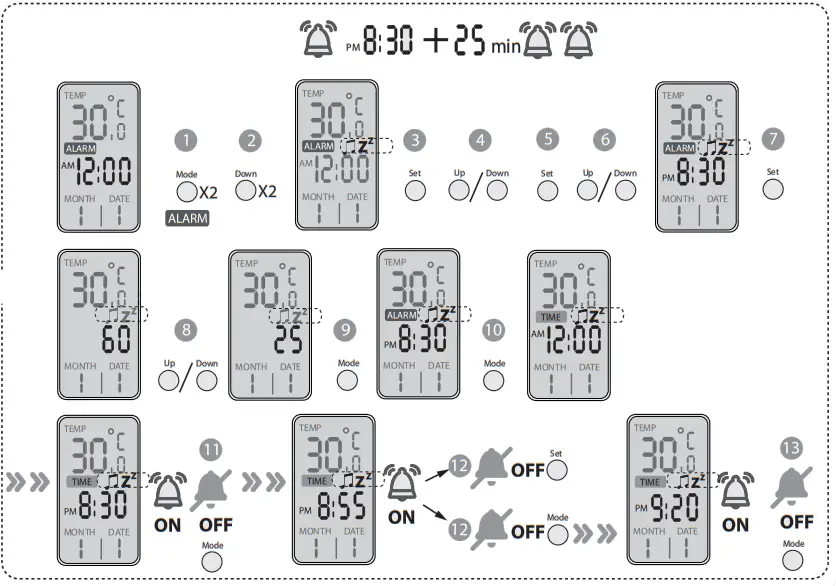

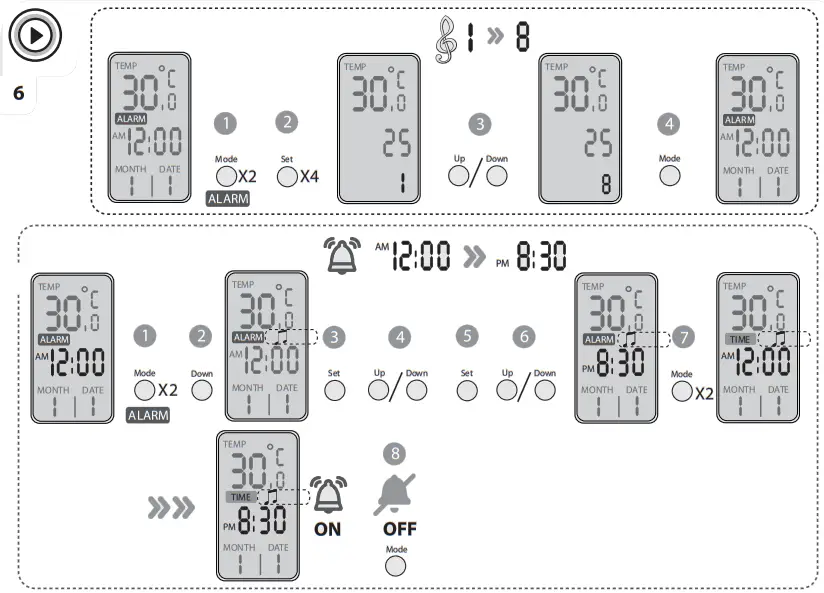

Use
Use
Warning symbols
Warning symbols | Read the instructions carefully. |
 | Safety Class II. This lamp is doubly insulated and may not be wired to a protective conductor |
 | Class III light The light uses a very low current |
 | Caution, risk of electric shock |
 | The luminaire for indoor use only |
General Safety Instructions
Read this instruction manual thoroughly before using the appliance and save it for future reference and if necessary pass the instruction manual on to a third party.
WARNING: When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electrical shock, and personal injury.
- General
Keep devices out of reach of children and unauthorized persons.
Check if the electrical specifications of this luminaire are compatible with your installation.
WARNING: The power supply must be deactivated prior to assembly, maintenance, or cleaning processes. Remove the fuse or switch the fuse to OFF and secure it from reactivation.
For indoor use only.
The luminaire shall only be used with the transformer provided.
Always keep the table lamp’s touchable surface dry and clean, never touch it when your hands are wet or dirty.
Cleaning with a soft cloth only, not use touch function when fingers with oil, salty stuff. - Electrical safety
Luminaire should be installed by an authorized electrician only according to national wiring rules.
Warning: if the external Õexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid a hazard.
Specific Safety Rules
No specific Safety Rules apply.
Environmental protection
CAUTION!
Electrical products must not be thrown out with domestic waste. They must be taken to a communal collecting point for environmentally friendly disposal in accordance with local regulations. Contact your local authorities or stockist for advice on recycling.
The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection service.
Appliance specications
TECHNICAL CHARACTERISTICS
| Rated voltage | 12V  |
| Rated wattage | LED 5.6W total 6.8W |
| Ambient Temperature | 25°C |
| Protection class | Class III |
| IP number | IP 20 |
| Transformer | Class II, INPUT:220-240V~50/60Hz OUTPUT: 12V,1A |
This product contains a light source of energy efficiency class <E>-(EU) 2019/2015
Maintenance / Cleaning
Disconnect from mains before maintenance or cleaning.
Others (Service, Repairing, Guarantee, etc.)
This electric product is in accordance with the relevant safety requirements.
The light source and the control gear of this luminaire are not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.
Please contact the store which you bought the product for after-sale services if any.
The product is SELV class III lamp with an approved class II LED driver.
5-year guarantee
ADEO Services – 135 Rue Sadi Carnot – CS 00001
59790 RONCHIN – France
Made in China 2021
