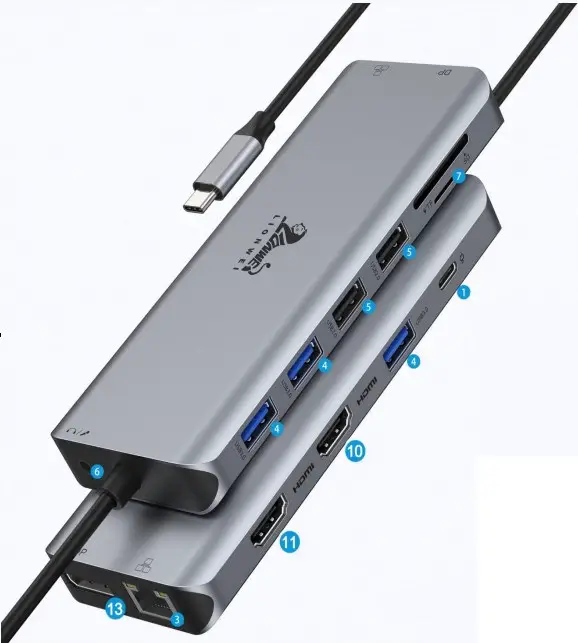

LIONWEI LIUC0219-US USB C Docking Station Dual Monitor User Manual
13 IN 1USB C Docking Station | ||||
| Please Note: The resolutions below are the highest resolutions supported by each port under different connections, but the exact resolution depends on the configuration of your laptop.Please make sure that your laptop’s USB C port supports DP Alp mode (supports video output). | ||||
| macOS(DP1.4/SST) Resolution Display | ||||
| Status | Mode | Port | Resolution | |
Single monitor | Mirror | AA | HDMI ❿ | 4K/60Hz |
| HDMI⓫ | 4K/30Hz | |||
| DP ⓭ | 4K/60Hz | |||
| Extend | AB | HDMI ❿ | 4K/60Hz | |
| HDMI⓫ | 4K/30Hz | |||
| DP ⓭ | 4K/60Hz | |||
Dual monitor | Mirror | AAA | HDMIⒹ | HDMI ⓫ | 4K/30Hz |
| HDMI ❿ | DP ⓭ | 4K/60Hz | |||
| HDMI ⓫ | DP⓭ | 4K/30Hz | |||
| Extend | ABB | HDMI❿ | HDMI ⓫ | 4K/30Hz | |
| HDMI ❿ | DP ⓭ | 4K/60Hz | |||
| HDMI ⓫ | DP⓭ | 4K/30Hz | |||
| Triple monitor | Mirror | AAAA | HDMI❿ | HDMI ⓫| DP⓭ | 4K/30Hz |
| Extend | ABBB | HDMI❿ | HDMI ⓫| DP⓭ | 4K/30Hz | |
| Windows(DP1.4/MST) Resolution Display | ||||
| Status | Mode | Port | Resolution | |
Single monitor | Mirror | AA | HDMI ❿ | Synchronize the resolution of the laptop monitor (depending on the configuration of yourlaptop) |
HDMI⓫ | Synchronize the resolution of the laptop monitor (depending on the configuration of yourlaptop) | |||
DP ⓭ | Synchronize the resolution of the laptop monitor (depending on the configuration of yourlaptop) | |||
| Extend | AB | HDMI ❿ | 4K/60Hz | |
| HDMI⓫ | 4K/30Hz | |||
| DP ⓭ | 4K/60Hz | |||
Dual monitor | Mirror | AAA | HDMI❿ | HDMI ⓫ | Synchronize the resolution of the laptop monitor (depending on the configuration of yourlaptop) |
HDMI ❿ | DP ⓭ | Synchronize the resolution of the laptop monitor (depending on the configuration of yourlaptop) | |||
HDMI ⓫ | DP⓭ | Synchronize the resolution of the laptop monitor (depending on the configuration of yourlaptop) | |||
| Extend | ABBor ABC | HDMI❿ | HDMI ⓫ | 4K/30Hz | 1920X1080P/60Hz | |
| HDMI ❿ | DP ⓭ | 4K/30Hz | 1920X1080P/60Hz | |||
| HDMI ⓫ | DP⓭ | 4K/30Hz | 1920X1080P/60Hz | |||
| Triple monitor | Mirror | AAAA | HDMI❿ | HDMI ⓫| DP⓭ | 4K/30Hz | 1920X1080P/60Hz |1920X1080P/60Hz |
| Extend | ABBBor ABCD | HDMI❿ | HDMI ⓫| DP⓭ | 4K/30Hz | 1920X1080P/60Hz |1920X1080P/60Hz | |
| Remark |
| 1. The resolution of monitors will be always consistent with laptop if mirror display under Windows |
| 2. For Windows laptops, only DP1.4(AMD Graphics Card) can support triple display at the same time |
| 3.To the TB4 devices with 11th Gen intel CPU just can support max resolution 4K@30Hz. |
