EC-RELAY I NSTRUCTI ONS
OVERVI EW
The EC-RELAY is a multipurpose relay board with 2 x 8 Amp NO/ NC contacts, it can operate on AC or DC with selectable voltages 12 or 24V. With optional Trigger input for low current drive source. Dimensions: 52mm x 35mm x 20mm. Mounting: 4 x 3mm holes (Designed for AAP EC-CAB)

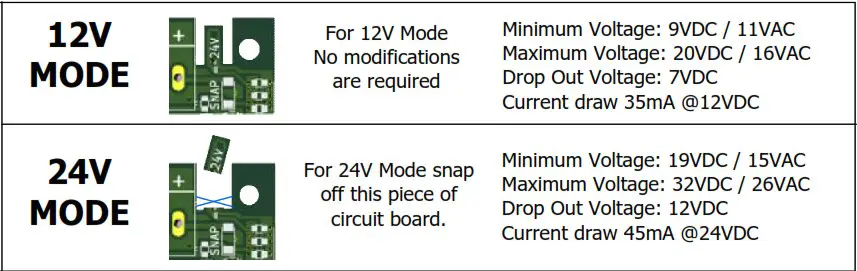

COI L VOLTAGE
*Warning, Confirm the specification suit your application before snapping board, returns will not be accepted if you get it wrong.

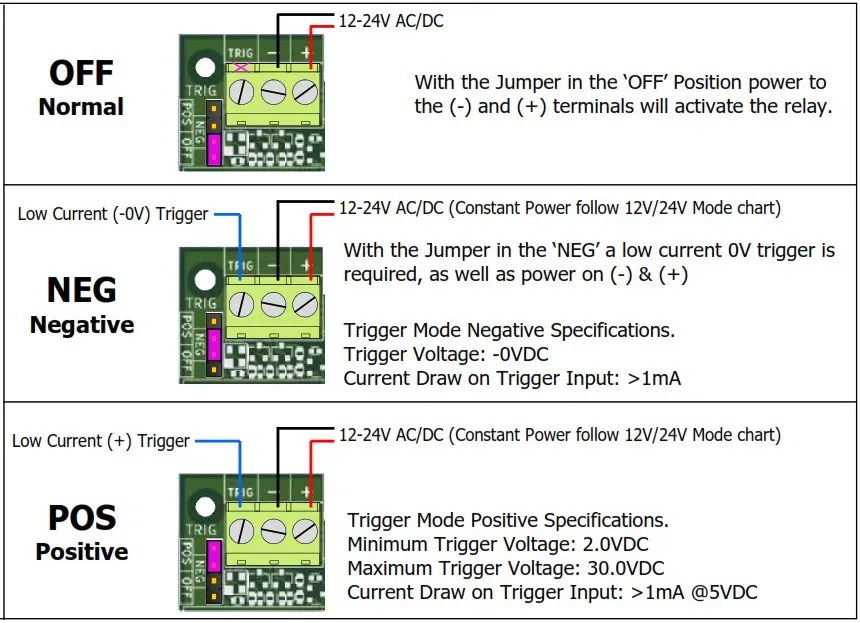

TRIGGER MODES

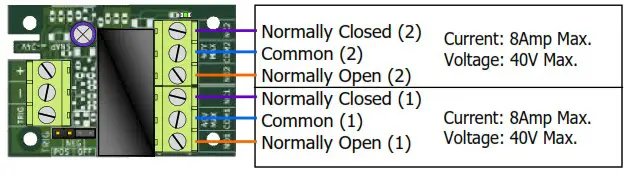

CONTACTS
AAP
Ph. 09 414 0085
www.aap.co.nz
v1.01
