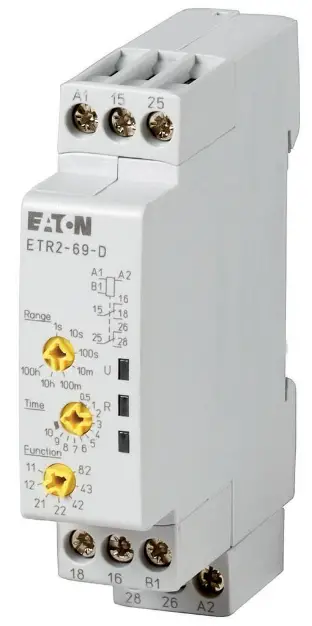

ETR2 Timing Relay
Instructions
ETR2
Instruction Leaflet
ETR2 Timing Relay
Electric current! Danger to life!
Only skilled or instructed persons may carry out the following operations.

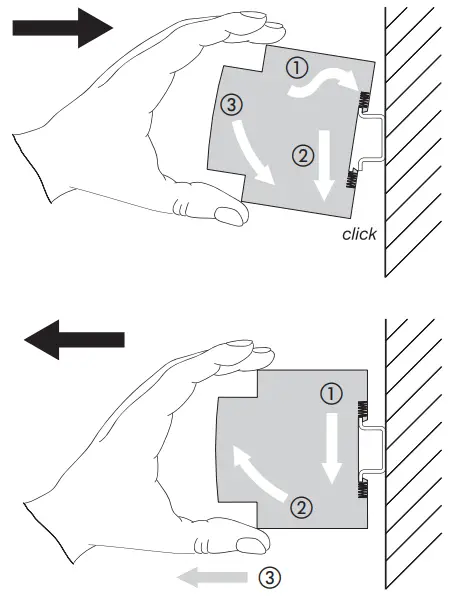

 | 0.5…0.8 Nm 4.43…7.08 lb.in |
 | 2 x 0.5…1.5 mm² / 20…16 AWG 1 x 0.5…4 mm² / 20…12 AWG |
 | 2 x 0.5…1.5 mm² / 20…16 AWG 1 x 0.5…2.5 mm² / 20…14 AWG |
 | 2 x 0.5…1.5 mm² / 20…16 AWG 1 x 0.5…2.5 mm² / 20…14 AWG |
Additional information relating to cULus approval:
– Pollution degree 2
– Copper wire (Cu) 75 °C only, 0.8 Nm
– Individual CO contact: same polarity

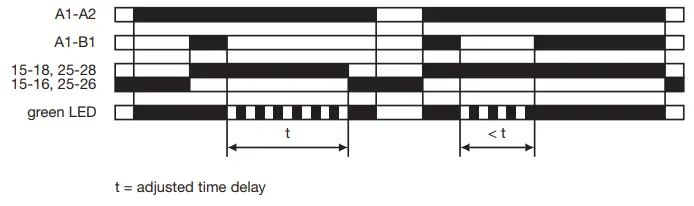

Temporization Travail

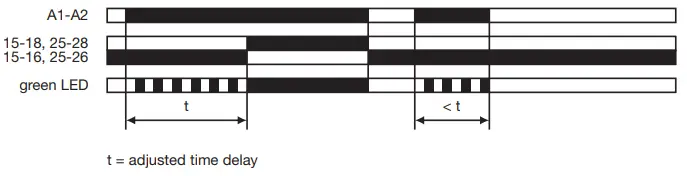

OFF-delay with auxiliary voltage

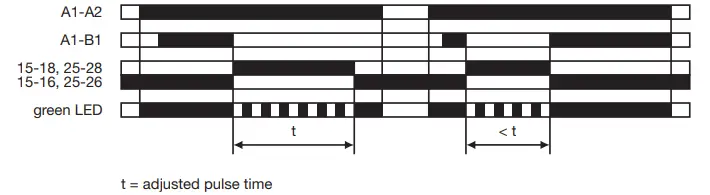

Impulse-ON

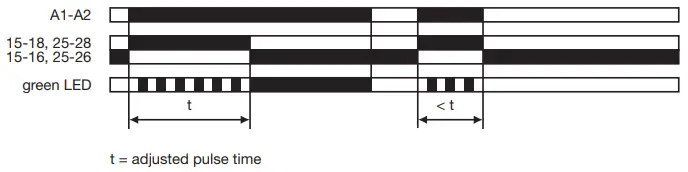

Impulse-OFF with auxiliary voltage

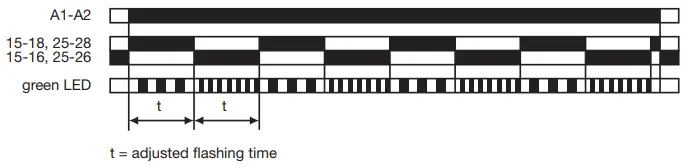

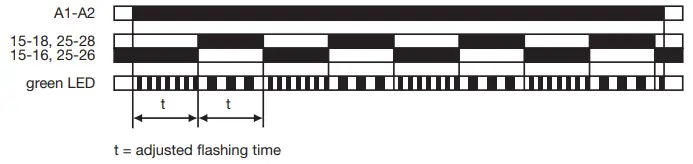

Flasher, starting with ON
Flasher, starting with OFF

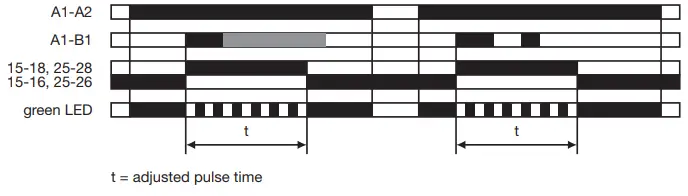

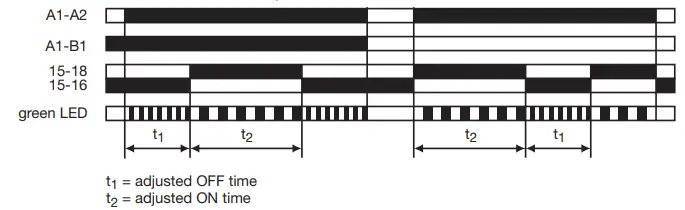

Pulse generator, starting with ON or OFF
Pulse former
