universal douglays LRL12-15L840-750C 2 Feet LED Lensed Module

Description

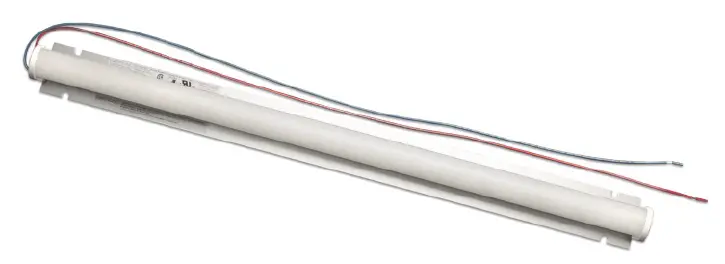

2’ LED Lensed Module

• Simple and easy installation
• Long life with high efficacy
• Diffuser lens provides broad, even light distribution
• Integrated heatheatsink for cool operation
• ClassClass2rating simplifies wiring

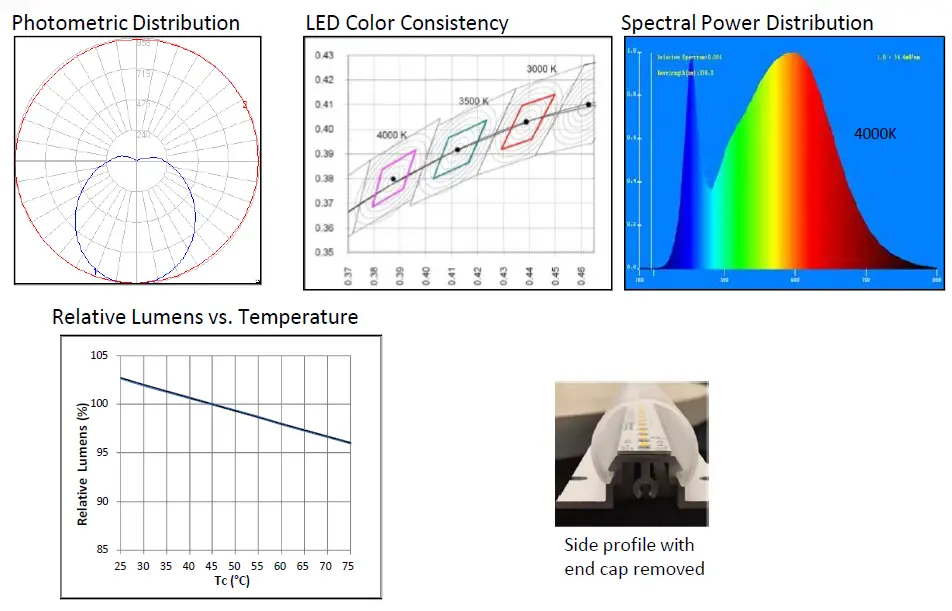

Lumen Performance

1.  MID Flux Bin Values are shown for CCT of 4000K. Tolerance of ±6.5% at 25°C
2. Vf is at Tc of 25°C with max tolerance of +/- 5%.

General Performance Specifications

• Lumen Maintenance : L85 > 60Khrs (reported) L70 > 140Khrs (calculated) @ I= 525mA, tamb=40°C
• Color Consistency: <3 SDCM (3500K, 4000K) <4 SDCM (5000K)

Mechanical Dimensions

• Length: 21.45”
• Width 0.8”
• Height: 1.24”
• Weight: 0.7 lbs.
• Lead Length: Red & Blue 24”

Ordering Information

Application

• Min. Ambient Operating Temp.: -22°F, -30°C
• Max. Ambient Operating Temp.: 140°F 60°C
• Maximum Current rating of 0.525 Amps Regulatory
• UL8750
•  CSA250.13-14
• RoHS Compliant

Notes:

• Performance data taken at Tamb = 25°C
• Power consumption and photometric performance are typical values
• Lumen maintenance value is based on LM80 testing and TM-21 calculation projections.

Installation & Assembly Guidelines

• This module is to be mounted using mounting slots and fasteners. The aluminum frame should be grounded or mounted to a grounded metal surface.
• Modules may be connected in parallel to split current from the LED driver.

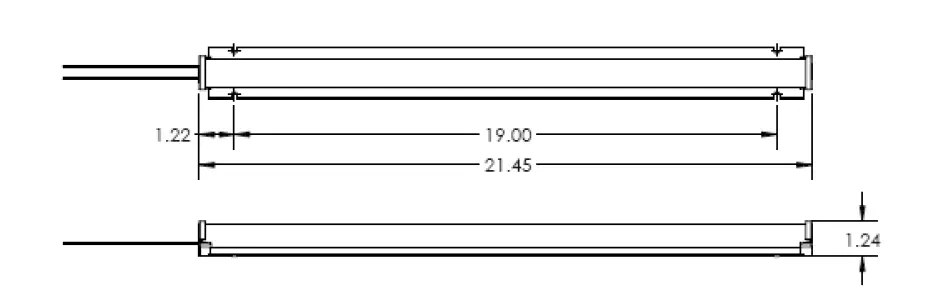

Dimensions

24” 20AWG Stranded Copper Leads

Application Notes

1. The standard base model version of this module without Conformal Coating is designed for indoor fixtures in dry applications. Damage caused by corrosion due to moisture, condensation and other harmful elements, is not covered by the warranty.

Conditions of Acceptability

1. The LED modules are intended for connection to a Class 2, constant current source of supply. The connection of the LED arrays to a source of supply other than class 2, the suitability must be determined in the end use product investigation.
2. The LED modules shall be installed in compliance with the mounting, spacing, casualty, and the segregation requirements applicable to the ultimate application.
3. The LED modules were subjected to the Normal Temperature Test in a 40°C Ambient.


   Model	Maximum Input Current	Location Center of the PCB	Measured °C	Limit °C
   *LRL12-15Lyzz-aaaC	600 mA	Between 24th and 25th LED	67.3	105
   		Center – Bottom Heat Sink	63.6	—

4. The LED Array modules are suitable for “DRY” locations. The use in other than dry locations shall be evaluated to the end use application.
5.  The array modules may be marked with any voltage and current rating that do not exceed the maximum ratings specifies in the ELECTRICAL RATINGS.
6. Suitability of input connections to the LED module to be determined in
   the end use product.

Application and operation performance specification information subject to change without notification. www.universaldouglas.com April 8, 2022 Universal Lighting Technologies
