Hid Global Signo Biometric Reader 25b Installation Guide

HID® Signo™ 25B
Biometric Reader/Controller
13.56 MHz / 2.4 GHz Contactless
SRD Model: Signo 25B
PLT-04026 Rev. B.1
INSTALLATION GUIDE

Signo Biometric Reader 25B

www.hidglobal.com/PLT-04027

1. Scan the QR code or visit the link to see the multi-language electronic version of this document.

https://www.hidglobal.com/PLT-04027

Supplied parts

• HID Signo Biometric Reader/Controller 25B (1)
• Installation Guide (1)
• Screw (1) – for attaching the reader to the backplate

Recommended parts (not supplied)

• Cable, 5-9 conductor (Wiegand), 4 conductors Twisted Pair Over-All Shield and UL approved, Belden 3107A or equivalent (OSDP)
• Certified LPS DC power supply
• Security tool HID 04-0001-03 (for anti-tamper screw)

Optional Features

Open Collector Output – Controls an external device (5 VDC) operating in Host Mode only. Sink 40 mA / Source -1 mA.
Optical Tamper – If connected via the pigtail wires, the optical tamper will sink to the ground from the default of 5 VDC when the reader is removed from its backplate.
Relay Output – Typically used to control a strike lock. Three contacts are available on the pigtail wires (common, normally open, and normally closed).
Wiegand Reader Interface – There is Wiegand output available, as marked on the pigtail wires. Configuration options are available within HID Biometric Manager™.

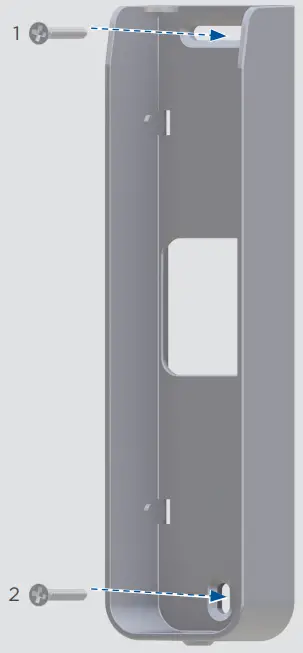

1. Mount the backplateScrews not supplied.
   ATTENTION
   Observe precautions for handling
   ELECTROSTATIC SENSITIVE DEVICES

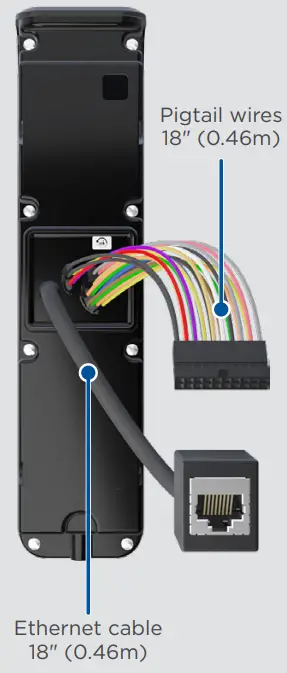

2. Wire the 25B


   Function Group	Wire Color	Function	AWG	Max Length¹
   RS-485	Green	R5-485 A	24	4000 ft (1,219 m)
   	Tan	RS-485 B
   	Black	RS-485 Ground
   Relay	Gray	Relay – Common	22	500 ft (152 m)
   	Yellow	Relay – Normally Open
   	Orange	Relay – Normally Closed
   Inputs (Controller mode only)	Pink	REX Input (Supervised)
   	Gray	DPS Input (Supervised)
   	Black	Input Ground
   Wiegand Port	Green	DO
   	White	D1
   	Brown	RED
   	Orange	Green
   	Yellow	BUZ
   	Blue	Hold
   	Violet	TPR
   	Black	Ground
   DC Power	Red	Power +12V
   	Black	Power Ground

   Function Group	Connector	Function	Max Length
   Network	RJ45 socket	Ethernet	328 ft (100 m) CAT5/CAT5E/CAT6)

   1 RS-485 = Max bus length 4,000 ft – 24 AWG (1,219 m)
   Max length between nodes: 1,640 ft – 24 AWG (500m)
   IMPORTANT: The 19 pigtail wires should be cut to size for the wall-mounted application.
   IMPORTANT: DO NOT cut the Ethernet cable.
   Note: Wiring the reader incorrectly may permanently damage the reader.

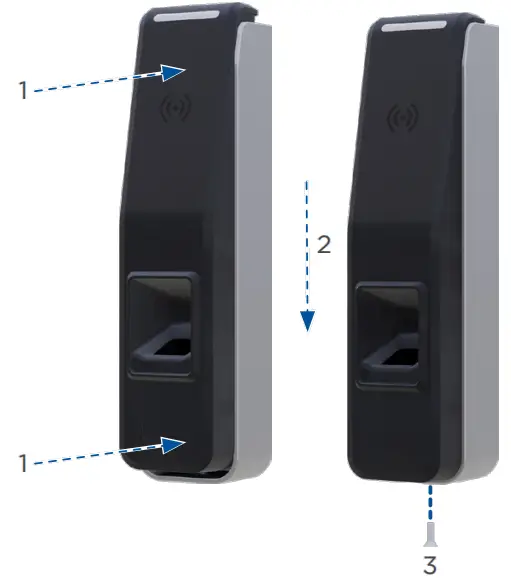

3. Secure the 25B to the backplate1. Insert the reader into the backplate.
   2. Latch the reader.
   3. Secure the reader to the backplate using the supplied screw.

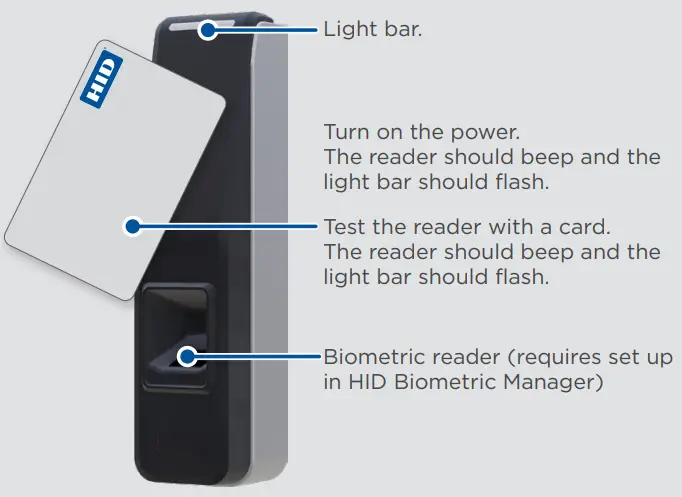

4. Power and test the reader
5. Download and install HID Biometric Manager

Visit https://www.hidglobal.com/signo25b and download the HID Biometric Manager Installer. Once the .exe file has been downloaded, double-click the file to install HID Biometric Manager, following the on-screen prompts.
For further details, refer to the HID Signo Biometric Reader/Controller 25B Administration Guide (PLT-04029), which is available for download from https://www.hidglobal.com/signo25b

Specifications

1  Standby AVG – Root Mean Square current draw without a card in the RF field.
2  Maximum AVG – Root Mean Square current draw during continuous card reads. Not evaluated by UL.
3 Peak – highest instantaneous current draw during RF communication.

Regulatory UL
Connect only to a Listed Access Control / Burglary LPS power supply. These readers are intended to be used with listed (UL294) control equipment. Suitable for outdoor use.
Only Wiegand and Bluetooth communications have been evaluated by UL.
The Open Collector Output has not been evaluated by UL.
RS485 communications have not been evaluated by UL.
Inputs (reserved for future use) have not been evaluated by UL.
The Ethernet connection is for supplemental use; the unit is connected to an Access Control Panel.
The Signo 25B Biometric Reader is compatible with HID Mobile Access® version 3.3.1 and later using mobile devices with BLE version 4.2 and later listed at:
https://www.hidglobal.com/mobile-access-compatible-devices
Install in accordance with NFPA70 (NEC) Local Codes, Canadian Electrical Code CSA 22.1, and authorities having jurisdiction. Follow all National and Local Codes.

UL 294 Performance Levels

CE Marking
HID Global hereby declares that these proximity readers are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
Por el presente, HID Global declara que estos lectores de proximidad cumplen con los requisitos esenciales y otras disposiciones relevantes de la Directiva 2014/53/ EU.

Download copies of the Radio Equipment Directive (RED) Declaration of Conformity (DoC) at: http://www.hidglobal.com/certifications.
Brazil
To ensure that RF exposure levels remain at or below the tested levels, a minimum safe separation distance of 10 mm between the user and the reader is required for RF exposure compliance.

Canada Radio Certification

This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

FCC
This device complies with part 15, subpart C, of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference. This equipment generates, uses, and can radiate RF energy and if not installed and used in accordance with the instruction, may cause harmful interference. Possible solutions include: relocating the device, increasing the separation between equipment, powering equipment separately, consult with your dealer.
CAUTION: Any changes or modifications to this device not explicitly approved by HID Global could void your authority to operate this equipment.

South Africa	Australia and New Zealand
TA-2019/920 APPROVED

UAE
TRA
REGISTERED NO:
ER72356/19
DEALER NO:
DA37204/14

Singapore
Complies with
IMDA Standards
DA103548

Powering
Trusted Identities

hidglobal.com

© 2019 – 2020 HID Global Corporation/ASSA ABLOY AB. All rights reserved. HID, the HID Brick logo, the Chain Design, HID Signo, HID Biometric Manager, and HID Mobile Access are trademarks or registered trademarks of HID Global, ASSA ABLOY AB, or its affiliate(s) in the US and other countries and may not be used without permission. All other trademarks, service marks, and product or service names are trademarks or registered trademarks of their respective owners.
