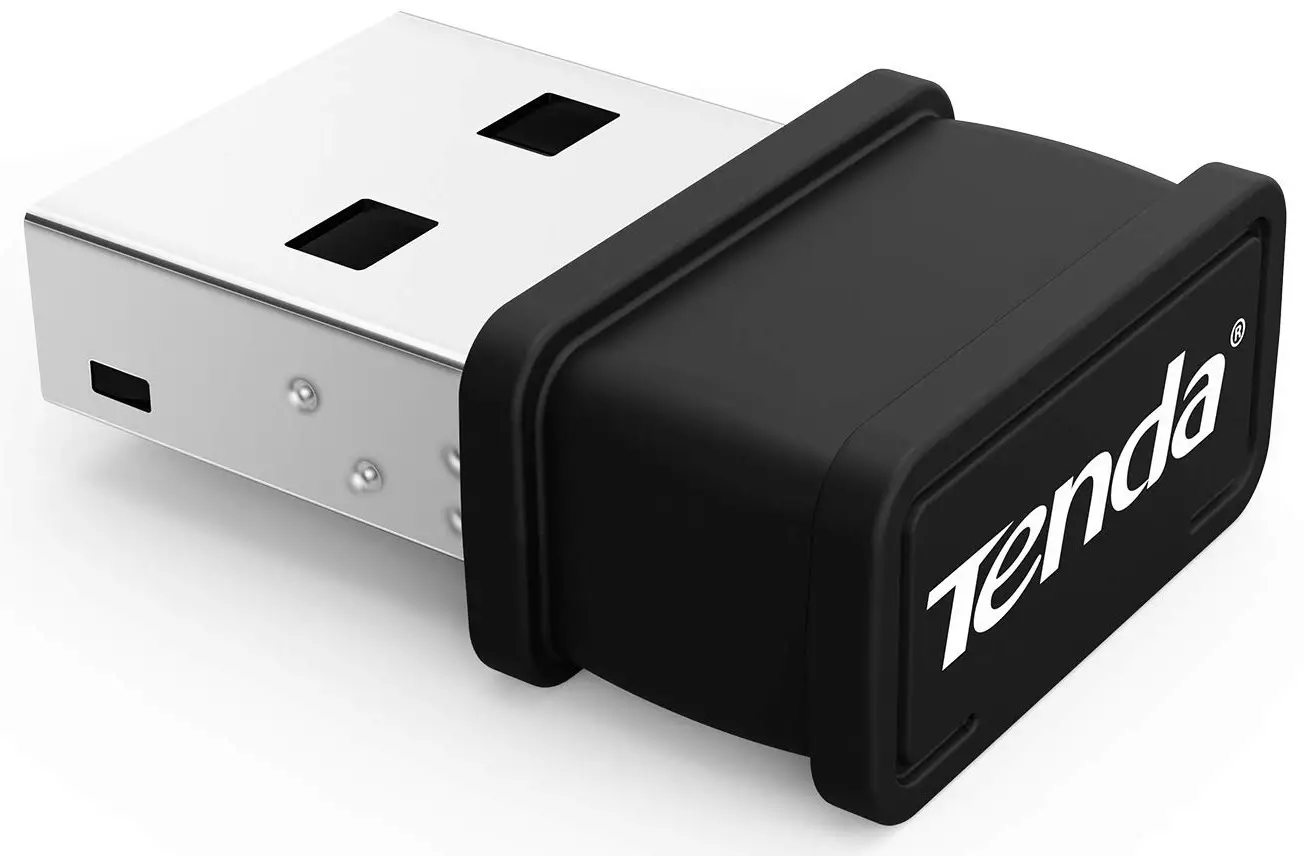

Tenda W311MI Wireless USB Adapter User Manual
Wireless N150 Pico USB Adapter
W311 MI is an 802.11n compliant wireless USB Adapter that provides up to 4x faster wireless speeds and 3x better wireless reception over 802.11g products while staying backward compatible with 802.11g/b devices. This wireless adapter features a sleek compact design that fits into your computer’s USB port with minimal protrusion making it ideal for use when traveling or in a crowded workspace The W311MI connects your desktop or notebook computer with an available USB port to your wireless network for Internet access and file sharing. Desktop users can easily add wireless connectivity without having to open the PC case. Laptop users can easily upgrade to the latest 802.11 n and get better range. It is ideal for email, web browsing and file sharing in the home.

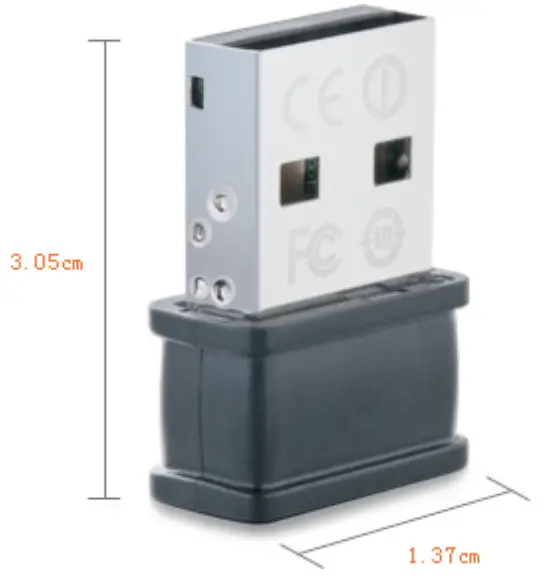

Ultra Compact Design
Featuring ultra-small and compact in size, the W311MI easily connects your desktop or notebook PC to a wireless network for Internet access and file sharing, and is virtually unnoticeable when plugged into an USB port.

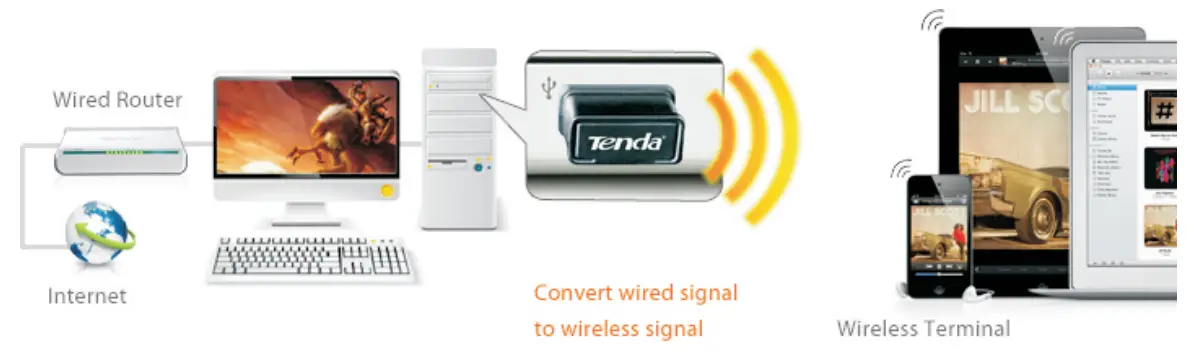

Wireless Sharing by Multiple Users
Featuring soft AP function, the W31 I Mi can work as an access point. So when you connect it to a wired network, it easily becomes a WiFi hotspot for multiple users to access to Internet, email, download and file transfer wirelessly.
Lag-free Gaming Experience
Support for WMM provides improved QoS over wireless connections, plus seamlessly works with PSP,WII, and NDS to connect Xlink Kai; all brings you an even better online gaming performance.
Wireless N Performance
The W311 MI uses Wireless N 150 technology to provide increased speed and range than the previous 802.11g standard, giving you a faster, more reliable connection, making it ideal for email, web browsing and file sharing in the home.
Secured Connection
To protect your data and privacy, the USB Adapter supports WEP, WPA, and WPA2 encryption for connecting to a secure wireless network, keeping your network traffic secure. The Wi-Fi Protected Setup (WPS) feature enables devices to easily establish a secure connection to an Access Point or wireless router, eliminating the need for complex encryption codes.
Compatibility Assured
The W311 MI is fully compatible with all major operation systems, including the latest Windows 7, MAC, and Linux.
Main Features
- Ultra compact design, nearly invisible
- Wireless N technology, 2.4GHz
- Wireless speeds of up to 150Mbps
- WPA/WPA2 provides better security connections
System Requirement
- USB Port
- 20MB Hard Disk Space
- Windows XP,Windows Vista ,Windows 7 or higher
- CD-ROM Drive
Specifications
| Hardware Features | |
| Standards | IEEE 802.11b/g/n |
| Interface | USB 2.0 |
| Antenna | 2dBi fixed antenna* 1 (internal PCB) Frequency:2.46Hz |
| Button | None |
| Dimensions (L*W*H) | 21mm x 15mm x 7.7mm |
| LED | 1* Link/Act |
| Wireless Features | |
| Wireless Speed | Up to 150Mbps over lln |
| Frequency | 2.4 GHz |
| Channel | 1-13 |
| Transmit Power | 18dBm (Max) |
| Operating Mode | Infrastructure Ad-Hoc |
| Software Features | |
| Security | 64-/128-bit WEP WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK WPS |
| Compatible OS | Windows 2000, Windows 2003, Windows XP 32-/64-bit, Windows 7 32-164-bit, Linux 2.2X/2.4X/2.6X, MAC OS |
| Others | Connect PSP, WII and N DS to Internet and Xlink Kai |
| Others | |
| Package Contents | W311MI Installation CD |
| Temperature | Operating Temperature: 0°C — 45°C; Storage Temperature: -40°C — 70°C. |
| Humidity | Operating Humility:10% — 90% RH Non-condensing Storage Humility:3% — 90% RH Non-condensing |
| Related Products | W311R, W316R, W311M |
| Certification | CE FCC RoHS |

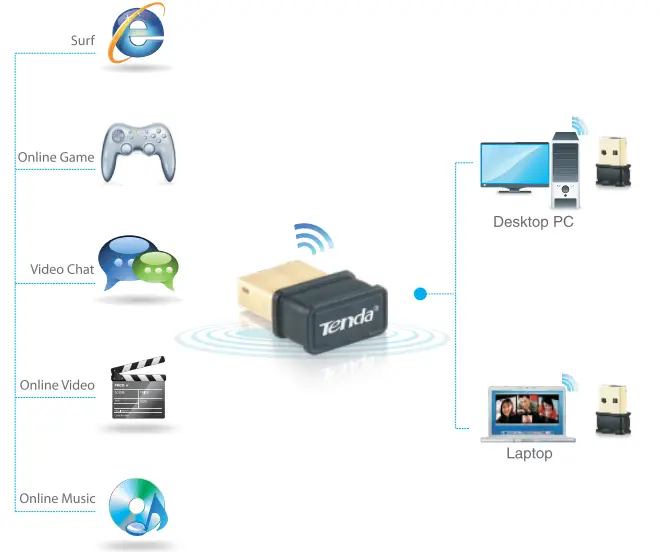

Applications
©2012 SHENZHEN TENDA TECHNOLOGY CO.,LTD, the Tenda logo is registered trademark of shenzhen Tenda Technology Co., Ltd in China and/or other countries. Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. ALL rights reserved.
Shenzhen Tenda Technology Co.,Ltd
No. 34-1 Shilong Road
Shiyan Town, Baoan District
Shenzhen 518081,China
Phone: (86 755) 2765 7180
Fax: (86 755) 2765 7178
Email: [email protected], [email protected]
http://www.tendacn.com
