HCSTCOM HC8005M-DC Commercial Grade Series Unmanaged PoE Switch
Attach warranty card
Thank you for choosing our products.
Please read this user manual carefully, and keep it for future reference.
Product Introduction
Commercial grade series of unmanaged PoE switches, PoE power supply complies with IEEE 802.3af / at standard. This series has more than ten products to choose from, it provides 100/1 000M PoE(ethernet) Port or 1 000M Optical Port, 1 0g optical port, and 1 U rack or wall-mounted installation can meet the requirements of different application sites.
Design of DIP switching can realize Port isolation, Link extension, Qos priority and PoE watchdog function.The product hardware adopts fanless, low power consumption, wide temperature and wide voltage design.
It has passed rigorous testing in accordance with industry standards and can adapt to most on-site environments that require EMC. It is mainly positioned at the access or aggregation layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband . And widely used in small and medium-sized enterprises, internet cafes, hotels, schools and other Ethernet access scenarios.
Packaging List
PoE Switch 1 Pc
AC Power Cord 1 Pc
User Manual 1 Pc
Warra~ty Card, Certification 1 Pc
Brackets (or 1 u Rack) 1 Pair
Main Features
- Support powering PoE devices through cat 5/6 ethernet cables
- PoE port support IEEE802.3af or IEEE802.3at adaptive
- 10/100M or10/100/100M rate adaptive
- Flow control: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts back pressure standard
- Support Auto MDI/MDIX
- All PoE ports maximum 15.4W ( IEEE802.3af ) or 30W (IEEE802.3at)
- All ports support wire-speed forwarding, it can be reached in the range of 64 to 1536 frames
- One-button smart DIP switching, support VLAN, Default, Extend three working modes
- Support port Qos priority ( depending on the actual model)
- Al version with PoE watchdog function. When PoE starts, it will detect the status of the powered device in real time, and if there is an abnormality on it, the the switch will actively reset the problem port and restore power supply

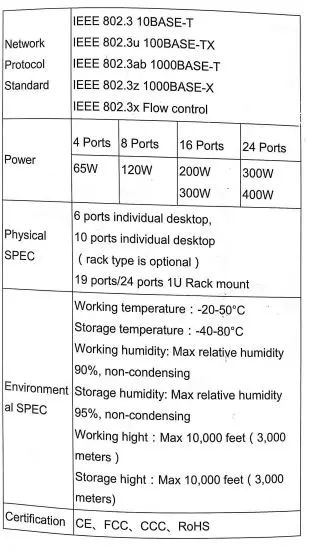

Performance Indicators
DIP definition and Indicator identifying
| DIP | Mode | Function description |
| VALN | Port Isolation | Downlink designated ports are isolated from each other, only transmit data with the uplink port(the Al version automatically enable the PoE Watchdog.) |
| Default | Standard Switching | All ports communicate freely |
| Extend | Link extension | The _specified port speed drops to 10Mbps/s, max PoE transmission is 250 meters(the Al version automatically enable the PoE Watchdog.) |
| Indicator | Definition | Status | Description |
| PWR | Power LED | Lighting | Powered |
| Light off | No power | ||
| SW Mode | DIP LED | Lighting | Port Isolated |
| Light off | Standard switching | ||
| Flashing | Link extended | ||
| PoE | Power supply LED | Lighting | PoE |
| Light off | PoE failed | ||
| Link ACT 1000M | Link LED
Link | Lighting | Link connected |
| Light off | Link disconnected | ||
| Flashing | Link data transmitted | ||
| 100M | Capacity | Lighting | Current rate |
| Light off | Non-current rate |

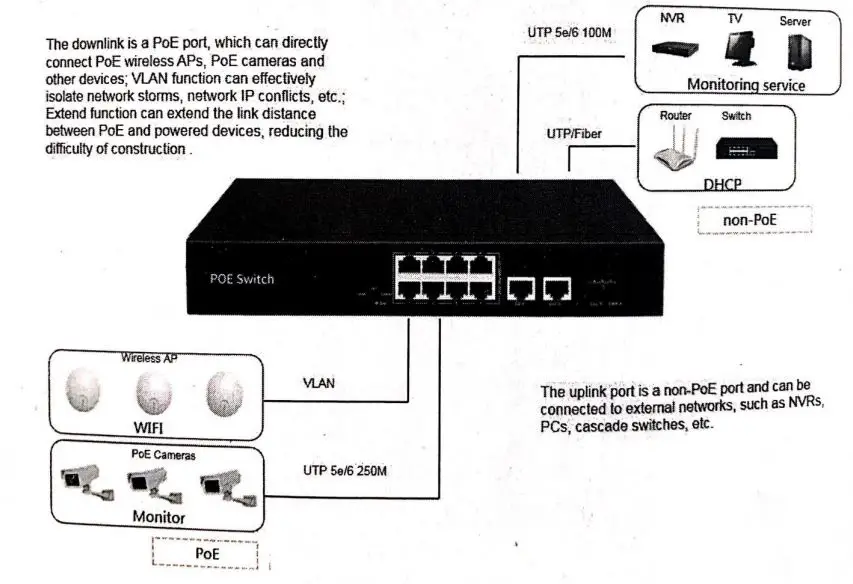

Application
The downlink is a PoE port, which can directly connect PoE wireless as, PoE cameras and other devices; VLAN function can effectively isolate network storms, network IP conflicts, etc.; Extend function can extend the link distance between PoE and powered devices, reducing the difficulty of construction.
