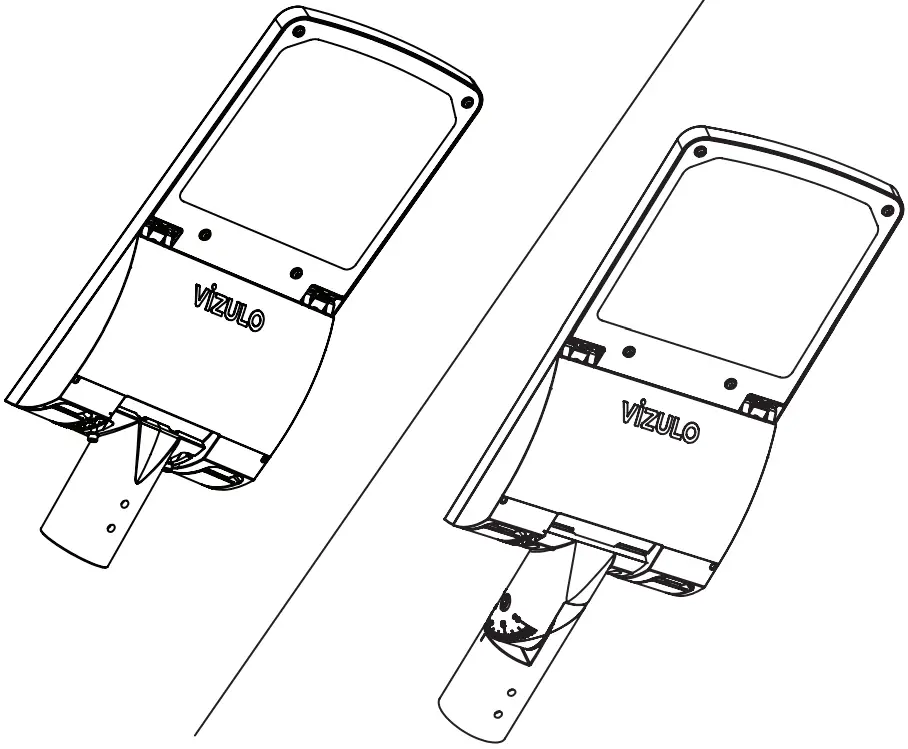

VIZULO Stork Little Brother Finless LED street luminaire
LED module and driver replacement (dismantling) instruction
* Depends on conguration. Check label or technical specication.
24-08-2021
SIA VIZULO
Laucu Lejas, Iecava, Latvia, LV-3913
www.vizulo.com
PCB module replacement
Danger!
Before disassembling the luminaire, check if it is disconnected from the power grid.

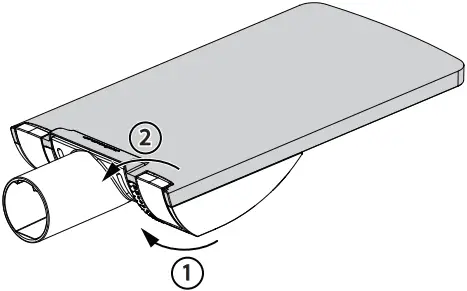

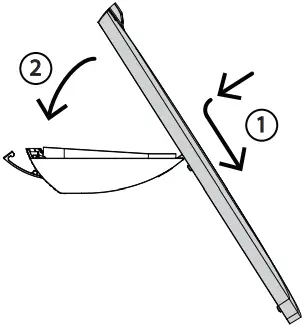

1 Open the latches

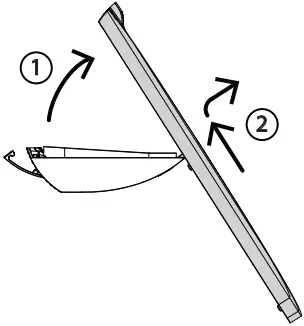

2 Lift the lid of the luminaire

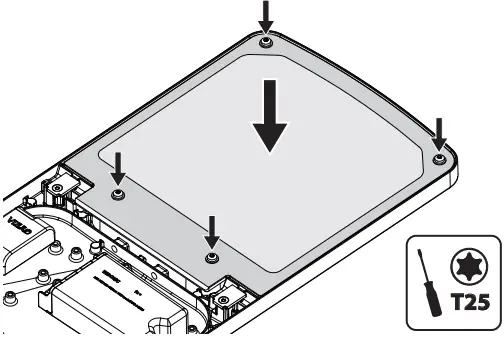

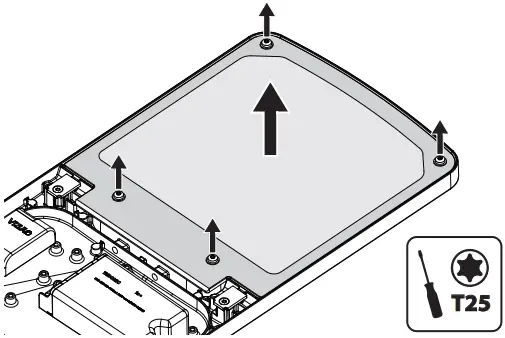

3 Unscrew the screws and remove the glass

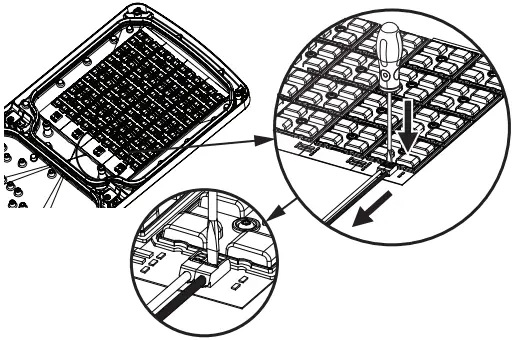

4 Disconnect the PCB modules from the driver
* module count varies from 1 to 4
5 Unscrew the PCB modules, replace it and screw them back into place
6 Connect the PCB modules to the driver
7 Fix the glass and tighten the screws

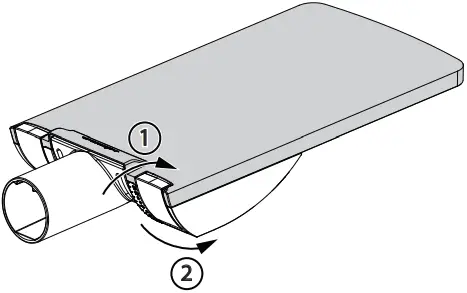

8 Lower the lid of the luminaire
9 Close the latches
LED driver replacement
Danger
Before disassembling the luminaire, check if it is disconnected from the power grid.
1 Open the latches
2 Lift the lid of the luminaire

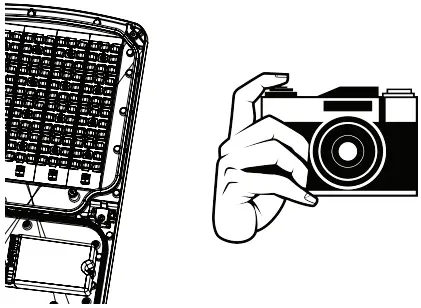

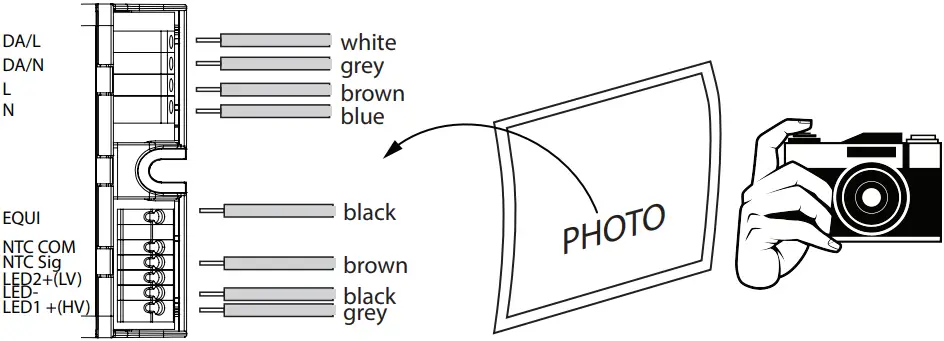

3 Make a reference picture of the wiring
4 Unscrew the EQUI wire

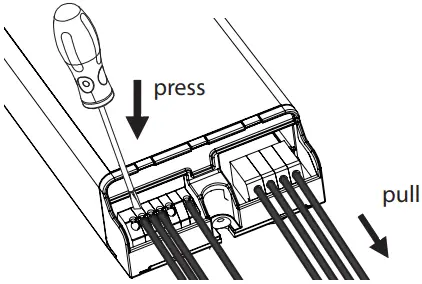

5 Disconnect the wires from the driver

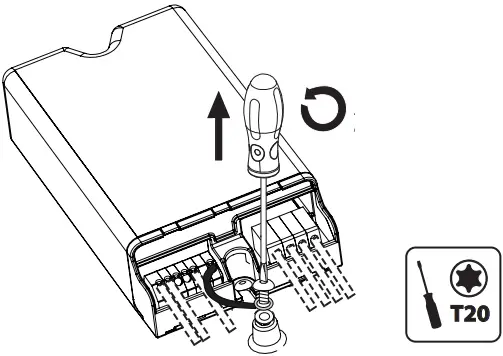

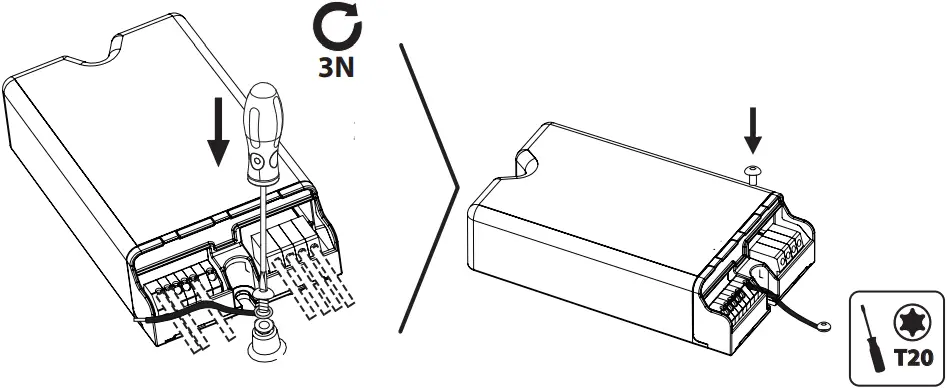

6 Unscrew the LED driver

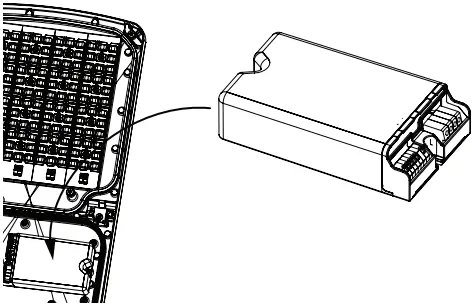

7 Replace the LED drivers
8 Put the new LED driver into place
9 Screw in the EQUI wire and the the driver
10 Consult the reference picture

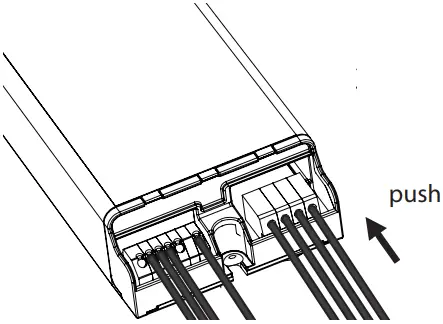

11 Connect the wires to the driver
12 Lower the lid of the luminaire
13 Close the latches
Terms of use and maintenance
Before luminaire is turned on, it should be mounted according with this mounting instruction or any other applicable regulations.
Mounting instructions
Mounting of luminaire must be performed by a qualied person according with following instructions:
- The warranty of luminaire does not apply, if the mounting of luminaire has been performed in precipitation (rain, snow, hail).
- The warranty of luminaire does not apply, if a control system unauthorized by VIZULO or an inapplicable LED driver has been used to drive the luminaire.
- The warranty of luminaire does not apply, if it has been used in an unsuitable ambient temperature or has been supplied by voltage outside of the specied range.
- The warranty of luminaire does not apply, if the LED driver program has been changed in any way.
- The warranty of the luminaire does not apply, if the logged history data of the LED driver has been deleted without the permission of VIZULO.
- The warranty of luminaire does not apply, if it has been mounted in unspecied angles or upside down (luminaire glass directed up), or it has been completely submerged under water.
Safety instructions
Any actions with the luminaire must be performed by a qualied person, who is certied according with national regulations and requirements.
To prevent any accidents person installing the luminaire must follow national safety requirements and following instructions:
- The label containing technical parameters of the luminaire has to be studied before the work on it has begun.
- Any luminaire build or design changes are prohibited.
- The luminaire must be used in good technical condition and according with this instruction.
- Only VIZULO authorized spare parts and accessories can be used to repair the luminaire.
- The repair of luminaire has to be performed by a qualied and certied person.
Maintenance and repair
Luminaire has to be disconnected from electrical grid before it is opened and/or repaired!
- The person working with the luminaire must follow national regulations and legislations that apply to maintenance and testing of electrical or electronic appliances.
- The luminaire may need to be cleaned depending on its environment. Only a damp cloth or a sponge may be used to clean the luminaire. Use only household detergents diluted by water.
- Only VIZULO authorized spare parts may be used for the luminaire.
- Instruction for changing spare parts must be requested from VIZULO and studied before the repair is attempted.

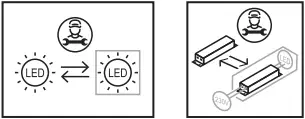

- LED modules, lens and LED drivers can be changed on an installed luminaire, but it is advised to perform this task indoor to avoid water entering the luminaire.
- Spare parts (lens, LED modules and drivers) should be ordered from the information available on the luminaire label.
