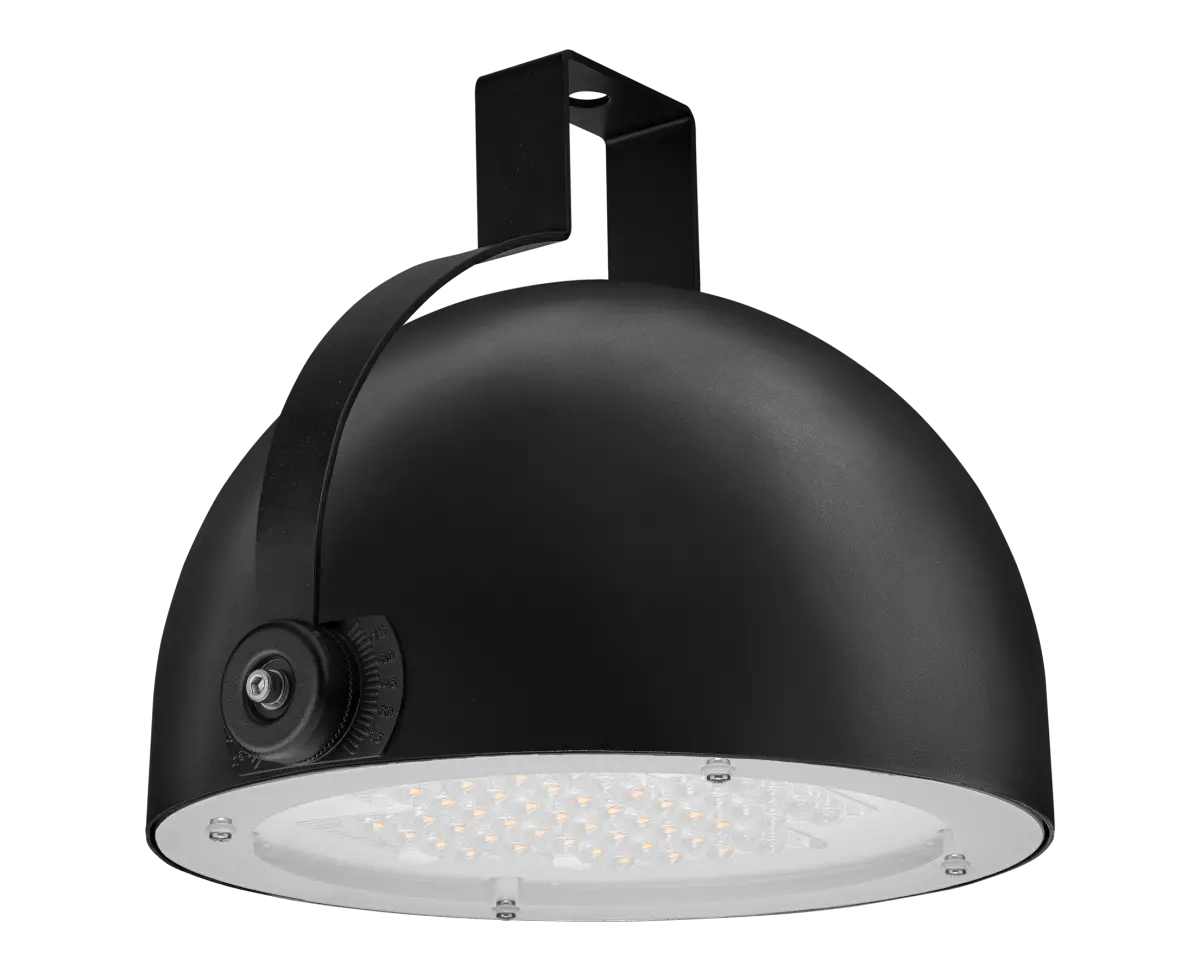

VIZULO BBL 020 727 L20 AA008 CJ RG1 82110659 Blackbird Scepter LED Street Luminaire

Depends on configuration. Check the label or technical specification.

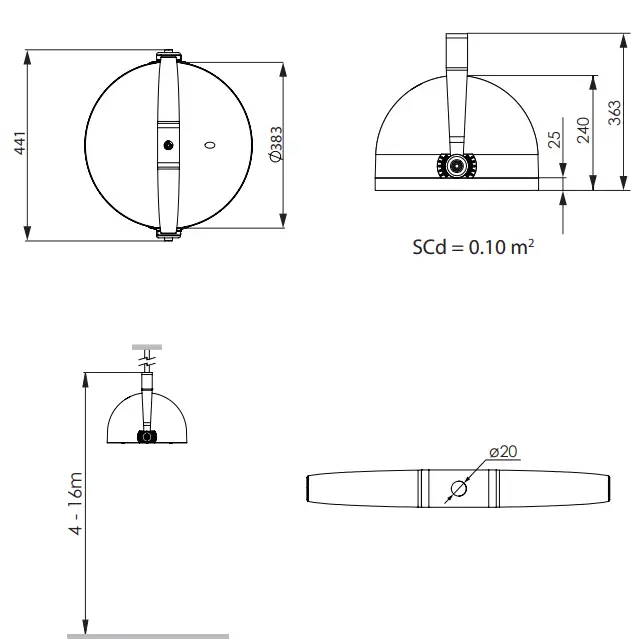

Dimensions

Average Netto Weight

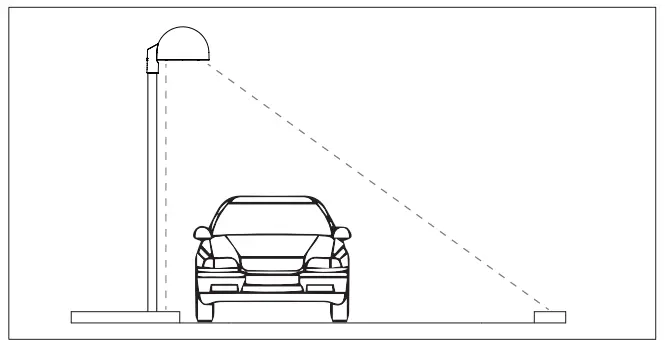

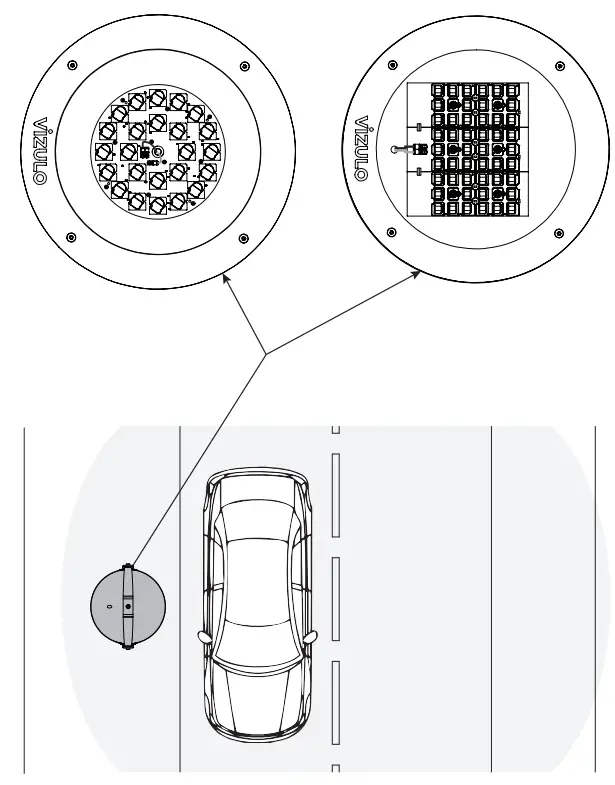

The direction of light for an asymmetric lens

Acceptable luminaire mounting angle relative to the ground
Unacceptable luminaire mounting angle relative to the ground.

These limitations only apply when mounting the luminaire outdoors!

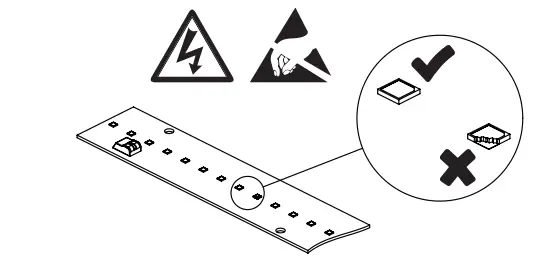

WARNING

Do not touch LED modules!
Do not put any tools or other items on LED modules!
In case any LED is physically damaged (example shown below) the warranty is void.

LED	Power	CCT	Risk group	Remarks
Oslon Square	5 … 100 W	≤ 5700 K	RG1 after TBC m*	Label required
Luxeon 5050	5 … 100 W	≤ 5700 K	RG1 after TBC m*	Label required
Duris S8	5 … 100 W	≤ 5700 K	RG1 after TBC m*	Label required

The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than shown in the table above is not expected.

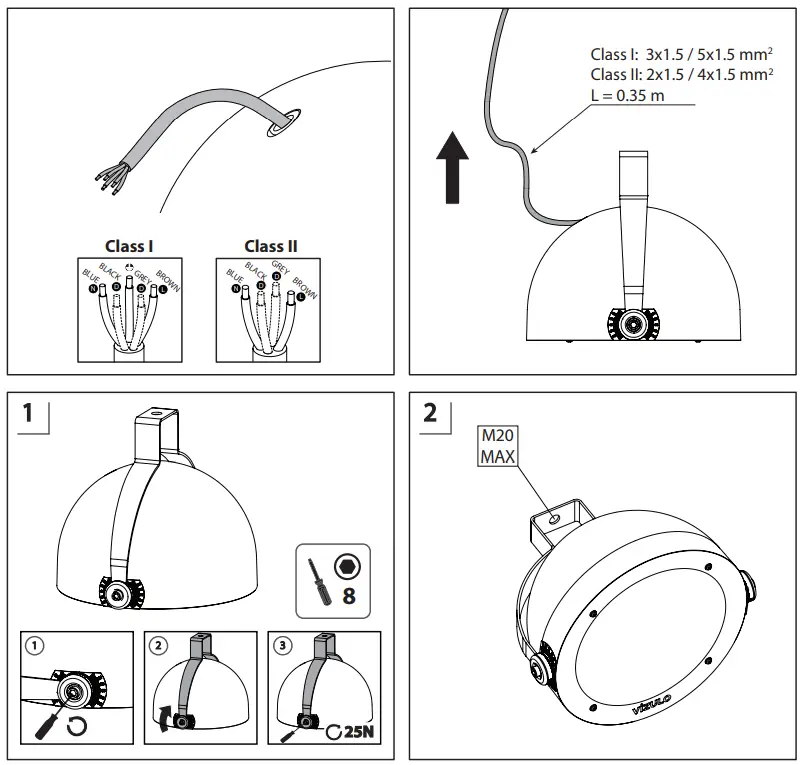

Standard configuration

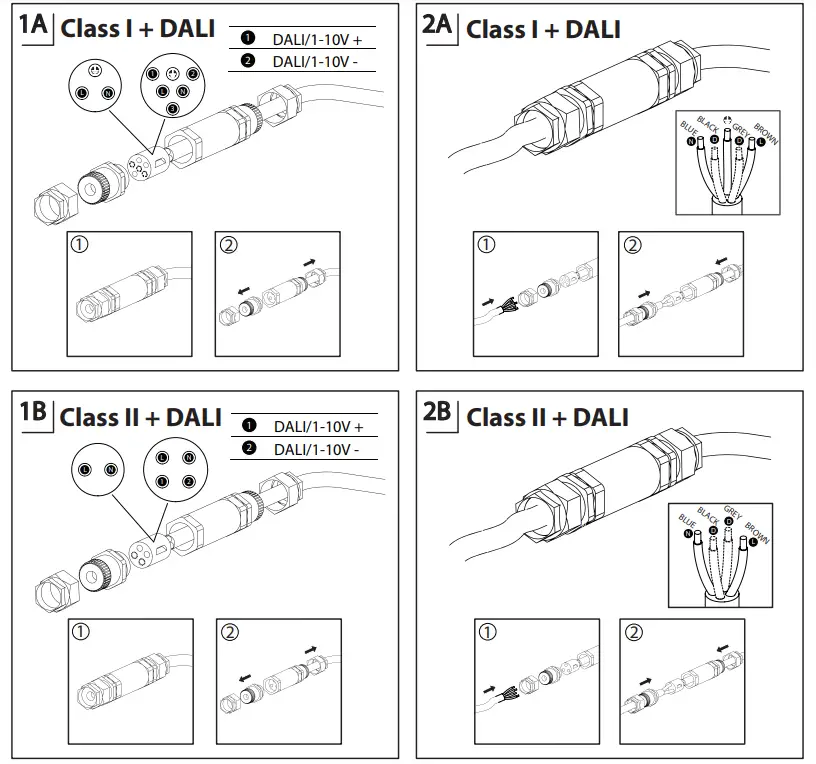

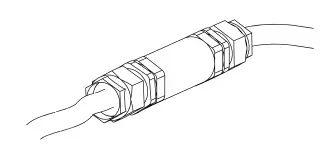

Configuration with terminal block

Article	Description
70000313	2-pole terminal block with PE
70000304	4-pole terminal block with PE
70000314	2-pole terminal block
70000315	4-pole terminal block

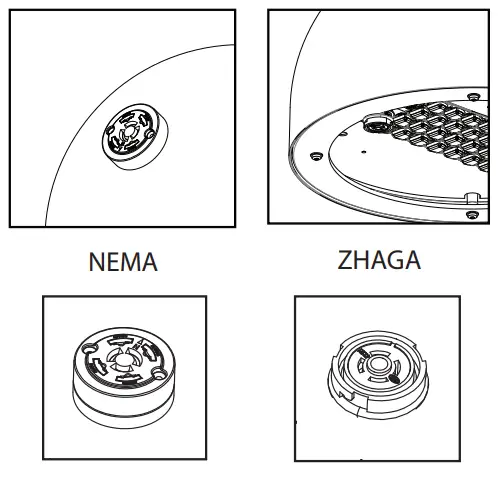

ATTENTION: In the case of the NEMA/ZHAGA Socket.

IP66 applies only for the luminaire body and for connection between the luminaire body and NEMA/ZHAGA Socket, and does not apply to any mounted control device and connection between the control device and NEMA/ZHAGA Socket.

MCB/Inrush current table

Tridonic LED driver (No dim/ Midnight dimming/ DALI)
Standard/ High density	In-rush current (peak/duration)	B10A	B13A	B16A	B20A	B25A	B32A	B40A	C10A	C13A	C16A	C20A	C25A	C32A	C40A
4-6 LED, 5-10W	9 A (253 μs)	28	36	44	51	63	81	102	46	60	73	85	106	136	170
6-12 LED, 11-26W	15 A (226 μs)	19	25	30	37	46	59	74	31	41	50	61	76	97	122
12-20 LED, 20-43W	25 A (236 μs)	12	16	20	26	32	41	52	20	26	33	43	53	68	86
20-28 LED, 30-64W	32 A (335 µs)	6	8	10	13	16	20	26	10	13	16	21	26	33	42
28-48 LED, 45-96W	42 A (238 µs)	6	8	10	13	16	20	26	10	13	17	22	27	35	44
48-64 LED, 70-100W	65 A (268 µs)	3	4	5	6	7	9	12	5	7	8	10	12	16	20

Eco		B10A	B13A	B16A	B20A	B25A	B32A	B40A	C10A	C13A	C16A	C20A	C25A	C32A	C40A
4-4 LED, 5-11W	9 A (253 μs)	28	36	44	51	63	81	102	46	60	73	85	106	136	170
4-4 LED, 12-20W	15 A (226 μs)	19	25	30	37	46	59	74	31	41	50	61	76	97	122
4-8 LED, 20-38W	25 A (236 μs)	12	16	20	26	32	41	52	20	26	33	43	53	68	86
8-12 LED, 30-57W	32 A (335 µs)	6	8	10	13	16	20	26	10	13	16	21	26	33	42
12-24 LED, 45-96W	42 A (238 µs)	6	8	10	13	16	20	26	10	13	17	22	27	35	44
24-36 LED, 70-100W	65 A (268 µs)	3	4	5	6	7	9	12	5	7	8	10	12	16	20

Tridonic LED driver (Zhaga)
Standard/ High density	In-rush current (peak/duration)	B10A	B13A	B16A	B20A	B25A	B32A	B40A	C10A	C13A	C16A	C20A	C25A	C32A	C40A
4-6 LED, 5-11W	8 A (470 μs)	19	25	30	38	47	60	76	31	41	50	63	78	100	126
6-12 LED, 12-26W	15 A (316 μs)	16	21	25	33	41	52	66	26	35	41	55	68	88	110
12-20 LED, 20-43W	20 A (346 μs)	11	14	17	22	27	35	44	18	23	28	36	45	57	72
20-28 LED, 30-64W	28 A (270 µs)	10	13	16	20	25	32	40	16	21	26	33	41	52	66
28-48 LED, 45-96W	38 A (280 µs)	6	8	10	13	16	20	26	10	13	16	21	26	33	42
48-64 LED, 70-100W	56 A (277 µs)	3	4	5	6	7	9	12	5	6	8	10	12	16	20

Eco		B10A	B13A	B16A	B20A	B25A	B32A	B40A	C10A	C13A	C16A	C20A	C25A	C32A	C40A
4-4 LED, 5-11W	8 A (470 μs)	19	25	30	38	47	60	76	31	41	50	63	78	100	126
4-4 LED, 12-20W	15 A (316 μs)	16	21	25	33	41	52	66	26	35	41	55	68	88	110
4-8 LED, 20-39W	20 A (346 μs)	11	14	17	22	27	35	44	18	23	28	36	45	57	72
8-12 LED, 30-57W	28 A (270 µs)	10	13	16	20	25	32	40	16	21	26	33	41	52	66
12-24 LED, 45-96W	38 A (280 µs)	6	8	10	13	16	20	26	10	13	16	21	26	33	42
24-36 LED, 70-100W	56 A (277 µs)	3	4	5	6	7	9	12	5	6	8	10	12	16	20

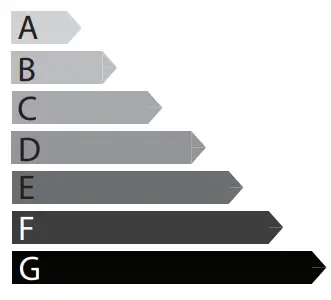

Energy efficiency class of contained light source(s)

Standard

		CRI
		70	80	90
CCT	1800	F
	2200	E
	2500	E
	2700	D	E	F
	3000	D	E	F
	4000	C	D	E
	5000	C	D	E
	5700	C	D	E
	6500	C		E

Eco

		CRI
		70	80	90
CCT	2200	E	F
	2700	E	E	F
	3000	E	E	F
	4000	D	E	F
	5000	D	E	F
	5700	D	E	F
	6500	D	E

The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

Caution: risk of electrical shock.

In case the mains cable is damaged, the luminaire is no longer usable, and it must be either recycled or repaired. The repair can only be performed by VIZULO. Contact either your direct sales manager or look for contact information on our home page – www.vizulo.com

Terms of use and maintenance

Before the luminaire is turned on, it should be mounted according to this mounting instruction or any other applicable regulations.

Mounting instructions

Mounting of luminaire must be performed by a qualified person according to the following instructions:

The warranty of the luminaire does not apply if the mounting of the luminaire has been performed in precipitation (rain, snow, hail).
The warranty of luminaire does not apply if a control system unauthorized by VIZULO or an inapplicable LED driver has been used to drive the luminaire.
The warranty of luminaire does not apply if it has been used in an unsuitable ambient temperature or has been supplied by voltage outside of the specified range.
The warranty of luminaire does not apply if the LED driver program has been changed in any way.
The warranty of the luminaire does not apply if the logged history data of the LED driver has been deleted without the permission of VIZULO.
The warranty of luminaire does not apply, if it has been mounted in unspecified angles or upside down (luminaire glass directed up), or it has been completely submerged under water.

Safety instructions

Any actions with the luminaire must be performed by a qualified person, who is certified according with national regulations and requirements. To prevent any accidents person installing the luminaire must follow national safety requirements and following instructions:

The label containing technical parameters of the luminaire has to be studied before the work on it has begun.
Any luminaire build or design changes are prohibited.
The luminaire must be used in good technical condition and according with this instruction.
Only VIZULO-authorized spare parts and accessories can be used to repair the luminaire.
The repair of the luminaire has to be performed by a qualified and certified person.

Maintenance and repair

The luminaire has to be disconnected from the electrical grid before it is opened and/or repaired!

The person working with the luminaire must follow national regulations and legislations that apply to the maintenance and testing of electrical or electronic appliances.
The luminaire may need to be cleaned depending on its environment. Only a damp cloth or a sponge may be used to clean the luminaire. Use only household detergents diluted by water.
Only VIZULO-authorized spare parts may be used for the luminaire.
Instruction for changing spare parts must be requested from VIZULO and studied before the repair is attempted.
LED modules, lens and LED drivers can be changed on an installed luminaire, but it is advised to perform this task indoors to avoid water entering the luminaire.
Spare parts (lens, LED modules and drivers) should be ordered from the information available on the luminaire label.
