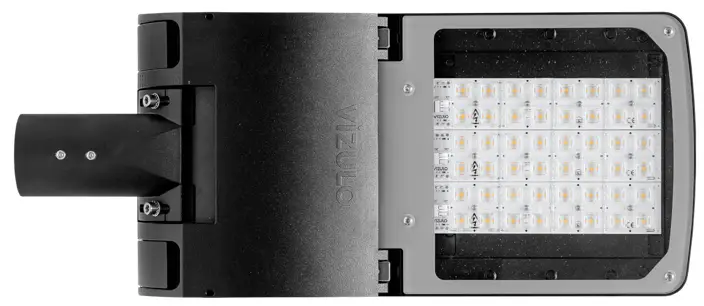

Stork Food Light LED Street Luminaire
Instruction Manual
Stork Food Light LED Street Luminaire
* Depends on configuration. Check label or technical specification.

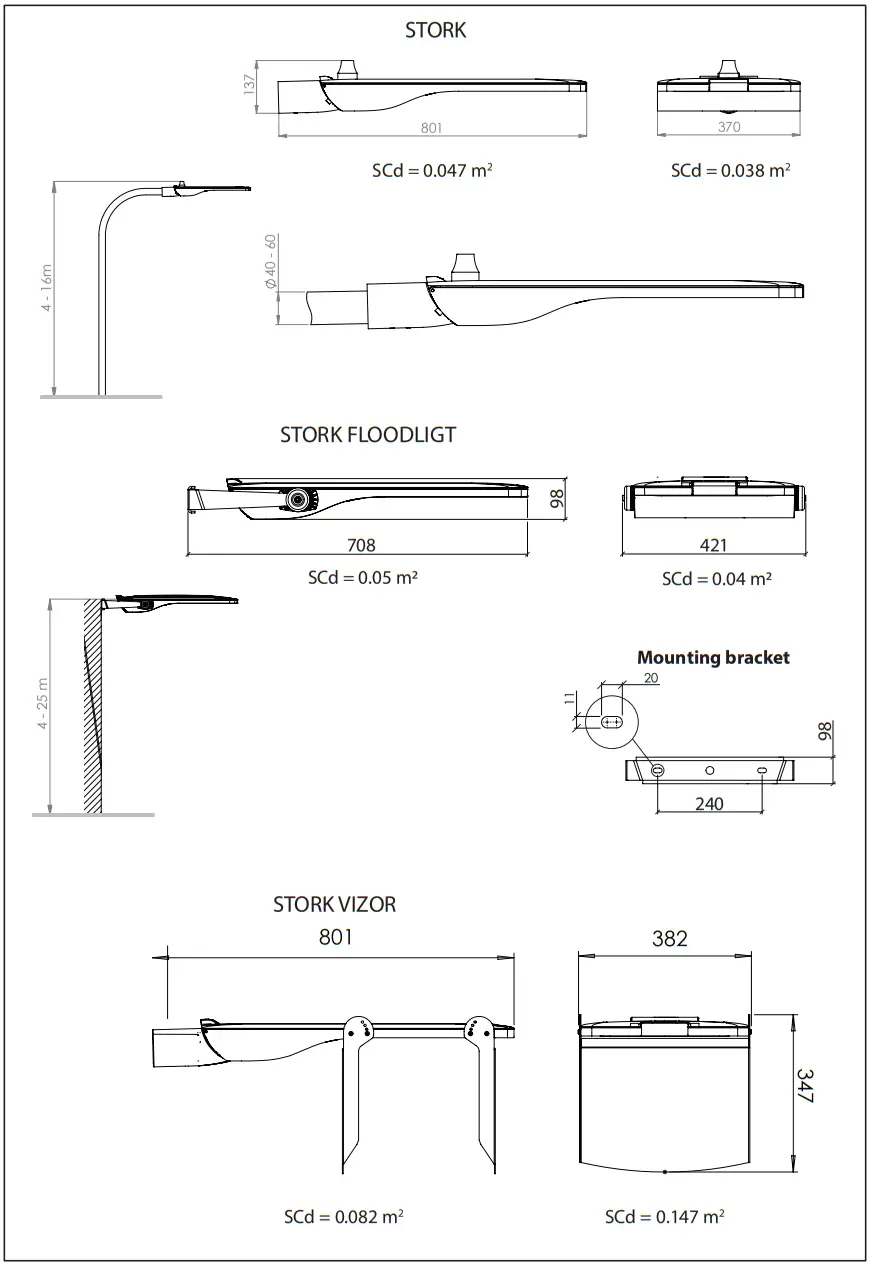

Dimensions

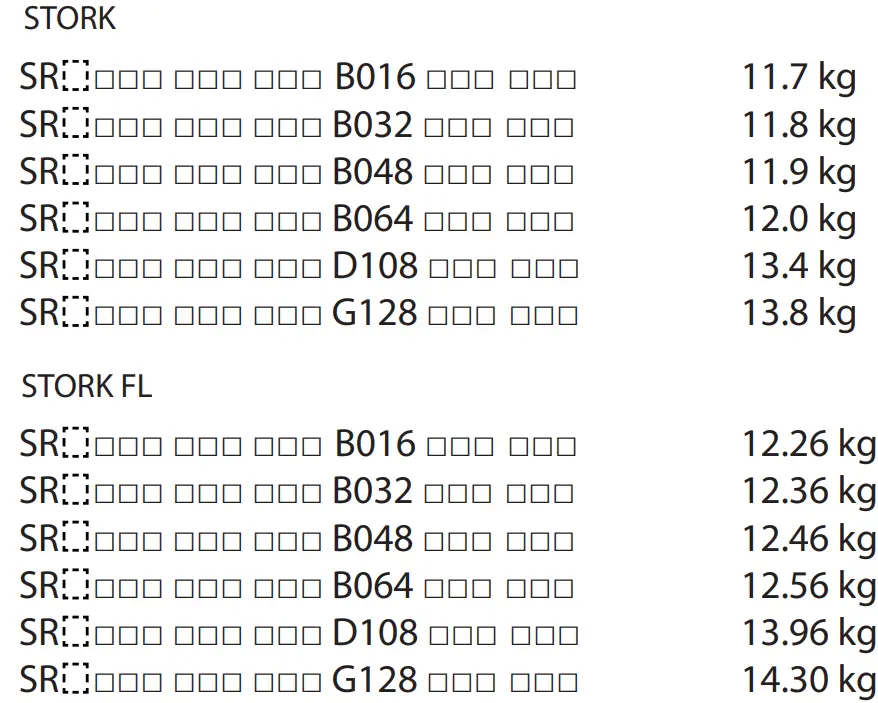

Netto Weight

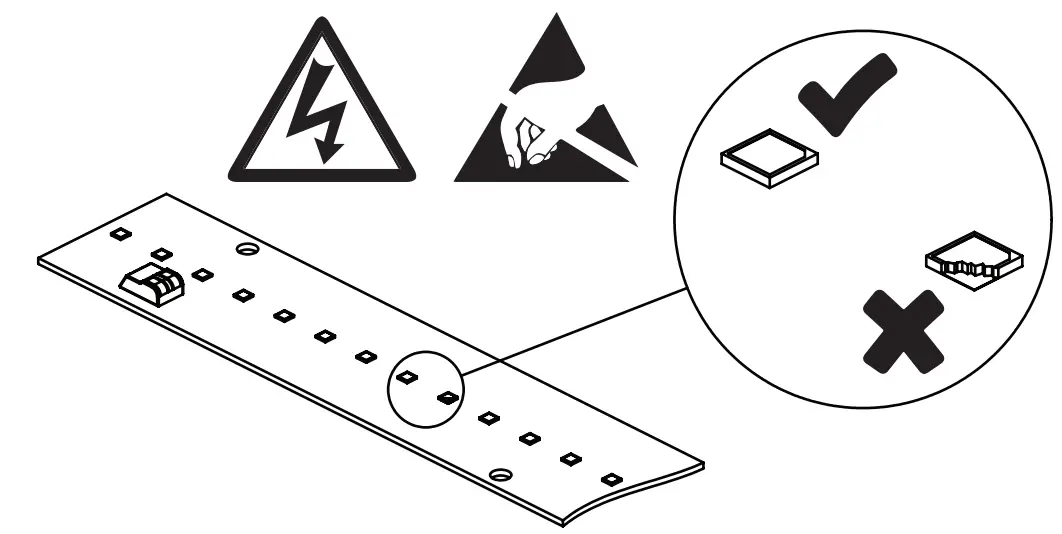

WARNING!
- Do not touch LED modules!
- Do not put any tools or other items on LED modules!
- In case any LED is physically damaged (example shown below) the warranty is void.
ATTENTION! In case of NEMA/ZHAGA Socket.
IP66 applies only for luminaire body and for connection between luminaire body and NEMA/ZHAGA Socket, and do not applies to any mounted control device and connection between control device and NEMA/ZHAGA Socket.
Acceptable luminaire with ZHAGA socket mounting angle relative to the ground.

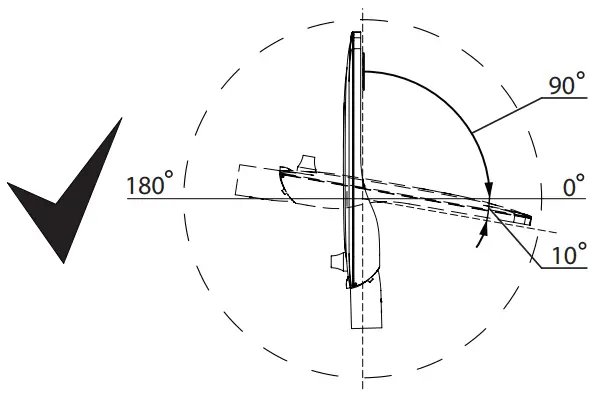

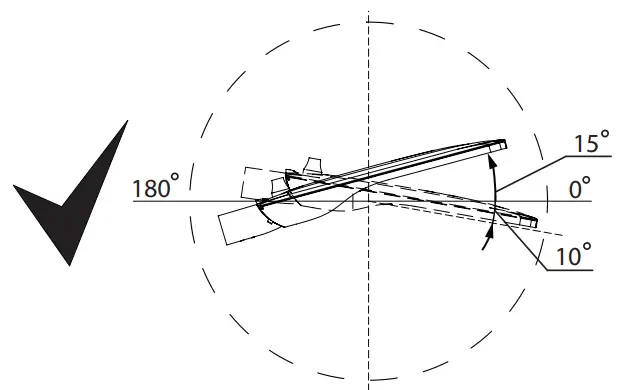

Acceptable luminaire mounting angle relative to the ground.

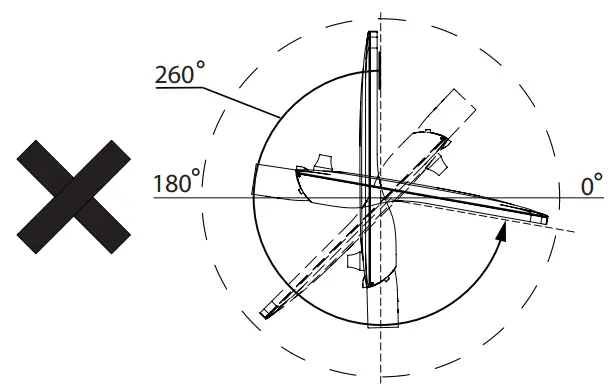

Unacceptable luminaire mounting angle relative to the ground.
These limitations only apply when mounting the luminaire outdoors!
WARNING!
- Do not touch LED modules!
- Do not put any tools or other items on LED modules!
- In case any LED is physically damaged (example shown below) the warranty is void.

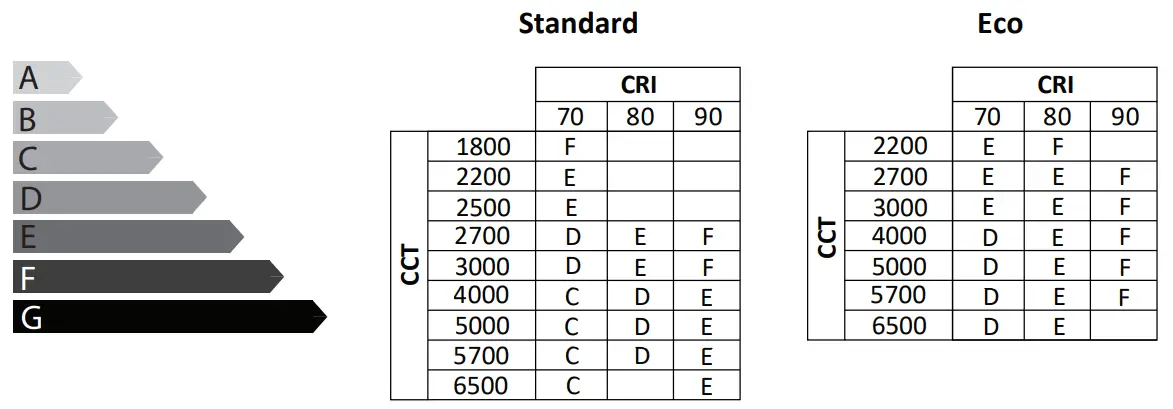

Energy efficiency class of contained light source(s)

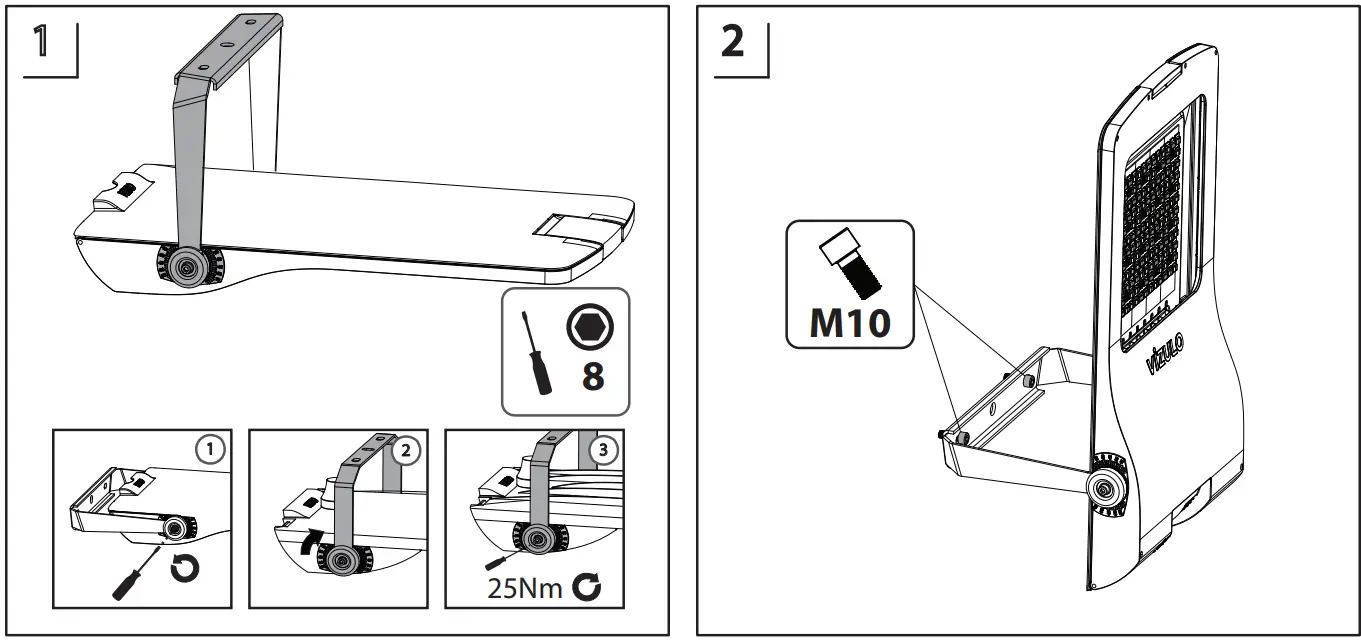

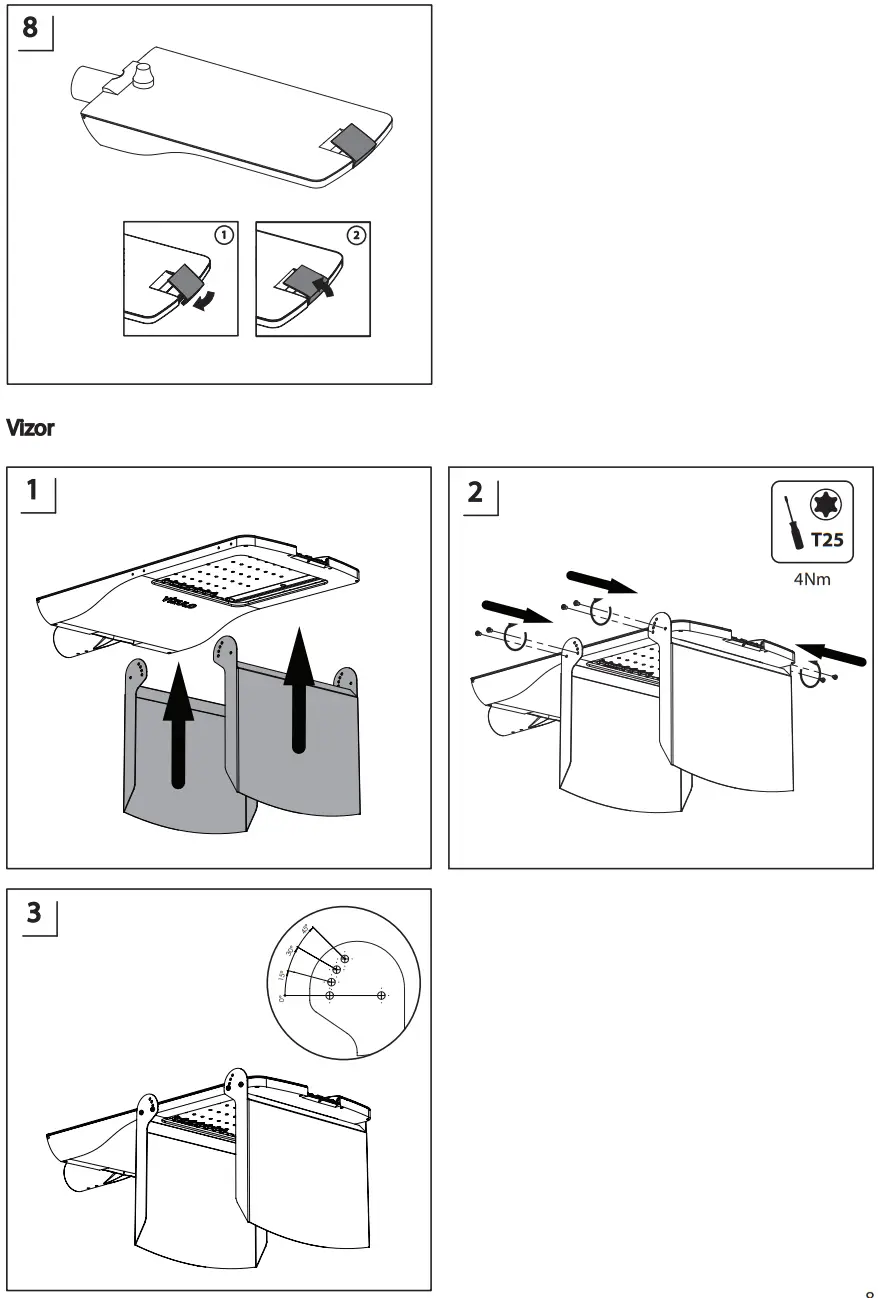

Floodligt handle

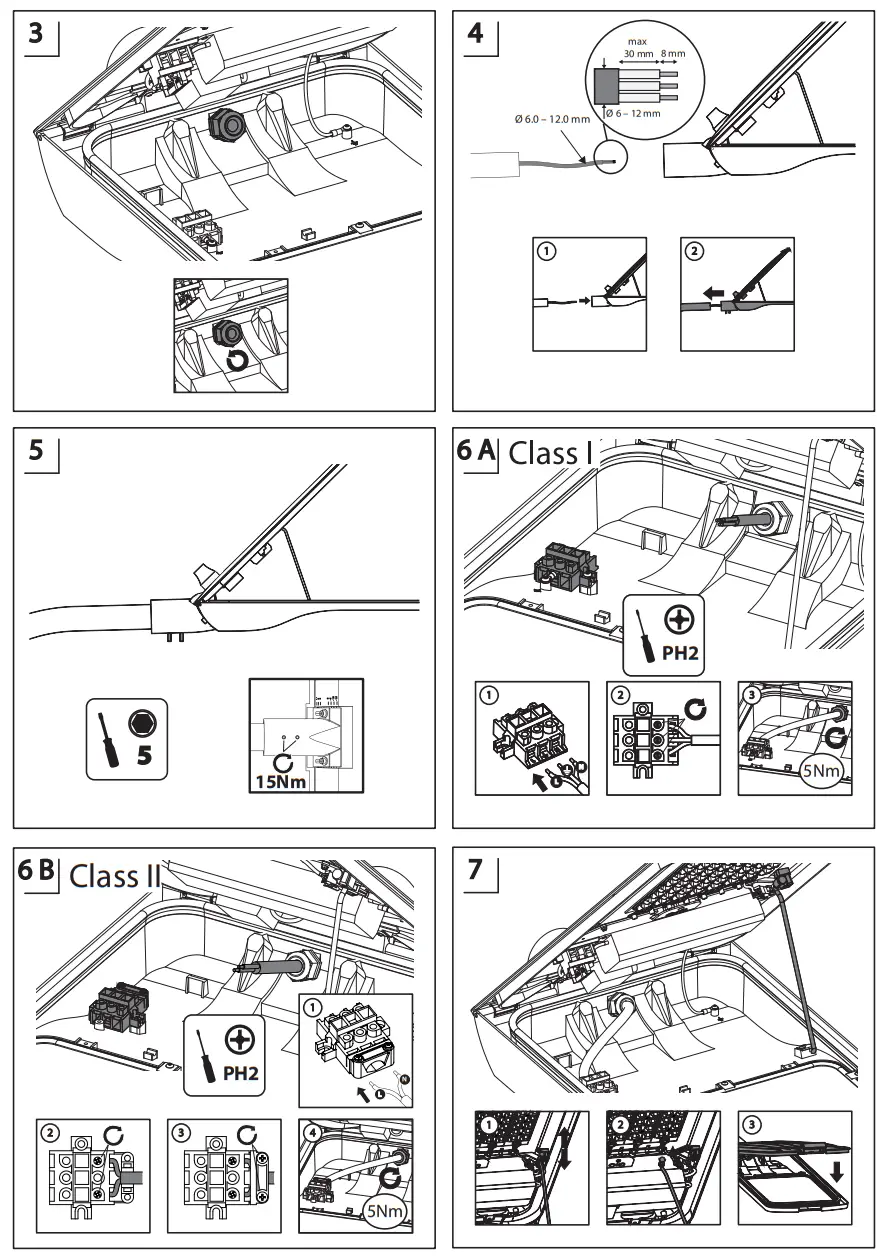

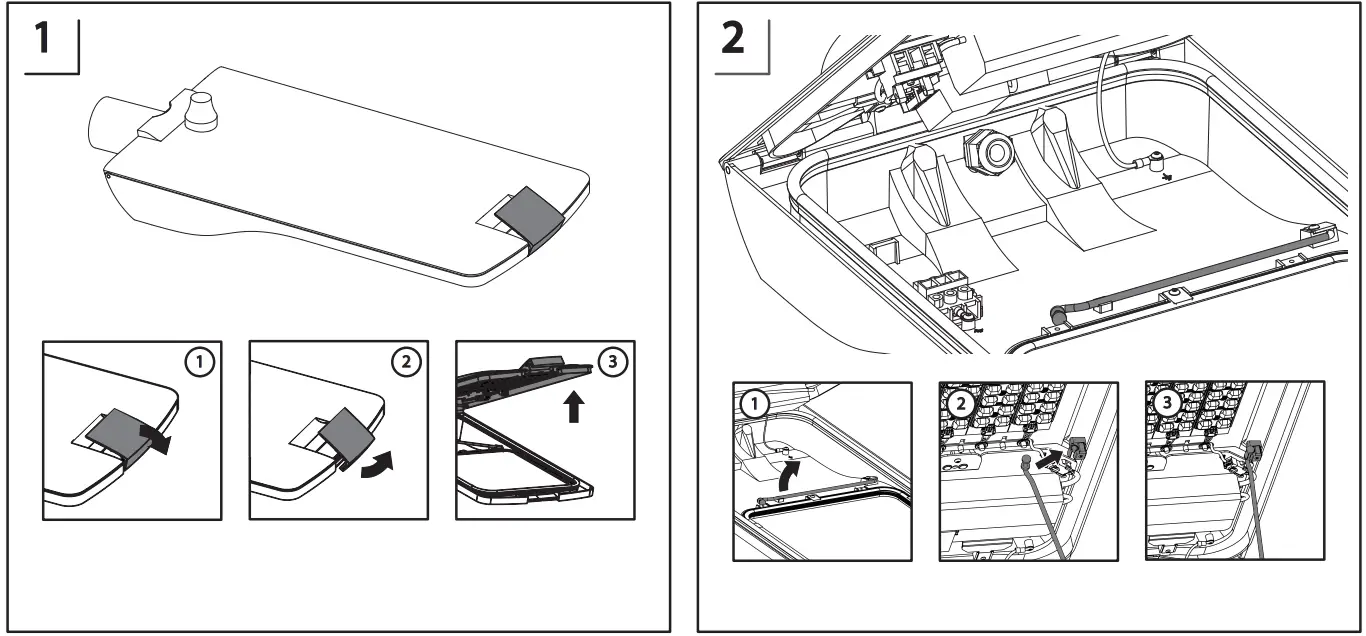

Connecting
| 18 … 137 W | 138 … 200 W | |
| 3000 K | RG1 | RG1 |
| 4000 K | RG1 | RG1 |
| 5000 K | RG1 | RG1 after 3.25 m* Label required |
| 5700 K | RG1 | RG1 after 3.25 m* Label required |
*The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 3.25 m is not expected.
MCB/Inrush current table
| Tridonic LED driveriNo dim/ Midnight dimming/ DALI) | |||||||||||||||
| Standard/ High density | In-rush current (peak/duration) | B1OA | B13A | B16A | B20A | B25A | B32A | B40A | C1OA | C13A | C16A | C20A | C25A | C32A | C40A |
| 6-12 LED, 8-26W | 15 A (226 vs) | 19 | 25 | 30 | 37 | 46 | 59 | 74 | 31 | 41 | 50 | 61 | 76 | 97 | 122 |
| 12-20 LED, 20-43W | 25 A (236 ps) | 12 | 16 | 20 | 26 | 32 | 41 | 52 | 20 | 26 | 33 | 43 | 53 | 68 | 86 |
| 20-28 LED, 30-64W | 32 A (335 Rs) | 6 | 8 | 10 | 13 | 16 | 20 | 26 | 10 | 13 | 16 | 21 | 26 | 33 | 42 |
| 28-48 LED, 45-96W | 42 A (238 ps) | 6 | 8 | 10 | 13 | 16 | 20 | 26 | 10 | 13 | 17 | 22 | 27 | 35 | 44 |
| 48-64 LED, 70-144W | 65 A (268 1is) | 3 | 4 | 5 | 6 | 7 | 9 | 12 | 5 | 7 | 8 | 10 | 12 | 16 | 20 |
| 64-108 LED, 100-11W | 80A (225µs) | 4 | 6 | 8 | 10 | 12 | 16 | 20 | 6 | 10 | 13 | 16 | 20 | 25 | 32 |
| 108-128 LED, 135 280W | 130A (268 ps) | 1 | 2 | 2 | 3 | 3 | 4 | 6 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
| Eco | B1OA | B13A | B16A | B20A | B25A | B32A | B40A | C1OA | C13A | C16A | C20A | C25A | C32A | C40A | |
| 4-4 LED, 9-20W | 15 A (226 1.xs) | 19 | 25 | 30 | 37 | 46 | 59 | 74 | 31 | 41 | 50 | 61 | 76 | 97 | 122 |
| 4-8 LED, 20-38W | 25 A (236 ps) | 12 | 16 | 20 | 26 | 32 | 41 | 52 | 20 | 26 | 33 | 43 | 53 | 68 | 86 |
| 8-12 LED, 30-57W | 32A (335 vs) | 6 | 8 | 10 | 13 | 16 | 20 | 26 | 10 | 13 | 16 | 21 | 26 | 33 | 42 |
| 12-24 LED, 45-96W | 42 A (238 1is) | 6 | 8 | 10 | 13 | 16 | 20 | 26 | 10 | 13 | 17 | 22 | 27 | 35 | 44 |
| 24-32 LED, 70-144W | 65 A (268 ps) | 3 | 4 | 5 | 6 | 7 | 9 | 12 | 5 | 7 | 8 | 10 | 12 | 16 | 20 |
| 32-52 LED, 100-211W | 80 A (225µs) | 4 | 6 | 8 | 10 | 12 | 16 | 20 | 6 | 10 | 13 | 16 | 20 | 25 | 32 |
| 52-64 LED, 135-280W | 130A (268 Rs) | 1 | 2 | 2 | 3 | 3 | 4 | 6 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
| Tridonic LED driver (Zhaga) | |||||||||||||||
| Standard/ High density | In-rush current (peak/duration) | B1OA | B13A | B16A | B20A | B25A | B32A | B40A | C1OA | C13A | C16A | C20A | C25A | C32A | C40A |
| 6-12 LED, 8-26W | 15 A (316 las) | 16 | 21 | 25 | 33 | 41 | 52 | 66 | 26 | 35 | 41 | 55 | 68 | 88 | 110 |
| 12-20 LED, 20-43W | 20 A (346 Rs) | 11 | 14 | 17 | 22 | 27 | 35 | 44 | 18 | 23 | 28 | 36 | 45 | 57 | 72 |
| 20-28 LED, 30-64W | 28 A (270µs) | 10 | 13 | 16 | 20 | 25 | 32 | 40 | 16 | 21 | 26 | 33 | 41 | 52 | 66 |
| 28-48 LED, 45-96W | 38 A (280µs) | 6 | 8 | 10 | 13 | 16 | 20 | 26 | 10 | 13 | 16 | 21 | 26 | 33 | 42 |
| 48-64 LED, 70-144W | 56 A (277 ps) | 3 | 4 | 5 | 6 | 7 | 9 | 12 | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| 64-108 LED, 100- 11W | 85 A (215 1.xs) | 3 | 4 | 5 | 6 | 7 | 9 | 12 | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| 108-128 LED, 135- 280W | 112 A (277µs) | 1 | 2 | 2 | 3 | 3 | 4 | 6 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
| Eco | BlOA | B13A | B16A | B20A | B25A | B32A | B40A | ClOA | C13A | C16A | C20A | C25A | C32A | C40A | |
| 4-4 LED, 9-20W | 15 A (316 ps) | 16 | 21 | 25 | 33 | 41 | 52 | 66 | 26 | 35 | 41 | 55 | 68 | 88 | 110 |
| 4-8 LED, 20-39W | 20 A (346 ps) | 11 | 14 | 17 | 22 | 27 | 35 | 44 | 18 | 23 | 28 | 36 | 45 | 57 | 72 |
| 8-12 LED, 30-57W | 28 A (270 us) | 10 | 13 | 16 | 20 | 25 | 32 | 40 | 16 | 21 | 26 | 33 | 41 | 52 | 66 |
| 12-24 LED, 45-96W | 38 A (280 us) | 6 | 8 | 10 | 13 | 16 | 20 | 26 | 10 | 13 | 16 | 21 | 26 | 33 | 42 |
| 24-32 LED, 70-144W | 56A (277 [is) | 3 | 4 | 5 | 6 | 7 | 9 | 12 | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| 32-52 LED, 100-211W | 85A (215 iis) | 3 | 4 | 5 | 6 | 7 | 9 | 12 | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| 52-64 LED, 135-280W | 112 A (277 p) | 1 | 2 | 2 | 3 | 3 | 4 | 6 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
Terms of use and maintenance
Before luminaire is turned on, it should be mounted according with this mounting instruction or any other applicable regulations.
Mounting instructions
Mounting of luminaire must be performed by a qualiffed person according with following instructions:
- The warranty of luminaire does not apply, if the mounting of luminaire has been performed in precipitation (rain, snow, hail).
- The warranty of luminaire does not apply, if a control system unauthorized by VIZULO or an inapplicable LED driver has been used to drive the luminaire.
- The warranty of luminaire does not apply, if it has been used in an unsuitable ambient temperature or has been supplied by voltage outside of the specified range.
- The warranty of luminaire does not apply, if the LED driver program has been changed in any way.
- The warranty of the luminaire does not apply, if the logged history data of the LED driver has been deleted without the permission of VIZULO.
- The warranty of luminaire does not apply, if it has been mounted in unspecified angles or upside down (luminaire glass directed up), or it has been completely submerged under water.
Safety instructions
Any actions with the luminaire must be performed by a qualified person, who is certified according with national regulations and requirements.
To prevent any accidents person installing the luminaire must follow national safety requirements and following instructions:
- The label containing technical parameters of the luminaire has to be studied before the work on it has begun.
- Any luminaire build or design changes are prohibited.
- The luminaire must be used in good technical condition and according with this instruction.
- Only VIZULO authorized spare parts and accessories can be used to repair the luminaire.
- The repair of luminaire has to be performed by a qualified and certified person.
Maintenance and repair
Luminaire has to be disconnected from electrical grid before it is opened and/or repaired!
- The person working with the luminaire must follow national regulations and legislations that apply to maintenance and testing of electrical or electronic appliances.
- The luminaire may need to be cleaned depending on its environment. Only a damp cloth or a sponge may be used to clean the luminaire. Use only household detergents diluted by water.
- Only VIZULO authorized spare parts may be used for the luminaire.
- Instruction for changing spare parts must be requested from VIZULO and studied before the repair is attempted.
- LED modules, lens and LED drivers can be changed on an installed luminaire, but it is advised to perform this task indoor to avoid water entering the luminaire.
- Spare parts (lens, LED modules and drivers) should be ordered from the information available on the luminaire label.
28-02-2022
SIA VIZULO
Laucu Lejas, Iecava, Latvia, LV-3913
