Micro Martin Smooth LED Street Luminaire
Instruction Manual
VIZULO Micro Martin Smooth LED street luminaire

Contents hide

1 Mounting instruction

2 Dimensions

3 Standard Configuration

4 Configuration with terminal bloku

5 MCB/Inrush current table

6 Mounting instructions

7 Safety instructions

8 Maintenance and repair

9 Documents / Resources

9.1 References

10 Related Posts

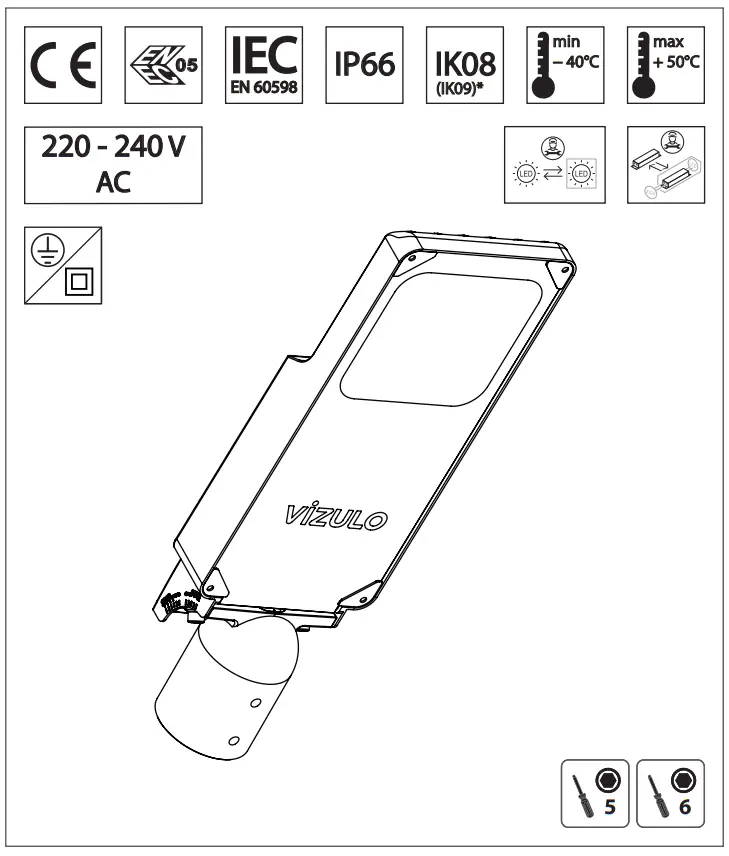

Mounting instruction

* Depends on configuration. Check label or technical specification.

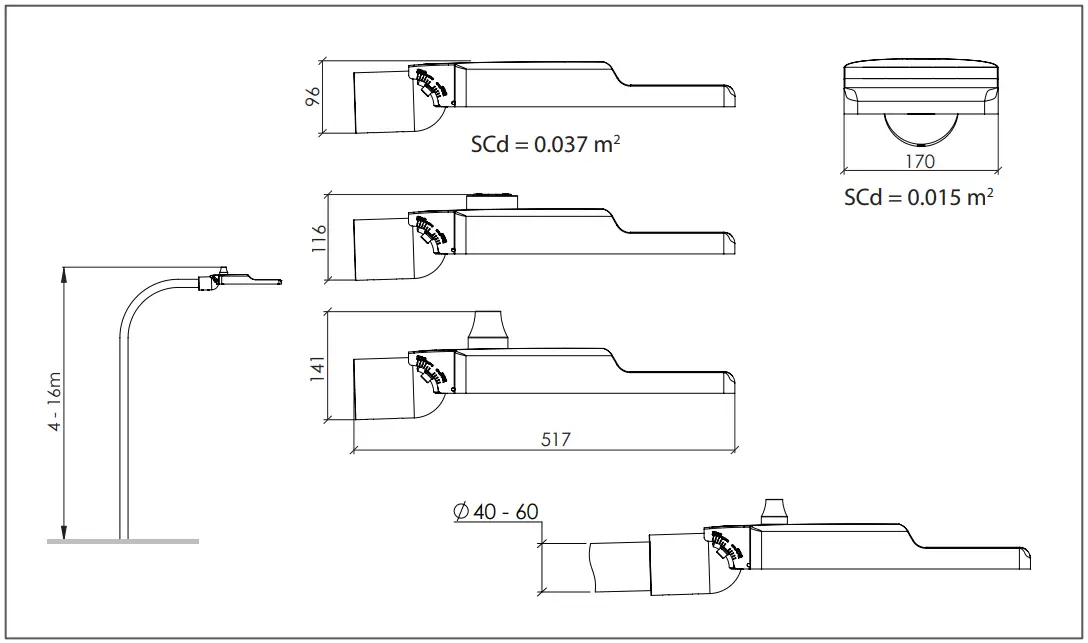

Dimensions

Average Netto Weight MRU AP004 3.5 kg

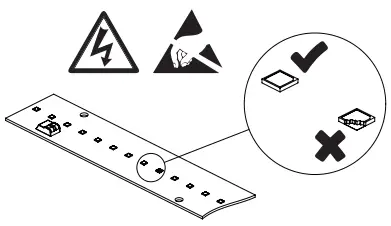

WARNING!

Do not touch LED modules!
Do not put any tools or other items on LED modules!
In case any LED is physically damaged (example shown below) the warranty is void.

LED	Power	CCT	Risk group	Remarks
Oslon Square	5 … 75 W	5700 K	RG1 aer 2,11m*	Label required
Luxeon 5050	5 … 75 W	5700 K	RG1 aer 1,85m*	Label required

*The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than shown in the table above is not expected.

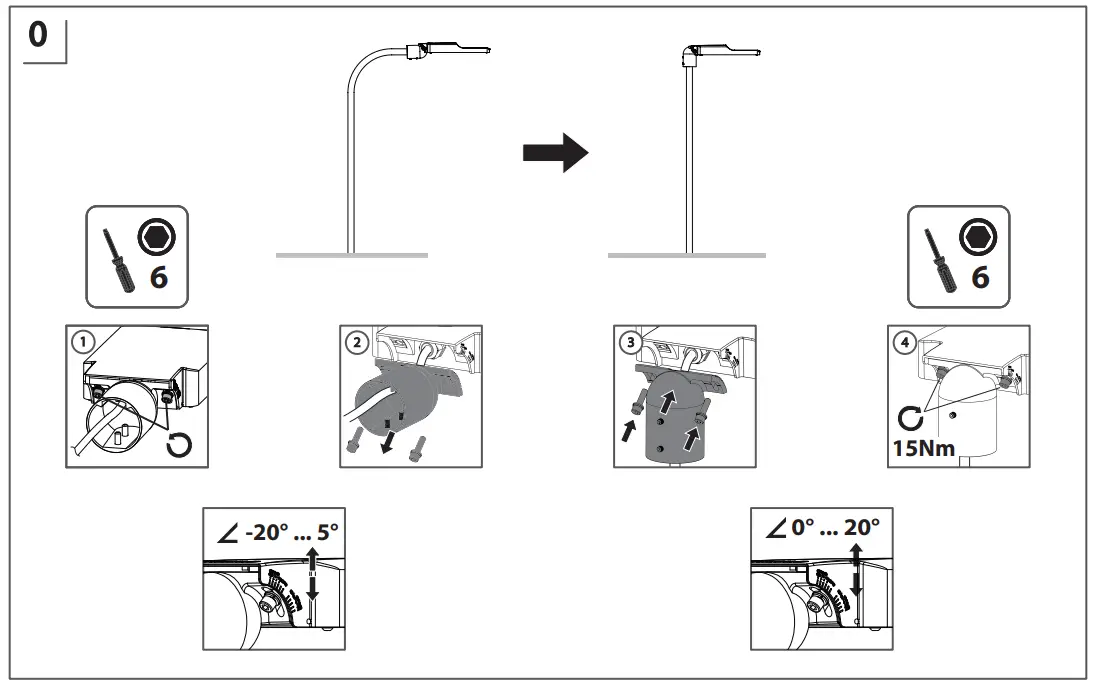

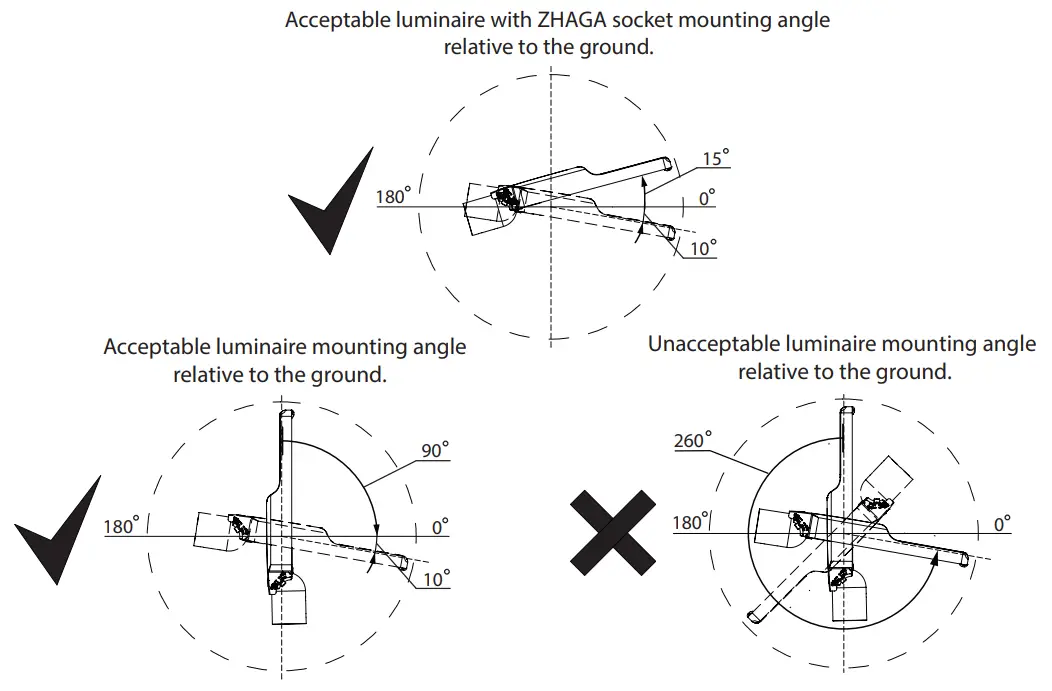

Acceptable luminaire with ZHAGA socket mounting angle

These limitations only apply when mounting the luminaire outdoors!

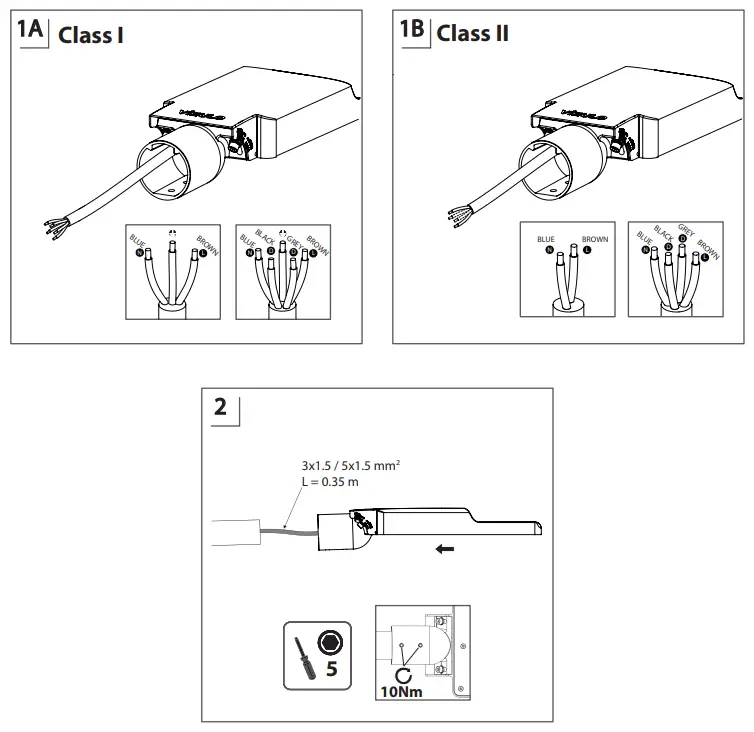

Standard Configuration

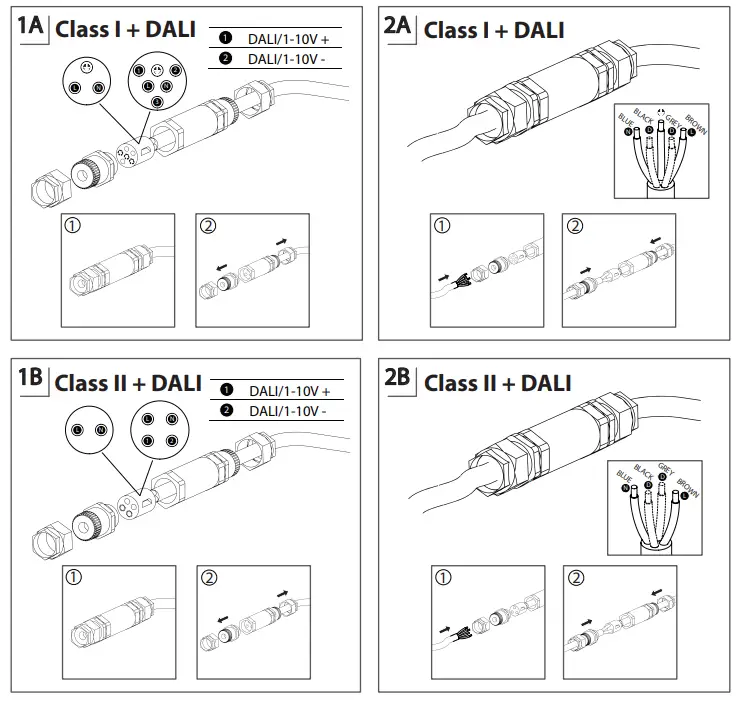

Configuration with terminal bloku

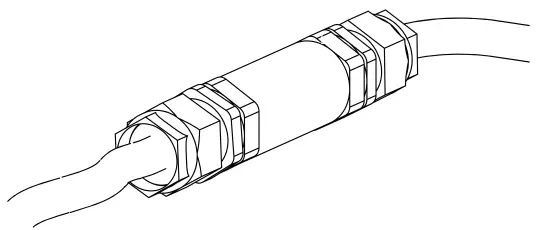

Watertight cable connector has to be ordered separately

Article	Description
70000313	2-pole terminal block with PE
70000304	4-pole terminal block with PE

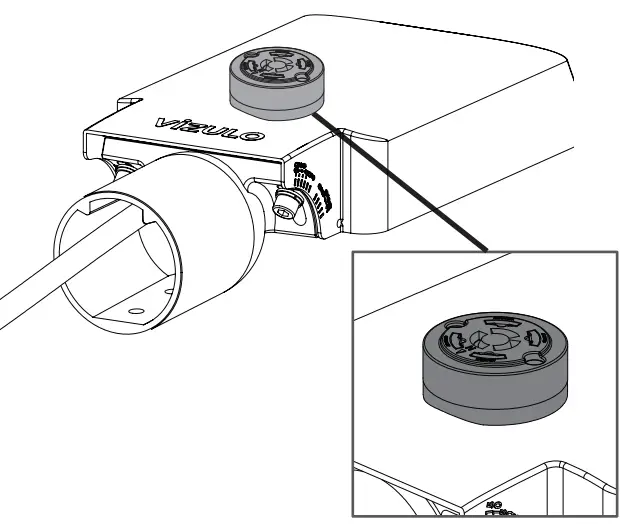

ATTENTION! In case of NEMA Socket.

IP66 applies only for luminaire body and for connection between luminaire body and NEMA Socket, and do not applies to any mounted control device and connection between control device and NEMA Socket.

MCB/Inrush current table

Tridonic LED driver (No dim/ Midnight dimming/ DALI)
Standard/ High density	In-rush current (peak/duration)	B1OA	B13A	B16A	B20A	B25A	B32A	B40A	C1OA	C13A	C16A	C20A	C25A	C32A	C40A
4-6 LED, 5-10W	9 A (253 ps)	28	36	44	51	63	81	102	46	60	73	85	106	136	170
6-12 LED, 11-26W	15 A (2261.6)	19	25	30	37	46	59	74	31	41	50	61	76	97	122
12-20 LED, 20-43W	25 A (236µs)	12	16	20	26	32	41	52	20	26	33	43	53	68	86
20-28 LED, 30-64W	32 A (335 Rs)	6	8	10	13	16	20	26	10	13	16	21	26	33	42
28-32 LED, 45-75W	42 A (238 pis)	6	8	10	13	16	20	26	10	13	17	22	27	35	44

Eco		B1OA	B13A	B16A	B20A	B25A	B32A	B40A	C1OA	C13A	C16A	C20A	C25A	C32A	C40A
4-4 LED, 5-11W	9 A (253µs)	28	36	44	51	63	81	102	46	60	73	85	106	136	170
4-4 LED, 12-20W	15 A (226 ps)	19	25	30	37	46	59	74	31	41	50	61	76	97	122
4-8 LED, 20-38W	25 A (236µs)	12	16	20	26	32	41	52	20	26	33	43	53	68	86
8-12 LED, 30-57W	32A (335 ps)	6	8	10	13	16	20	26	10	13	16	21	26	33	42
12-16 LED, 45-75W	42 A (238 1.xs)	6	8	10	13	16	20	26	10	13	17	22	27	35	44

Tridonic LED driver (Zhaga
Standard/ High density	In-rush current (peak/duration)	B1OA	B13A	816A	B20A	B25A	B32A	B40A	C1OA	C13A	C16A	C20A	C25A	C32A	C40A
4-6 LED, 5-11W	8 A (470µs)	19	25	30	38	47	60	76	31	41	50	63	78	100	126
6-12 LED, 12-26W	15 A (316 ps)	16	21	25	33	41	52	66	26	35	41	55	68	88	110
12-20 LED, 20-43W	20A (346µs)	11	14	17	22	27	35	44	18	23	28	36	45	57	72
20-24 LED, 30-64W	28 A (270 ps)	10	13	16	20	25	32	40	16	21	26	33	41	52	66

Eco		B1OA	B13A	B16A	B20A	B25A	B32A	B40A	C1OA	C13A	C16A	C20A	C25A	C32A	C40A
4-4 LED, 5-11W	8 A (470 p.$)	19	25	30	38	47	60	76	31	41	50	63	78	100	126
4-4 LED, 12-20W	15 A (316 us)	16	21	25	33	41	52	66	26	35	41	55	68	88	110
4-8 LED, 20-39W	20 A (346µs)	11	14	17	22	27	35	44	18	23	28	36	45	57	72
8-12 LED, 30-57W	28 A (270 ps)	10	13	16	20	25	32	40	16	21	26	33	41	52	66

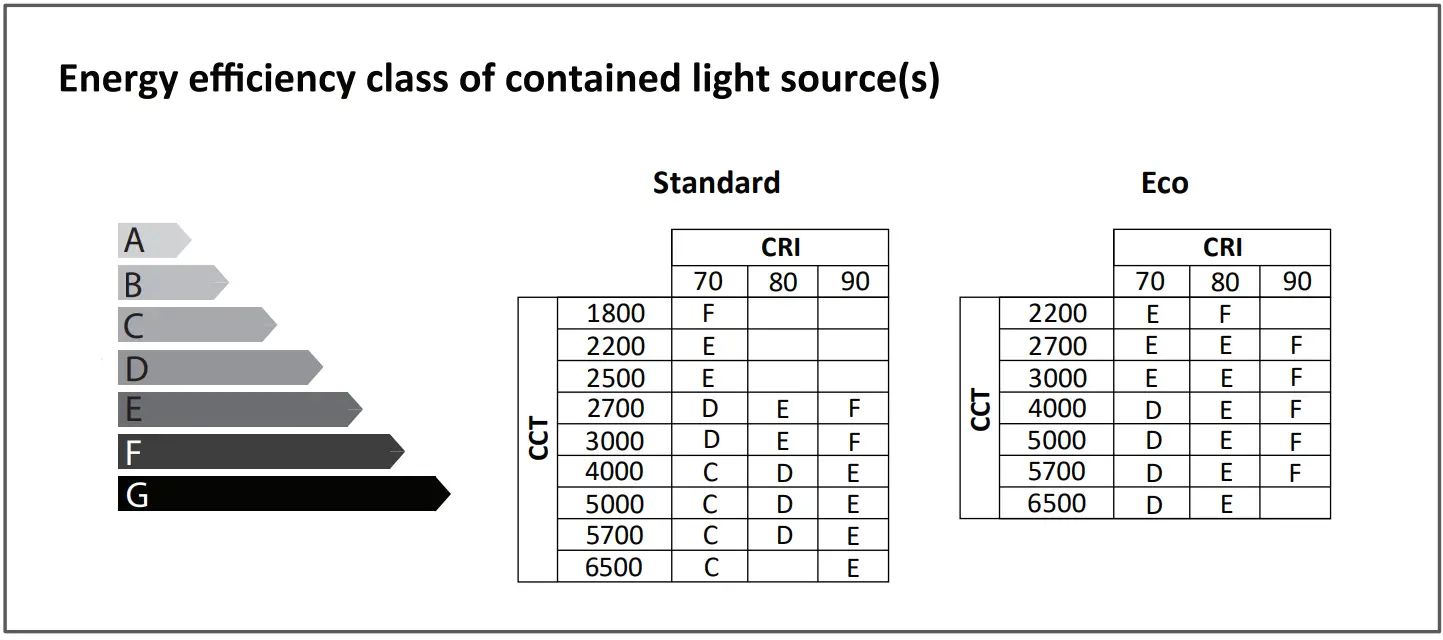

Terms of use and maintenance
Before luminaire is turned on, it should be mounted according with this mounting instruction or any other applicable regulations.

Mounting instructions

Mounting of luminaire must be performed by a qualified person according with following instructions:

The warranty of luminaire does not apply, if the mounting of luminaire has been performed in precipitation (rain, snow, hail).
The warranty of luminaire does not apply, if a control system unauthorized by VIZULO or an inapplicable LED driver has been used to drive the luminaire.
The warranty of luminaire does not apply, if it has been used in an unsuitable ambient temperature or has been supplied by voltage outside of the specified range.
The warranty of luminaire does not apply, if the LED driver program has been changed in any way.
The warranty of the luminaire does not apply, if the logged history data of the LED driver has been deleted without the permission of VIZULO.
The warranty of luminaire does not apply, if it has been mounted in unspecified angles or upside down (luminaire glass directed up), or it has been completely submerged under water.

Safety instructions

Any actions with the luminaire must be performed by a qualified person, who is certified according with national regulations and requirements.
To prevent any accidents person installing the luminaire must follow national safety requirements and following instructions:

The label containing technical parameters of the luminaire has to be studied before the work on it has begun.
Any luminaire build or design changes are prohibited.
The luminaire must be used in good technical condition and according with this instruction.
Only VIZULO authorized spare parts and accessories can be used to repair the luminaire.
The repair of luminaire has to be performed by a qualified and certified person.

Maintenance and repair

Luminaire has to be disconnected from electrical grid before it is opened and/or repaired!

The person working with the luminaire must follow national regulations and legislations that apply to maintenance and testing of electrical or electronic appliances.
The luminaire may need to be cleaned depending on its environment. Only a damp cloth or a sponge may be used to clean the luminaire. Use only household detergents diluted by water.
Only VIZULO authorized spare parts may be used for the luminaire.
Instruction for changing spare parts must be requested from VIZULO and studied before the repair is attempted.
LED modules, lens and LED drivers can be changed on an installed luminaire, but it is advised to perform this task indoor to avoid water entering the luminaire.
Spare parts (lens, LED modules and drivers) should be ordered from the information available on the luminaire label.

12-08-2022
SIA VIZULO
Laucu Lejas, Iecava, Latvia, LV-3913
www.vizulo.com
