H8659 Grips for HT420 HT470 Thermal Tweezers
Instruction Manual
This manual corresponds to the following reference: 0018659 green
Packing List
The following items are included:

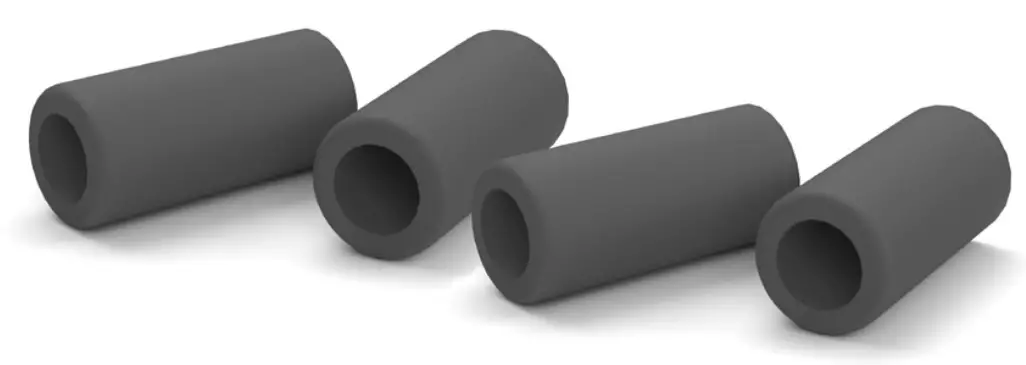

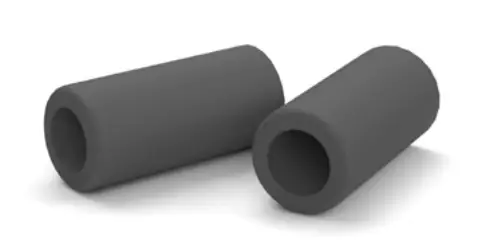

Grips for HT420 / HT470 Thermal Tweezer…………………… 4 units

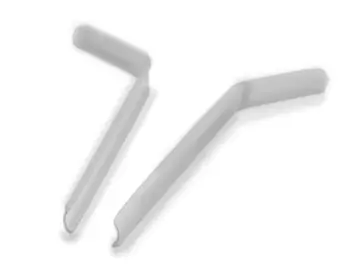

Fitters …………………………. 4 units
Manual ……………………… 1 unit
Ref. 0028131
Changing Grips
Replace the grips easily using the included fitters like shown in the
following pictures.
- Inserting Fitters

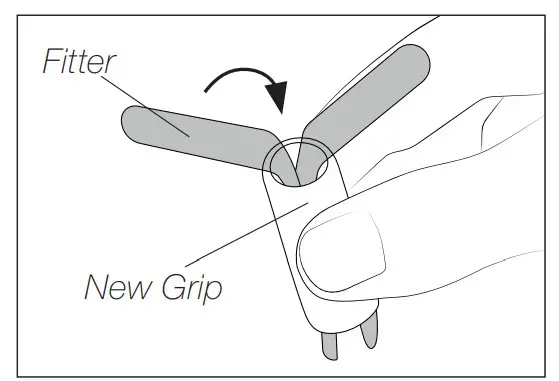

Insert the fitters into the new grip. - Assemble Grip

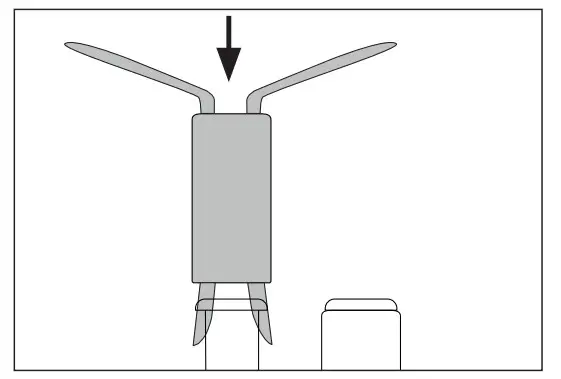

Push the grip with the fitters onto the tweezers. - Removing Fitters

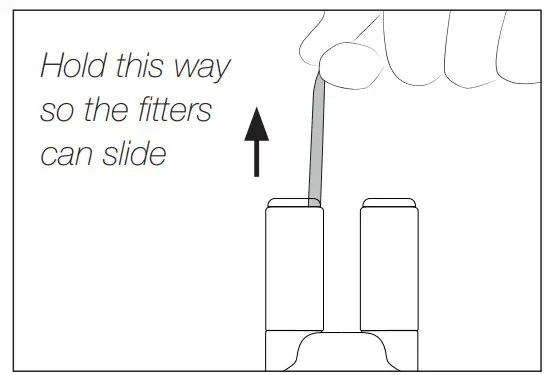

To remove the fitters, hold the grip and pull the fitters out. Use pliers if necessary.
Insert the fitters into the new grip.
Push the grip with the fitters onto the tweezers.
To remove the fitters, hold the grip and pull the fitters out. Use pliers if necessary. Specifications
H8659
Grips for HT420 Thermal Tweezers
Ref.: 0018659 green
| – Grip Dimensions: | 26 x ø12 mm / 1.02 x ø0.47 in |
| – Total Net Weight: | 4.27 g / 0.009 lb |
| Package Dimensions/Weight: 9 (L x W x H) A54 | : 90 x 55 x 40 mm / 15.83 g 3.54 x 2.17 x 1.57 in / 0.035 lb |
Complies with CE standards.
ESD safe.
Warranty
JBC’s 2-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor.
The warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
JBC Soldering and Rework equipment for electronics
