VENTURE LIGHTING BF0011 LED Strip Fixture User Manual

Contents hide

Read These Instructions Completely and Carefully

Upgrade Instructions

STEP 1: Disconnect power from the existing luminaire and follow proper lockout/tagout procedures before beginning installation or maintenance.

STEP 2: Remove the existing luminaire. Dispose of the lamp(s) and ballast(s) per local requirements.

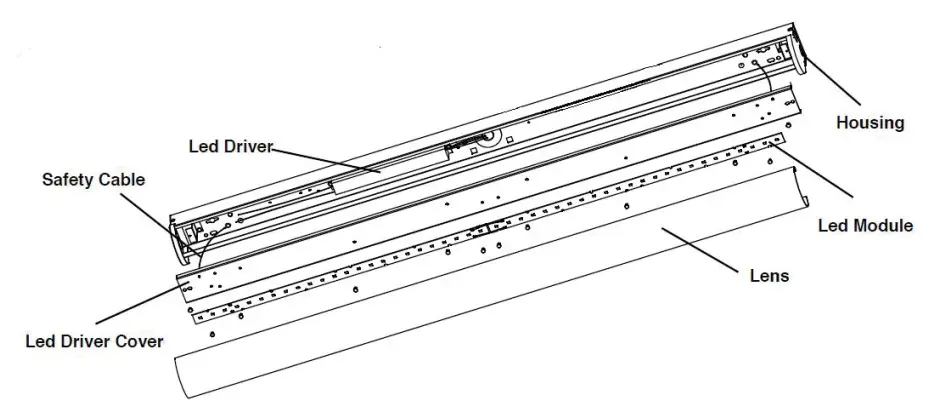

STEP 3: Remove lens and wire way cover. (A)

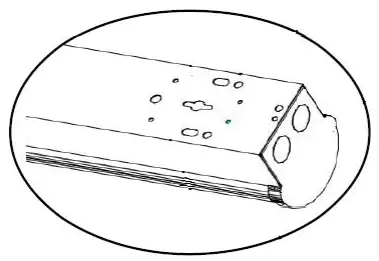

STEP 4: Select installation point and locate studs. For rear access points, feed wires through hole. (B)

STEP 5: Select wiring access point and remove appropriate knockout.

STEP 6: Make the necessary wiring connections as shown in the wiring diagram. (C)

Risk of fire and electric shock

Disconnect power from the luminaire and follow proper lockout/tagout procedures before beginning installation or maintenance. Contact a qualified electrician for installation.
Venture Lighting’s LED Strip Fixture installation requires knowledge of luminaire electrical systems. If not qualified, do not attempt installation. Contact a qualified electrician.
To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
The product should be installed and operated by a qualified electrician or technician in accordance with relevant local codes.
Check to make sure that all fixture connections have been properly made and the fixture is grounded to avoid potential electrical shocks.
Suitable for use in damp and dry locations.
The installer must determine that the supply voltage meets the fixture requirement.
Minimum 90°C supply conductors
