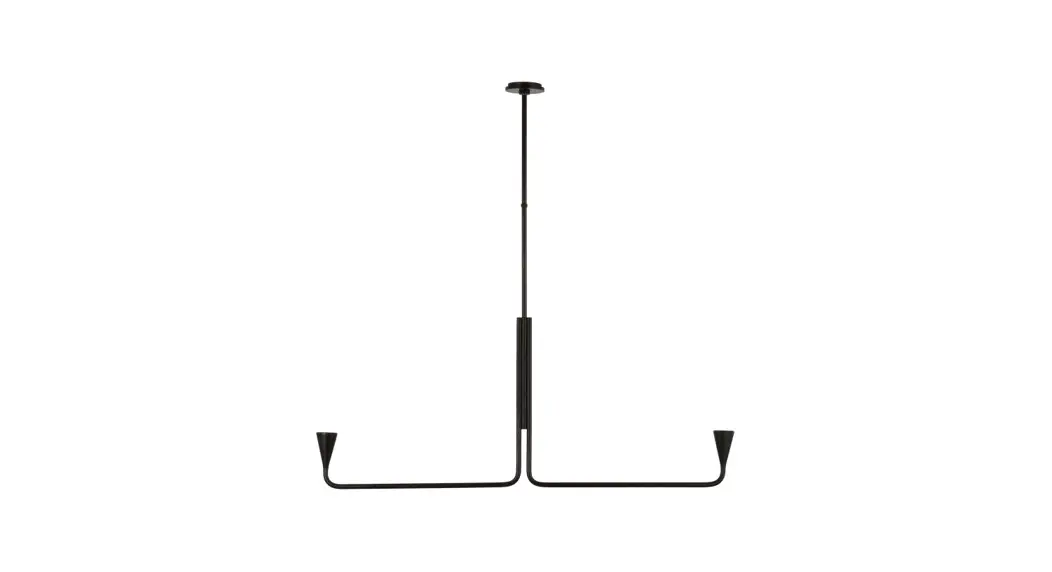

KW 5597 Rousseau Large Articulating Linear Chandelier
Product Information:
Product Name: Rousseau Large Articulating Linear Chandelier
Item Number: KW 5597
Notice: This light fixture should be installed in accordance
with all applicable, local installation codes, and by a person
familiar with the construction and operation of it, as well as the
hazards involved. Inspect item and contents carefully. If any
damage or defect is found, do not install. Retain all packaging
material until installation is complete and approved.
Care Instructions: Clean only with a soft dry cloth or feather
duster. Do not use abrasive or chemical agent.
Product Usage Instructions:
- Carefully remove all parts from the box. Place on a clean, soft
surface. - Remove mounting plate (A) from canopy (E) by removing collar
ring (F). - Install mounting plate (A) to junction box and secure with
mounting screws (C). - Feed electrical wires through bottom rod (H) and connect to
fixture (I). Repeat for middle rod (M), connecting to bottom rod
(H). - Continue feeding wires through collar ring (F), canopy (E), and
top rod (G). - Holding fixture upright, slide collar ring (F) and canopy (E)
down and tighten. - Wrap filter (B) ground wire (bare copper) around the green
grounding screw. Tighten. - Continue filter (B) ground wire and connect to supply ground
wire (usually green or bare copper) using a wire nut (K). - Connect filter (B) neutral wire (white) to the supply neutral
wire (usually white) using a wire nut (K). - Connect filter (B) hot wire (black) to the supply hot wire
(usually black) using a wire nut (K). CAUTION: Do not reverse the
hot and neutral connections. - Make sure all wire connections are tight, then carefully tuck
into the junction box. - Insert driver (J) and filter (B) into the mounting plate
bracket. - Install canopy (E) to mounting plate (A) by securing with
collar ring (F). - Thread shades (L) to fixture body (I).
- Adjust shade to the desired angle. Tighten screws (N) if
fixture does not hold adjustment.
ASSEMBLY INSTRUCTIONS
B Diagram 1
J K
White
Black
Input
A
N
L
C
D
E
F
Output
Black
Red
G
M
Diagram 2
L H
I
Rousseau Large Articulating Linear Chandelier
Item #KW 5597
NOTICE:
This light fixture should be installed in accordance with all applicable, local installation codes, and by a person familiar with the construction and operation of it, as well as the hazards involved. Inspect item and contents carefully. If any damage or defect is found, do not install. Retain all packaging material until installation is complete and approved.
TOOLS REQUIRED (NOT INCLUDED):
Phillips Screwdriver Slip Joint Pliers
Slotted Screwdriver Wire Strippers
Wire Cutters
1. Carefully remove all parts from the box. Place on a clean, soft surface. 2. Remove mounting plate (A) from canopy (E) by removing collar
ring (F). 3. Install mounting plate (A) to junction box and secure with mounting
screws (C). 4. Feed electrical wires through bottom rod (H) and connect to fixture (I).
Repeat for middle rod (M), connecting to bottom rod (H). 5. Continue feeding wires through collar ring (F), canopy (E) and top
rod (G). 6. Holding fixture upright, slide collar ring (F) and canopy (E) down and
rest on fixture (I). Then connect top rod (G) to middle rod (M). NOTE: Slide components down slowly to avoid damages. 7. Hang fixture swivel ball (D) to the center of mounting plate (A). 8. Cut excess wires, being sure to leave enough to reach the junction box. Separate wires, and strip insulation on each 5/8″. 9. Connect fixture neutral wire (black) to the driver output neutral wire (black) using wire nut (K). 10. Connect fixture hot wire (red) to the driver output hot wire (red) using wire nut (K).
ASSEMBLY INSTRUCTIONS
B Diagram 1
J K
N Diagram 3
White
Black
Input
A
N
L
C
D
E
F
Output
Black
Red
G
M
Diagram 2
L H
I
Rousseau Large Articulating Linear Chandelier
Item #KW 5597
NOTICE:
This light fixture should be installed in accordance with all applicable, local installation codes, and by a person familiar with the construction and operation of it, as well as the hazards involved. Inspect item and contents carefully. If any damage or defect is found, do not install. Retain all packaging material until installation is complete and approved.
11. Wrap filter (B) ground wire (bare copper) around the green grounding screw (see diagram 1). Tighten. Continue filter (B) ground wire and connect to supply ground wire (usually green or bare copper) using wire nut (K). NOTE: It is imperative that the fixture is grounded.
12. Connect filter (B) neutral wire (white) to the supply neutral wire (usually white) using wire nut (K).
13. Connect filter (B) hot wire (black) to the supply hot wire (usually black) using wire nut (K). CAUTION: Do not reverse the hot and neutral connections.
14. Make sure all wire connections are tight, then carefully tuck into the junction box.
15. Insert driver (J) and filter (B) into mounting plate bracket. 16. Install canopy (E) to mounting plate (A) by securing with collar
ring (F). 17. Thread shades (L) to fixture body (I). See diagram 2.
NOTE: Do not over-tighten otherwise shade could become damaged. 18. Adjust shade to desired angle.
NOTE: Tighten screws (N) if fixture does not hold adjustment.
Care Instructions: Clean only with a soft dry cloth or feather duster. Do not use abrasive or chemical agent.
