jibe JDL146 Series LED Batten

Introduction

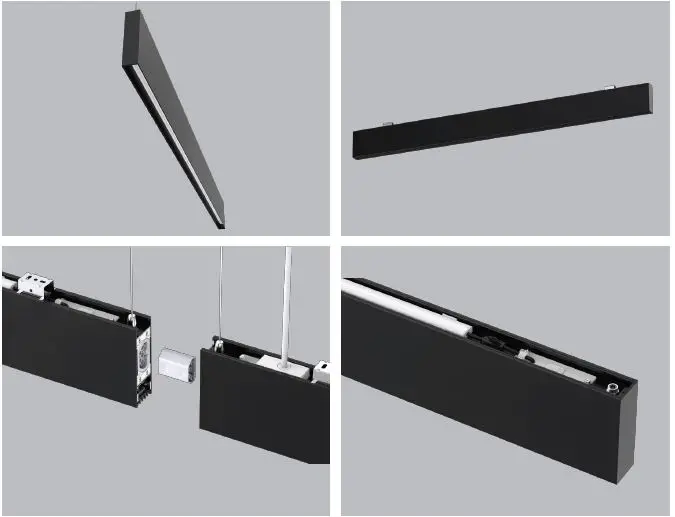

Constructed of durable and attractive aluminum, this fitting is more stylish than others. The system is a great design and adds great appeal to a space, dramatically improving the light levels. It adopts a high lumen light source with different module DIY options, up&down lighting distribution design. Besides, for installation, the pluggable and magnetic seamless splicing design makes it a quick install. AL6063 aluminum provides great thermal management.

Features

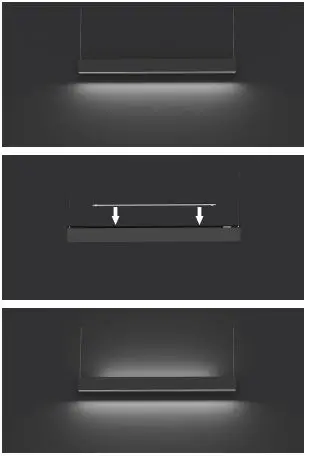

Up & down lighting design, up 20% & down 80%.
Pluggable and magnetic seamless splicing design.
Interchangeable CCT(3000K+4000K) and uplighting control with the same slide switch.
High lumen efficiency, 100lm/W and 120lm/W for option.

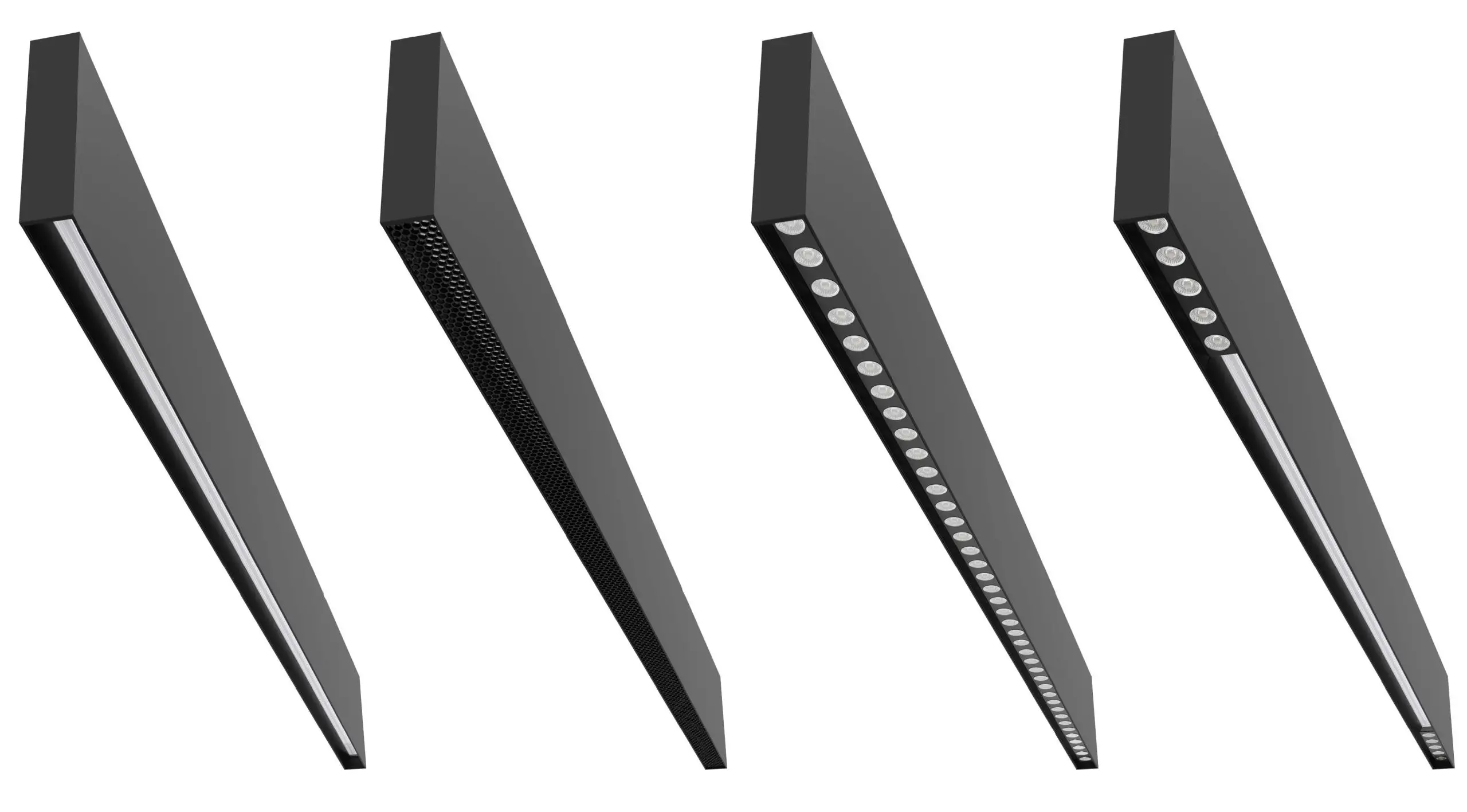

DIY module design option: direct lighting module, honeycomb module, lens module, direct lighting + lens module.
Flicker-free driver with Nondim and DALI dim option.

Application Areas

It is designed for general lighting applications in offices, supermarkets, shopping malls, restaurants, hotels, etc.

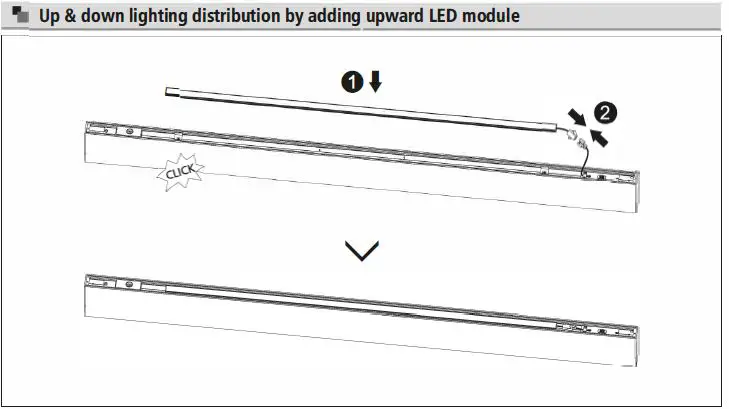

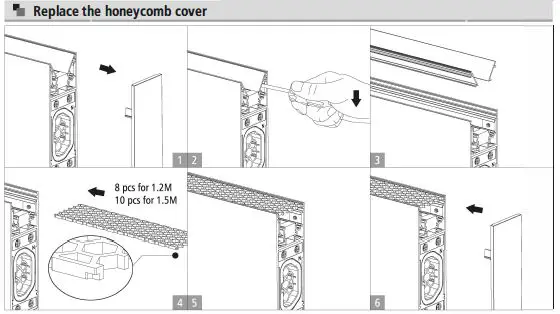

DIY LED module for UP light

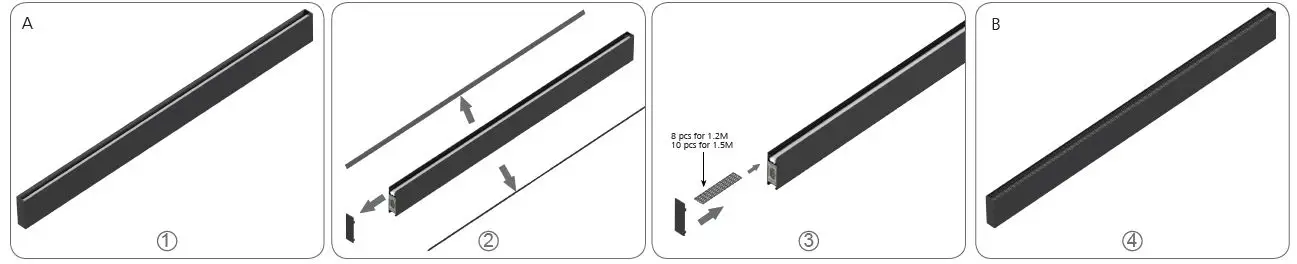

DIY (Convert JDL146A to B, only for splicing version)

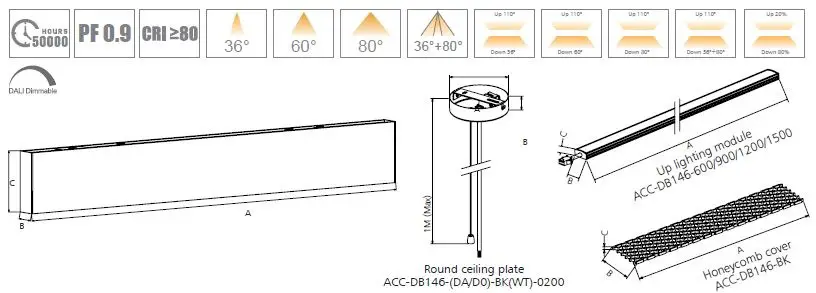

Measurement

Code	Dimension(mm)			Size(mm)	Product Weight (Kg)		Package weight(Kg)		Carton Size (cm)	Qty/ CTN	20GP (pcs)	40HQ (pcs)
Code	A	B	C	Size(mm)	N.W/PC	G.W/PC	N.W/CTN	G.W/CTN	Carton Size (cm)	Qty/ CTN	20GP (pcs)	40HQ (pcs)
DB146A-600	605	34	105	60534105	1.40	1.61	8.40	10.30	67.519.529	6	4656	10800
DB146A-900	905	34	105	90534105	2.10	2.35	12.60	14.97	97.519.529	6	3024	7128
DB146A/B/C/D-1200	1205	34	105	120534105	2.70	3.10	16.20	19.70	127.519.529	6	2352	5670
DB146A/B/C/D-1500	1505	34	105	150534105	3.20	3.59	19.20	22.82	157.519.529	6	1824	4374
ACC-DB146-600	253	17.5	7	25317.57	0.04	–	0.24	1.15	31.511.513	6	39420	89760
ACC-DB146-900	553	17.5	7	55317.57	0.087	–	0.53	1.97	61.511.513	6	19764	45360
ACC-DB146-1200	853	17.5	7	85317.57	0.135	–	0.81	2.78	91.511.513	6	13392	30480
ACC-DB146-1500	1153	17.5	7	115317.57	0.18	–	1.1	3.59	121.511.513	6	9288	22080
ACC-DB146-BK	149.8	31.5	2	149.831.52	0.004	–	2.96	6.20	32.522.519	800	1728000	3837600
ACC-DB146-(DA/D0)-BK(WT)-0200	Ø100	25	–	Ø100*25	0.28	0.31	1.12	1.35	26.513.514	4	23360	54432

Technical Data Sheet

(JDL146A)

Code No.				JDL146A-600-18W		JDL146A-900-25W		JDL146A-1200-38W		JDL146A-1500-50W
Dimension(mm)				60534105		90534105		120534105		150534105
Cutout (mm)				–
Watt(W)				15W (Downward)	15W (Downward) +3W (Upward)	20W (Downward)	20W (Downward) +5W (Upward)	30W (Downward)	30W (Downward) +8W (Upward)	40W (Downward)	40W (Downward) +10W (Upward)
Rated Input Voltage(V)				AC230V
Input Voltage(V)				AC220-240V
LED Module Input				–
Light Source				SMD
SDCM				SDCM<4 for whole lamp
CCT(K)				1-CCT:3000K/4000K/5000K / 2-CCT:3000K+4000K
CCT Selection DIP Switch				Yes
Luminous Flux (lm) ±5% (Black color)	Non- DIM	1-CCT	Standard	1150-1650	1400-2000	1650-2200	2150-2700	2550-3300	3300-4150	3500-4350	4350-5400
			Premium	–				3000-4000	3800-4900	4000-5200	5100-6400
	DIM		Standard	–				2550-3300	3300-4150	3500-4350	4350-5400
			Premium	–				3000-4000	3800-4900	4000-5200	5100-6400
	Non- DIM	2-CCT	Standard	1150-1650	1400-2000	1650-2200	2150-2700	2550-3300	3300-4150	3500-4350	4350-5400
			Premium	–				3000-4000	3800-4900	4000-5200	5100-6400
	DIM		Standard	–				2550-3300	3300-4150	3500-4350	4350-5400
			Premium	–				3000-4000	3800-4900	4000-5200	5100-6400
Remark: If with white color, the lumen will increase around 6%
CRI				80
Beam Angle (°)				80º	Up110º Down 80º	80º	Up110º Down 80º	80º	Up110º Down 80º	80º	Up110º Down 80º
UGR				–
LED Driver				Built-in
Dimming Option				–				DALI
Sensor				–
Emergency Kits				–
Electrical Class				Class I
Ingress Protection (IP Rating)				IP20
Impact Resistance (IK Rating)				–
Product Finishing(Base)				Black RAL9005,White RAL9016
Materials of Optics				PMMA	PMMA+PC	PMMA	PMMA+PC	PMMA	PMMA+PC	PMMA	PMMA+PC
Materials of Housing				Aluminum
Lifetime (hr)				50,000h
Glow wire test (℃ )				650℃
Operating Temp. (℃ )				-20℃ ~45℃
Storage Temp. (℃ )				-20℃ ~65℃
Installation				Surface mount / Pendant /wall mount

(JDL146B)

Code No.				JDL146B-1200-38W		JDL146B-1500-50W
Dimension(mm)				120534105		150534105
Cutout (mm)				–
Watt(W)				30W(Downward)	30W(Downward) +8W(Upward)	40W(Downward)	40W(Downward) +10W(Upward)
Rated Input Voltage(V)				AC230V
Input Voltage(V)				AC220-240V
LED Module Input				–
Light Source				SMD
SDCM				SDCM<4 for whole lamp
CCT(K)				1-CCT:3000K/4000K/5000K / 2-CCT:3000K+4000K
CCT Selection DIP Switch				Yes
Luminous Flux (lm) ±5%	Non-DIM	1-CCT	Standard	1150-1500	1700-2500	1550-2000	2300-3250
			Premium	1350-1800	2200-2850	1850-2400	3000-3700
	DIM		Standard	1150-1500	1700-2500	1550-2000	2300-3250
			Premium	1350-1800	2200-2850	1850-2400	3000-3700
	Non-DIM	2-CCT	Standard	1150-1500	1700-2500	1550-2000	2300-3250
			Premium	1350-1800	2200-2850	1850-2400	3000-3700
	DIM		Standard	1150-1500	1700-2500	1550-2000	2300-3250
			Premium	1350-1800	2200-2850	1850-2400	3000-3700
CRI				80
Beam Angle (°)				60º	Up110º / Down 60º	60º	Up110º / Down 60º
UGR				UGR<22
LED Driver				Built-in
Dimming Option				DALI
Sensor				–
Emergency Kits				–
Electrical Class				Class I
Ingress Protection (IP Rating)				IP20
Impact Resistance (IK Rating)				–
Product Finishing(Base)				Black RAL9005,White RAL9016
Materials of Optics				PMMA	PMMA+PC	PMMA	PMMA+PC
Materials of Housing				Aluminum
Lifetime (hr)				50,000h
Glow wire test (℃ )				650°C
Operating Temp. (℃ )				-20℃ ~45℃
Storage Temp. (℃ )				-20℃ ~65℃
Installation				Surface mount / Pendant /wall mount

(JDL146C)

Code No.				JDL146C-1200-38W		JDL146C-1500-50W
Dimension(mm)				120534105		150534105
Cutout (mm)				–
Watt(W)				30W(Downward)	30W(Downward) +8W(Upward)	40W(Downward)	40W(Downward) +10W(Upward)
Rated Input Voltage(V)				AC230V
Input Voltage(V)				AC220-240V
LED Module Input				–
Light Source				SMD
SDCM				SDCM<4 for whole lamp
CCT(K)				1-CCT:3000K/4000K/5000K
CCT Selection DIP Switch				NO
Luminous Flux (lm) ±5%	Non-DIM	1-CCT	Standard	2700-3300	3450-4150	3650-4350	4600-5400
			Premium	3100-4000	4000-4900	4200-5200	5300-6400
	DIM		Standard	2700-3300	3450-4150	3650-4350	4600-5400
			Premium	3100-4000	4000-4900	4200-5200	5300-6400
CRI				80
Beam Angle (°)				36º	Up110º / Down 36º	36º	Up110º / Down 36º
UGR				UGR<19
LED Driver				Built-in
Dimming Option				DALI
Sensor				–
Emergency Kits				–
Electrical Class				Class I
Ingress Protection (IP Rating)				IP20
Impact Resistance (IK Rating)				–
Product Finishing(Base)				Black RAL9005,White RAL9016
Materials of Optics				PC
Materials of Housing				Aluminum
Lifetime (hr)				50,000h
Glow wire test (℃ )				750°C
Operating Temp. (℃ )				-20℃ ~45℃
Storage Temp. (℃ )				-20℃ ~65℃
Installation				Surface mount / Pendant /wall mount

(JDB146D)

Code No.				JDL146D-1200-38W		JDL146D-1500-50W
Dimension(mm)				120534105		150534105
Cutout (mm)				–
Watt(W)				30W(Downward)	30W(Downward) +8W(Upward)	40W(Downward)	40W(Downward) +10W(Upward)
Rated Input Voltage(V)				AC230V
Input Voltage(V)				AC220-240V
LED Module Input				–
Light Source				SMD
SDCM				SDCM<4 for whole lamp
CCT(K)				1-CCT:3000K/4000K/5000K
CCT Selection DIP Switch				NO
Luminous Flux (lm) ±5% (Black color)	Non-DIM	1-CCT	Standard	2550-3300	3300-4150	3500-4350	4350-5400
			Premium	3000-4000	3800-4900	4000-5200	5100-6400
	DIM		Standard	2550-3300	3300-4150	3500-4350	4350-5400
			Premium	3000-4000	3800-4900	4000-5200	5100-6400
Remark: If with white color, the lumen will increase around 3%
CRI				80
Beam Angle (°)				36º+80º	Up110º Down 36º+80º	36º+80º	Up110º Down 36º+80º
UGR				–
LED Driver				Built-in
Dimming Option				DALI
Sensor				–
Emergency Kits				–
Electrical Class				Class I
Ingress Protection (IP Rating)				IP20
Impact Resistance (IK Rating)				–
Product Finishing(Base)				Black RAL9005,White RAL9016
Materials of Optics				PMMA+PC
Materials of Housing				Aluminum
Lifetime (hr)				50,000h
Glow wire test (℃ )				650°C
Operating Temp. (℃ )				-20℃ ~45℃
Storage Temp. (℃ )				-20℃ ~65℃
Installation				Surface mount / Pendant /wall mount

Driver Datasheet (Non-dimmable )

Total load wattage		15W	18W	20W	25W	30W	38W	40W	50W
Output	Output Voltage range	DC28-42V
	Rated output current	435mA		580mA		900mA		1200mA
	Line Regulation	±5%
	Setup, Rise Time	<0.5S @AC230V
	Flickering Index	<0.5
Input	Input Voltage	AC180-264V
	Rated Input Voltage(V)	AC200-240V
	Frequency	50/60Hz
	Input Current	<0.09A	<0.11A	<0.12A	<0.16A	<0.19A	<0.23A	<0.25A	<0.30A
	Rated Input Current	<0.08A	<0.10A	<0.11A	<0.14A	<0.17A	<0.21A	<0.23A	<0.27A
	Power Factor	0.9
	THD	<20% @230V
	Efficiency	85%		86%
	No load wattage	< 0.5W @ 23OVAC
Protection	Short circuit protection	PASS
	Over voltage protection	PASS
	Over temperature protection	PASS
Safety &EMC	Withstand voltage	I/P-FG:1.5KVac,<5mA 60S
	Isolation Resistance	500VDC, ≥2M Ω
	Surge	IEC/EN61000-4-5( P<25W; L-N:500V, L/N-PE:1KV)			IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV)
	EMC Emission	EN55015,EN61000-3-2
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11; EN61547

(DALI Dimmable )

Total load wattage		30W	38W	40W	50W
Output	Output Voltage range	DC28-40V
	Rated output current	900mA		1150mA
	Line Regulation	±5%
	Setup, Rise Time	<0.1S @AC230V
	Flickering Index	<0.5
Input	Input Voltage	AC 180-264V
	Rated Input Voltage(V)	AC 200-240V
	Frequency	50/60Hz
	Input Current	<0.19A	<0.24A	<0.25A	<0.31A
	Rated Input Current	<0.17A	<0.22A	<0.23A	<0.28A
	Power Factor	0.9
	THD	< 20% @ 23OVAC
	Efficiency	87%		88%
	No load wattage	<0.5W @ 230VAC
Protection	Short circuit protection	PASS
	Over voltage protection	PASS
	Over temperature protection	PASS
Safety &EMC	Withstand voltage	I/P-FG:1.5KVac,<5mA 60S
	Isolation Resistance	500VDC, ≥2M Ω
	Surge	IEC/EN61000-4-5 (P≥25w L-N:1KV, L/N-PE:2KV)
	EMC Emission	EN55015,EN61000-3-2
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11; EN61547

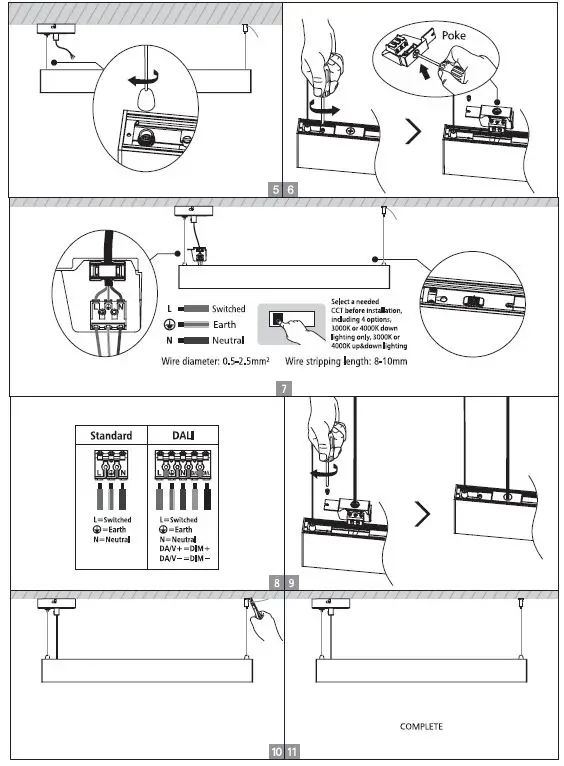

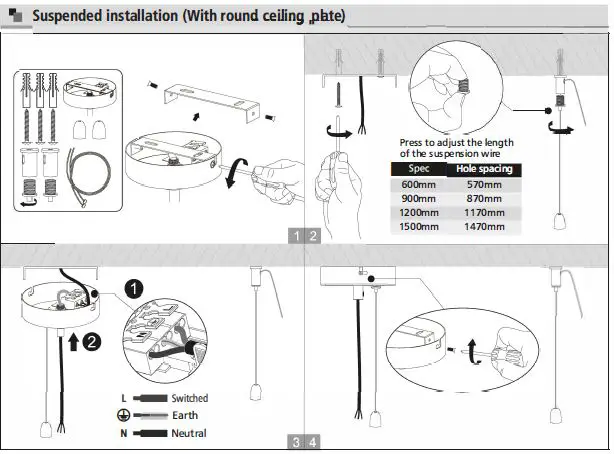

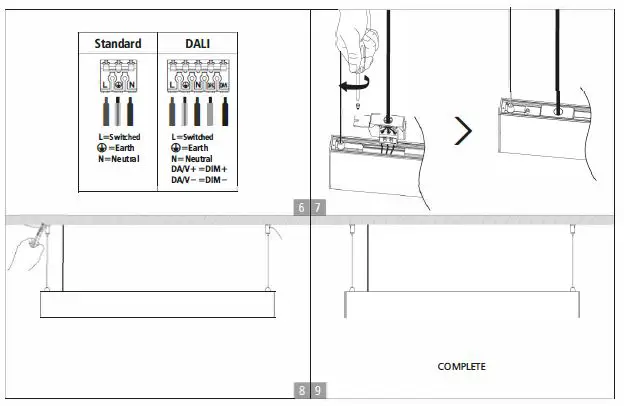

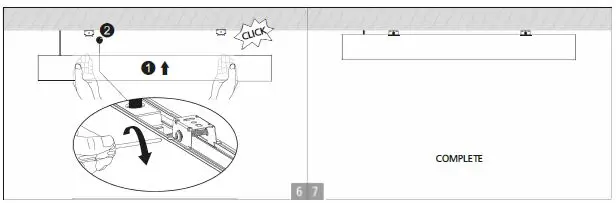

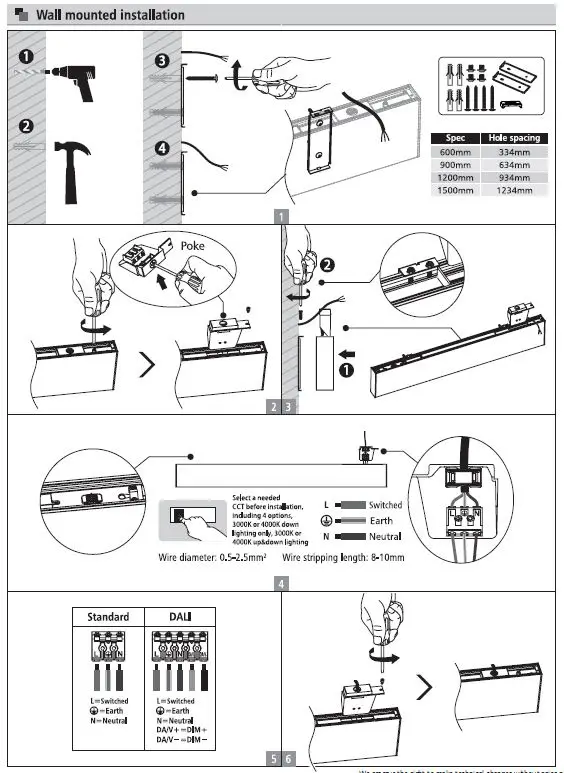

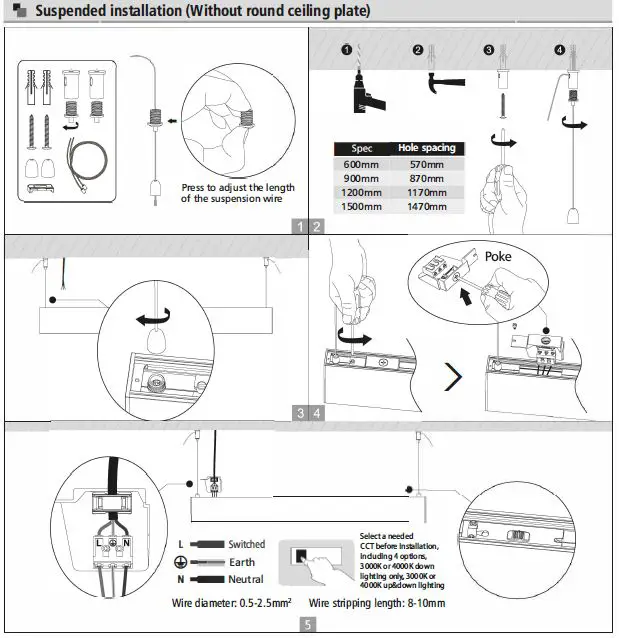

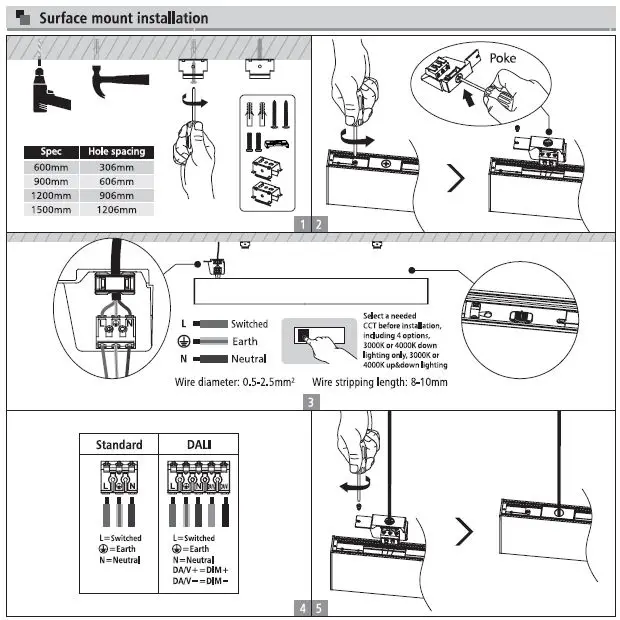

Installation Procedure

WARNING

Switch off before installation.
Switch on only after complete installation and examination of the circuit.
Professional electrician for installation and maintenance only.
Turn Off the power supply before starting any installation. Read instructions & check you have all the tools & accessories to complete the installation correctly.
