impact SC-BP Stage Clamp with Baby Pin
Introduction
The Impact Stage Clamp with Baby Pin lets you hang a light fixture or equipment from pipe grids and lighting trusses. The clamp’s dual-position locking bolt will create a secure attachment to square or round tubing up to 2 inches in diameter. Its solid steel construction will easily support loads up to 110 pounds, and an integrated safety hole at the end of the baby stud lets you secure your fixture with a safety pin.
Precautions ⚠⚡
- Please read and follow these instructions, and keep this manual in a safe place.
- Make sure the light fixture is properly secured to the baby pin with the setscrew positioned in the recess of the baby pin.
- Make sure the clamp is properly secured to the pipe grid or truss with the steel bolt.
- Light fixtures should be properly secured to the pipe grid or truss with a safety cable.
- Do not exceed the maximum load capacity.
- Always use a steel safety cable (not included) when suspending a light fixture or other assembly.
- All images are for illustrative purposes only

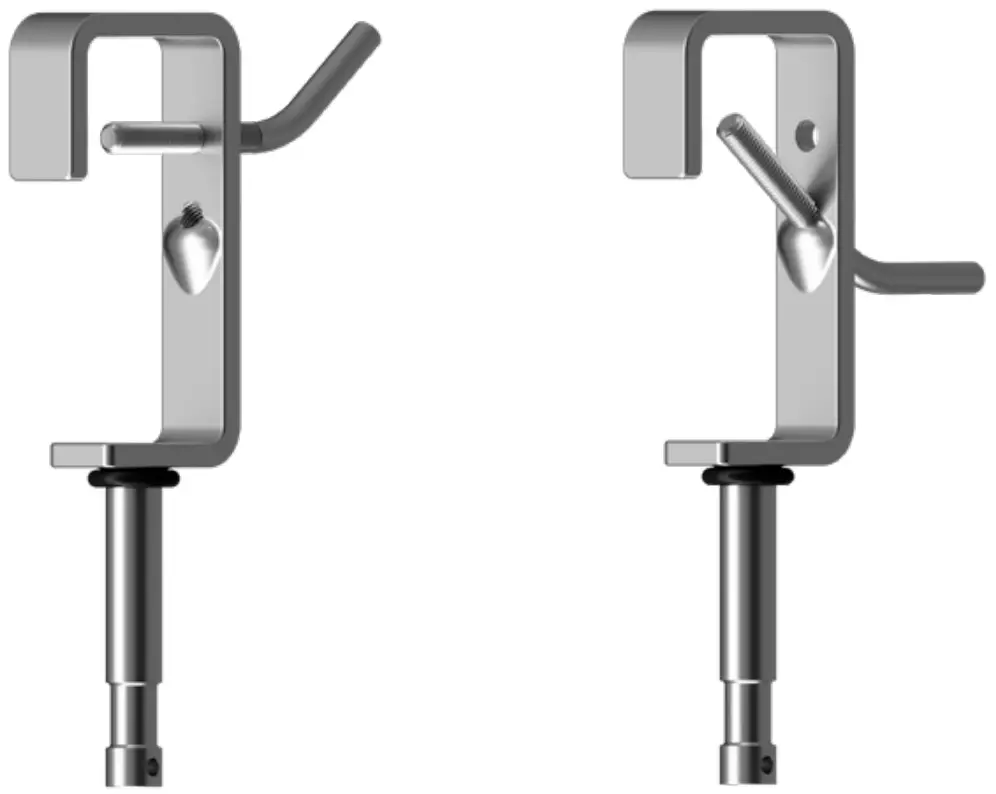

Dual-Position Locking Bolt
Specifications
| Mounting | 5/8 in. (16 mm) stud |
| Load capacity | 110 lb. (49.9 kg) |
| Jaw size | Up to 2.06 in. (52.5 mm) |
| Screw positions | 2 |
| Dimensions (L × W × D) | 8.25 × 3.5 × 1.25 in. (20.9 × 8.9 × 3.2 cm) |
| Weight | 1.2 lb. (531 g) |
One-Year Limited Warranty
For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.
