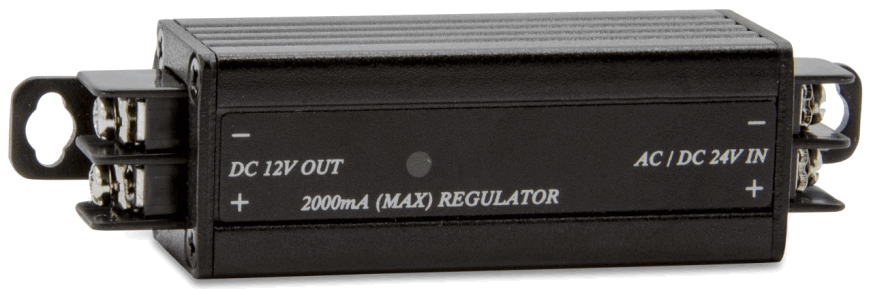

CON-24V-12V AC to DC 12V Power Converter
User Manual
Introduction
The Triplett CON-24V-12V is a power converter that allows DC powered camera to be powered by AC.
Features
- Converts AC/DC to DC 12V 2A.
- Supports AC 18V to 26V or DC 18V to 36V power input.
- Built-in 2-pin terminal block at both ends.
Installation View
LED Indication
| LED | LED Color | Description |
| POWER | GREEN ON | Power On |
Caution
- Please pay attention to the power input and output connection.
- The power connection between the positive and negative must be correct to avoid the product damage.
Specification
| ITEM NO. | CON-24V-12V |
| Support | |
| Input Power | AC 18~26V/ DC18~36V |
| Output Power | DC12V Regulated |
| Output Current | 2000mA (Max) |
| Ports & Interfaces | |
| Power Input | 1 x 2-pin Terminal Block |
| Power Output | 1 x 2-pin Terminal Block |
| Ambient Temperature | |
| Operation | -40 to 85℃ |
| Storage | -50 to 95℃ |
| Humidity | Up to 95% |
| Physical Characteristics | |
| Dimensions | 102.8 x 25.4 x 25.4mm |
| Weight | 75g |
Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This warranty does not apply to any of our products which have been repaired or altered by unauthorized persons in any way or purchased from unauthorized distributors so as, in our sole judgment, to injure their stability or reliability, or which have been subject to misuse, abuse, misapplication, negligence, accident or which have had the serial numbers altered, defaced, or removed. Accessories, including batteries are not covered by this warranty
